BMW S1000RR ('20-'24)
REAR SETS

SATO RACING Rear Sets for 2020-24 BMW S1000RR features an extensively track-tested design, with components precision crafted out of light-weight, high strength anodized billet aluminum. Adjustable step plates and foot pegs give you 12 positions in a useful range for performance riding. Shift linkage can be set up for stock shift pattern or reverse (GP-style) shift pattern. Choice of all-Black anodized finish, or Silver or Gold anodized finish with contrasting black base plates and shifter.

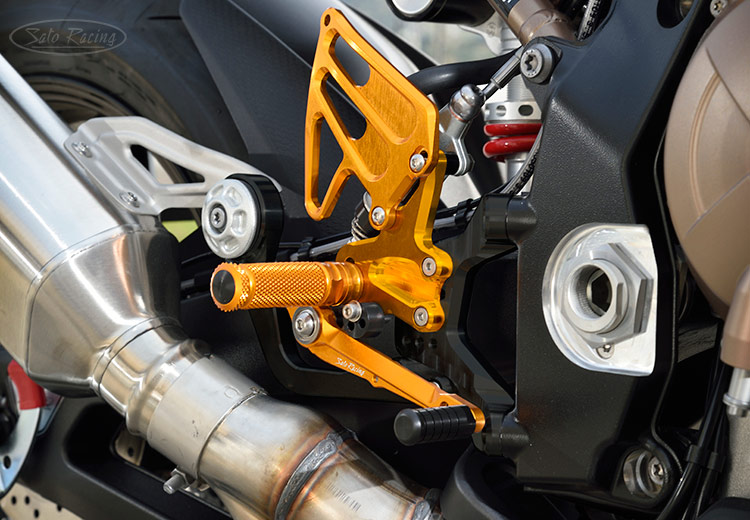

2020 BMW S1000RR with SATO RACING Rear Sets - [R]-side

The shifter and brake pedal use double stainless miniature bearings for smooth, precise lever actuation with a solid feel. The Base Plates have a black anodized finish, giving the controls a floating effect if you have the Silver or Gold version of the Rear Sets.

We offer 2 versions of these Rear Sets: With or without an Exhaust Hanger. Hanger is not required if you have an aftemarket exhaust that does not hang from the stock rearsets.

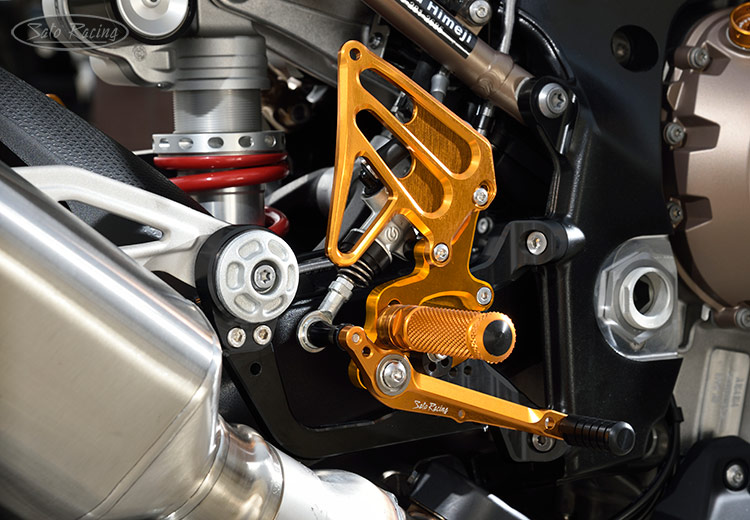

2020 BMW S1000RR with SATO RACING Rear Sets - [R]-side

A heavy duty Heel Guard helps to block off the open space between the master cylinder components and the exhaust hanger.



POSITIONS

1 10mm Forward 15mm Up
2 10mm Forward 25mm Up
3 10mm Forward 30mm Up
4 10mm Forward 40mm Up
5 0mm Back 15mm Up
6 0mm Back 25mm Up
7 0mm Back 30mm Up
8 0mm Back 40mm Up
9 10mm Back 15mm Up
10 10mm Back 25mm Up
11 10mm Back 30mm Up
12 10mm Back 40mm Up

note: all measurements are in relation to stock position (0 mm).

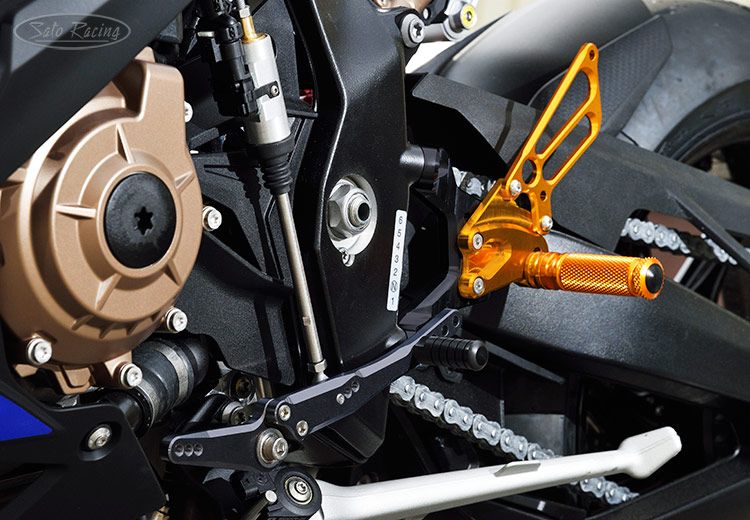

2020 BMW S1000RR with SATO RACING Rear Sets - [L]-side

Our Rear Sets provide a much wider range of adjustment compared to stock, bringing your feet 15mm-40mm higher up, and forward or back slghtly.

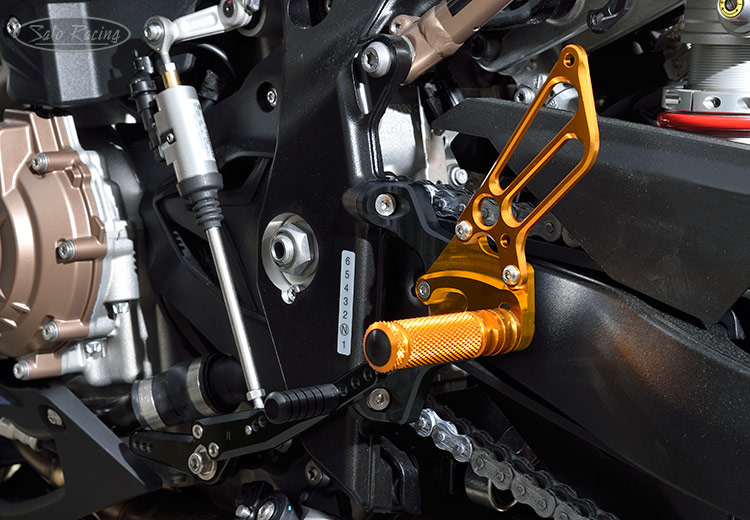

2020 BMW S1000RR with SATO RACING Rear Sets - [L]-side

Shift lever has a black anodized finish, and can be set up for stock shift or reverse shift pattern.

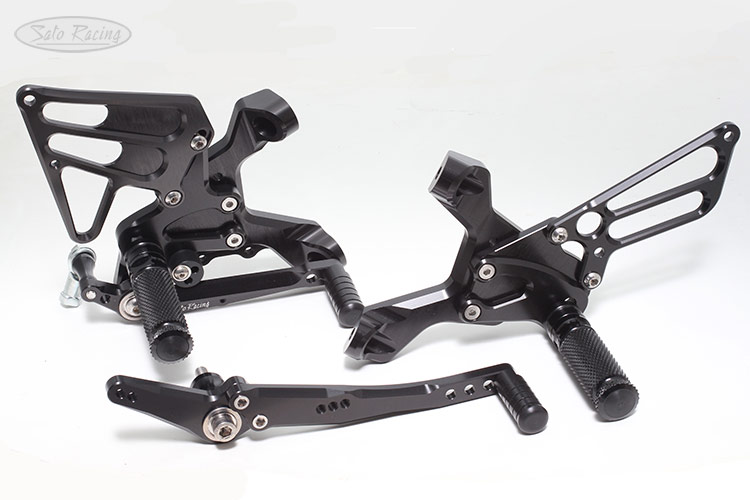

SATO RACING Rear Sets kit in Black for 2020+ BMW S1000RR

Rear Sets part# BMW-S120RS-BK. This version omits the exhaust hanger bracket, ideal if you have a high mounted exhaust that does not require a hanger.

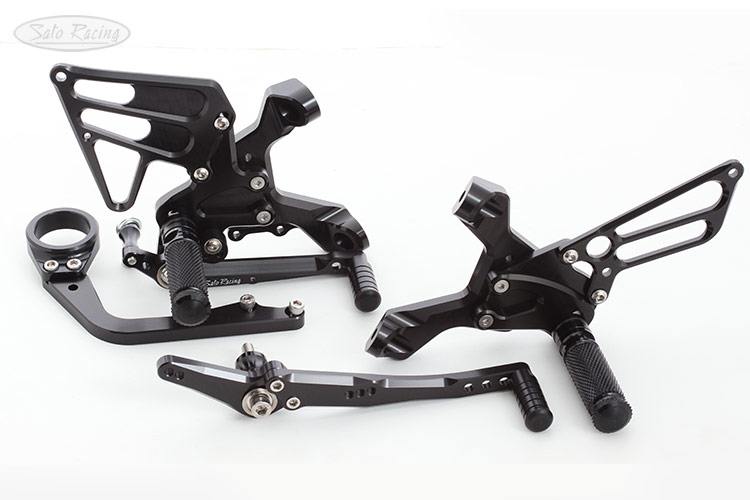

SATO RACING Rear Sets + exhaust hanger in Black for 2020+ BMW S1000RR

Rear Sets part# BMW-S120RS2-BK. This version includes an exhaust hanger bracket compatble with the stock low-mount exhaust.



REAR SETS (NO EXHAUST HANGER)

BLACK BMW-S120RS-BK
$795
SILVER BMW-S120RS-SV
$795
GOLD BMW-S120RS-GD
$795


REAR SETS + EXHAUST HANGER

BLACK BMW-S120RS2-BK
$895
SILVER BMW-S120RS2-SV
$895
GOLD BMW-S120RS2-GD
$895

Click Here for important info about Sato color-anodized parts.




________________________________________________________________

OPTIONS

________________________________________________________________


Race Concept
Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

* Click Here for important info about Sato color-anodized parts.




________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



______________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.

More Sato Racing items for 2020+ BMW S1000RR

Racing Hook Oil Cap Frame Sliders
