BMW S1000R ('14-'16)
REAR SETS

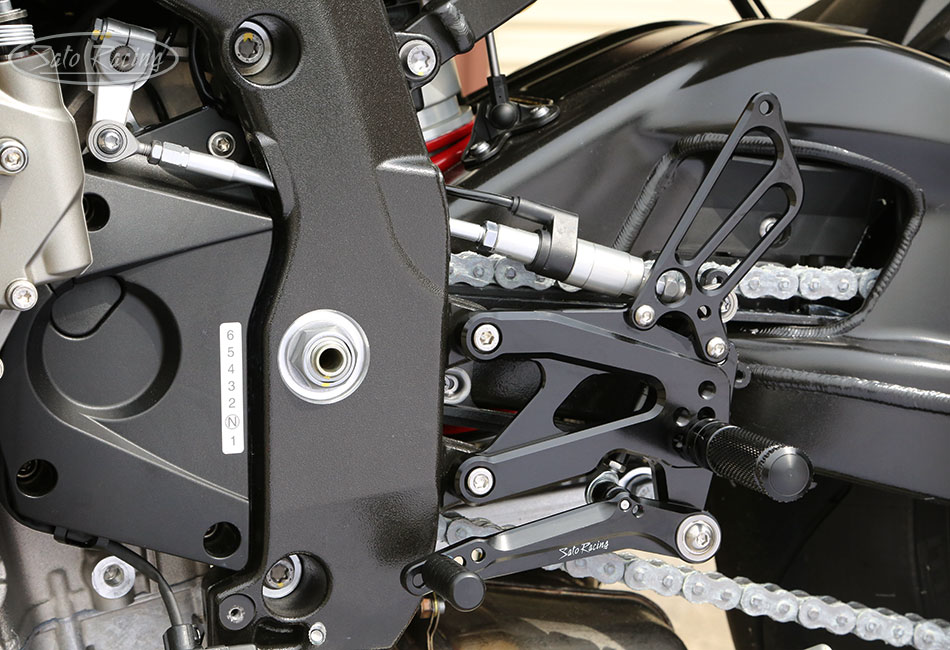

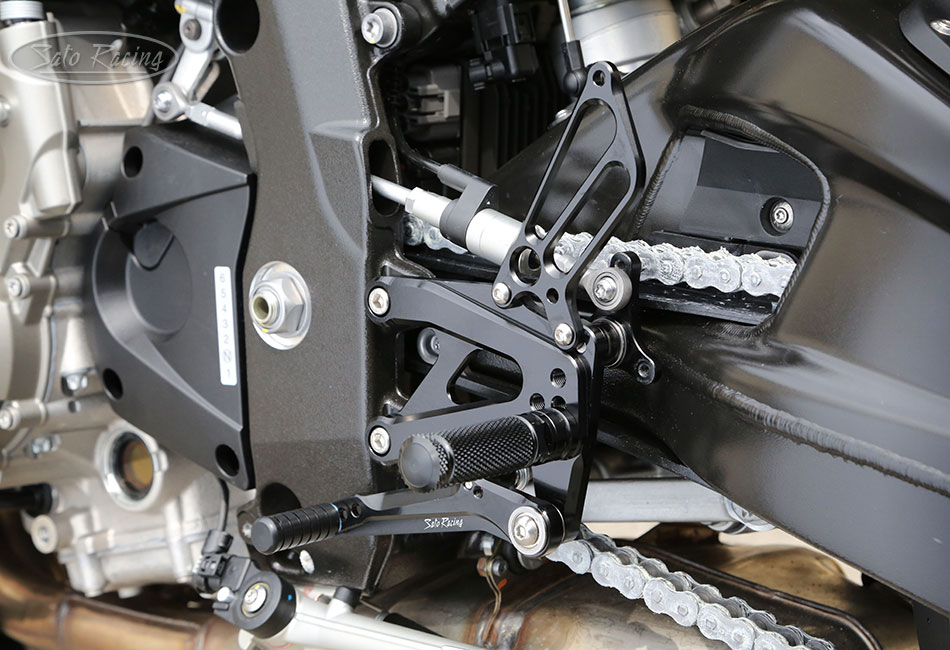

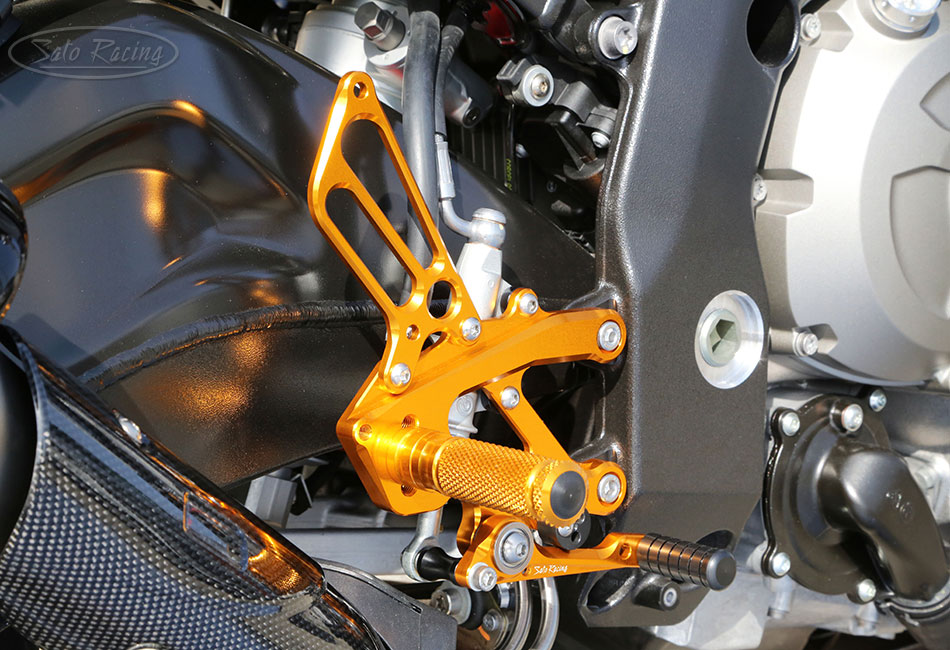

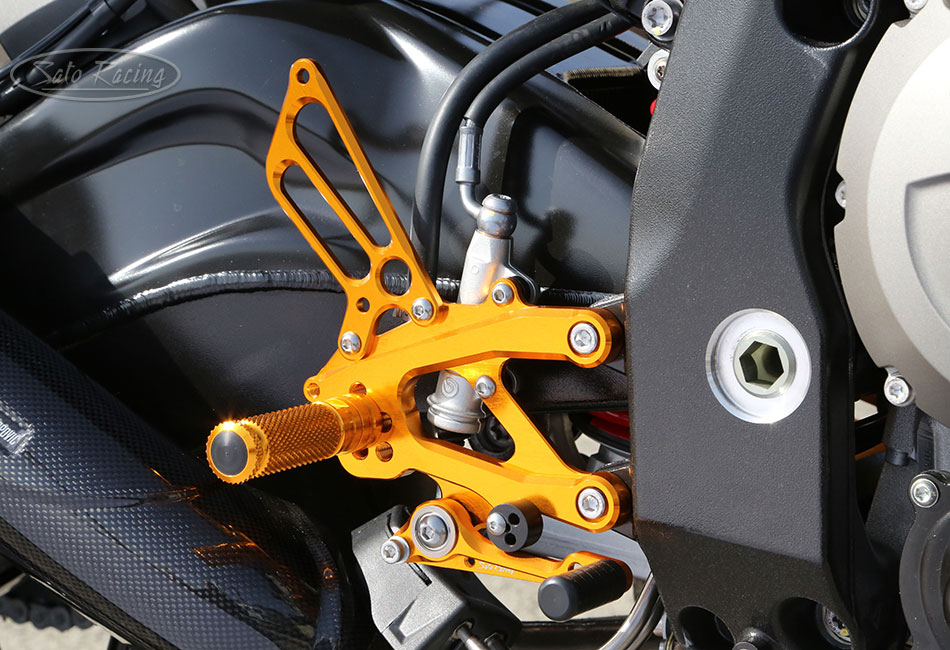

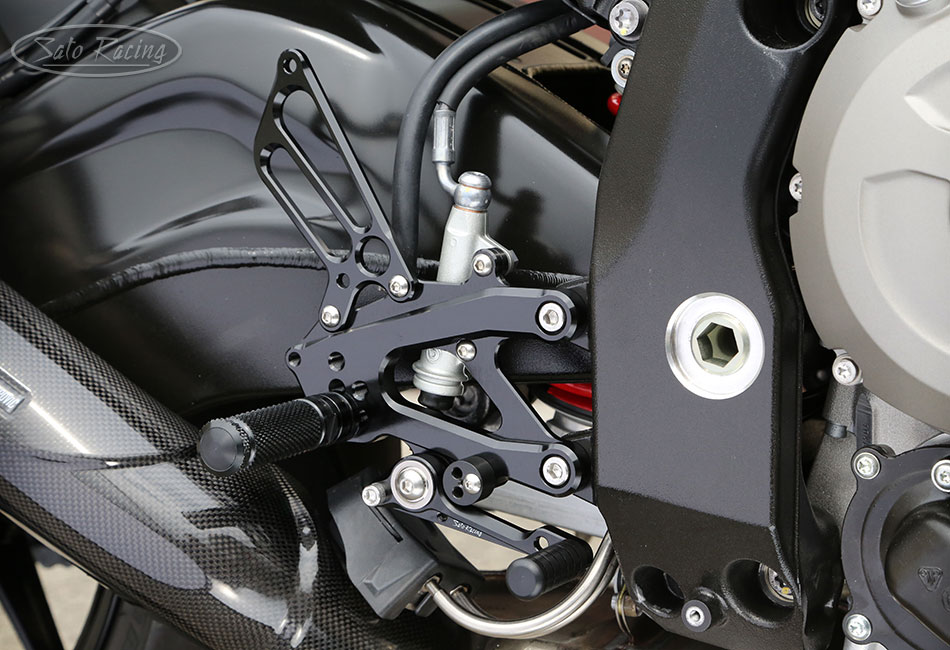

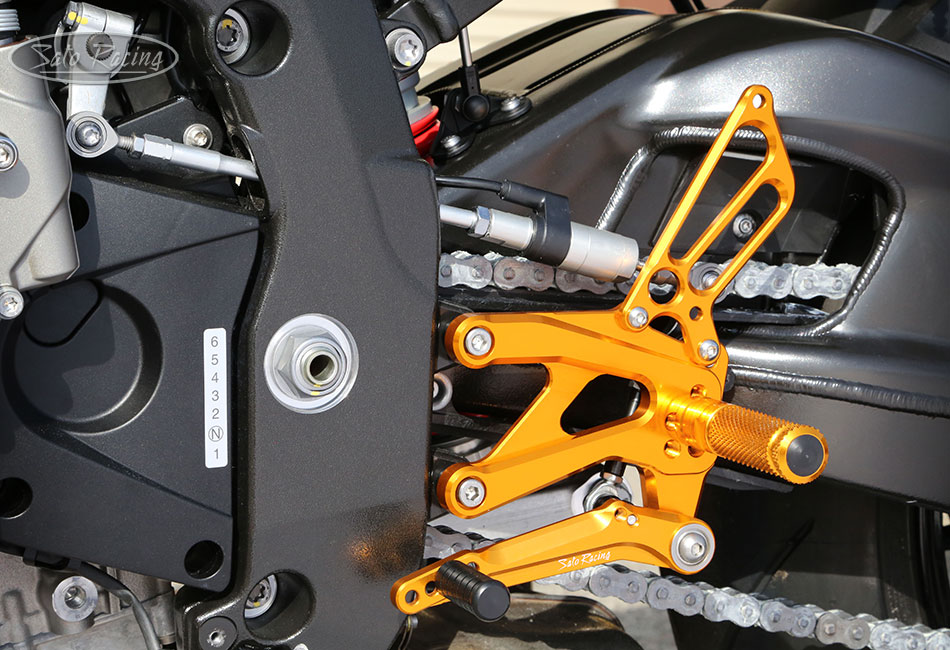

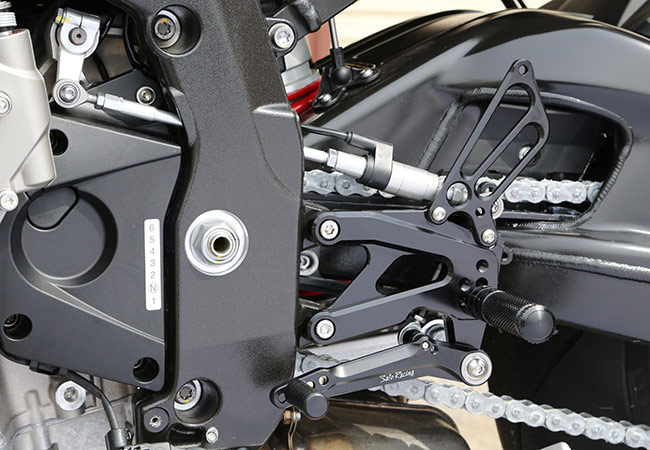

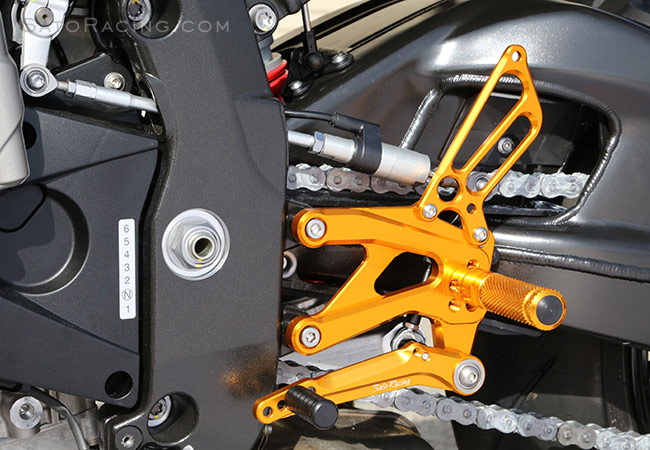

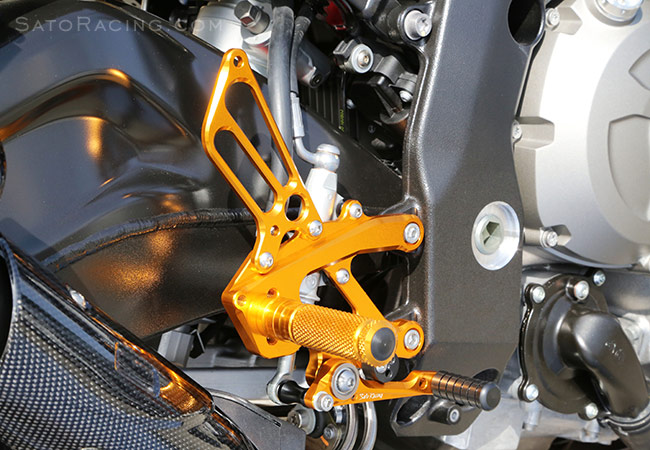

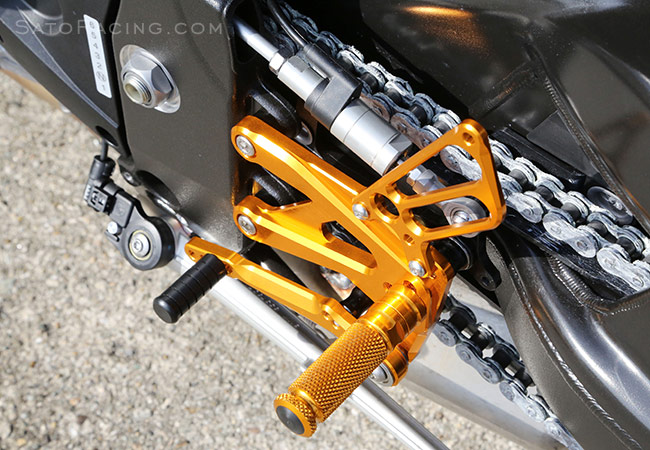

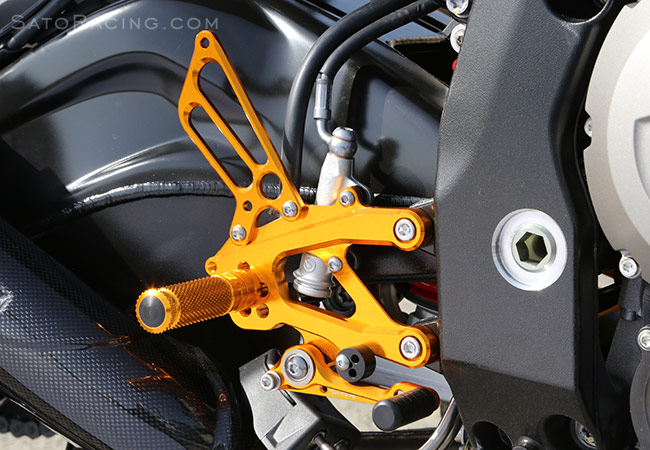

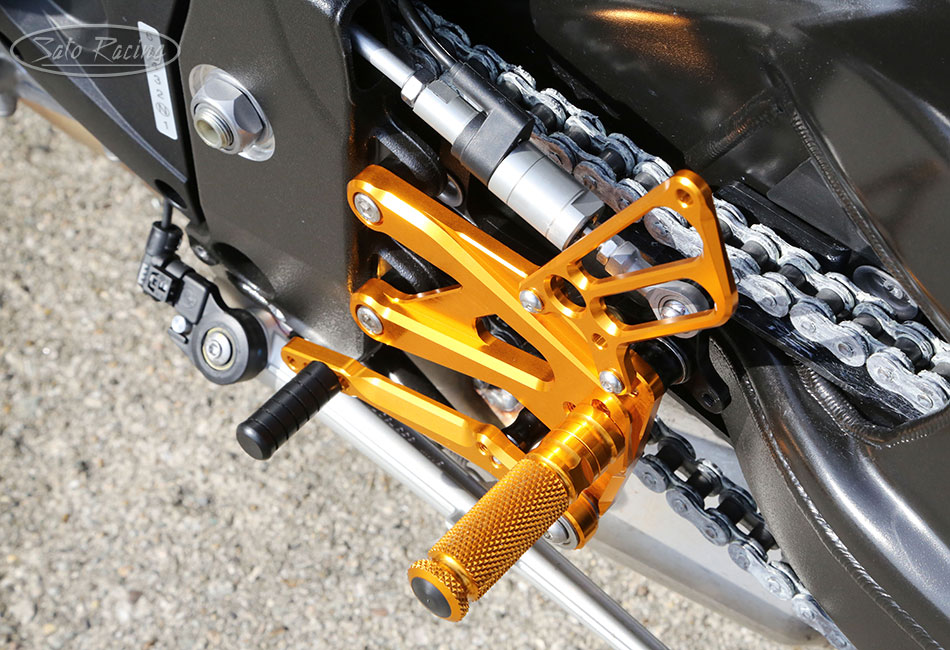

| SATO RACING Rear Sets for 2014-16 BMW S1000R features a track-engineered design, with components precision machined out of light-weight, high strength anodized billet aluminum. You can choose from 5 adjustable foot peg positions that bring your feet higher up compared to stock. Multi-link shift link design allows you to set it up for either stock shift pattern or GP-style reverse shift pattern. Choice of Black, Silver or Gold anodized finish. |

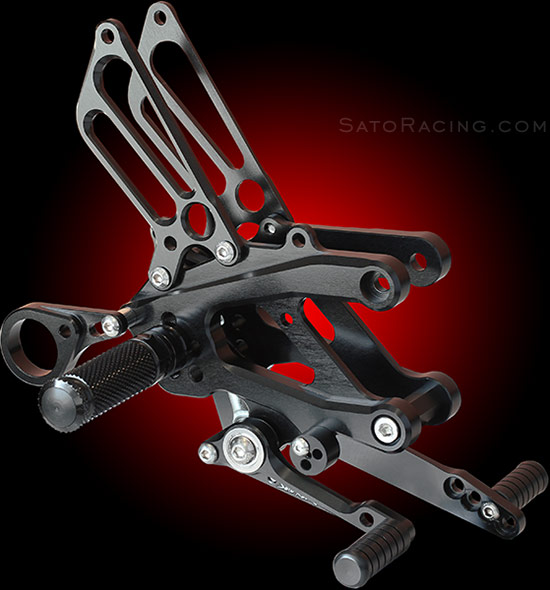

![SATO RACING BMW S1000R Rear Sets in Black - [R]-side](pics/BMW-S1000RS_BK-R_550x590.jpg "SATO RACING BMW S1000R Rear Sets in Black [R]-side")
(Rear Sets shown with optional Exhaust Hanger Bracket)

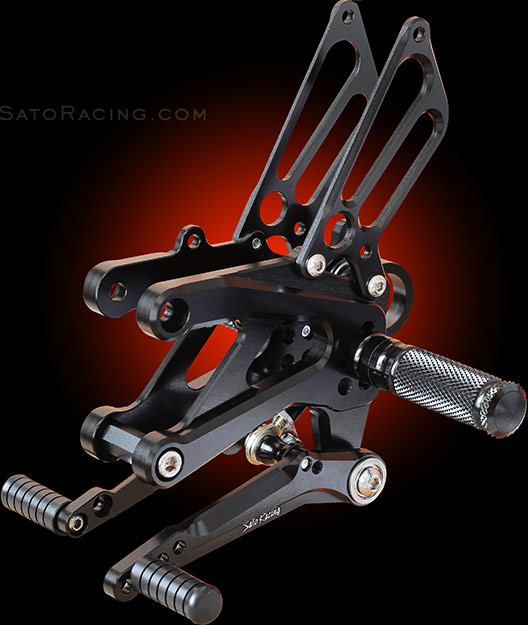

![SATO RACING BMW S1000R Rear Sets in Black - [L]-side](pics/BMW-S1000RS_BK-L_528x625.jpg "SATO RACING BMW S1000R Rear Sets in Black - [L]-side")
| 1 | 0mm Back | 12.5mm Up |
| 2 | 0mm Back | 25mm Up |
| 3 | 12.5mm Back | 12.5mm Up |
| 4 | 12.5mm Back | 25mm Up |
| 5 | 12.5mm Back | 37.5mm Up |
note: all measurements are in relation to stock position (0 mm).
The positions of both the Foot Pegs and the Pedal Tips are adjustable.
The Foot Pegs have a finely knurled pattern for excellent grip and a comfortable, intuitive feel.
Double stainless bearings in the shift and brake pedals help ensure smooth, precise lever actuation
with a solid feel. You can adjust the stop position of the Brake Pedal by rotating the pedal stopper.

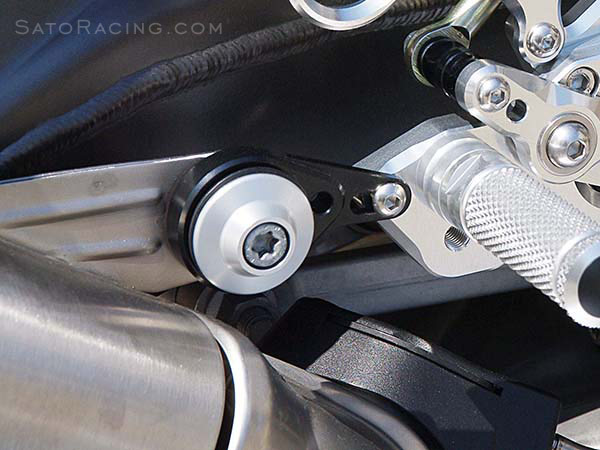

If you have the stock BMW exhaust or stock-style aftermarket exhaust canister
that hangs from the tail end of the rear sets, this black-anodized billet aluminum
Exhaust Hanger Bracket (sold separately) works well with our S1000R Rear Sets.
The peg positions provided by these Rear Sets can move your
feet up to 37.5mm up and 12.5mm back compared to stock.
The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as
folding-style aluminum Pedal Tips with rubber sleeves, are an available option: More Details

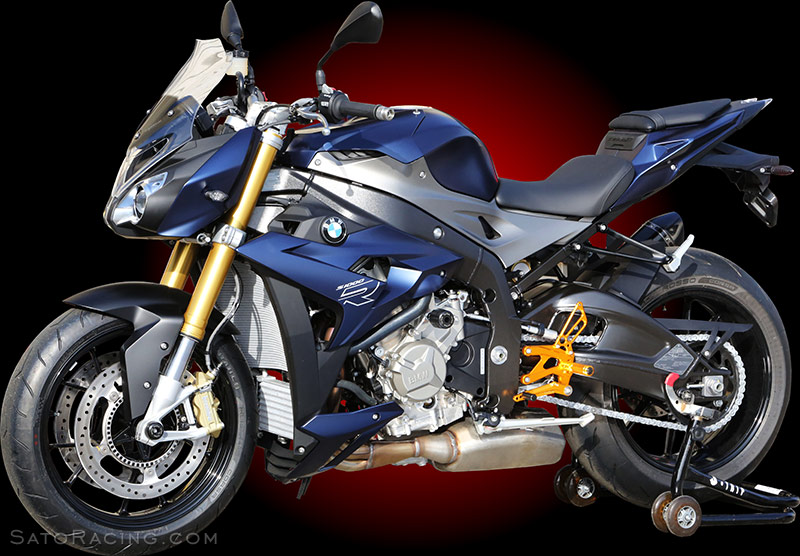

These Rear Sets are cleanly styled to blend well with the lines of the S1000R.
Shift linkage can be set up for stock or reverse (GP) shift pattern
(see animated GIF below)
You can switch from stock shift to reverse shift pattern
by relocating the shift rod to the opposite hole.
REAR SETS
| BLACK | BMW-S1000RS-BK $605 |
 |
| SILVER | BMW-S1000RS-SV $605 |
|
| GOLD | BMW-S1000RS-GD $605 |
|
HANGER BRACKET
(Optional part for stock exhaust canister)
| BLACK | CANBT-BMW2 $62 |
|
Click Here for important info about Sato GOLD-anodized parts.
Have questions or prefer to order by phone? You can call us to place an order -
OPTIONS
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK/ SV/ GD) (#17) |
PEGCLR-15 $15 |
|
 |
STUD BOLT M8-40 (Foot Peg bolt) |
STBT-40 $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-6L $60 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-6R $60 |
|
 |
SHIFT ROD 40 [BLACK] (#7) |
SRD-40-B $35 |
|
 |
COLLAR 5-6 (BK) (#13) |
HGCLR-5 $8.00 |
|
 |
ROD END COLLAR 19 (#14) |
RDED-CLR19 $8.00 |
|
 |
COLLAR 10-8 (#16) |
BPCLR-10 $8.00 |
|
|
BUTTON HEAD M5-20mm (#18) |
BBT-M520 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#19) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-18mm (#18) |
BBT-M618 $2.00 |
|
|
BUTTON HEAD M6-25mm (#22) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M6-35mm (#23) |
BBT-M635 $1.75 |
|
 |
BUTTON HEAD M6-50mm (#24) |
BBT-M650 $2.50 |
|
 |
SOCKET HEAD M8-20mm (#27) |
SBT-M820 $1.50 |
|
 |
SOCKET HEAD M8-30mm (#28) |
SBT-M830 $2.00 |
|
 |
PEDAL STOPPER (DELRIN) (#30) |
BPD-STOPPER $15.00 |
|
 |
REVERSE MALE ROD END M6 (#31) |
RDED-M6L $12.50 |
|
 |
M6 MALE ROD END (#32) |
RDED-M6 $12.50 |
|
 |
FEMALE ROD END M6 (#33) |
RDED-F6 $15 |
|
 |
LOCK NUT M6 (#34) |
LNT-6 $1.50 |
|
 |
JAM NUT M6 (#32) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#36) |
JNT-6L $2.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
