HONDA CBR500R/ CB500F ('13-'18)
(CBR400R/ CB400F)
REAR SETS

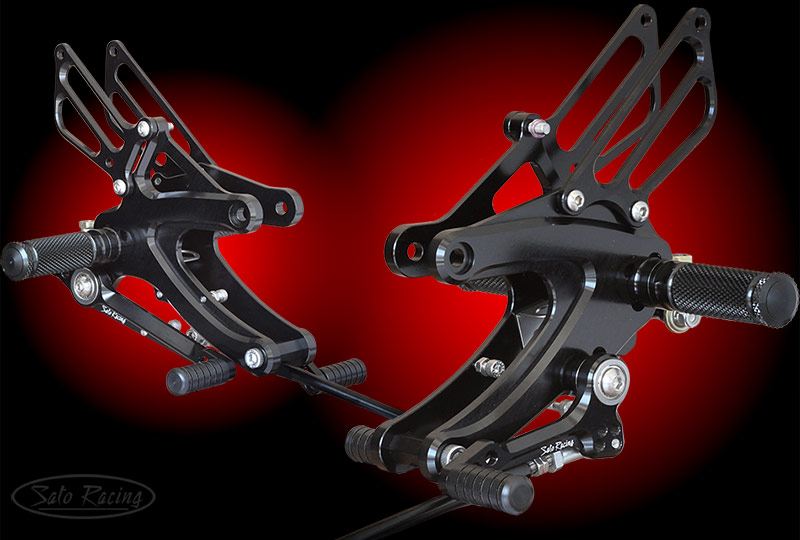

| SATO RACING Rear Sets for 2013-18 CBR500R and CB500F (along with non-US Honda models CBR400R/CB400F) are track-engineered and precision CNC-machined out of high strength billet aluminum, with stainless steel hardware. This sturdy yet lightweight design provides 4 adjustable foot peg positions that place your feet higher and further back compared to stock, helping you achieve a more agressive riding position ideally suited for the fast straights and steep lean angles encountered on the track. Choice of Black, Silver, or Gold anodized finish. |
POSITIONS
| 1 | 40mm Back | 50mm Up |
| 2 | 40mm Back | 65mm Up |
| 3 | 47.5mm Back | 57.5mm Up |
| 4 | 55mm Back | 65mm Up |
Note: all measurements are in relation to stock position (0 mm).
The shift and brake pedals utilize double stainless bearings for smooth, precise lever actuation with
a solid feel. The positions of both the footpegs and the pedal tips can be adjusted to your preference.

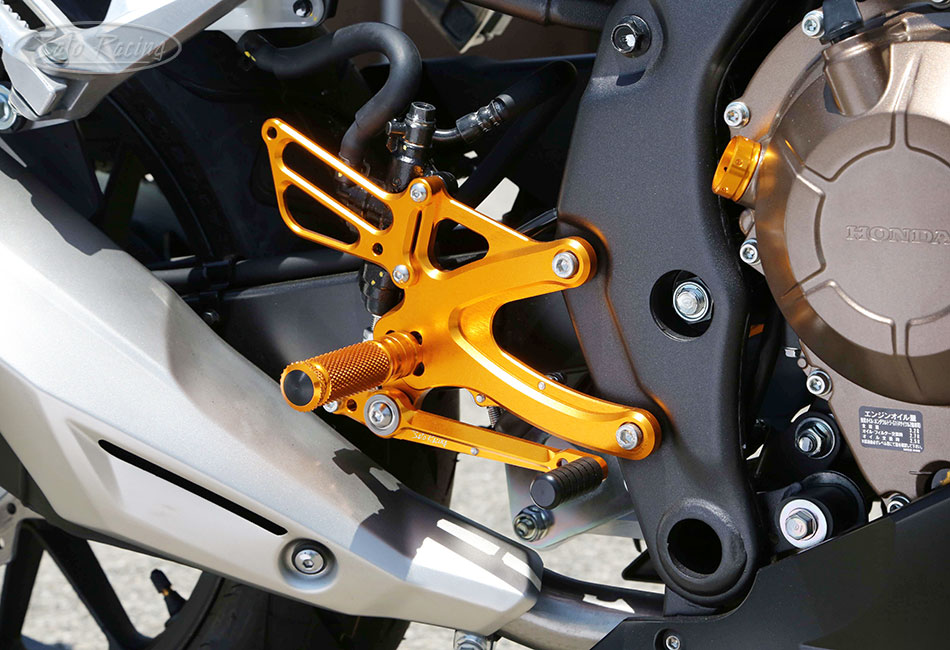

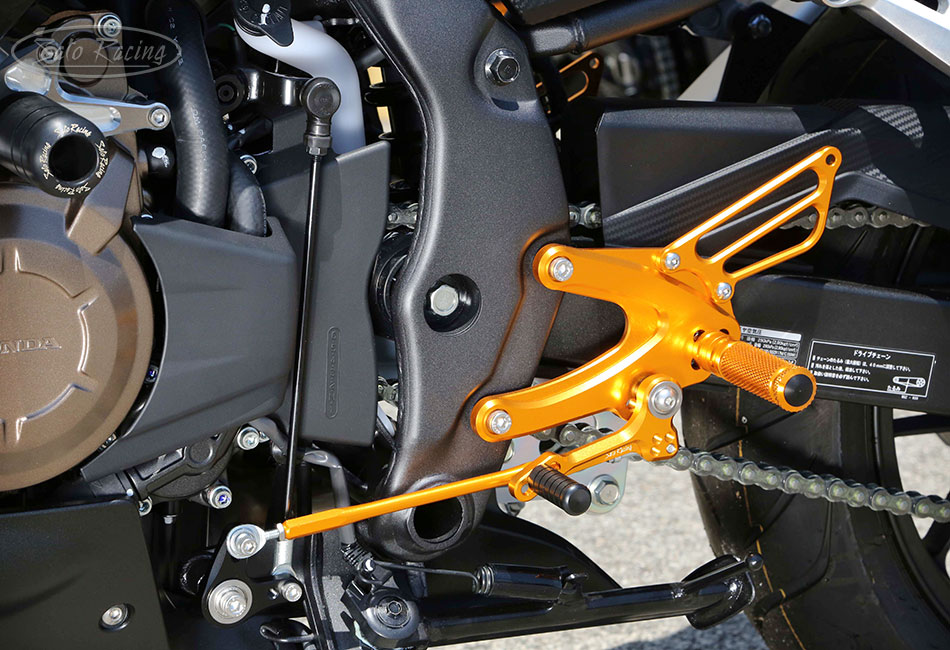

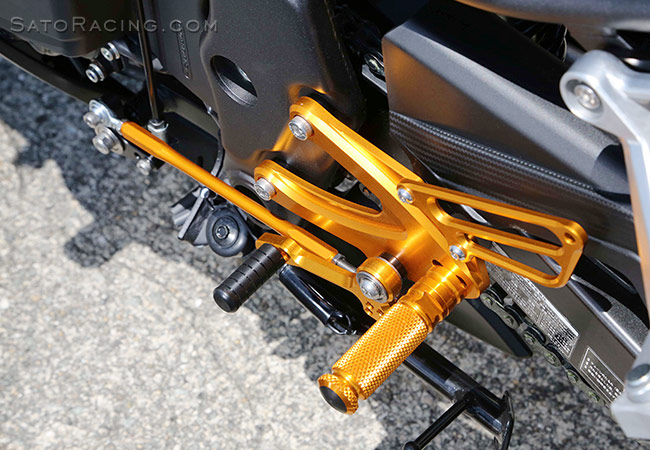

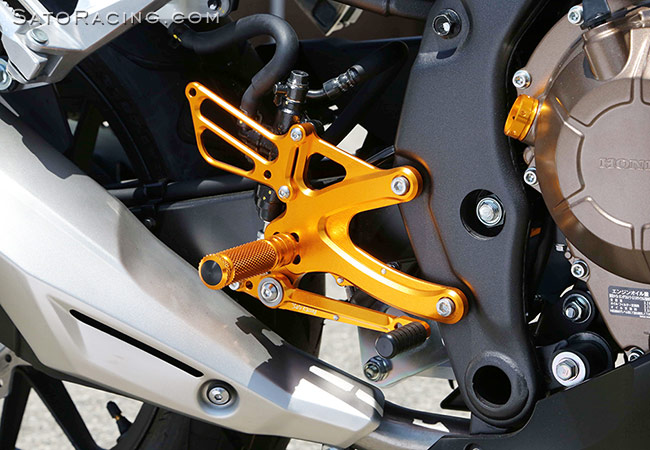

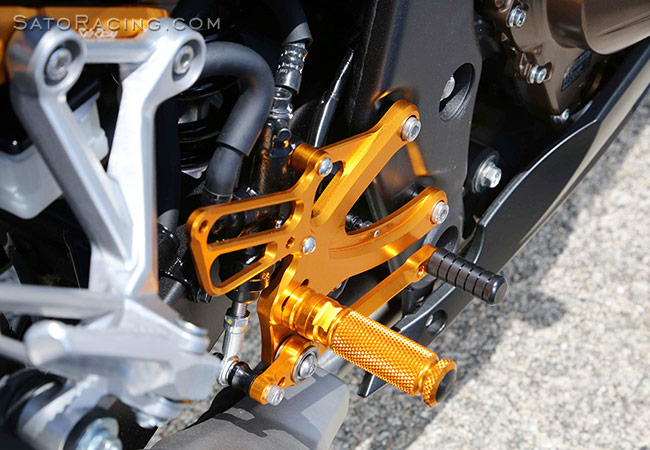

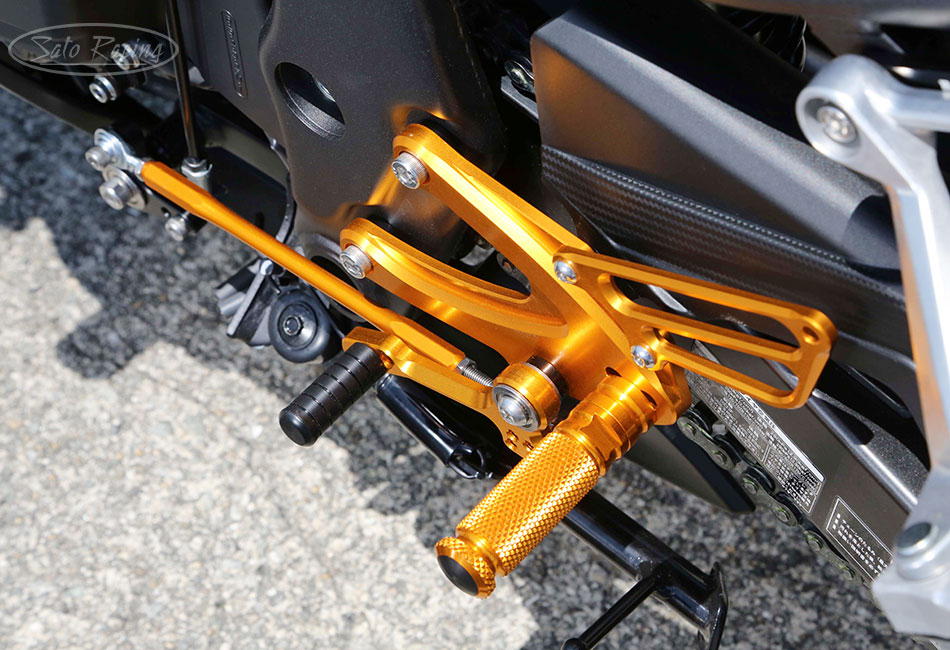

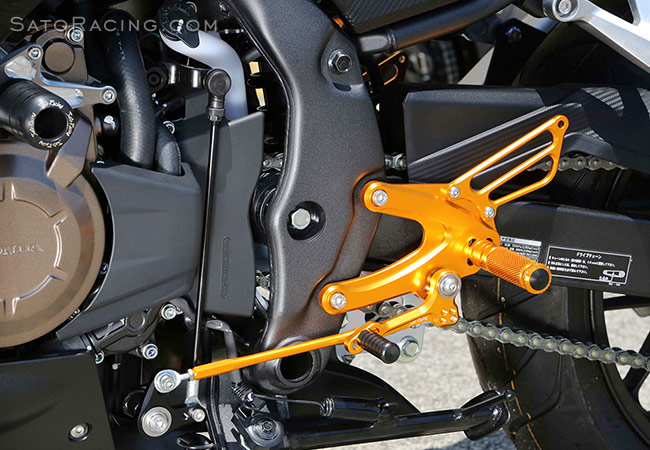

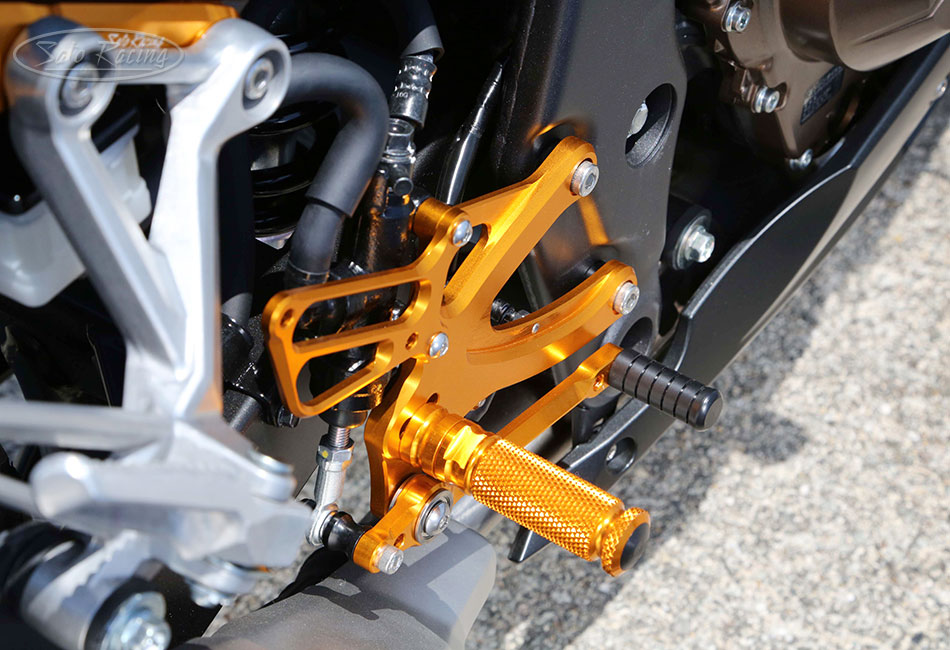

(Rear Sets shown installed on a 2016 model CBR500R)
Footpegs feature a finely knurled grip pattern with excellent non-slip characteristics.
These Rear Sets are compatible with the stock rear brake light switch and ABS.
The shift stroke can be fine-tuned by relocating where the shift rod connects to the pedal.
Note: These Rear Sets use the stock shifting pattern.
Reverse (GP) shift pattern is not an option on this model.
| BLACK | H-CBR513RS-BK $495 |
 |
| SILVER | H-CBR513RS-SV $495 |
|
| GOLD | H-CBR513RS-GD $495 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
Replacement Parts
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK / SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 15 (BK / SV/ GD) (#17) |
PEGCLR-15 $15 |
|
 |
HEX HEAD M8-40mm (#32, Foot Peg bolt) |
HBT-M840 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (#1) |
HG-2L $50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (#2) |
HG-1R $50 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (#5) |
SPD-10 $62.50 |
|
 |
SHIFT ROD 180 (BK/ SV/ GD) (#6) |
SRD-180 $39 |
|
 |
BEARING COLLAR 5s [BLACK] (#12) |
PEGBGCLR-5SB $10.00 |
|
 |
BEARING COLLAR 10s (#13) |
PEGBGCLR-10SB $10.00 |
|
 |
ROD END COLLAR 3 (#14) |
RDED-CLR3 $6.00 |
|
 |
ROD END COLLAR 20 (#15) |
RDED-CLR20 $8.00 |
|
 |
BASE PLATE COLLAR 5 (#16) |
BPCLR-5 $8.00 |
|
 |
SOCKET HEAD M5-15mm (#18) |
SBT-M515 $2.00 |
|
 |
SOCKET HEAD M5-30mm (#19) |
SBT-M530 $2.00 |
|
 |
SOCKET HEAD M6-18mm (#20) |
SBT-M618 $2.00 |
|
 |
SOCKET HEAD M6-20mm (#22) |
SBT-M620 $1.50 |
|
|
SOCKET HEAD M6-25mm (#22) |
SBT-M625 $1.50 |
|
 |
SOCKET HEAD M6-45mm (#23) |
SBT-M645 $2.00 |
|
 |
SOCKET HEAD M8-40mm (#25) |
SBT-M840 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#26) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-25mm (#28) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-25mm (#29) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-30mm (#30) |
BBT-M830 $2.00 |
|
 |
HEX HEAD M5-8mm (#31) |
HBT-M58 $2.00 |
|
 |
STUD M6 (#33) |
STUD-M6 $2.50 |
|
 |
SMALL WASHER - M8 (#34) |
PWS-8 $1.00 |
|
 |
SPLIT WASHER M8 (#35) |
SWS-8 $1.20 |
|
 |
NUT M5 (#36) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#37) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#38) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#39) |
LNT-6 $1.50 |
|
 |
REVERSE MALE ROD END M6 (#40) |
RDED-M6L $12.50 |
|
 |
FEMALE ROD END M6 (#41) |
RDED-F6 $15.00 |
|
 |
FEMALE ROD END 6-M8 (#42) |
RDED-F6-8 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
