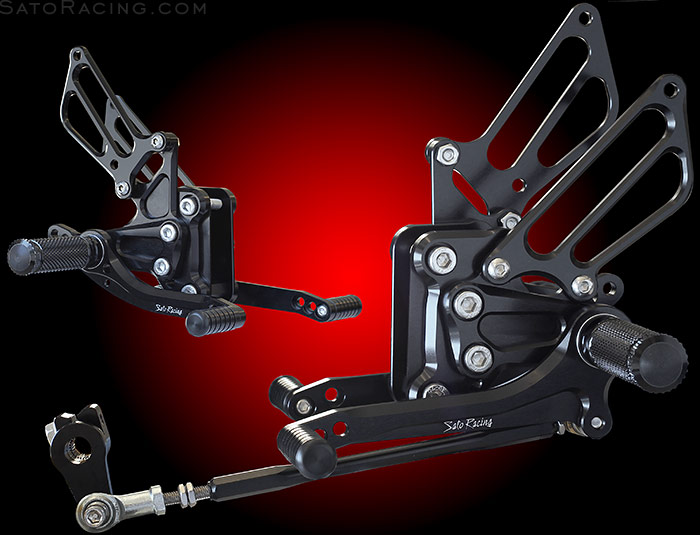

HONDA VFR800/ INTERCEPTOR ('02 -'12)
REAR SETS
| SATO RACING Rear Sets for 2002-'12 Honda VFR800 features components made out of high strength billet aluminum anodized in your choice of a Black, Silver, or Gold finish. The shift and brake pedals use double stainless bearings for the smoothest shift action. Knurled footpegs provide optimal grip even in wet conditions. Modular adjustable design lets you select from 6 adjustable positions, so you can find the ideal position for your riding style. Choose between our standard Rear Sets that come with a stock shift pattern, or dedicated Reverse Shift Rear Sets that provide a GP-style reverse shifting pattern. Both types are compatible with both ABS and non-ABS VFR800/ Interceptor models. |
(Rear Sets - stock shift version)
| 1 | 10mm Forward | 12.5mm Down |
| 2 | 10mm Forward | 0 mm |
| 3 | 0 mm | 0 mm |
| 4 | 0 mm | 12.5mm Up |
| 5 | 10mm Back | 12.5mm Up |
| 6 | 10mm Back | 25mm Up |
note: all measurements are in relation to stock position (0 mm).

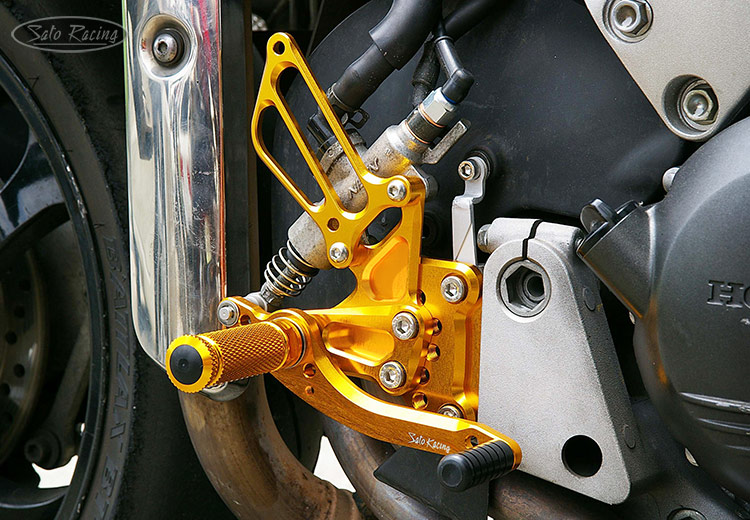

![Sato Racing Honda VFR800/ Interceptor Rear Sets [R]-side](pics/VFR800_RS_GD_R1_750x520.jpg "Sato Racing Honda VFR800/ Interceptor Rear Sets [R]-side")
Foot Pegs are finely knurled for superior grip, along with a comfortable, intuitive
feel. A pressure-actuated Brake Light Switch is included with the kit.

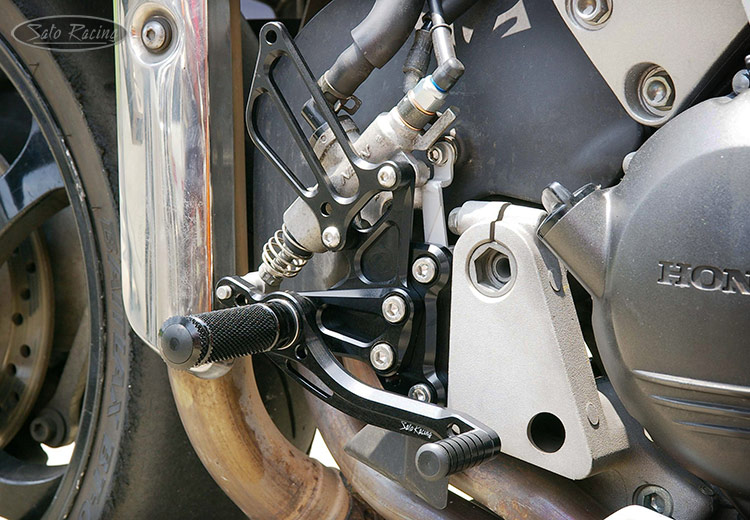

![Sato Racing Honda VFR800/ Interceptor Rear Sets [R]-side](pics/VFR800_RS_BK_R1_750x520.jpg "Sato Racing Honda VFR800/ Interceptor Rear Sets [R]-side")

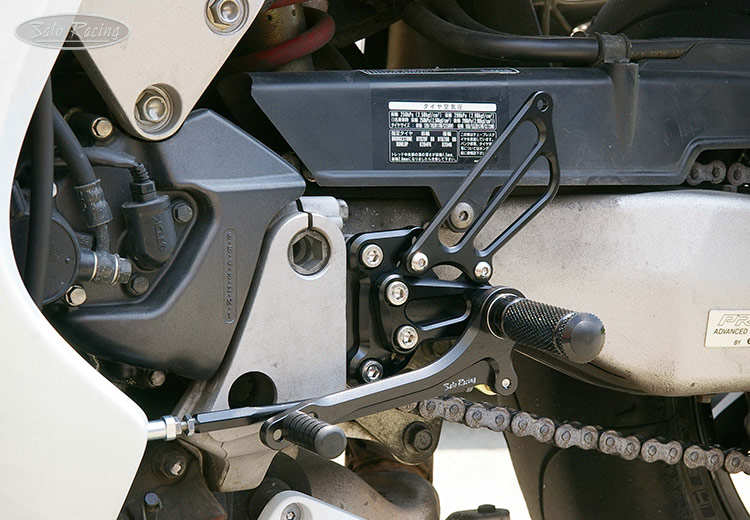

![SATO RACING Honda VFR800/ Interceptor Rear Sets [L]-side](pics/VFR800_RS_BK_L1_750x520.jpg "SATO RACING Honda VFR800/ Interceptor Rear Sets [L]-side")

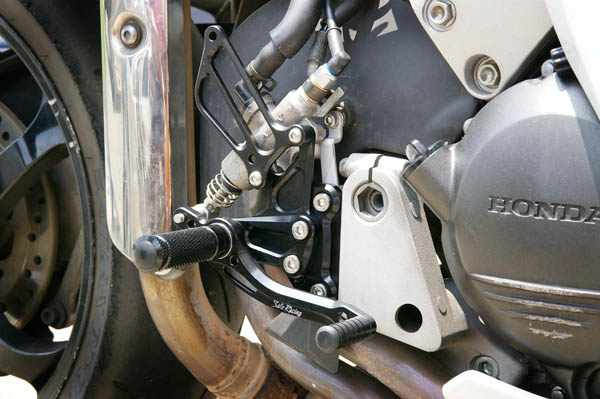

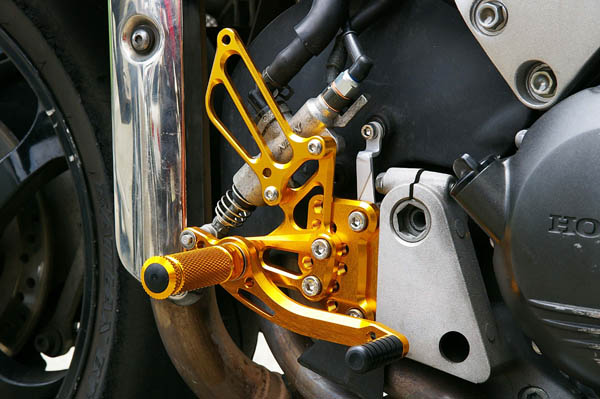

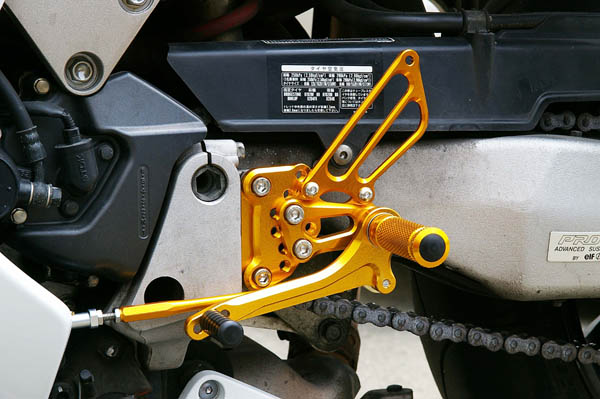

Standard (Stock Shift) Rear Sets shown above. The Reverse Shift version has an inverted
shift pedal and a few other hardware differences to enable a GP-style reverse shifting pattern.
Rear Sets - Stock Shift Pattern
(v.2 design update - also fits 2014+ VFR800F)
| BLACK | H-VFR814RS-BK $590 |
 |
| SILVER | H-VFR814RS-SV $590 |
|
| GOLD | H-VFR814RS-GD $590 |
|
Rear Sets - Reverse Shift Pattern
| BLACK | H-VFR8RSR-BK $590 |
|
| SILVER | H-VFR8RSR-SV $590 |
|
| GOLD | H-VFR8RSR-GD $590 |
|
Click Here for important info about Sato color-anodized parts.

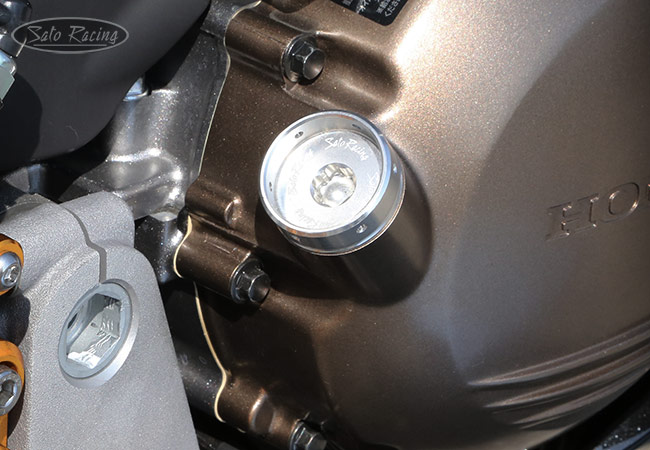

HONDA VFR800F (+ various)
OIL FILLER CAP
| SATO RACING Oil Filler Cap part# H-OFCAP2-R makes a nice accent for our VFR800F Rear Sets! It is precision machined out of billet aluminum alloy. Holes in the outer rim can be used to attach a safety wire. Choice of Black, Silver or Gold anodized finish. (Use with the stock O-ring) Options include a compact Quickwrench Tool for designed for this Oil Cap that you can keep on your keyring. |
| BLACK | H-OFCAP2-RB $50 |
|
| SILVER | H-OFCAP2-RS $50 |
|
| GOLD | H-OFCAP2-RG $50 |
|
 |
QUICK-WRENCH for SATO Oil Cap |
OFCAP-TOOL $32 |
|
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF parts list:
H-VFR8RS (original design version) | H-VFR8RSR
H-VFR814RS (v.2 design update)
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
Part numbers correspond with H-VFR8RS unless otherwise noted.
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
STUD BOLT SHORT (M8x55) (Foot peg bolt) |
STBT-S $4.50 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $16.50 |
|
 |
SOCKET HEAD M8-15mm (#3) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M8-20mm (#4) |
SBT-M820 $1.50 |
|
 |
BASE PLATE COLLAR 5 (#5) |
BPCLR-5 $8.00 |
|
 |
FLANGE NUT M8 (L-side #6 / R-side #9) |
FNT-8 $1.50 |
|
 |
PEG WASHER - M8 (L-side #10 / R-side #12) |
PWS-8 $1.00 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #15) |
HG-2L $60 |
|
 |
BUTTON HEAD M6-10mm (L-side #16) |
BBT-M610 $1.50 |
|
 |
SHIFT ROD 160 (BK/ SV/ GD) (L-side #17) |
SRD-160 $39 |
|
 |
M6 MALE REVERSE ROD END (L-side #18) |
RDED-M6L $12.50 |
|
 |
REVERSE JAM NUT M6 (L-side #19) |
JNT-6L $2.50 |
|
 |
BUTTON HEAD M6-15mm (reverse shift rear sets - L-side #20) |
BBT-M615 $1.50 |
|
 |
SOCKET HEAD M6-20mm (Std rear sets - L-side #20 / 25 / R-side #8) |
SBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (standard rear sets - L-side #21) |
RDED-CLR3 $6.00 |
|
 |
FEMALE ROD END M6 (L-side #22) |
RDED-F6 $15 |
|
 |
STUD M6 (L-side #23) |
STUD-M6 $2.50 |
|
|
JAM NUT M6 (L-side #24) |
JNT-6 $1.75 |
|
 |
CHANGE ARM (L-side #26) |
CA-2 $50 |
|
 |
FLANGE HEAD M6-20mm (L-side #27) |
FGBT-M620 $2.00 |
|
 |
BASE PLATE COLLAR 2 (R-side #6) |
BPCLR-2 $5.00 |
|
 |
BEARING COLLAR SUS (R-side #10) |
BGCLR-SUS $6.50 |
|
 |
BRAKE PEDAL (R-side #11) |
BPD-2 $80 |
|
|
PEG WASHER - M8 (R-side #12) |
PWS-8 $1.00 |
|
 |
BRAKE ROD M 40 (R-side #18) |
BRD-M40 $13.50 |
|
 |
WASHER M6 (R-side #19) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #20) |
ECP-6 $1.50 |
|
 |
[R] HEEL GUARD (BK/ SV/ GD) (R-side #21) |
HG-1R $60 |
|
 |
BUTTON HEAD M6-35mm (R-side #22) |
BBT-M635 $1.75 |
|
 |
PLAIN NUT M6 (R-side #23) | NUT-6 $1.50 |
|
 |
SOCKET HEAD M6-10mm (R-side #24) |
SBT-M610 $1.50 |
|
 |
PCV STAY (BK/ SV/ GD) (R-side #25) |
UB-M625-B $9.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
 |
RETURN SPRING 40 |
RS-RSP $8.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
