YAMAHA YZF-R1 ('07-'08)
REAR SETS

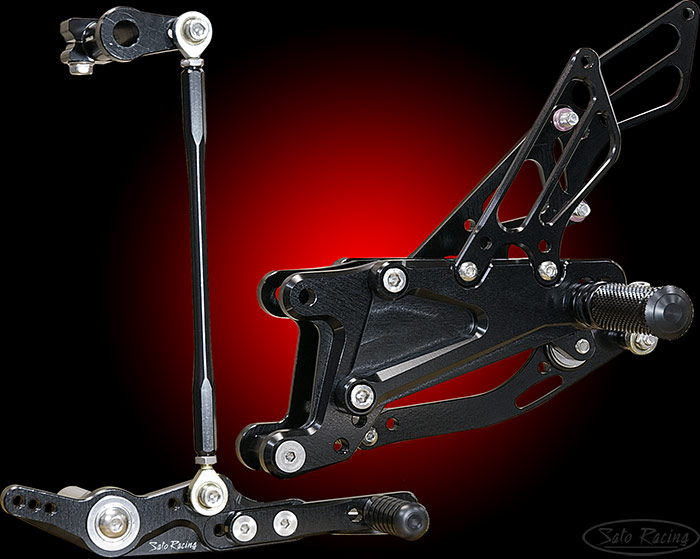

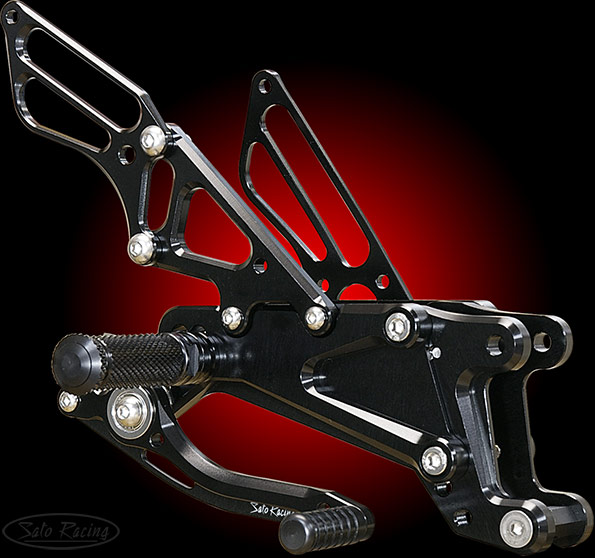

| SATO RACING Rear Sets for 2007-08 Yamaha YZF-R1 features an extensively track-proven design, with components precision CNC-machined out of high strength billet aluminum and anodized in your choice of all-Black finish, or Gold anodized finish with black shift assembly. Modular step plate design lets you choose from 16 adjustable foot peg positions, ranging from stock-equivalent position to more aggressive positions that bring your feet higher up and further back compard to stock. You can switch these Rear Sets to reverse shift pattern by relocating the shift rod to the opposite end of the shift pedal. |
![SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side](pics/07r1rsbkr.jpg "SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side")
![SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side](pics/07r1rsbkl.jpg "SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side")
| 1 | 0mm Back | 0mm Up |
| 2 | 10mm Back | 0 mm Up |
| 3 | 10mm Back | 10mm Up |
| 4 | 0mm Back | 10mm Up |
| 5 | 10mm Back | 12.5mm Up |
| 6 | 20mm Back | 12.5mm Up |
| 7 | 20mm Back | 22.5mm Up |
| 8 | 10mm Back | 22.5mm Up |
| 9 | 20mm Back | 25mm Up |
| 10 | 30mm Back | 25mm Up |
| 11 | 30mm Back | 35mm Up |
| 12 | 20mm Back | 35mm Up |
| 13 | 7.5mm Back | 25mm Up |
| 14 | 17.5mm Back | 25mm Up |
| 15 | 17.5mm Back | 35mm Up |
| 16 | 7.5mm Back | 35mm Up |
note: all measurements are in relation to stock position (0 mm).
![SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side](pics/Y-R107RS-BK_fitR2_650x475.jpg "SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side")

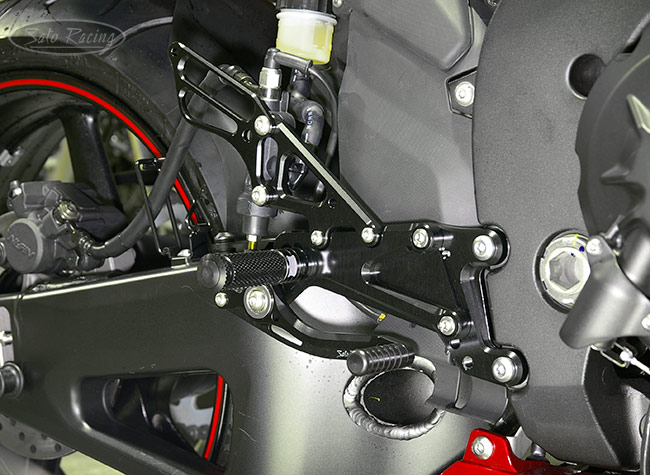

| The shift and brake pedals utilize miniature double stainless bearings for smooth, precise movement. The Foot Pegs are finely knurled for excellent grip along wih a comfortable, intuitive feel. |
![SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side](pics/07r1rsrbkfit.jpg "SATO RACING YZF-R1 '07-'08 Rear Sets [R]-side")
|

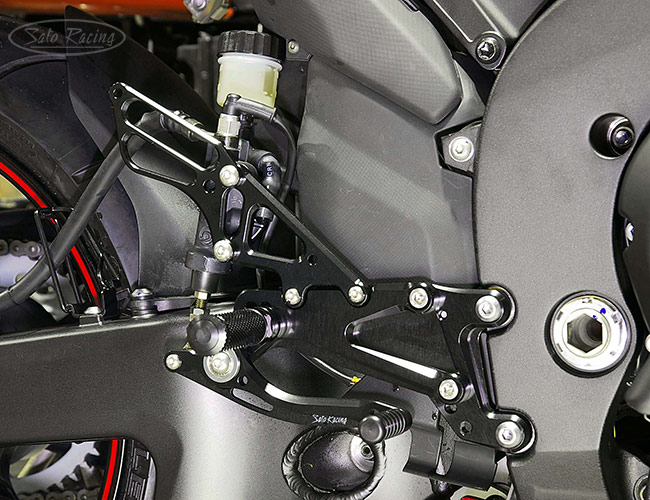

The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as aluminum Pedal Tips with rubber sleeves, are
an available option: More Details. (Rear Sets kit includes a brake light switch, shown attached to the master cylinder) |
![SATO RACING YZF-R1 '07-'08 Rear Sets [L]-side](pics/Y-R107RS-BK_fitL2_650x475.jpg "SATO RACING YZF-R1 '07-'08 Rear Sets [L]-side")

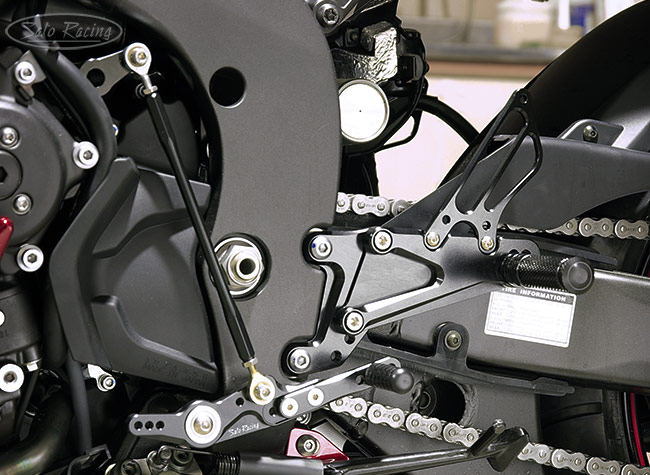

| Multiple adjustment holes in the shift pedal let you fine-tune the shift stroke to your preference. The Shift Pedal assembly comes in a Black anodized finish that blends in seamlessly with the stock R1 parts, for a clean, uncluttered look. |
![SATO RACING YZF-R1 '07-'08 Rear Sets [L]-side](pics/07r1rslbkfit.jpg "SATO RACING YZF-R1 '07-'08 Rear Sets [L]-side")

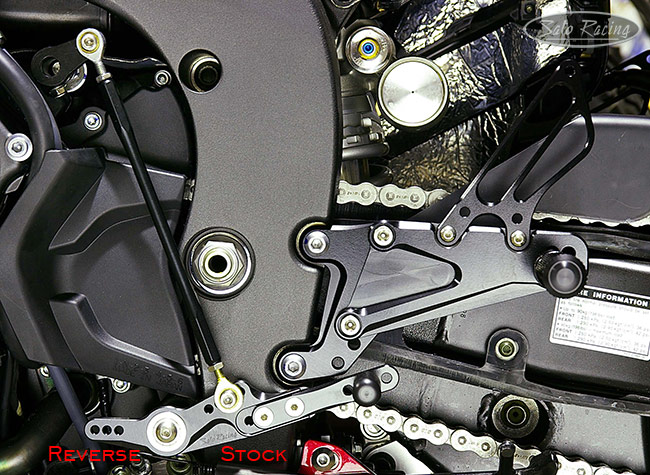

You can change the shifting pattern from stock to reverse (GP style) shift pattern by relocating
the Sato shift rod to the opposite end of the pedal and adjusting the angle of the shift arm.
| BLACK | Y-R107RS-BK $615 |
 |
| GOLD | Y-R107RS-GD $615 |
|
(Brake light switch is included in kit)
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #12 / R-side #15) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-45mm (Foot Peg bolt) |
HBT-M845 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
SOCKET HEAD M8 x 15mm (#2) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M6-10mm (#3) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-25mm (L-side #4) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-30mm (L-side #5) |
BBT-M830 $2.00 |
|
 |
FLAT HEAD M6-10mm (L-side #6) |
FBT-M610 $1.50 |
|
 |
SOCKET HEAD M6-20mm (L-side #7) |
SBT-M620 $1.50 |
|
 |
FLANGE HEAD M6-20mm (L-side #8) |
FGBT-M620 $2.00 |
|
 |
SHIFT PEDAL SPD8 [BLACK] (L-side #15) |
SPD-8B $30.00 |
|
 |
M6 MALE ROD END (L-side #19) |
RDED-M6 $12.50 |
|
 |
JAM NUT M6 (L-side #20) |
JNT-6 $1.75 |
|
 |
SHIFT ROD 190 [BLACK] (L-side #21) |
SRD-190-B $39 |
|
 |
M6 MALE REVERSE ROD END (L-side #22) |
RDED-M6L $12.50 |
|
|
REVERSE JAM NUT M6 (L-side #23) |
JNT-6L $2.50 |
|
 |
SPLIT WASHER M8 (L-side #24 / R-side #23) |
SWS-8 $1.20 |
|
 |
BUTTON HEAD M8-20mm (R-side #4) |
BBT-M820 $1.50 |
|
 |
BUTTON HEAD M6-40mm (R-side #5) |
BBT-M640 $1.75 |
|
 |
BUTTON HEAD M8-25mm (R-side #6) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M6-20mm (R-side #7) |
BBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-15mm (R-side #8) |
SBT-M615 $1.50 |
|
 |
HEAT SHIELD COLLAR 5 (R-side #9) |
HGCLR-5 $8.00 |
|
 |
BASE PLATE COLLAR 5 (R-side #14) |
BPCLR-5 $8.00 |
|
 |
PEG WASHER - M8 (R-side #17) |
PWS-8 $1.00 |
|
 |
BRAKE ROD COLLAR 15 (R-side #18) |
RDED-CLR15 $8.00 |
|
 |
FEMALE ROD END 6-M8 (R-side #19) |
RDED-F6-8 $25 |
|
 |
PLAIN NUT M6 (R-side #20) |
NUT-6 $1.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
