YAMAHA YZF-R1 (2004-06)
REAR SETS
| SATO RACING

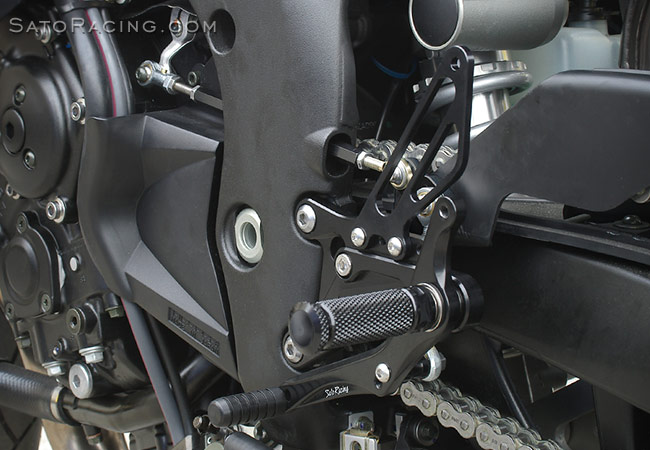

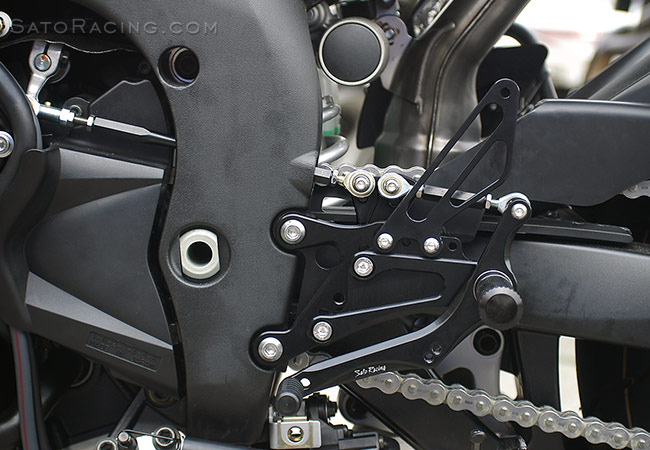

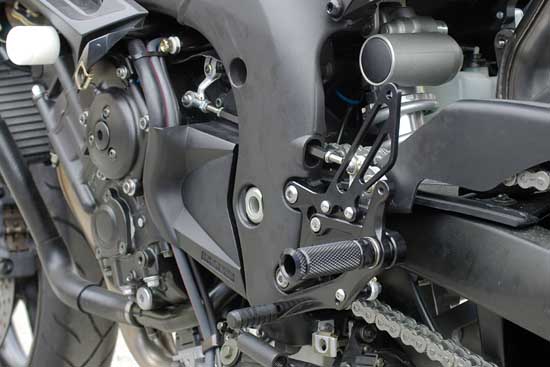

Rear Sets for 2004-2006 Yamaha YZF-R1 features an extensively track-proven design, with components precision CNC-machined out of high strength billet aluminum and anodized in a deep Black finish, with stainless steel bolts and hardware. Modular step plate design lets you choose from 6 adjustable positions so you can find the ideal position for your riding style.
These Rear Sets utilize the stock frame pass-through for the shift rod. But unlike with stock, our Rear Sets can be set up for either stock shift pattern or reverse shift pattern. Our 2004-06 R1 Rear Sets are among our all-time best-selling Rear Sets models, and the time-proven design continues to be the top choice for the many fans of this generation of R1. |
| 1 | 10mm Forward | 10mm Up |
| 2 | 10mm Forward | 20mm Up |
| 3 | 0 mm | 20mm Up |
| 4 | 0 mm | 30mm Up |
| 5 | 10mm Back | 20mm Up |
| 6 | 10mm Back | 30mm Up |
Note: all measurements are in relation to stock position (0 mm).

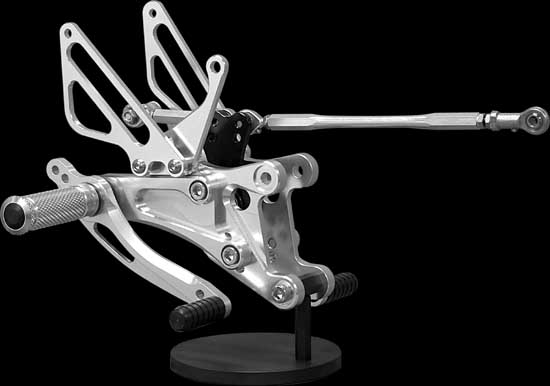

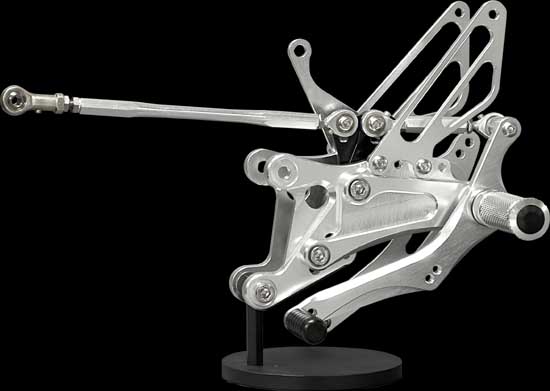

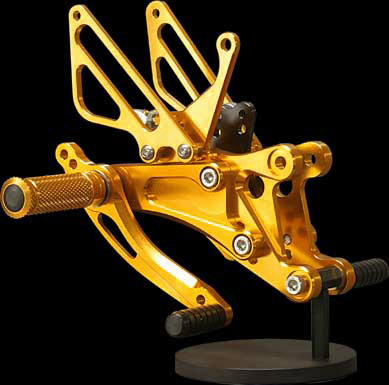

(NOTE: These photos depict the original shift and brake pedal design for our R1 Rear Sets. The
latest version of these Rear Sets has an updated pedal design and a few other cosmetic differences.)
The shift and brake pedals utilize double stainless bearings for smooth, precise lever action.
The position of the Step Plate can be adjusted 6 ways. Pedal Tip position is also adjustable.

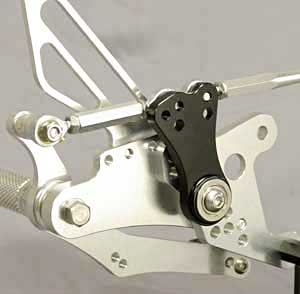

The innovative multi-link design of the shift rod linkage lets you use either
stock shift pattern (shown in photo above), or GP-style reverse shift pattern.
The Foot Pegs have a finely knurled pattern for a comfortable feel
and great grip. (Rear Sets shown set up for reverse shift pattern)

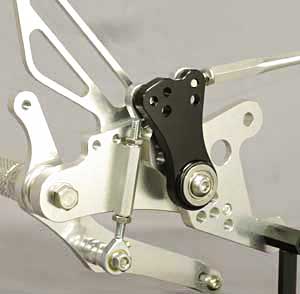

You can set it up for either stock or reverse
shift pattern by relocating the shift rod.
NOTE: This model is currently available in Black only.
| BLACK | Y-R104RS-BK $615 |
 |
(Brake light switch is included in kit)
Have questions or prefer to order by phone? You can call us to place an order -
OPTIONAL PARTS
REVERSE SHIFT PEDAL

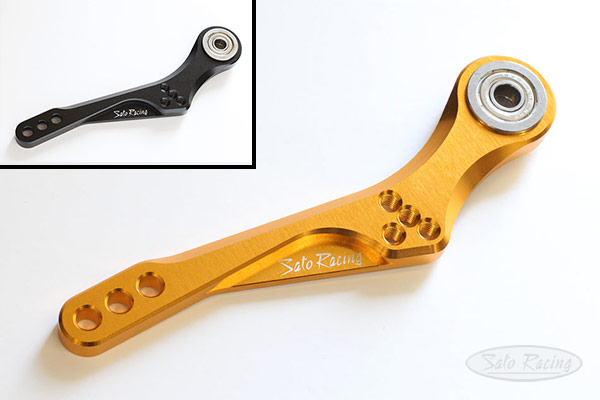

| This 'Reverse Shift' Pedal is exclusively for use with reverse shift pattern on all early YZF-R1 and R6 models, along with FZ1. If you plan on running this model only in reverse / 'race' shift pattern, you can replace the double-ended Shift Pedal included with the Rear Sets with this alternate version that eliminates the top extension. |
| BLACK | SPD-4B $85 |
|
| SILVER | SPD-4S $85 |
|
| GOLD | SPD-4G $85 |
|
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Most replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK / SV/ GD) |
PEG $42 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
STUD BOLT SHORT (M8x55mm) (#1) |
STBT-S $4.50 |
|
 |
BUTTON HEAD M8-25mm (L-side #2) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #3) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-40mm (L-side #4) |
BBT-M640 $1.75 |
|
 |
BUTTON HEAD M6-20mm (L-side #5 / R-side #3) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-15mm (L-side #6) |
BBT-M615 $1.50 |
|
 |
SOCKET HEAD M8 x 15mm (L-side #7 / R-side #2) |
SBT-M815 $1.50 |
|
 |
SHIFT ROD 160 (BK / SV/ GD) (L-side #8) |
SRD-160 $39 |
|
|
SHIFT ROD 40 (BK / SV/ GD) (L-side #9) |
SRD-40 $35 |
|
 |
M6 MALE REVERSE ROD END (L-side #11) |
RDED-M6L $12.50 |
|
 |
REVERSE JAM NUT M6 (L-side #12) |
JNT-6L $2.50 |
|
|
JAM NUT M6 (L-side #13) |
JNT-6 $1.75 |
|
 |
M6 MALE ROD END (L-side #14) |
RDED-M6 $12.50 |
|
 |
PLAIN NUT M6 (L-side #15 / R-side #17) |
NUT-6 $1.00 |
|
 |
ROD END COLLAR 19 (L-side, #16) |
RDEDCLR-19 $8.00 |
|
 |
M6 FEMALE REVERSE ROD END (L-side #17) |
RDED-F6L $15 |
|
 |
REVERSE STUD M6 (L-side #18) |
STUD-M6L $4.20 |
|
 |
PEG WASHER - M8 (L-side #19 / R-side #23) |
PWS-8 $1.00 |
|
 |
SHIFT PEDAL (BK / GD) (L-side #23) |
SPD-3 $90 |
|
 |
BEARING COLLAR SUS (L-side #24 / R-side #15) |
BGCLR-SUS $6.50 |
|
 |
FLANGE NUT M8 (L-side #27 / R-side #22) |
FNT-8 $1.50 |
|
 |
BASE PLATE COLLAR 4 (L-side #28) |
BPCLR-4 $8.00 |
|
 |
WASHER M6 (L-side #29) |
WS-6 $1.00 |
|
 |
BUTTON HEAD M8-30mm (R-side #4) |
BBT-M830 $2.00 |
|
 |
SOCKET HEAD M6-40mm (R-side #6) |
SBT-M640 $2.00 |
|
 |
SOCKET HEAD M6-10mm (R-side #7) |
SBT-M610 $1.50 |
|
 |
PLAIN NUT M8 (R-side #8) |
NUT-8 $1.00 |
|
 |
HEEL GUARD COLLAR 5 (R-side #9) |
HGCLR-5 $8.00 |
|
 |
BRAKE ROD COLLAR 15 (R-side #18) |
RDED-CLR15 $8.00 |
|
 |
FEMALE ROD END 6-M8 (R-side #19) |
RDED-F6-8 $25 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
