HONDA CBR250RR ('17- )

SATO RACING 'Race Concept'-edition Rear Sets are pure, no-compromise racing rear sets designed for track-only bikes.

'Race Concept' Rear Sets for 2017+ HONDA CBR250RR with the standard shifter* features components precision CNC-machined from light-weight, high strength billet aluminum, with your choice of deep Black anodized finish with Gold accents, or vivid Gold finish with contrasting Black base plates. Modular design lets you select from adjustable peg positions that place your feet up to 85mm higher and 70mm further back compared to stock, ideal for the fast straights and steep lean angles encountered on the track. Provides a dedicated reverse (GP-style) shift patttern.

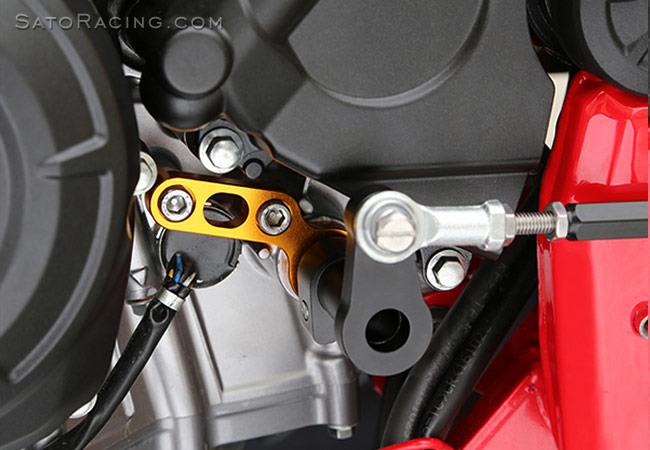

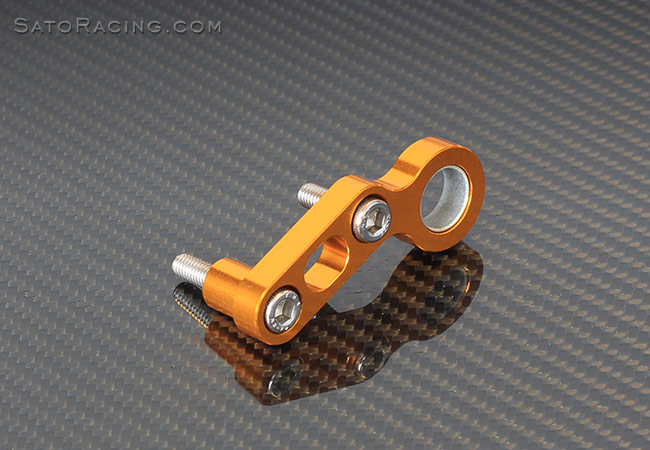

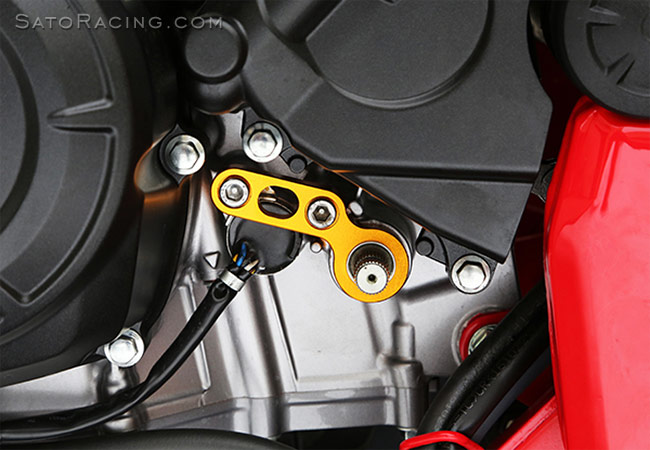

Available options include a Shift Spindle Holder which can help reduce play in the shift spindle for more consistent and precise shifting and enhanced durability in heavy-duty use.

NOTE: Not for street use. Not compatible with the stock brake light switch.
*Not compatible with 2020+ quickshifter-equipped models.

For more 'street'-friendly Rear Sets, see our standard CBR250RR Rear Sets.


1 57.5mm Back 60mm Up
2 57.5mm Back 72.5mm Up
3 57.5mm Back 85mm Up
4 70mm Back 72.5mm Up
5 70mm Back 85mm Up

note: all measurements are in relation to stock position (0 mm).

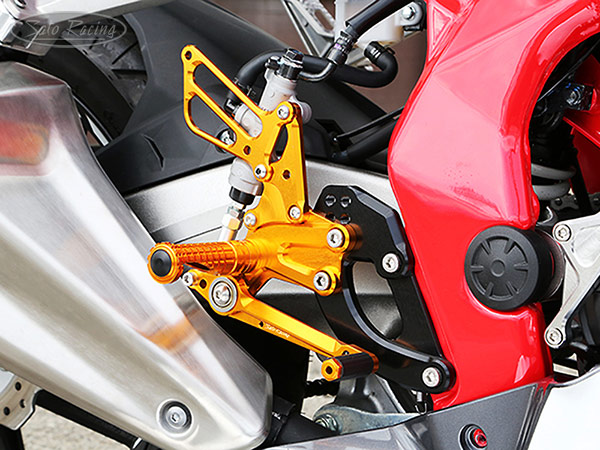

SATO RACING Honda CBR250RR '17 Race Concept Rear Sets [R]-side
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
Gold-anodized aluminum Pedal Tips with fluted rubber grips are standard with these Rear Sets.

(NOTE: Although a cutout-style foot peg is shown installed on the Rear Sets in the photo
above, these Rear Sets come standard with traditional cylindrical-style foot pegs on both sides.

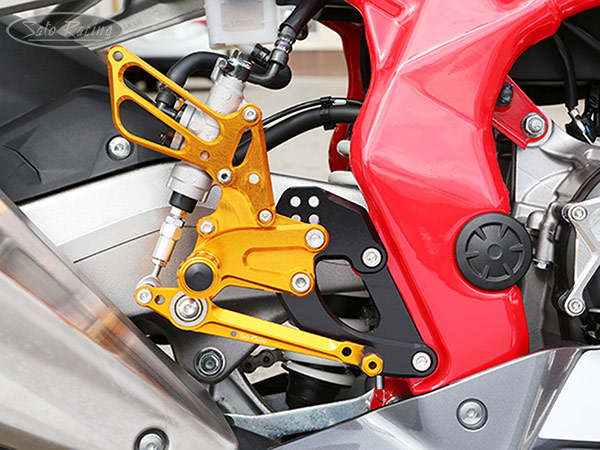

SATO RACING Honda CBR250RR '17 Race Concept Rear Sets [R]-side
Modular design allows the entire side to be moved up or down when changing the position.
NOTE: These 'track-only' Rear Sets are not compatible with the stock brake light switch.

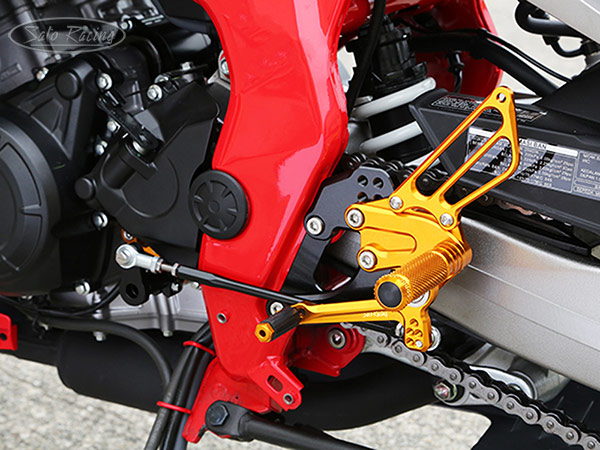

SATO RACING Honda CBR250RR '17 Race Concept Rear Sets [L]-side
The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
Knurled footpegs provide great grip along with a comfortable, intuitive feel.
(Rear Sets shown installed with optional Shift Spindle Holder )

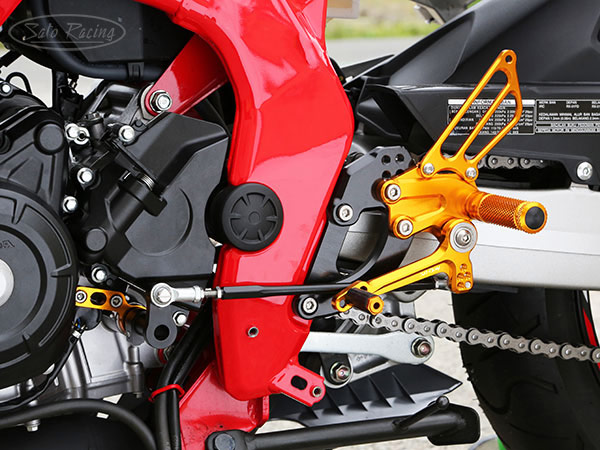

SATO RACING Honda CBR250RR '17 Race Concept Rear Sets [L]-side
These race-spec Rear Sets provide a dedicated reverse (GP-style) shift pattern.

w/ Gold accents
w/ Black Shift Pedal

* Click Here for important info about Sato GOLD-anodized parts.

If you are outside the US and would like to purchase this part, Contact Sato Racing to place your order.

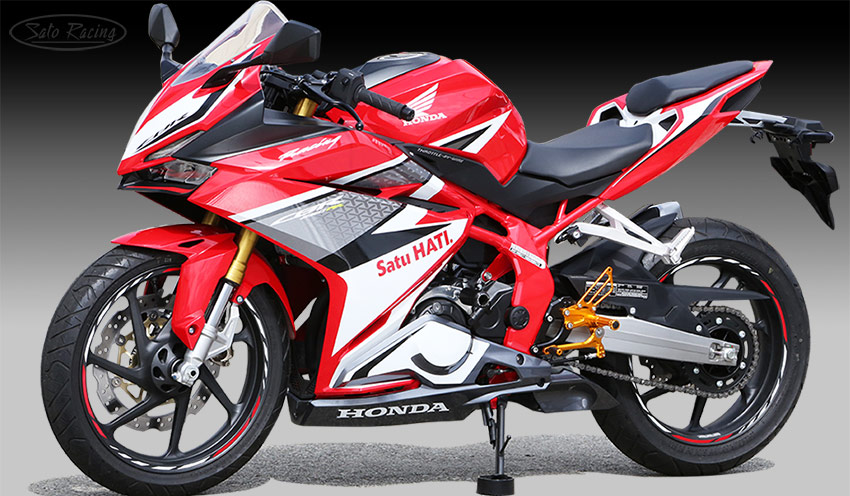

2017 Honda CBR250RR with SATO RACING Race Concept Rear Sets, Frame Sliders, Helmet Lock and other parts

More Sato Racing items for CBR250RR '17-

Pedal Tips Shift Spindle Holder Rear Sets (standard version) L-side Racing Hook
