KAWASAKI  ZX-10R  ('04-'05)

SATO RACING Rear Sets for 2004-05 Kawasaki Ninja ZX-10R features an extensively track-tested design, with components precision CNC-machined out of lightweight yet high strength billet aluminum and anodized in a deep Black finish, with stainless steel bolts. Modular step plate design lets you choose from 6 adjustable foot positions, ranging from stock-equivalent position, to more agressive positions that bring your feet higher and further back compared to stock.


1 0 mm 0 mm
2 0 mm 10mm Up
3 0 mm 20mm Up
4 10mm Back 10mm Up
5 10mm Back 20mm Up
6 20mm Back 20mm Up

Note: all measurements are in relation to stock position (0 mm).

Note: the following photos show our ZX-10R Rear Sets in Silver, which is no
longer available. These Rear Sets are currently being produced in Black only.

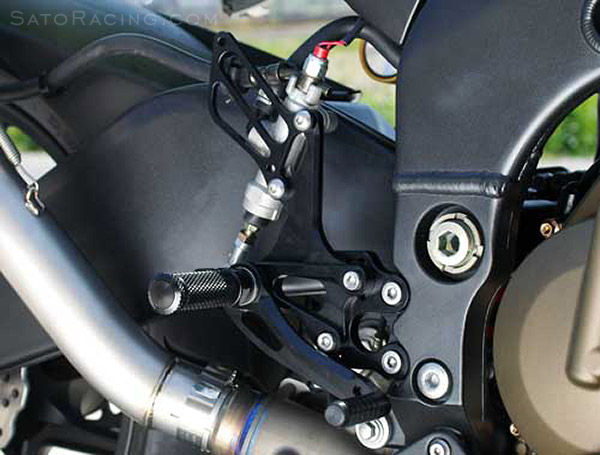

SATO RACING Kawasaki ZX-10R '04-'05 Rear Sets [R]-side

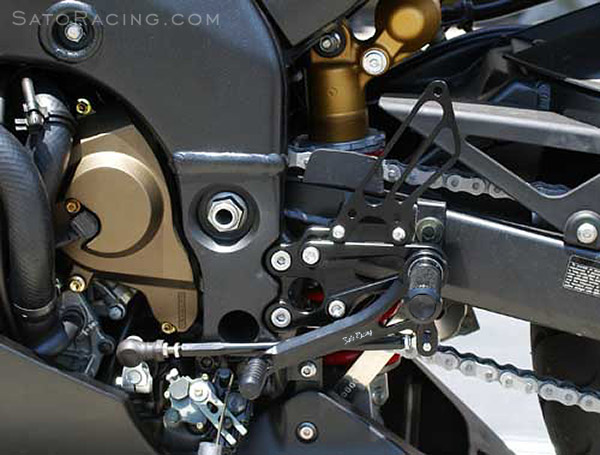

SATO RACING Kawasaki ZX-10R '04-'05 Rear Sets [L]-side

Knurled footpegs provide excellent grip and feel even in wet conditions. Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin.

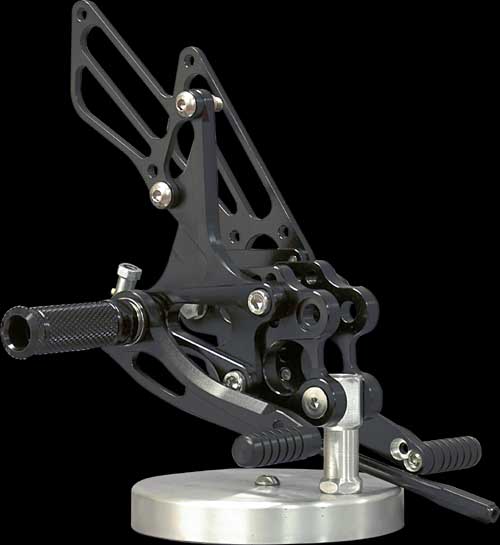

SATO RACING Kawasaki ZX-10R '04-'05 Rear Sets [R]-side
The shifter and brake utilize miniature double stainless bearings for smooth, precise
lever actuation. A pressure-type brake light switch is included with the rear sets kit.

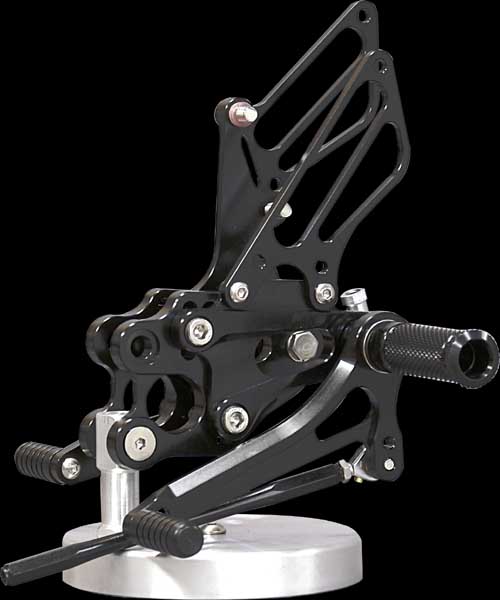

SATO RACING Kawasaki ZX-10R '04-'05 Rear Sets [L]-side
SATO RACING ZX-10R '04-'05 Rear Sets are stock shift pattern only.
Reverse / GP shift pattern is not an option on this model.


(Brake light switch is included.)






Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)


SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Rear Sets, or view the PDF:
Parts List
