HD SPORTSTER XL1200  ('04-'13)

REAR SETS + TANDEM BRACKETS
(For use with Passenger Pegs)


These Sportster Rear Sets were designed and manufactured by request from a very passionate Harley shop owner in Japan who manufactures aftermarket exhaust systems, so they are designed to fit that particular style of exhaust*. If your Sportster has a similar aftermarket pipe (see photos) then these may just be your dream Rear Sets.

Our Sportster XL1200 Rear Sets are precision machined out of high strength billet aluminum and anodized in your choice of Black or Silver, with Black base plates and optional Tandem Brackets. The shift and brake pedals use double miniature stainless bearings for the smooth, precise lever actuation. Knurled footpegs provide nice grip and feel. Choose from a range of positions that bring your feet higher and significantly further back than stock for a more aggressive, cafe racer-type riding position.


*NOTE: We do not have a list of aftermarket Sportster exhausts that are compatible with this kit.

POSITIONS

1 220mm back 35mm up
2 230mm back 35mm up
3 230mm back 50mm up
4 230mm back 20mm up

note: all measurements are in relation to stock position (0 mm).



SATO RACING Rear Sets for Harley-Davidson XL1200 ('04-'13)

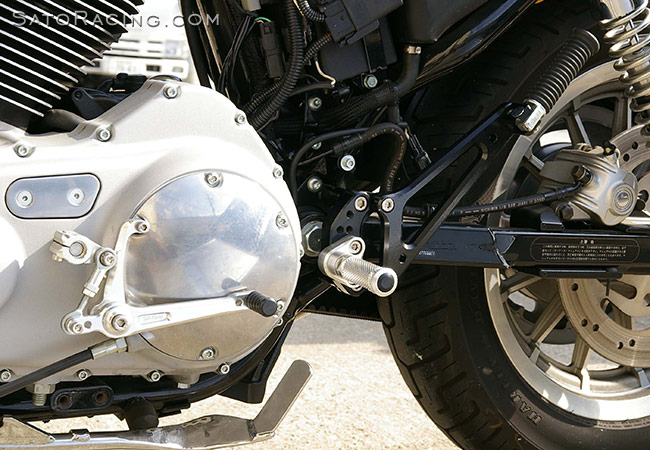

The Tandem Brackets are designed for use with the stock XL1200 passenger pegs.

SATO RACING Rear Sets for Harley-Davidson XL1200 ('04-'13)
The Silver Rear Sets come with contrasting black anodized base plates and Tandem Brackets.

SATO RACING Rear Sets for Harley-Davidson XL1200 ('04-'13)

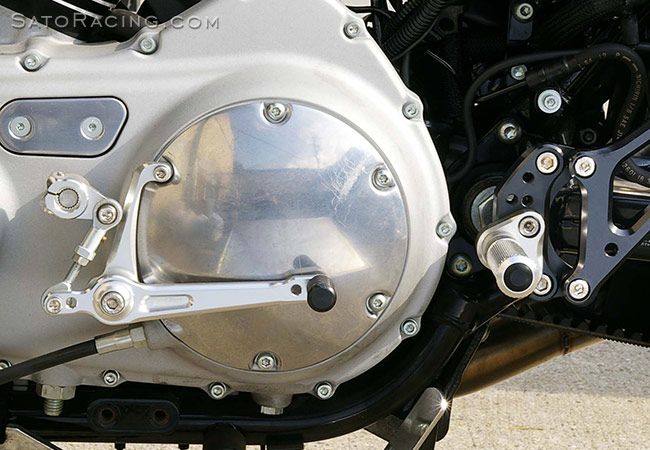

The base plates provide 4 adjustable peg positions, so you can find the ideal foot position.

SATO RACING Rear Sets for Harley-Davidson XL1200 ('04-'13)

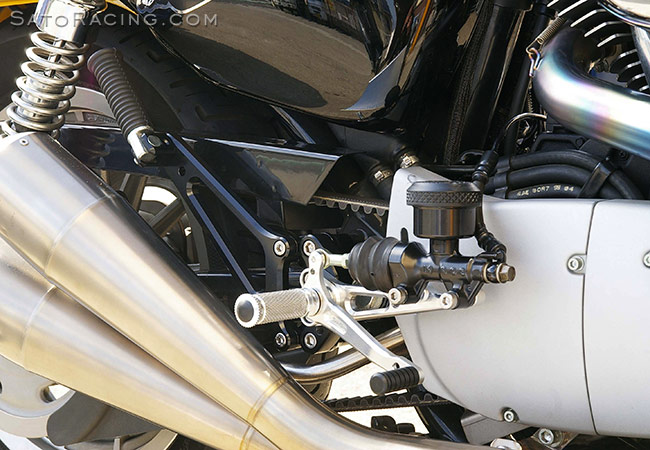

These Rear Sets can be used with compatible 2-into-1 exhaust systems with clearance similar
to what is shown in this photo. With exhaust systems that are mounted higher up than this,
there may be interference issues, particularly if using the lowest rear set positions.

SATO RACING Rear Sets for Harley-Davidson XL1200 ('04-'13)

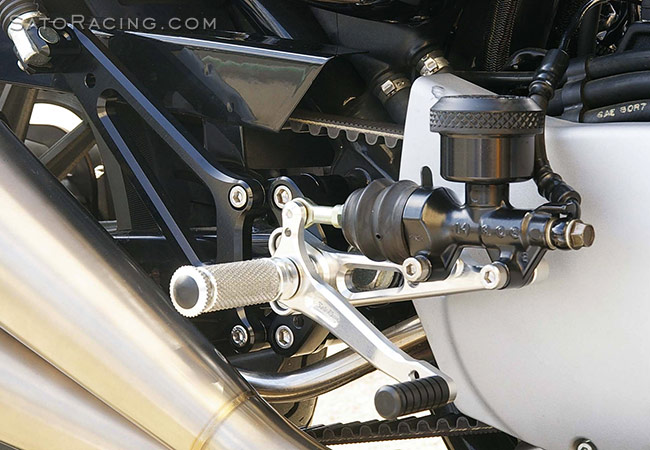

Finely knurled Foot Pegs provide the ideal blend of great grip and a comfortable, intuitive feel. The
standard Pedal Tips are made of tough Delrin. Additional styles of Pedal Tips are also available.

SATO RACING Rear Sets for Harley-Davidson XL1200 ('04-'13)

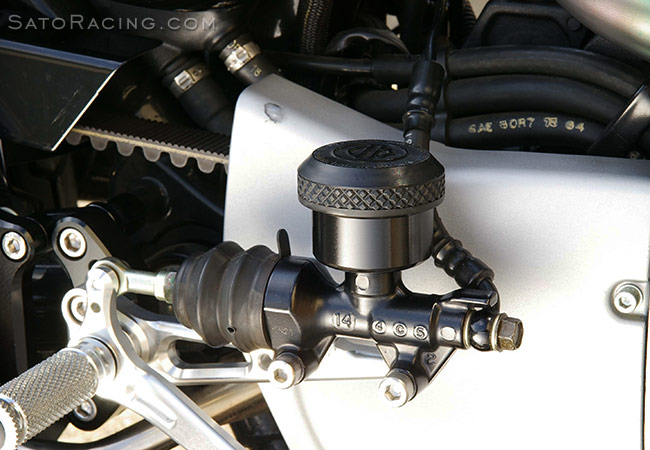

Master Cylinder Cup is included (use stock cap)


SATO RACING XL1200 Rear Sets come in stock shift pattern only.
Reverse shift pattern is not an option on this model.





Rear Sets + Tandem Brackets

BLACK HD-SSTR04RST-BK
$995
SILVER* HD-SSTR04RST-SV
$995


Rear Sets only (No Tandem Brackets)

BLACK HD-SSTR04RS-BK
$850
SILVER* HD-SSTR04RS-SV
$850

* Base Plate and Tandem Brackets come in BLACK only.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



___________________________________________________________________

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List
