HARLEY-DAVIDSON XR1200
REAR SETS


SATO RACING Rear Sets for Sportster XR1200 (all years) features components precision machined out of high grade billet aluminum with your choice of deep Black or Silver (natural metal) anodized finish. Adjustable design lets you choose from 5 foot peg positions that bring your feet up and back compared to stock. These Rear Sets can be set up for stock shift pattern or reverse / race shift pattern.

POSITIONS

1 0 mm 10mm up
2 0 mm 20mm up
3 10mm back 20mm up
4 10mm back 30mm up
5 20mm back 30mm up

note: all measurements are in relation to stock position (0 mm).

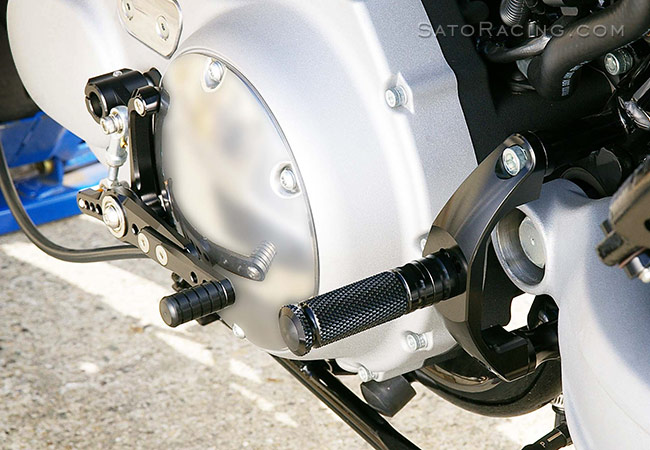

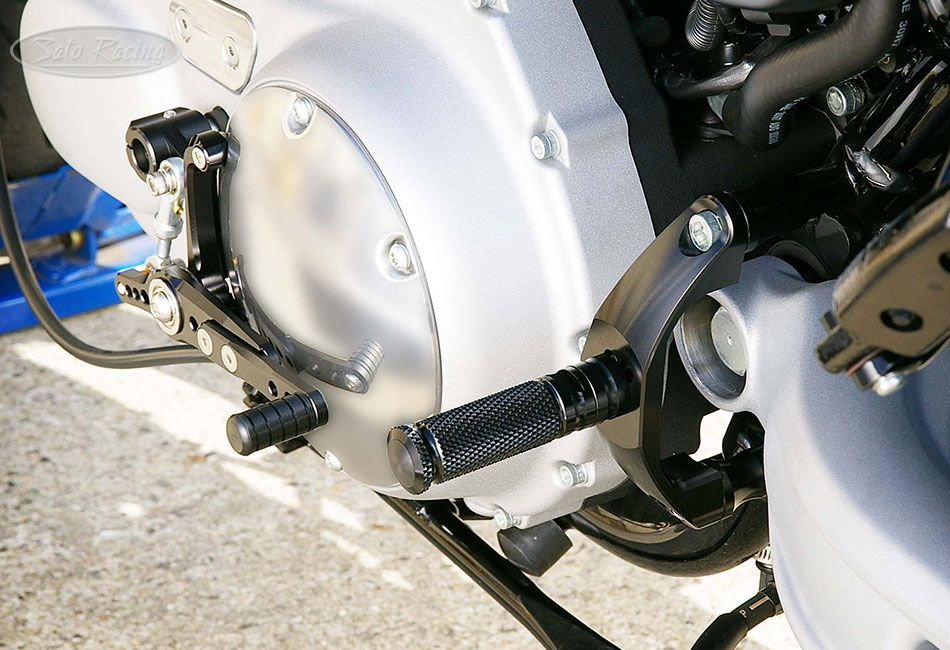

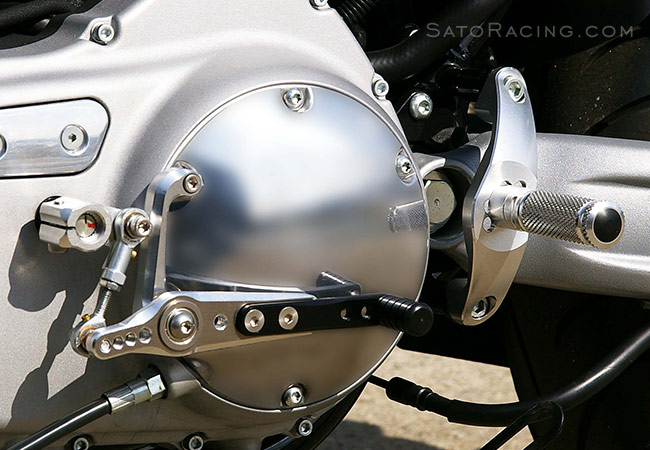

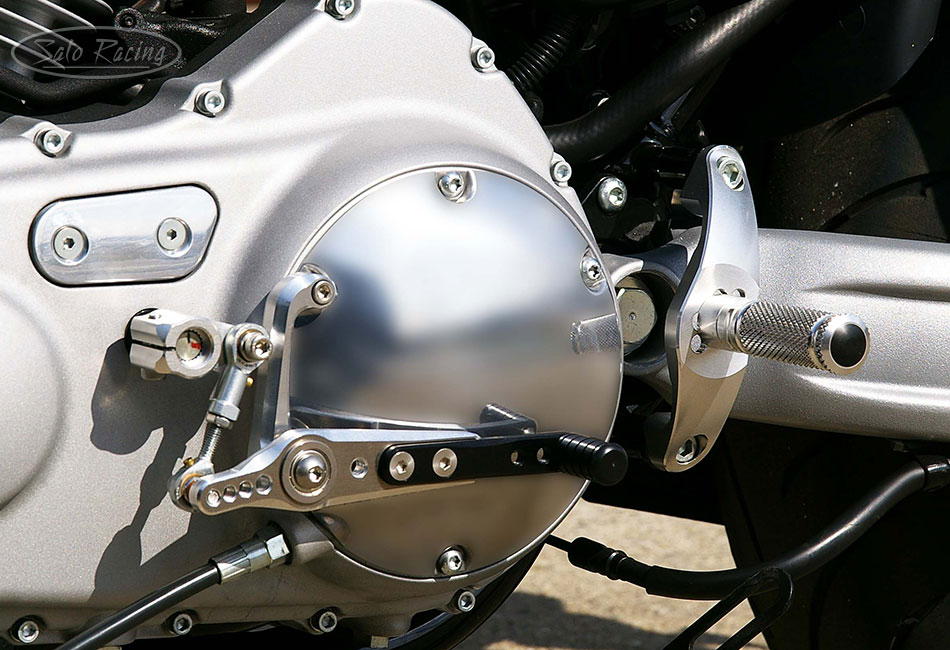

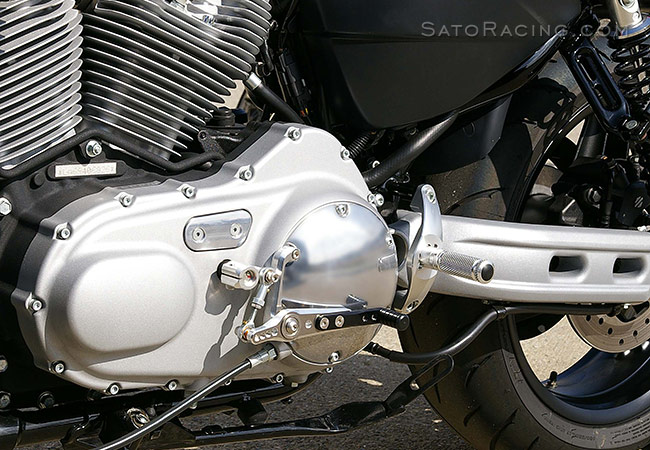

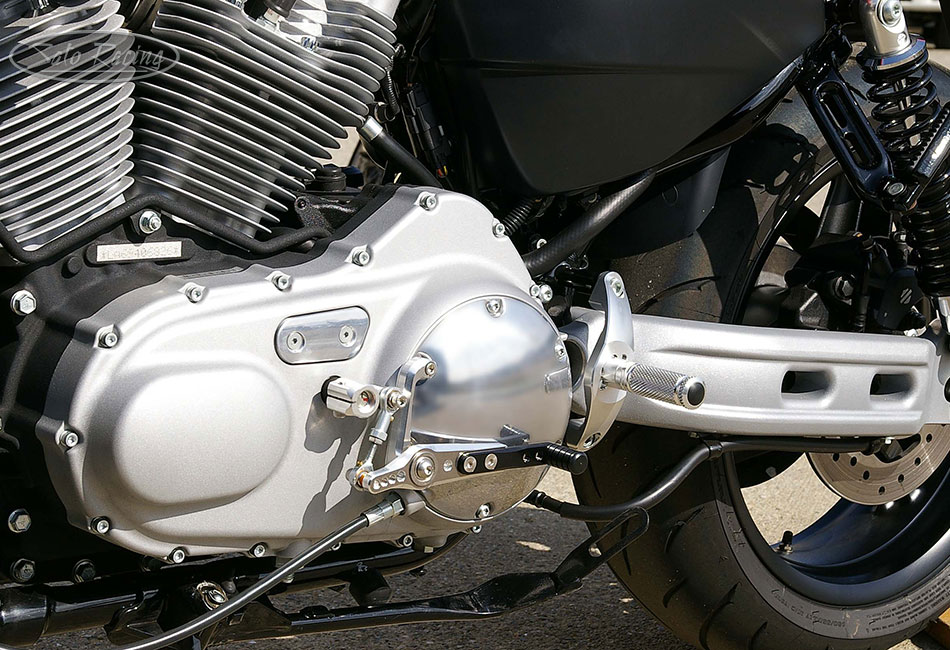

SATO RACING XR1200 Rear Sets [L]-side
The positions of both the Foot Peg and the Pedal Tip can be adjusted to your preference.

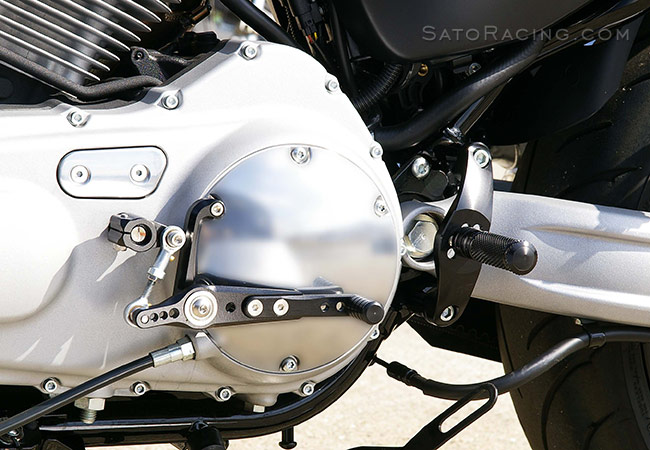

SATO RACING XR1200 Rear Sets [L]-side
Our Foot Pegs are finely knurled and provide an ideal blend of great grip and a comfortable, intuitive
feel. Our Pedal Tips are made of tough Delrin. Additional styles of Pedal Tips are also available.

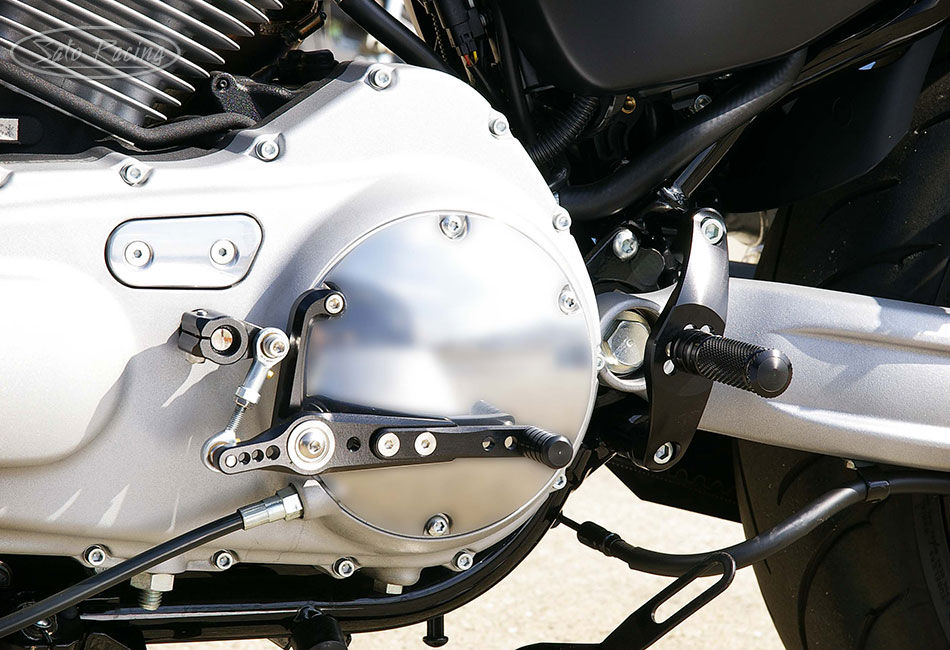

SATO RACING XR1200 Rear Sets [L]-side

SATO RACING XR1200 Rear Sets [L]-side
You can switch from stock shift to reverse shift pattern by changing the angle of the shift arm.

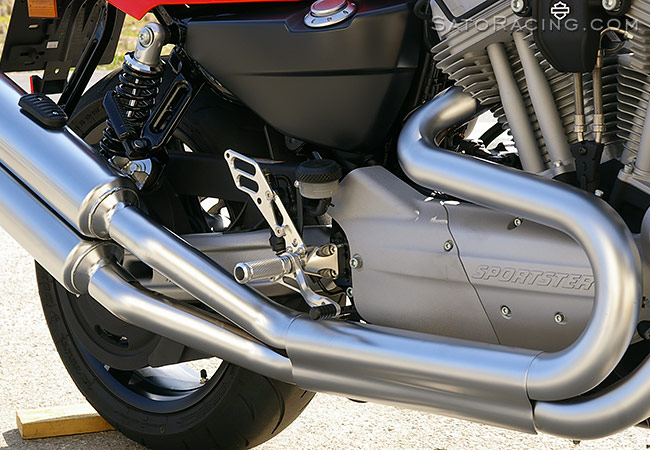

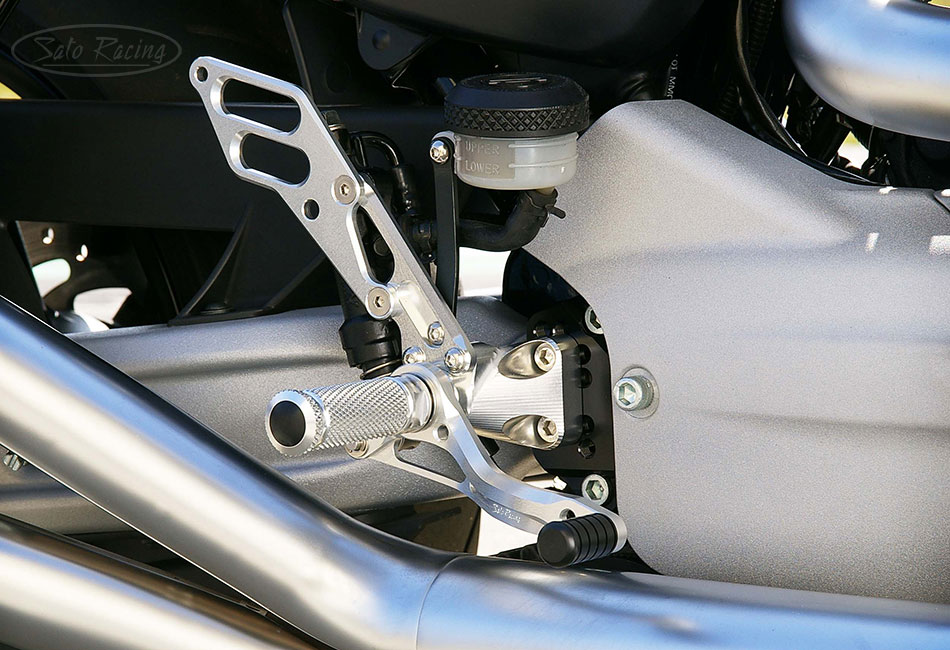

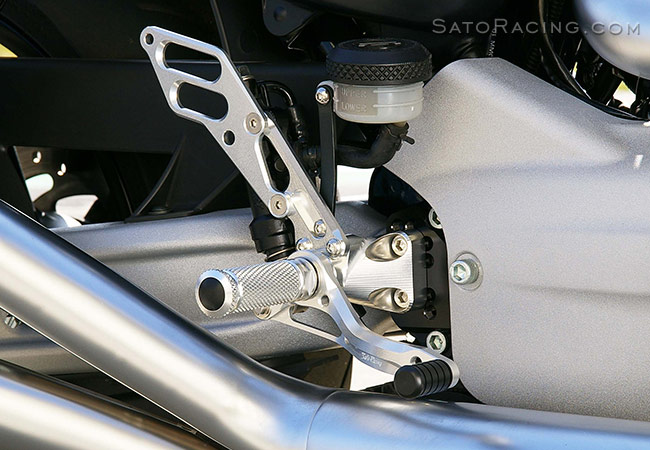

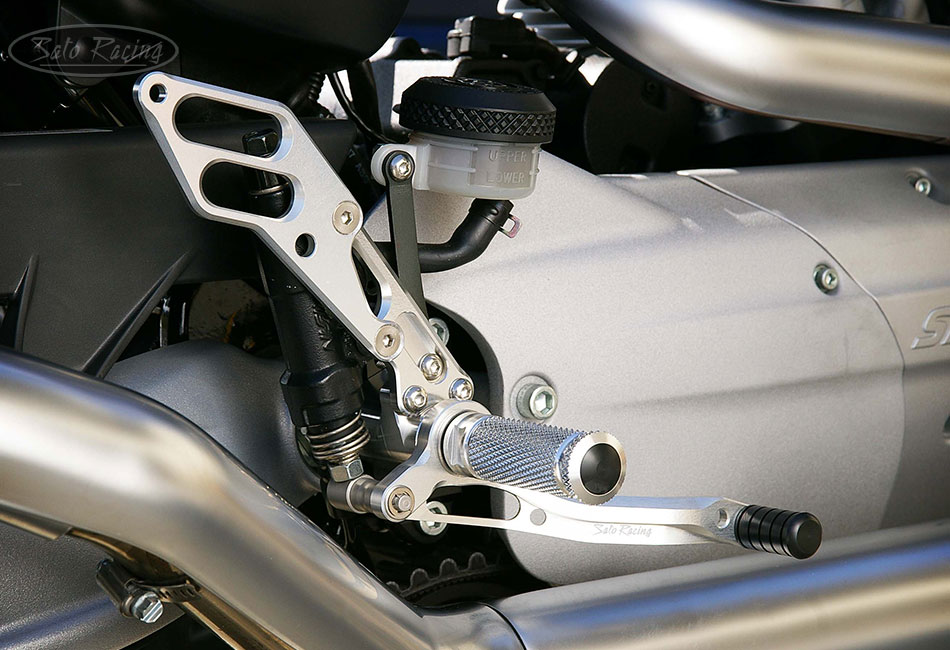

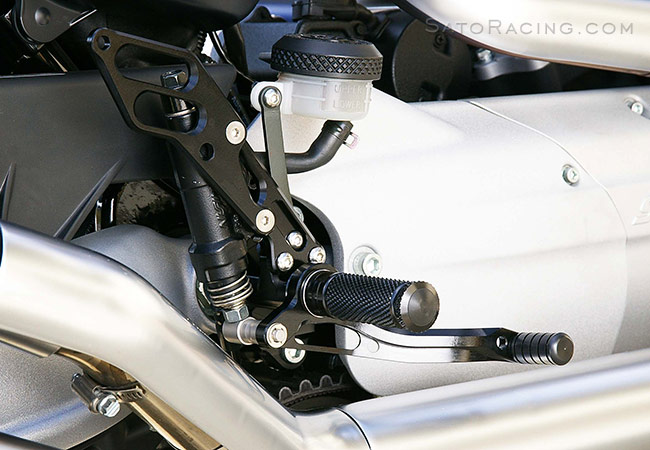

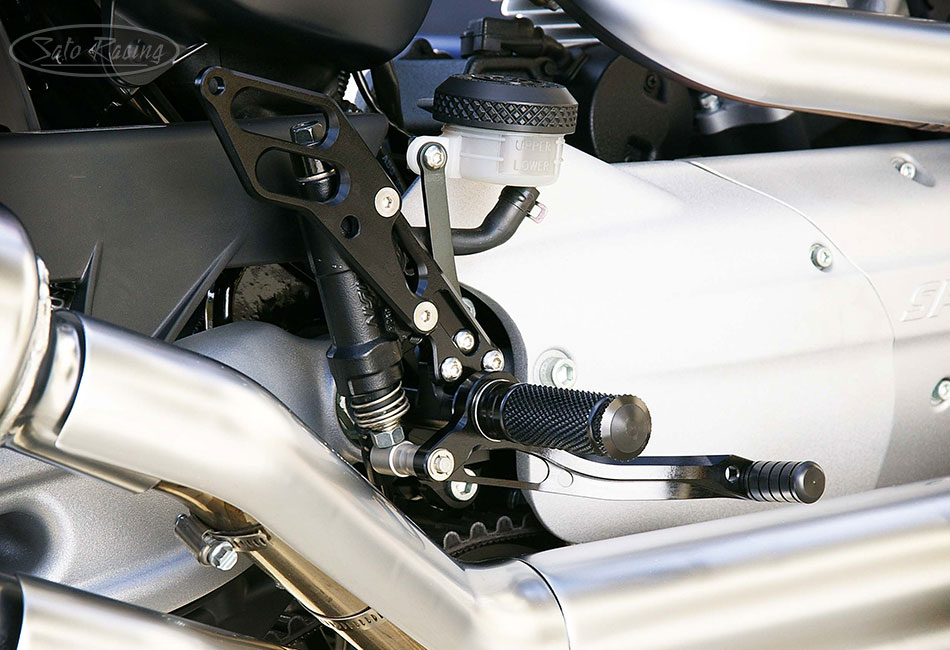

SATO RACING XR1200 Rear Sets [R]-side
On the brake side, the complete rear sets assembly can be repositioned on the base plate 5 ways.

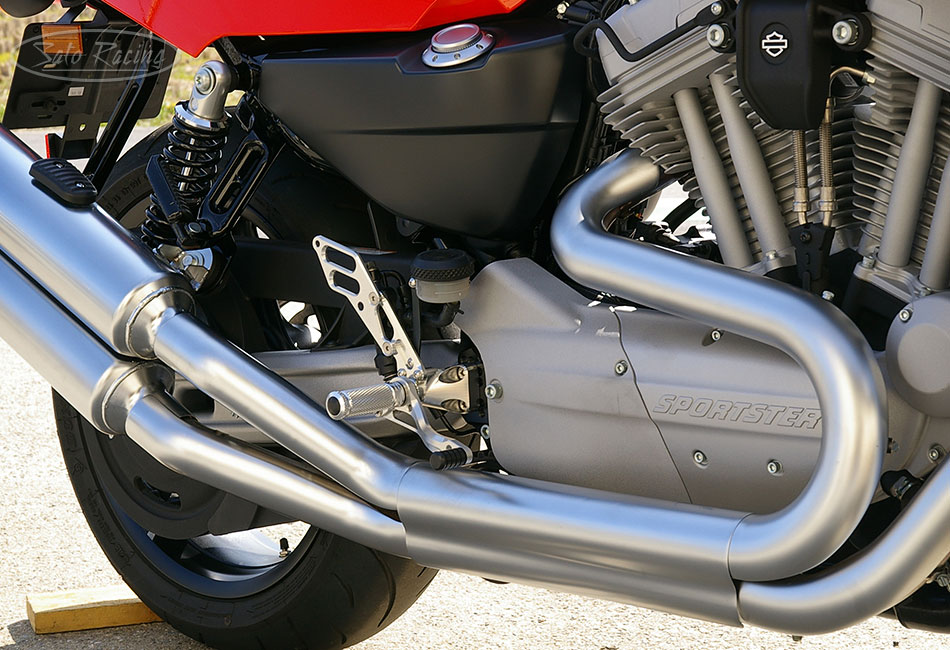

SATO RACING XR1200 Rear Sets [R]-side
The shift and brake pedals utilize double stainless bearings for smooth, precise lever actuation.

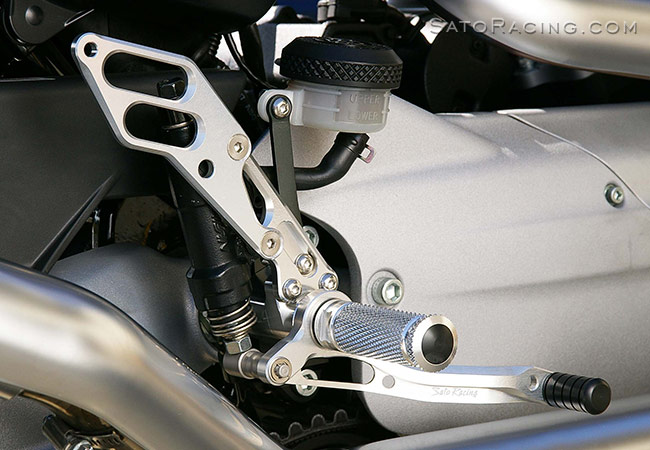

SATO RACING XR1200 Rear Sets [R]-side

SATO RACING XR1200 Rear Sets [R]-side

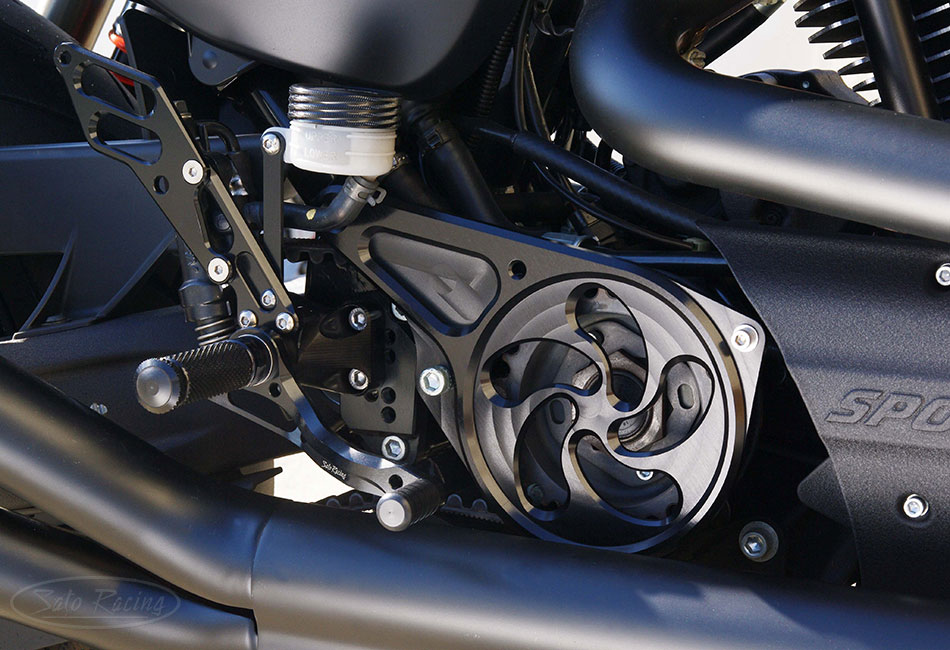

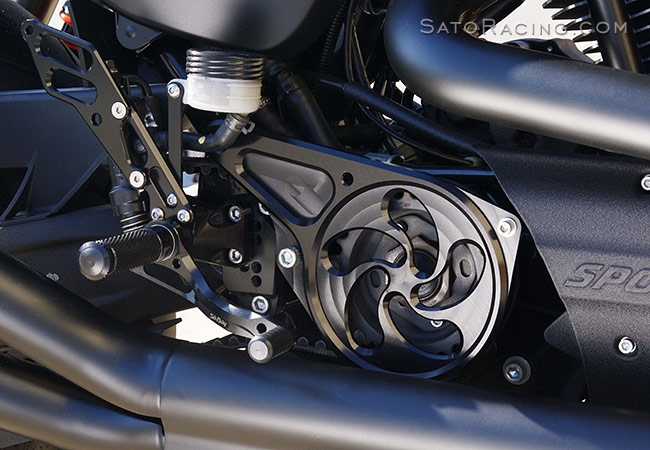

SATO RACING XR1200 Rear Sets + Pulley Cover
Rear Sets shown with optional XR1200 Pulley Cover and Brake Reservoir Cap
part# FC-N52-B (Sold separately)



BLACK HD-XR1209RS-BK
$950
SILVER HD-XR1209RS-SV
$950


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)

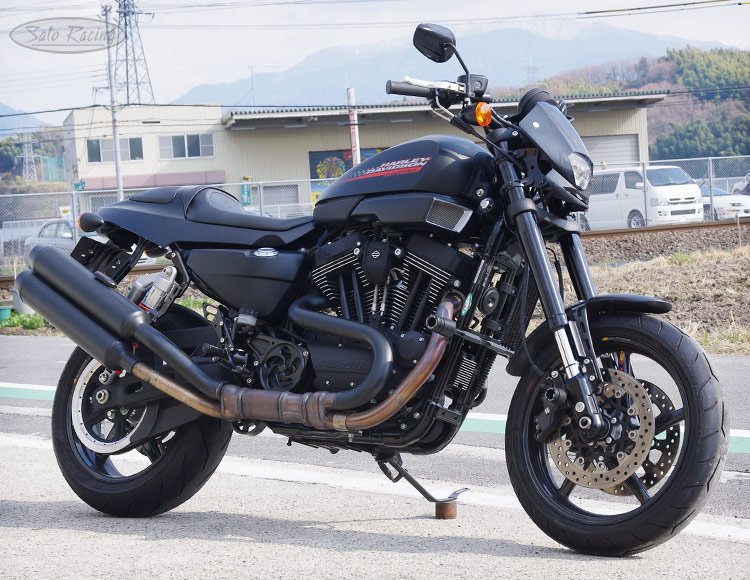

Sportster XR1200 with Sato Rear Sets and other parts




________________________________________________________________________________

OPTIONS

________________________________________________________________________________


REAR BRAKE RESERVOIR CAP

This high-quality Brake Cap for the rear brake fluid reservoir is precision CNC-machined out of solid billet aluminum and features a finely knurled grip pattern around the rim, with white laser etched Sato Racing logo script on top. Available in Black or Silver anodized finish. Looks great with our XR1200 Rear Sets!

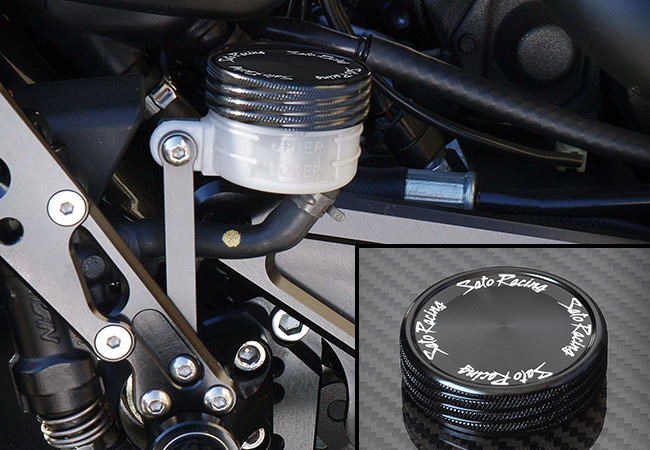

SATO RACING brake reservoir cap on an XR1200



BLACK FC-N52-B
$60
SILVER FC-N52-S
$60



________________________________________________________________________________




PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the Short-style black DELRIN Pedal Tips that come standard with our XR1200 Rear Sets (part# ST-001DS in the photo above). We also offer longer-style DELRIN tips, along with anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



________________________________________________________________________________


FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



________________________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some replacement parts for these Rear Sets
can be purchased in our Online Store:

FOOT PEG
(BK/ SV)
PEG
$42
PEG COLLAR 15
(BK/ SV) (L-side #11)
PEGCLR-15
$15
ST-001DS PEDAL TIP SHORT
(DELRIN)
ST-001DS
$15
SPD-8 SHIFT PEDAL SPD8 [BLACK]
(L-side #5)
SPD-8B
$35
CA-HD CHANGE ARM
(BK / SV)  (L-side #8)
CA-HD
$58
RDED-CLR6 ROD END COLLAR 6
(L-side #9)
RDED-CLR6
$6.00
CLR3-8 COLLAR 3-8 (BK)
(L-side #10)
CLR3-8
$6.00
SBT-M625 SOCKET HEAD M6-25mm
(L-side #15)
SBT-M625
$1.50
SBT-M840 SOCKET HEAD M8-40mm
(L-side Peg Bolt, #16)
SBT-M840
$2.00
BBT-M615 BUTTON HEAD M6-15mm
(L-side #17 / R-side #13)
BBT-M615
$1.50
BBT-M830 BUTTON HEAD M8-30mm
(L-side #18)
BBT-M830
$2.00
FBT-M612 FLAT HEAD M6-12mm
(L-side #19)
FBT-M612
$1.50
INBT-1/4-20 BOLT 1/4"-1"
(L-side #20)
INBT-1/4-20
$2.50
SWS-6 SPLIT WASHER M6
(L-side #21)
SWS-6
$1.20
SPLIT WASHER M8
(L-side #22)
SWS-8
$1.20
NUT-6 PLAIN NUT M6
(L-side #23)
NUT-6
$1.00
FEMALE ROD END M6
(L-side #24)
RDED-F6
$15.00
RDED-M6 M6 MALE ROD END
(L-side #25)
RDED-M6
$12.50
UB-M675B BRACKET M6-75mm [BLACK]
(R-side #9)
UB-M675-B
$13.50
SBT-M815 SOCKET HEAD M8-15mm
(R-side #11)
SBT-M815
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(R-side #12)
BBT-M610
$1.50
FBT-M620 FLAT HEAD M6-20mm
(R-side #14)
FBT-M620
$1.50
STBT-S STUD BOLT SHORT (M8x55)
(R-side Peg Bolt, #15)
STBT-S
$4.50
FNT-8 FLANGE NUT M8
(R-side #16)
FNT-8
$1.50
WS-6 WASHER M6
(R-side #17)
WS-6
$1.00
PWS-8 PEG WASHER - M8
(R-side #18)
PWS-8
$1.00
ECP-6 E-CLIP M6
(R-side #19)
ECP-6
$1.50
BRD-M40 BRAKE ROD M40
(R-side #20)
BRD-M40
$13.50
spring RETURN SPRING 40
(R-side #21)
RS-RSP
$8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
