HONDA CBR600RR ('03-'06)
REAR SETS

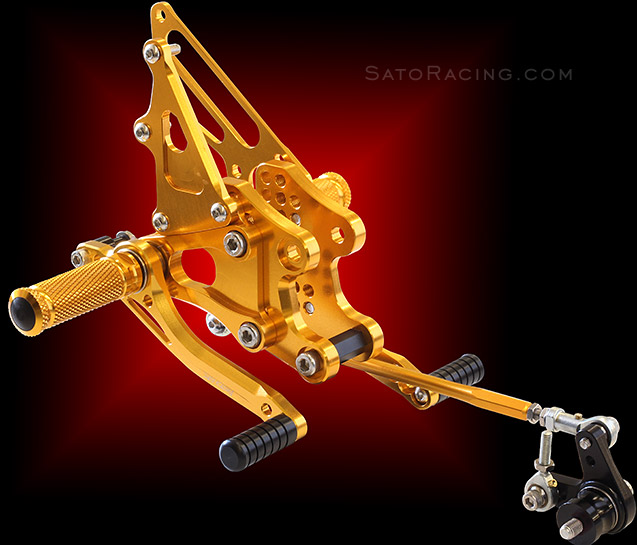

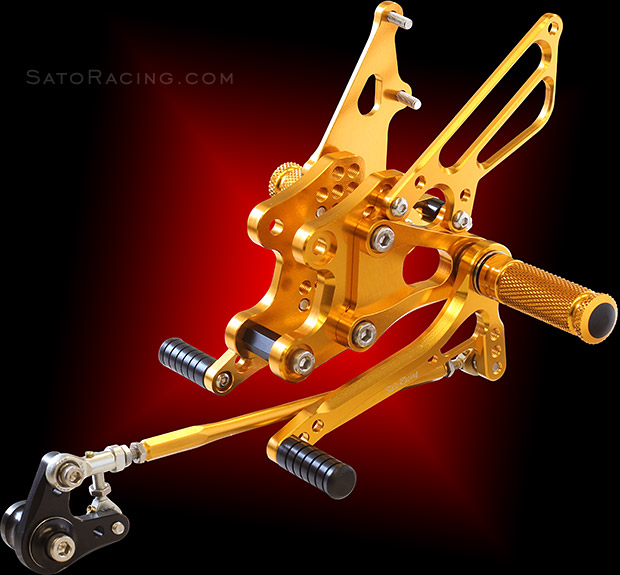

| SATO RACING Rear Sets for 2003-06 Honda CBR600RR features a track-engineered desiugn, with parts CNC-machined out of high strength billet aluminum anodized in your choice of deep Black or vivid Gold finish. The shift and brake pedals utilize miniature double stainless bearings for smooth, precise pedal movement without any shakiness or wobbling. Knurled footpegs provide a comfortable, intuitive feel and nice grip even in wet conditions. Modular step plate design lets you select from 7 adjustable positions in a useful range that brings your feet higher up and further back compared to stock. Easily switch to a GP-style reverse shift pattern too. |
POSITIONS
| 1 | 0 mm | 10mm Up |
| 2 | 0 mm | 20mm Up |
| 3 | 10mm Back | 10mm Up |
| 4 | 10mm Back | 20mm Up |
| 5 | 10mm Back | 30mm Up |
| 6 | 20mm Back | 20mm Up |
| 7 | 20mm Back | 30mm Up |
note: all measurements are in relation to stock position (0 mm).

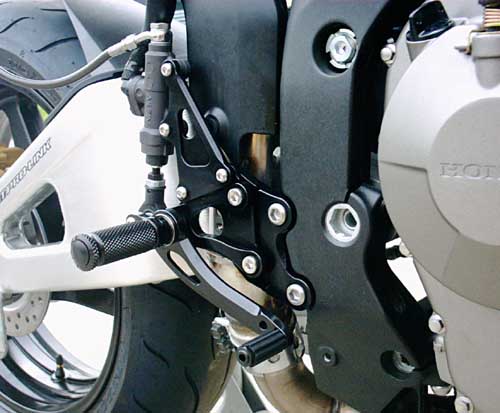

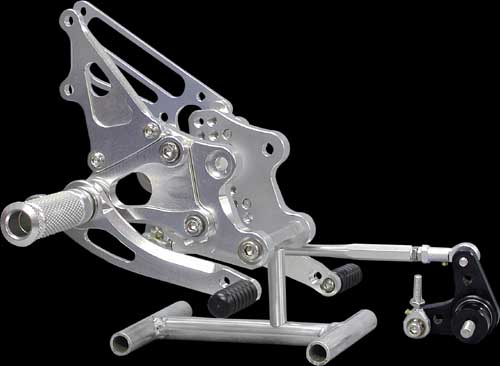

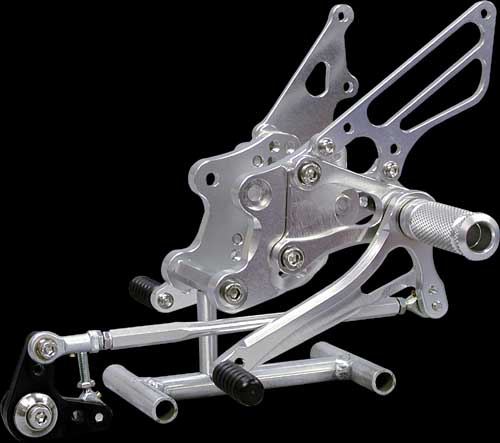

| NOTE: The following install photos show our original CBR600RR Rear Sets design. Our latest Rear Sets have updated pedals and some other cosmetic differences. (See photos at top of page) |

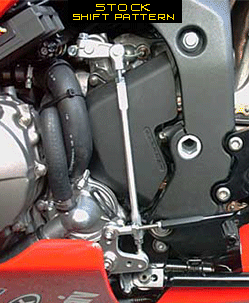

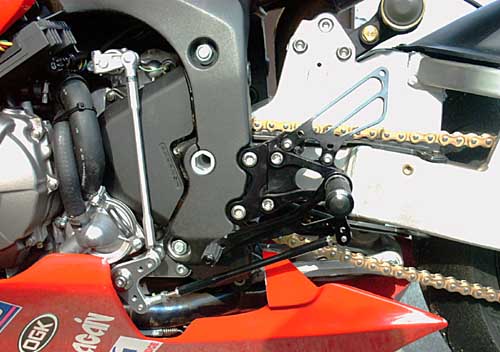

You can change the shifting pattern by relocating
the SATO SHIFT ROD to the upper or lower hole.
| BLACK | H-CBR6RS-BK $550 |
 |
| GOLD | H-CBR6RS-GD $550 |
|
(Brake light switch is included)
OPTIONS

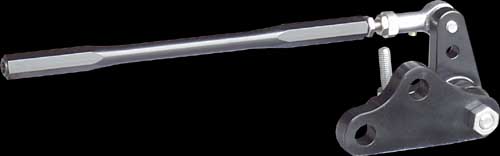

For racers who do not require the stock kick stand,
our SHIFT CRANK BASE PLATE adds extra
strength to the shift linkage for heavy duty shift action.
| H-CBR6RS-SCBASE $30 |
|
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
STUD BOLT SHORT (M8-55mm) (Foot peg bolt) |
STBT-S $4.50 |
|
 |
FLANGE NUT M8 |
FNT-8 $1.50 |
|
 |
PEDAL TIP (DELRIN) |
ST-001D18 $15 |
|
 |
STUD M6 (L-side #11) |
STUD-M6 $2.50 |
|
 |
JAM NUT M6 (L-side #12) |
JNT-6 $1.75 |
|
 |
SHIFT ROD 190 (BK/ SV/ GD) (L-side #13) |
SRD-190 $39 |
|
 |
M6 MALE ROD END (L-side #14) |
RDED-M6 $12.50 |
|
 |
M6 MALE REVERSE ROD END (L-side #15) |
RDED-M6L $12.50 |
|
 |
M6 FEMALE ROD END (L-side #16) |
RDED-F6 $15 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #19) |
HG-3L $50 |
|
 |
BUTTON HEAD M6-20mm (#4, #5) |
BBT-M620 $1.50 |
|
|
REVERSE JAM NUT M6 (L-side #21) |
JNT-6L $2.50 |
|
 |
BEARING COLLAR SUS (L-side #23 / R-side #16) |
BGCLR-SUS $6.50 |
|
 |
ROD END COLLAR 3 (L-side #24) |
RDED-CLR3 $6.00 |
|
 |
PEG WASHER - M8 (L-side #29 / R-side #18) |
PWS-8 $1.00 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
