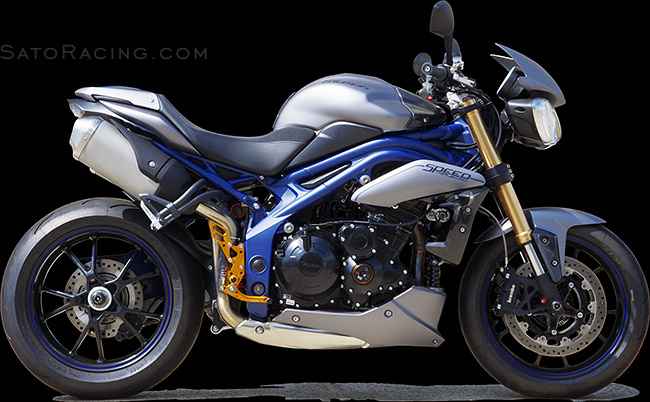

TRIUMPH SPEED TRIPLE 1050 ('11-'15)

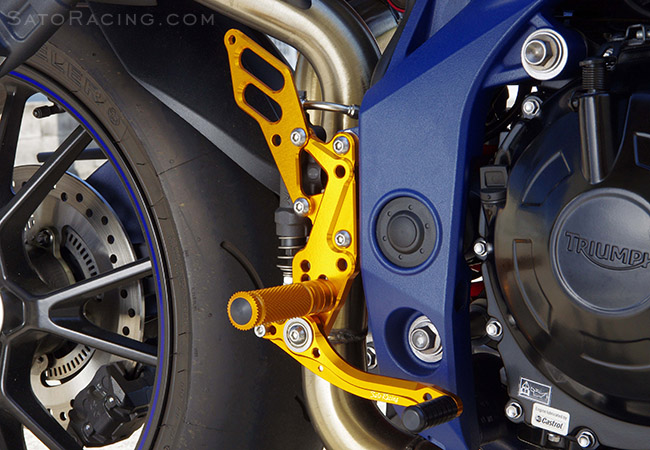

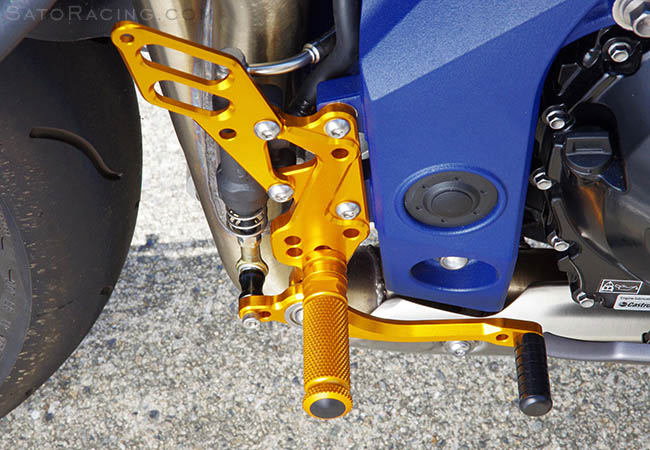

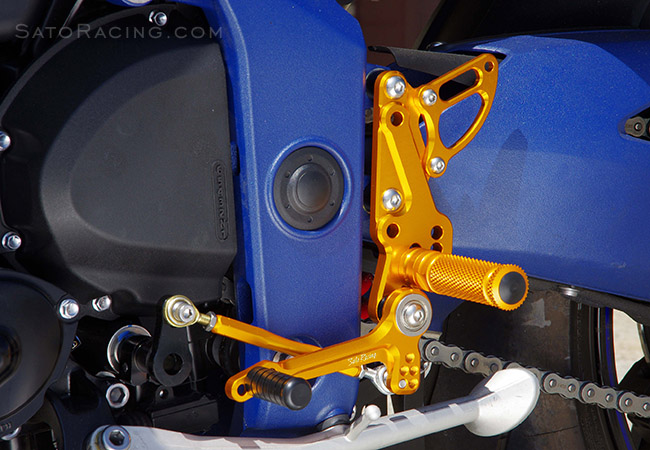

|SATO RACING Rear Sets for 2011-15 Triumph Speed Triple 1050 are a track engineered design, precision CNC-machined out of high strength billet aluminum and anodized in your choice of deep Black or vivid Gold finish, with stainless steel hardware. Provides 8 adjustable positions that bring your feet higher up and back compared to stock, helping you achieve a sportier, more aggressive riding position well-suited for spirited riding. Compatible with both non-ABS and ABS-equipped models.|
|1||7.5mm Back||5mm Up|
|2||7.5mm Back||15mm Up|
|3||22.5mm Back||15mm Up|
|4||22.5mm Back||25mm Up|
|5||7.5mm Back||22.5mm Up|
|6||7.5mm Back||32.5mm Up|
|7||22.5mm Back||32.5mm Up|
|8||22.5mm Back||42.5mm Up|
note: all measurements are in relation to stock position (0 mm).
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.
The Step Plate can be adjusted vertically, and the positions of the Foot Peg and the Pedal Tip
are also adjustable. These Rear Sets are designed for use with the stock brake light switch.
The multiple adjustment holes on the shift pedal where the
shift rod is connected are useful for fine-tuning the shift stroke.

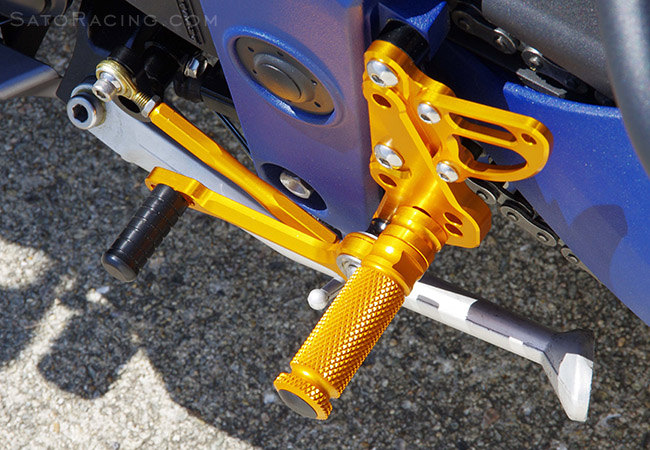

Foot Pegs are finely knurled for excellent grip characteristics and a comfortable, intuitive feel.
The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such as
folding-style aluminum Pedal Tips with rubber sleeves, are an available option: More Details
* Click Here for important info about Sato GOLD-anodized parts.
SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some common replacement parts for these Rear Sets
can be purchased in our online store:
|FOOT PEG [BLACK]||PEG-BK
|FOOT PEG [GOLD]||PEG-GD
|PEG COLLAR 15 [BLACK]
|PEG COLLAR 15 [GOLD]
|HEX HEAD M8-40mm
(#27, Foot Peg bolt)
|SPLIT WASHER M8
|PEDAL TIP [DELRIN]||ST-001D
|BUTTON HEAD M6-20mm
(for Pedal Tip)
|SOCKET HEAD M6-20mm
|ROD END COLLAR 3
Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
More Sato Racing items for '11- Triumph Speed Triple 1050
