SUZUKI GSX-8S / R ('23- )
REAR SETS

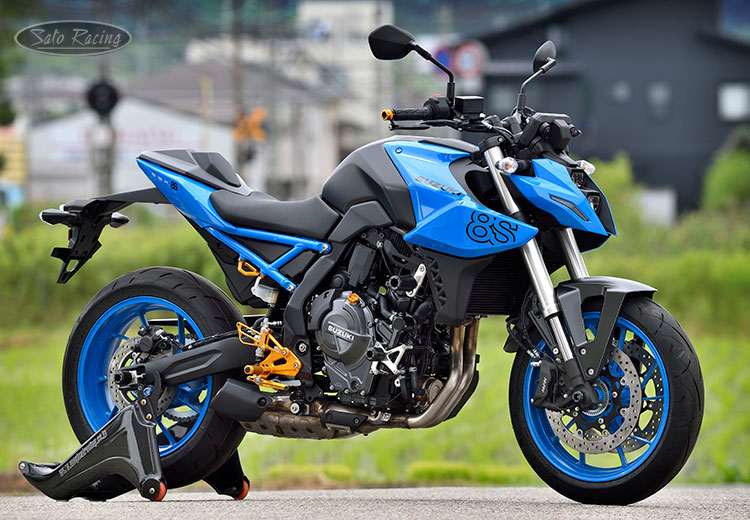

2023 Suzuki GSX-8S with SATO RACING Frame Sliders and many other parts

SATO RACING Rear Sets for 2023+ Suzuki GSX-8S and GSX-8R features a sturdy design engineered for maximum durability on the track, with parts precision machined out of lightweight, high strength anodized billet aluminum and fastened together with stainless steel bolts. This premium quality foot control kit provides 4 adjustable peg positions that bring your feet higher up and further back compared to stock, for a more aggressive riding position ideal for the fast straights and steep lean angles encountered on the track. Choice of Black, Silver or Gold anodized finish.

POSITIONS

1 15mm Back 32.5mm Up
2 15mm Back 44.5mm Up
3 27mm Back 32.5mm Up
4 27mm Back 44.5mm Up

note: all measurements are in relation to stock position (0 mm).

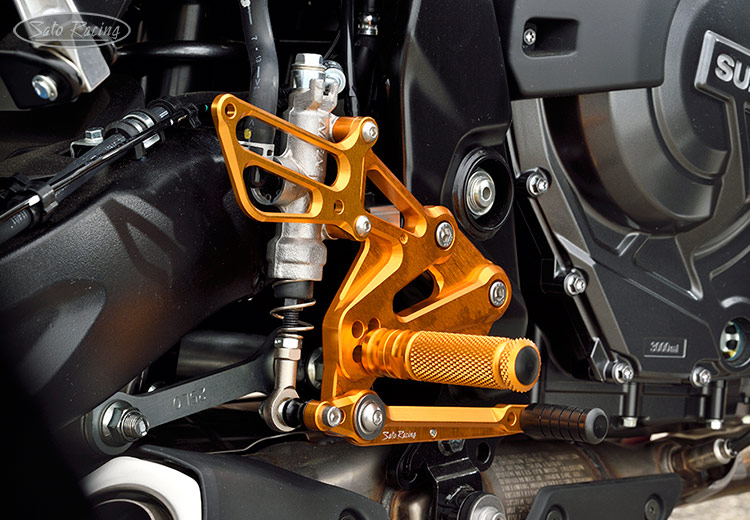

SATO RACING Suzuki GSX-8S Rear Sets in GOLD [R]-side

The shifte linkage and brake pedal use double miniature stainless bearings for smooth, precise lever actuation with a solid feel. The pedal is mounted on a separate axis from the foot peg for optimal leverage.

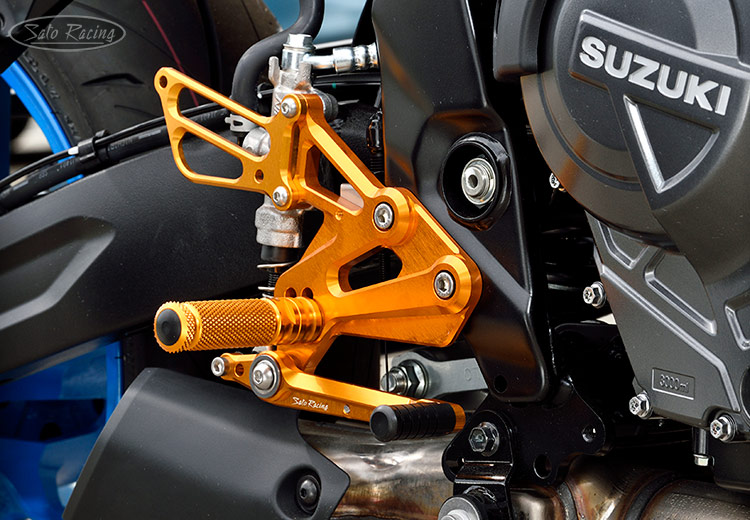

SATO RACING Suzuki GSX-8S Rear Sets in GOLD [R]-side
These Rear Sets are fully compatible with the stock brake light pull switch.

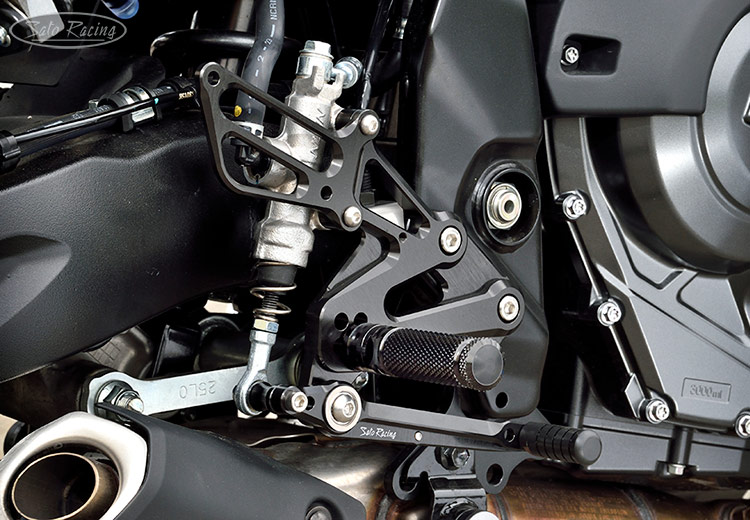

SATO RACING Suzuki GSX-8S Rear Sets in BLACK [R]-side
Choice of Black, Silver or Gold anodized finish.

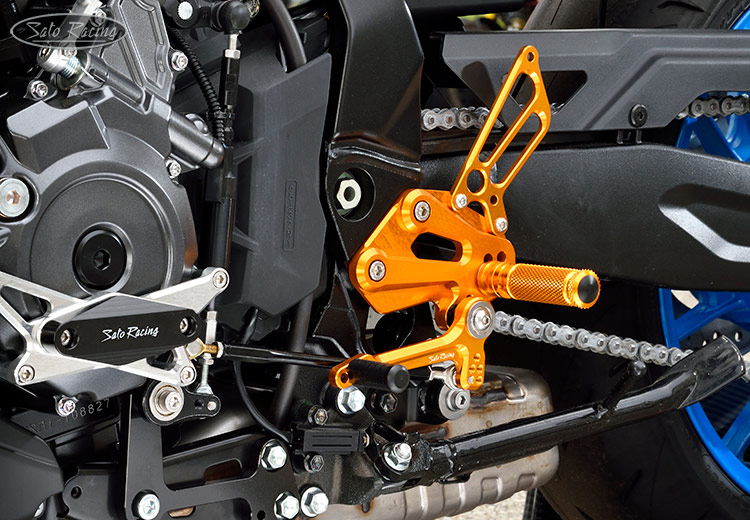

SATO RACING Suzuki GSX-8S Rear Sets in GOLD [L]-side

The Foot Peg is the fixed type (non-folding) and can be mounted at any of the 4 different position holes on the Step Plate. The Pedal Tip (toe peg) position can also be adjusted.

The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such as aluminum Pedal Tips with rubber sleeves, are an available option:  Details

(Also pictured above is our GSX-8S L Engine Slider, sold separately.)

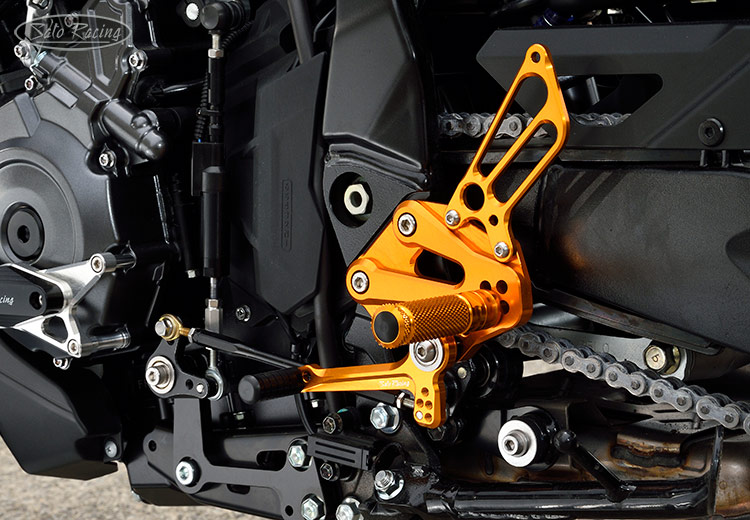

SATO RACING Suzuki GSX-8S Rear Sets in GOLD [L]-side

Multi-link shift linkage is optimized for use with the OEM quickshifter, and can be set up for stock shift pattern or reverse (GP style) shift pattern.

SATO RACING Suzuki GSX-8S Rear Sets in GOLD [L]-side

The standard Foot Pegs feature a finely knurled pattern for nice grip, along with a comfortable, intuitive feel. Also check out our Race Concept Cutout-style Racing Foot Pegs, available as an option for this model. (See details below).




BLACK S-GSX8RS-BK
$615
SILVER S-GSX8RS-SV
$615
GOLD S-GSX8RS-GD
$615


Click Here for important info about Sato color-anodized parts.




______________________________________________________

OPTIONS

______________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

black BLACK RCPEG-BK
$48
silver SILVER RCPEG-SV
$48
gold GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




______________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



____________________________________________________



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45
