SATO RACING | Rear Sets (Type2 design) - Harley-Davidson Sportster 883/1200 5s ('91-'03)

HARLEY-DAVIDSON
SPORTSTER 883/1200 5s ('91-'03)
REAR SETS - Type 2 Design

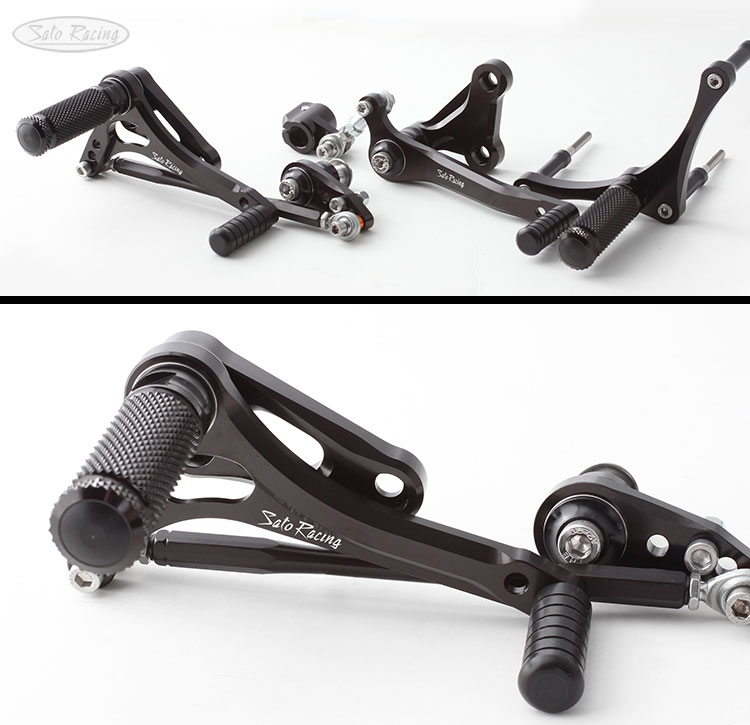

SATO RACING Rear Sets (Type2 design) for 1991-2003 Sportster 883/1200 (5 speed) features components precision CNC-machined out of high strength billet aluminum and anodized in your choice of deep Black or brilliant Silver finish. These premium Rear Sets are designed for riders who want a true mid-mount cafe race-style riding position, providing a foot peg position that sits further back compared to the stock foot rests. Our 'Type2 design' Sportster Rear Sets are fully compatible with the stock exhaust.

Also check out our 'Type1 design' Rear Sets for '91-'03 Sportster, which has an alternate design that sits further back than this model.

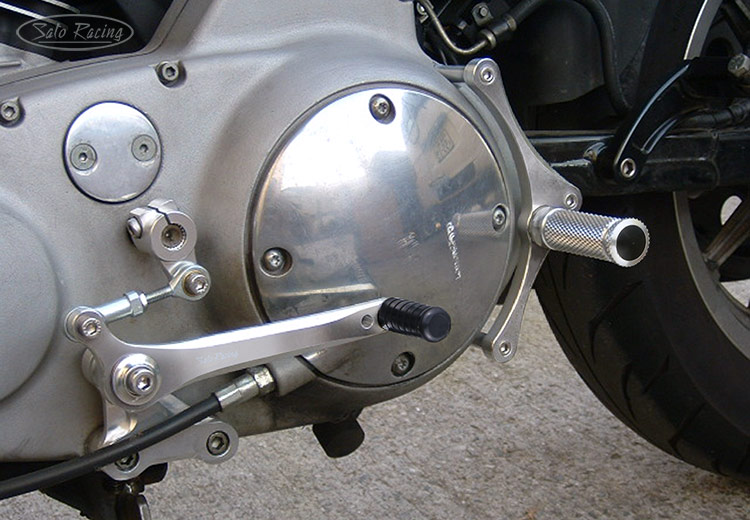

H-D Sportster '91-'03 with Sato Racing Rear Sets (Type2 design) [L]-side

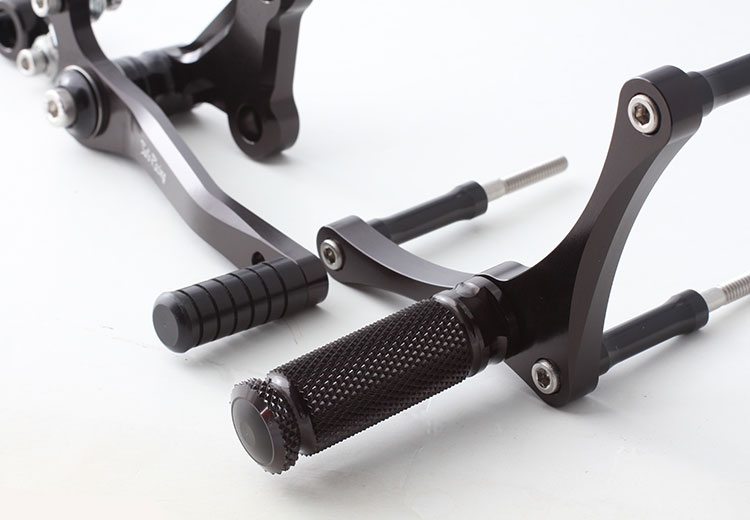

The Foot Pegs have a finely knurled pattern for nice grip and a comfortable, intuitive feel. The Pedal Tips (toe pegs) are made of tough, abrasion-resistant black Delrin. Pedal Tip position is adjustable. The shifter and brake linkage utilize double miniature stainless bearings for smooth, precise lever acuation with a solid feel. Our Sportster Rear Sets provide a stock shifting pattern.

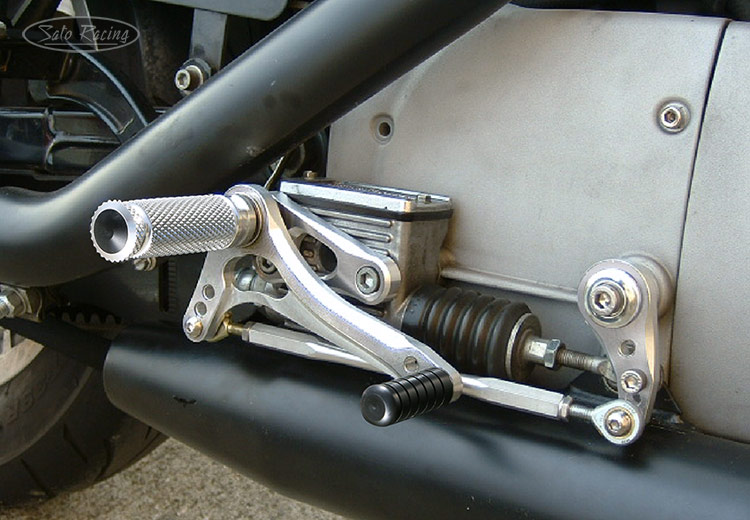

H-D Sportster '91-'03 with Sato Racing Rear Sets (Type2 design) [R]-side

These 'Type 2' Rear Sets bring your feet further back compared to the stock foot position, while retaining the stock brake master cylinder mount position. Fully compatible with the stock exhaust system.

H-D Sportster '91-'03 with Sato Racing Rear Sets (Type2 design)in Black

BLACK	HD-SSTRRS2-BK $765
SILVER	HD-SSTRRS2-SV $765

OPTION

HARLEY-DAVIDSON SPORTSTER 883/1200 5s ('91-'03)
SPROCKET COVER

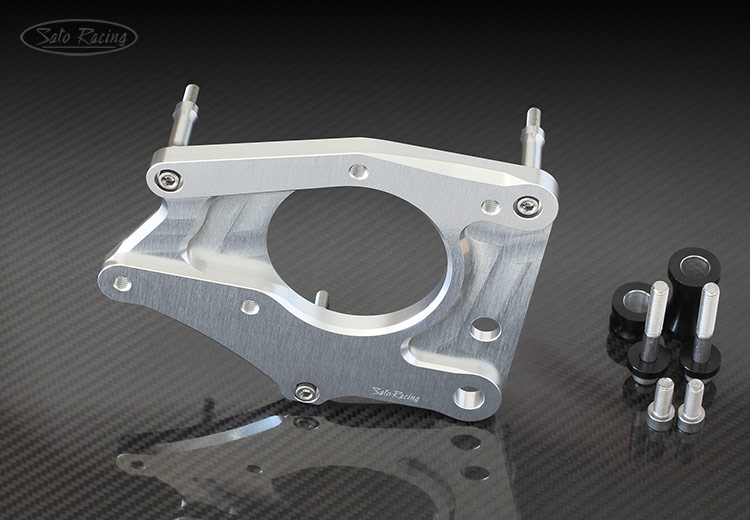

SATO RACING Sportster 883/1200 5s ('91-'03) Sprocket Cover

SATO RACING Sportster ('91-'03) Sprocket Cover is compatible with the stock brake assembly, and also looks great with both versions of our SATO Sportster Rear Sets. CNC-machined from high strength billet aluminum, with your choice of Black or Silver anodized finish, with black anodized collars and stainless steel bolts.

H-D Sportster '91-'03 with OEM controls and Sato Sprocket Cover

SATO Sprocket Cover installed with the stock brake components. This configuration retains the stock mount position for the master cylinder and brake. It is also compatible with our 'Type2' Sportster Rear Sets, since that model uses the same mount location as stock.

H-D Sportster '91-'03 with Sato Racing Rear Sets [R] + Sprocket Cover

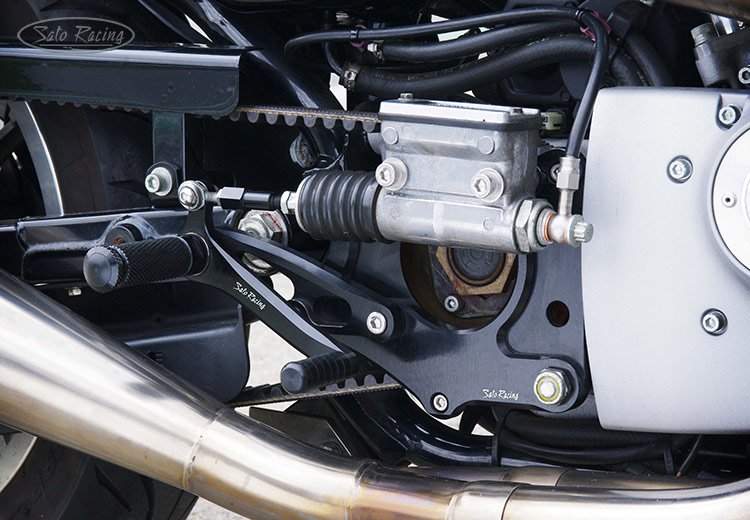

Sprocket Cover in Black installed with SATO 'Type1' Sportster Rear Sets

Sprocket Cover

BLACK	HD-SSTRSCVR-BK $265
SILVER	HD-SSTRSCVR-SV $265
