MV AGUSTA BRUTALE 750-1078 ('01-'12)
REAR SETS
| SATO RACING Rear Sets for 2001-12 MV Agusta Brutale 750 to 1078 series features a track-tested design, with parts precision CNC-mchined out of high strength billet aluminum, with stainless steel bolts and hardware. Modular design lets you select from 18 adjustable positions, compared to 3 positions provided by the stock mount. The shift pedal utilizes miniature double stainless bearings for smooth, precise movement and a high quality feel. This Rear Sets kit can be set up for stock shift pattern or GP-style reverse shift pattern. Choice of Black, Silver or Gold anodized finish. |

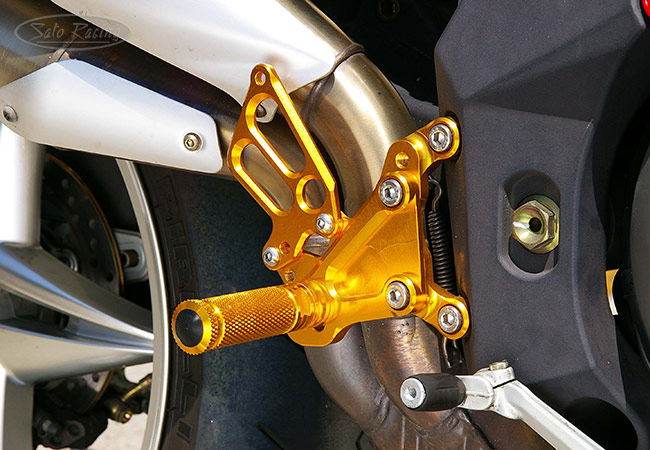

![Sato Racing MV Agusta Brutale Rear Sets [R]-side](pics/RS_MVAGUSTA_BRUTALE_fitR1.jpg "Sato Racing MV Agusta Brutale Rear Sets [R]-side")
Fixed-style (non-folding) Foot Pegs have a knurled pattern
for optimal grip along with a comfortable, intuitive feel.
(These Rear Sets are designed to work with the stock brake pedal)

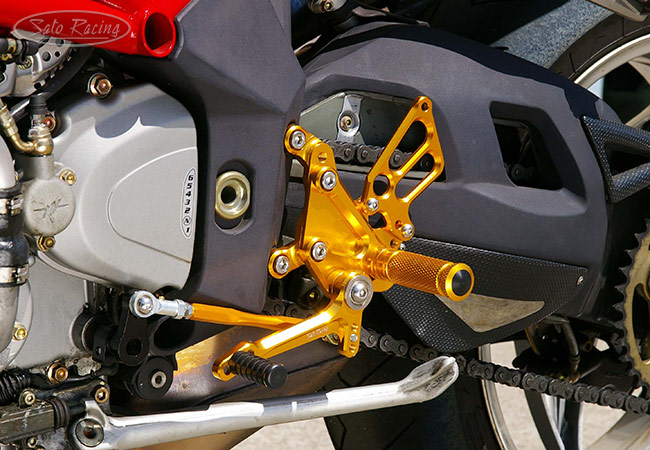

![Sato Racing MV Agusta Brutale Rear Sets [L]-side](pics/RS_MVAGUSTA_BRUTALE_fitL1.jpg "Sato Racing MV Agusta Brutale Rear Sets [L]-side")
Adjustable step plate provides a useful range of foot peg positions.

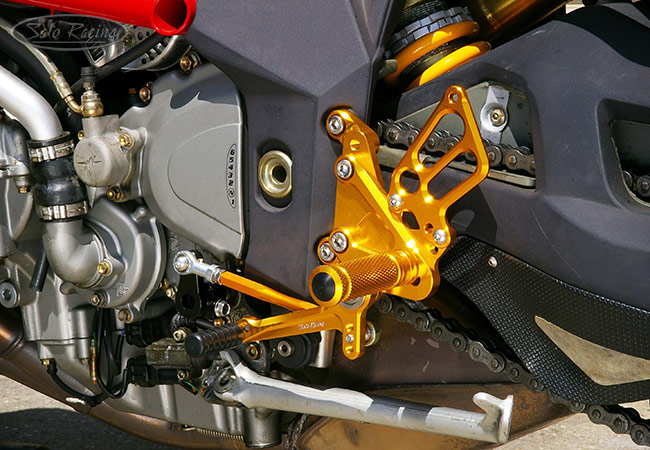

![Sato Racing MV Agusta Brutale Rear Sets [L]-side](pics/RS_MVAGUSTA_BRUTALE_fitL2.jpg "Sato Racing MV Agusta Brutale Rear Sets [L]-side")
You can set it up for reverse (race) shift pattern by flipping the change arm the opposite direction.
| BLACK | MV-BRURS2-BK $545 |
 |
| SILVER | MV-BRURS2-SV $545 |
|
| GOLD | MV-BRURS2-GD $545 |
|
Have questions or prefer to order by phone? You can call us to place an order -

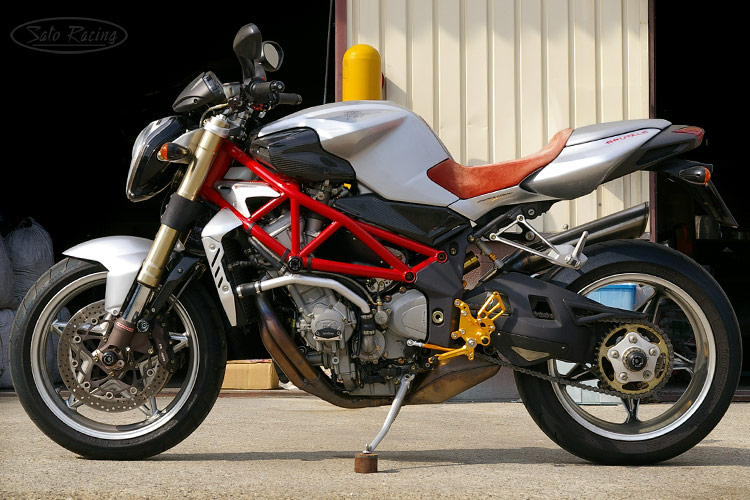

MV Agusta Brutale with SATO RACING Rear Sets, Frame Sliders, Engine Sliders and Axle Sliders.
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK/ SV/ GD) |
PEG $42 |
|
 |
PEG COLLAR 12 (BK/ SV/ GD) (L-side #11 / R-side #6) |
PEGCLR-12 $15 |
|
 |
HEX HEAD M8-45mm (foot peg bolt) |
HBT-M845 $2.00 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
SHIFT PEDAL (BK/ SV/ GD) (L-side, #6) |
SPD-0912 $62.50 |
|
 |
CHANGE ARM (L-side, #8) |
CA-3 $50 |
|
 |
SHIFT ROD 110 (BK/ SV/ GD) (L-side #9) |
SRD-110 $39 |
|
 |
PEG BEARING COLLAR 5 (BK/ SV/ GD) (L-side, #10) |
PEGBGCLR-5 $15.00 |
|
 |
ROD END COLLAR 6 (L-side #12) |
RDED-CLR6 $6.00 |
|
 |
SOCKET HEAD M8-15mm (L-side #14 / R-side #8) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M6-25mm (L-side #15) |
SBT-M625 $1.50 |
|
 |
BUTTON HEAD M8-30mm (L-side #16) |
BBT-M830 $2.00 |
|
 |
BUTTON HEAD M6-10mm (L-side #17 / R-side #9) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (L-side, #18) |
BBT-M620 $1.50 |
|
 |
FLANGE HEAD M6-20mm (L-side, #19) |
FGBT-M620 $1.50 |
|
 |
STUD M6 (L-side #20) | STUD-M6 $2.50 |
|
 |
JAM NUT M6 (L-side #21) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (L-side #22) |
JNT-6L $2.50 |
|
 |
SPLIT WASHER M8 (L-side # 23 / R-side #10) |
SWS-8 $1.20 |
|
 |
FEMALE ROD END M6 (L-side, #24) |
RDED-F6 $15 |
|
 |
M6 MALE REVERSE ROD END (L-side, #25 |
RDED-M6L $12.50 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
More Sato Racing items for MV Agusta Brutale
|
