KTM 390 DUKE ('24- )
REAR SETS
| SATO RACING Rear Sets for 2024-25 KTM 390 Duke features a race-engineered, competition-ready design, with components precision machined out of lightweight, high strength anodized billet aluminum, with stainless steel bolts. Modular step plate design lets you select from 6 unique foot peg positions in a wide adjustment range, bringing your feet Up and Back compared to stock, for a more aggressive riding position ideally suited for the track. Choice of all-Black anodized finish, or Gold finish over Black anodized Base Plates. |
POSITIONS
| 1 | 10mm Back | 5mm Up |
| 2 | 22.5mm Back | 5mm Up |
| 3 | 20mm Back | 17mm Up |
| 4 | 32.5mm Back | 17mm Up |
| 5 | 30mm Back | 29mm Up |
| 6 | 42.5mm Back | 29mm Up |
Note: all measurements are in relation to stock position (0 mm).

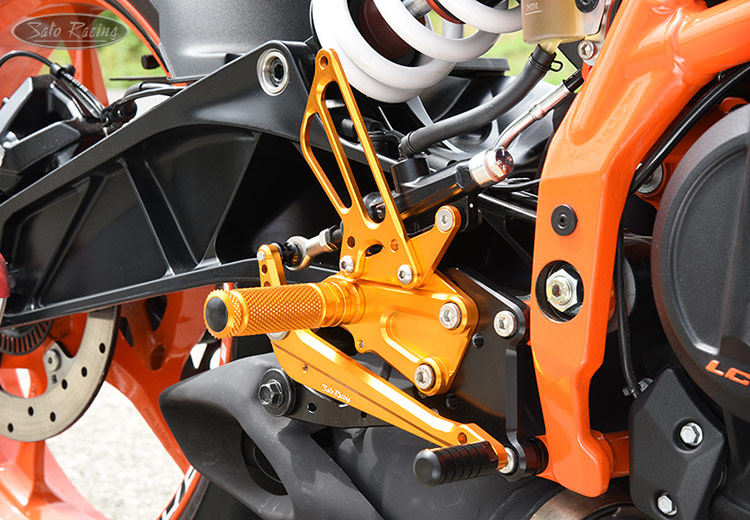

![SATO RACING KTM 390 Duke '24 Rear Sets [R]-side](pics/KTM-D39024RS-GD_fitR1_750x520.jpg "SATO RACING KTM 390 Duke '24 Rear Sets [R]-side")
| The Shift and Brake Pedal use double miniature stainless bearings
for smooth, precise lever actuation with a solid feel. This model is optimized for use with the OEM rear master cylinder and is fully compatible with the brake light switch. |

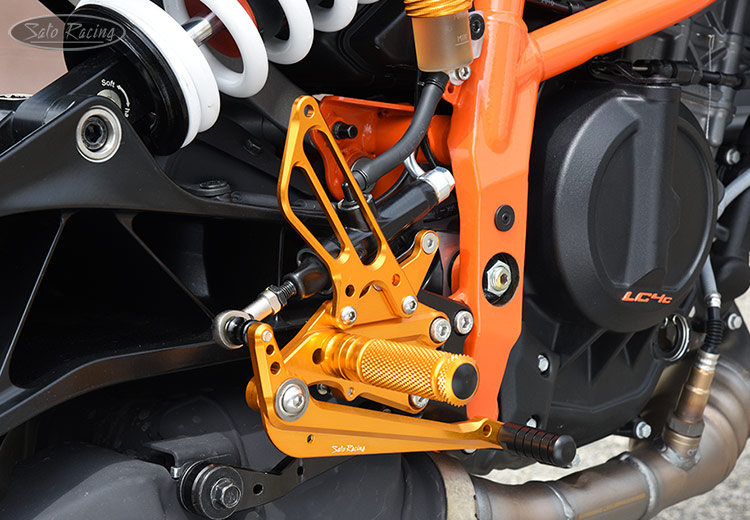

![SATO RACING KTM 390 Duke '24- Rear Sets [R]-side](pics/KTM-D39024RS-GD_fitR2_750x520.jpg "SATO RACING KTM 390 Duke '24 Rear Sets [R]-side")
| The positions of the Step Plate, Foot Peg and Pedal Tip (toe peg) can be individually adjusted, so you can find the perfect position for your riding style. A bracket for hanging the stock exhaust is included. (It can be removed if not needed.) |

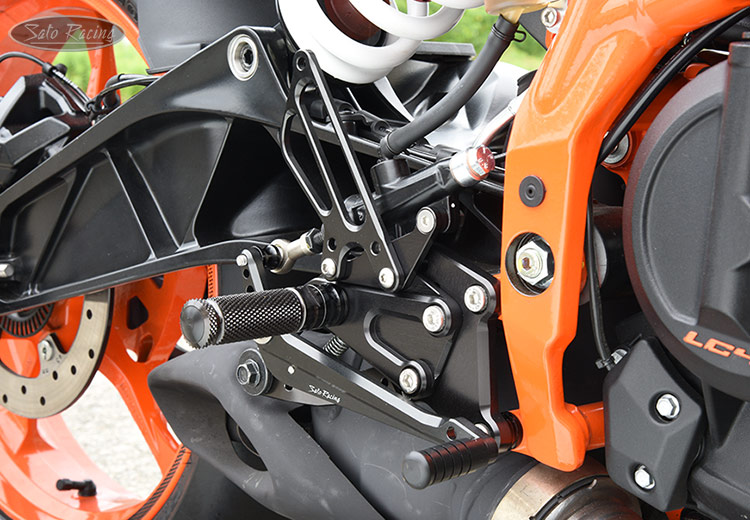

![SATO RACING KTM 390 Duke '24- Rear Sets [R]-side](pics/KTM-D39024RS-BK_fitR1_750x520.jpg "SATO RACING KTM 390 Duke '24- Rear Sets [R]-side")
| Choice of all-Black anodized finish, or vivid Gold finish with Black-anodized Base Plates, exhaust hanger bracket and Shift Rod. NOTE: The stock brake return spring is reused with these Rear Sets. |

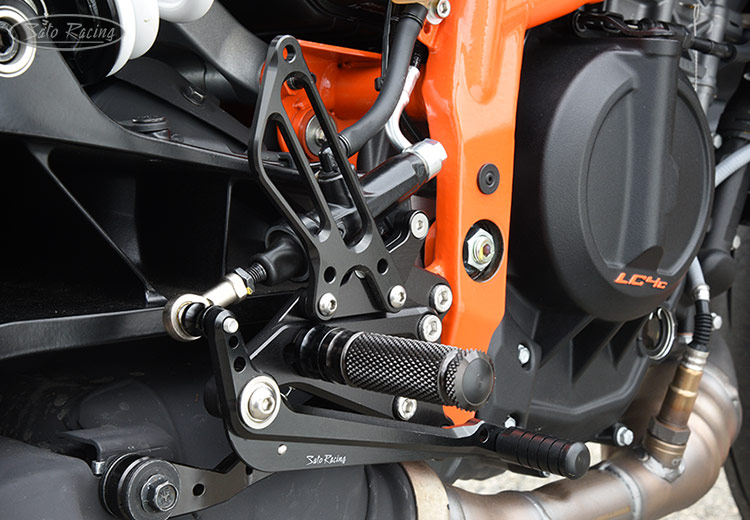

![SATO RACING KTM 390 Duke '24- Rear Sets [R]-side](pics/KTM-D39024RS-BK_fitR2_750x520.jpg "SATO RACING KTM 390 Duke '24- Rear Sets [R]-side")
| The Foot Pegs are fixed type (non-folding) and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Cutout-style Racing Foot Pegs are an available option for this model. (See below for more info). |

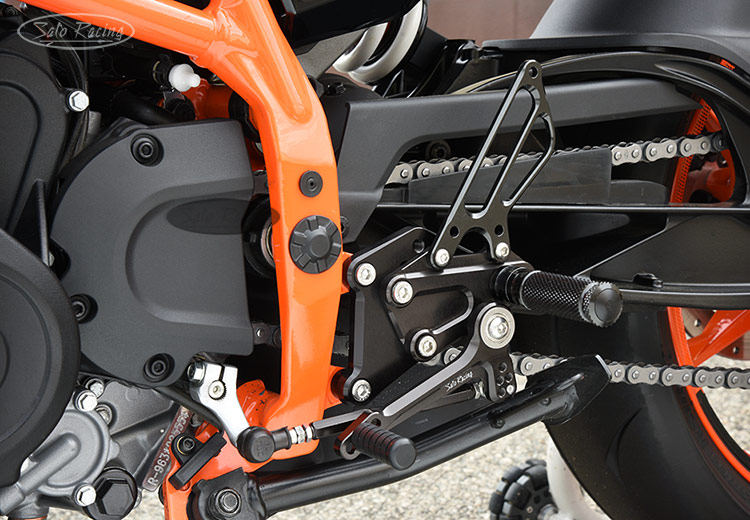

![SATO RACING KTM 390 Duke '24- Rear Sets [L]-side](pics/KTM-D39024RS-BK_fitL1_750x520.jpg "SATO RACING KTM 390 Duke '24- Rear Sets [L]-side")
| The Step Plate is adjustable diagonally 3 ways on the Base Plate, and there are 2 horizontally adjustable positions to attach the Foot Peg to the Step Plate, for a total of 6 unique positions that range from slightly up and back to significantly higher up and further back compared to the stock foot position. |

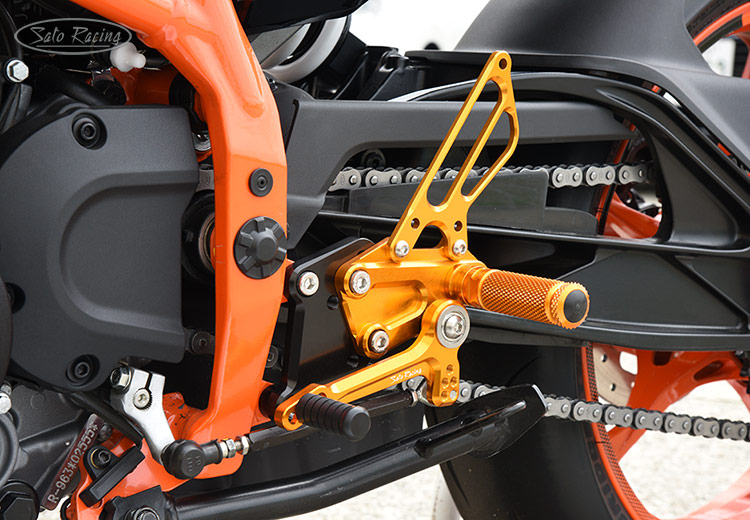

![SATO RACING KTM 390 Duke '24- Rear Sets [L]-side](pics/KTM-D39024RS-GD_fitL1_750x520.jpg "SATO RACING KTM 390 Duke '24- Rear Sets [L]-side")
| The shift linkage integrates with the stock shift arm and ball joint, and provides a stock shifting pattern. (Reverse / race shift pattern is not an option with this model). |

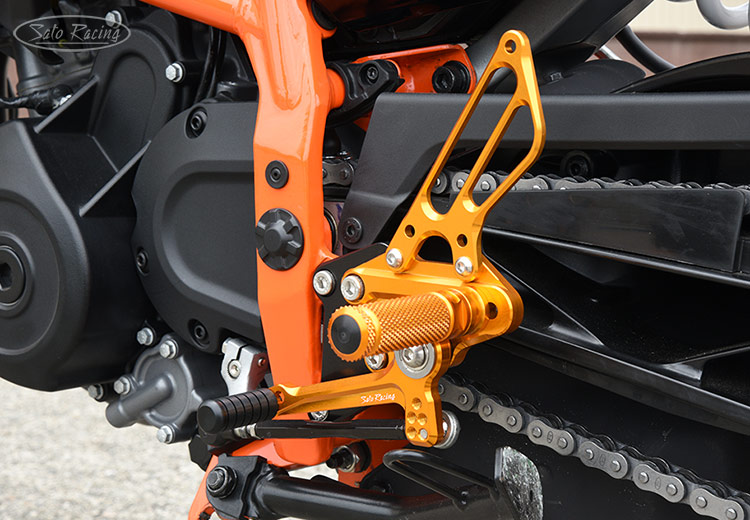

![SATO RACING KTM 390 Duke '24- Rear Sets [L]-side](pics/KTM-D39024RS-GD_fitL2_750x520.jpg "SATO RACING KTM 390 Duke '24- Rear Sets [L]-side")
| The standard Pedal Tips are made of tough, abrasion-resistant black Delrin. Additional styles of Pedal Tips, such as aluminum Pedal Tips with fluted rubber grips, are an available option. More info |
| BLACK | KTM-D39024RS-BK $660 |
 |
| GOLD w/ BLACK base plates |
KTM-D39024RS-GD $660 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
