KAWASAKI ZEPHYR 750 ('91-'07)
|SATO RACING Rear Sets for Kawasaki Zephyr 750 features a track-engineered design with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts and hardware. Adjustable peg mounting positions bring your feet higher up and further back compared to the stock foot position, for a sportier riding position. Choice of all-Black, or Silver or Gold anodized finish over Black Base Plates, with optional Black anodized exhaust canister brackets.|
|1||35mm Back||20mm Up|
|2||40mm Back||20mm Up|
|3||42.5mm Back||32.5mm Up|
|4||47.5mm Back||32.5mm Up|
note: all measurements are in relation to stock position (0 mm).
NOTE: If using the optional canister brackets, the upper 2 positions (3/4) cannot be used.
On the left side, side stand modifications may be required. (Removal of some stays, etc.)
|The shift and brake pedals incorporate miniature double stainless bearings for smooth, precise lever actuation with a solid feel. Modular adjustable design provides 2 mounting positions for the Foot Peg, and 2 diagonally adjustable positions for the Step Plate mount, for a total of 4 positions.|
A Brake Light Switch that attaches to the master cylinder is included with these Rear Sets.
Our Zephyr 750 Rear Sets can be set up for stock shift or reverse/GP shift
pattern by changing the mount angle of the stock change arm.

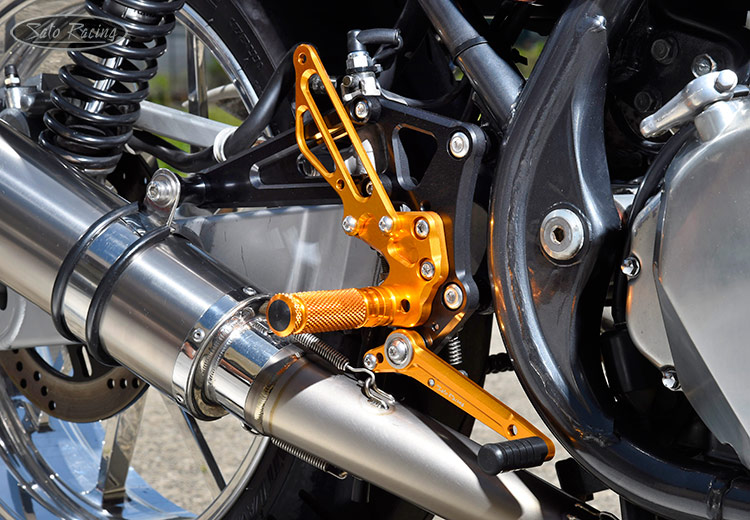

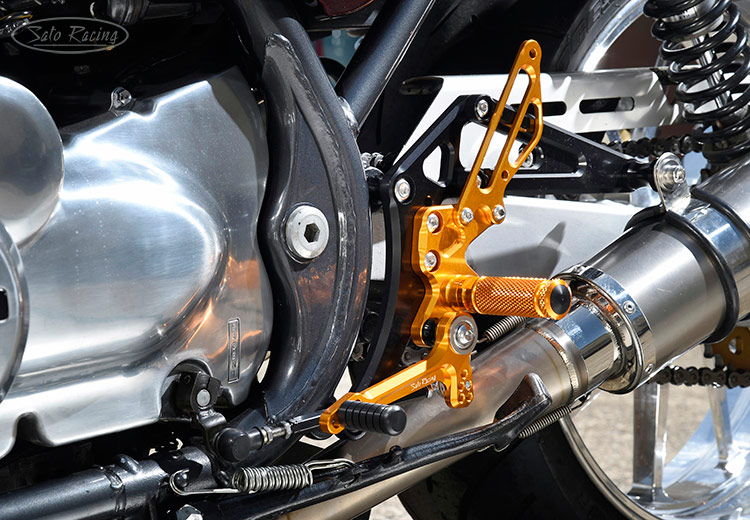

|The Foot Pegs are fixed style (non-folding), and have a fnely knurled pattern for optimal grip, along with a comfortable, intuitive feel. The standard Pedal Tips are made of tough, abrasion-resistant black Delrin plastic, and are adjustable.|
The Canister Brackets are optional and come in a black anodized finish.

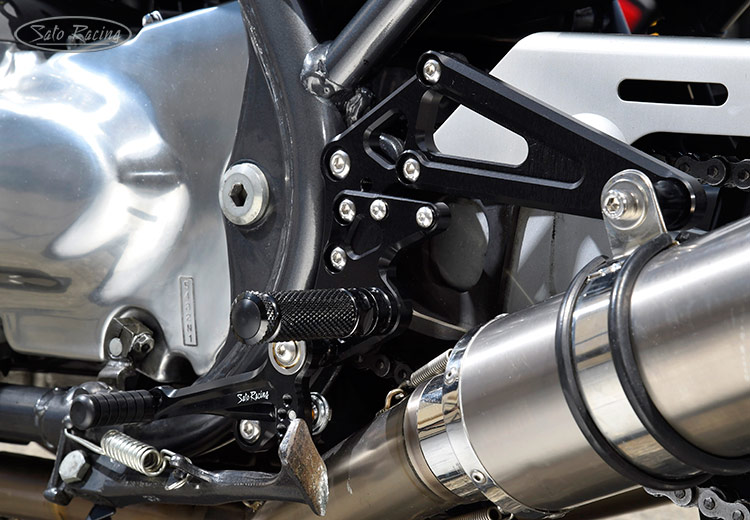

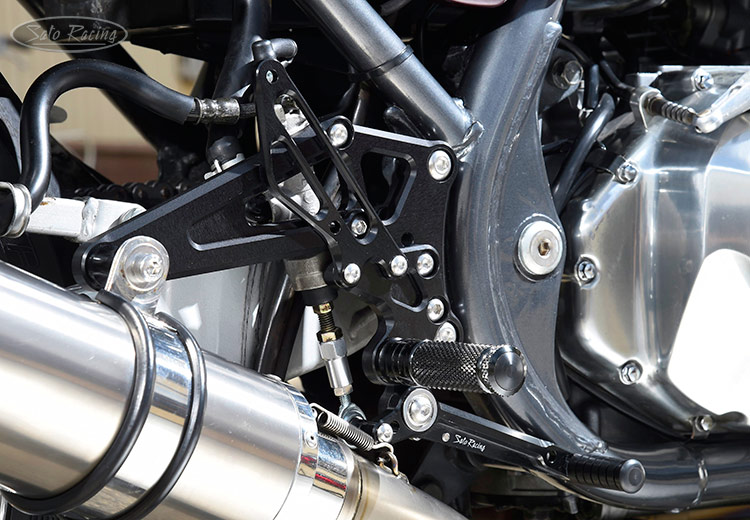

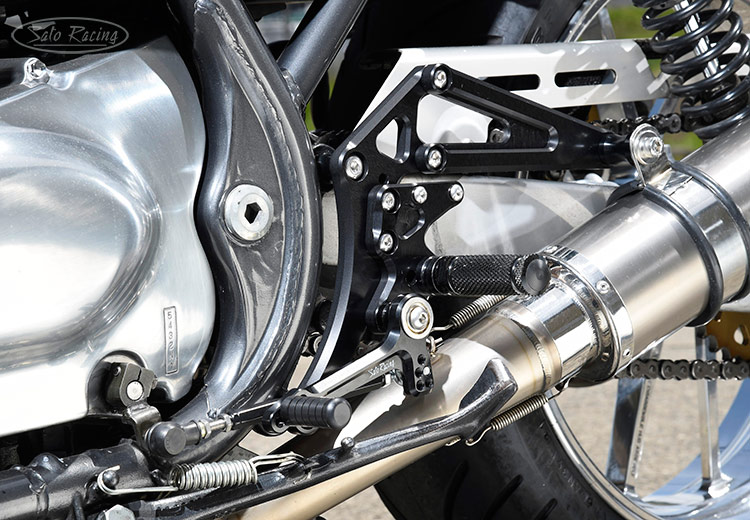

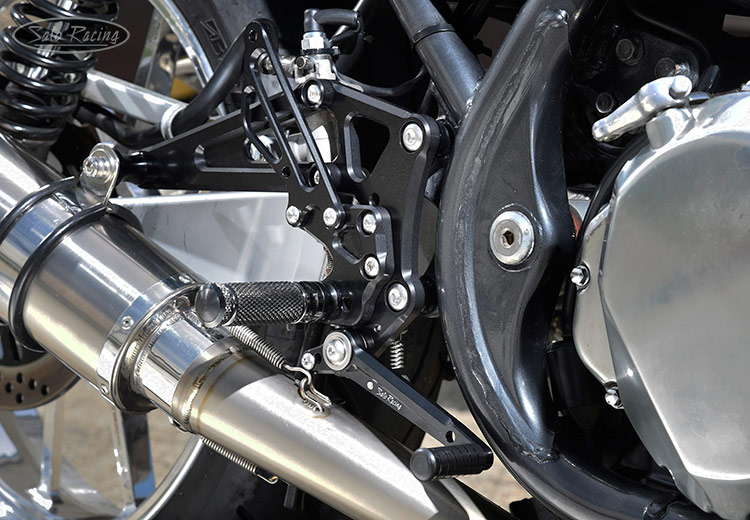

w/ Black Base Plates
w/ Black Base Plates
* Click Here for important info about Sato GOLD-anodized parts.
EXHAUST HANGER OPTIONS

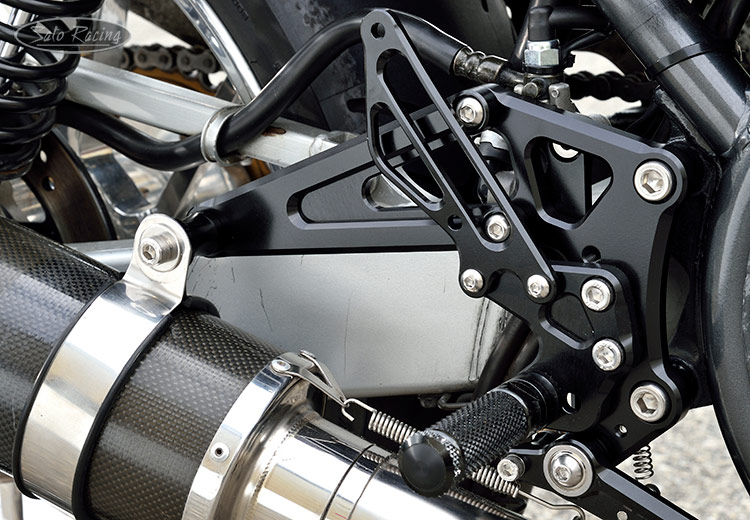

|This optional Canister Bracket attaches to the tail end of our Zephyr 750 Rear Sets, for hanging the exhaust canister from the Rear Sets. Made of high strength black-anodized billet aluminum, with stainless steel hardware. The canister attachment position is near equivalent to stock, but it may be necessary to adjust the offset amount etc. depending on the mounting method of each muffler.|
NOTE: The upper 2 Rear Sets positions cannot be used when the Canister Bracket is attached.
Canister Bracket is sold individually, and is the same part for both sides. For dual-sided exhausts, purchase Qty:2.
CANISTER HANGER (Universal)

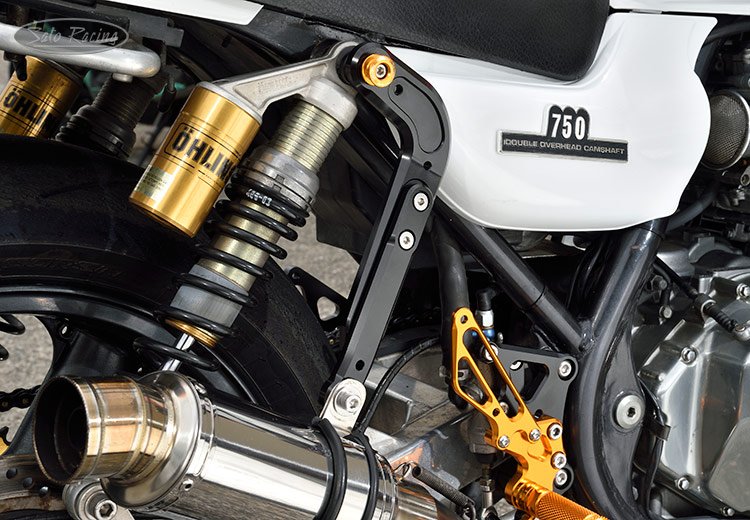

|This adjustable Canister Hanger for the right side provides a way to hang the exhaust canister from the upper suspension mount point, and may be preferable over the Rear Set-mounted Canister Bracket if you have an aftermarket single-side exhaust that is in a non-stock position, or if you want to use the upper peg positions on our Zephyr 750 Rear Sets. Upper hole fits M8 bolt size and the bottom is sized for an M10 bolt. (Bolts not included). Available in 2 length ranges: 180mm-250mm (for higher exhausts) or 225-300mm (for low-mount exhausts). Choice of Black or Silver anodized finish.|
NOTE: If the hydraulic initial adjuster is attached, there may be interference.
Note: Photo is of the prototype. The final production version has some design differences.
The Gold Tie-Down Spool at the upper suspension mount point is sold separately.
|180-250mm - Right Bend - BLACK||UCH-180RBK
|180-250mm - Right Bend - SILVER||UCH-180RSV
|225-300mm - Right Bend - BLACK||UCH-225RBK
|225-300mm - Right Bend - SILVER||UCH-225RSV
