SATO RACING | Rear Sets - Ducati Diavel V4 ('23- )

DUCATI DIAVEL V4
REAR SETS

SATO RACING Rear Sets for 2023+ Ducati Diavel V4 features a track-engineered design, with components precision CNC-machined out of light-weight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Adjustable foot peg positions are higher up and significantly further back compared to stock, to put your legs in a more intuitive position for performance riding. Choice of Black, Silver or Gold anodized finish.

PEG POSITIONS

1	85mm Back	22.5mm Up
2	97mm Back	30mm Up

note: all measurements are in relation to stock position (0 mm).

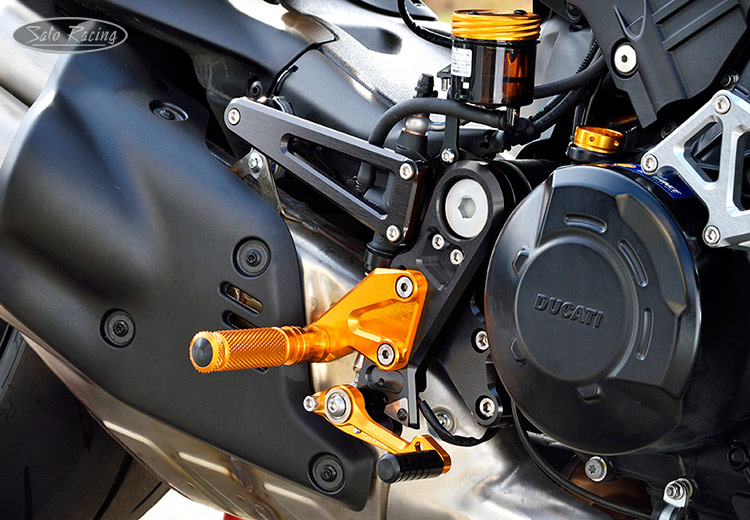

SATO RACING Ducati Diavel V4 Rear Sets [R]-side
The shift and brake pedals use dual miniature stainless bearings for smooth, precise lever actuation.
Rear Sets kit includes hardware for attaching the stock brake light switch.

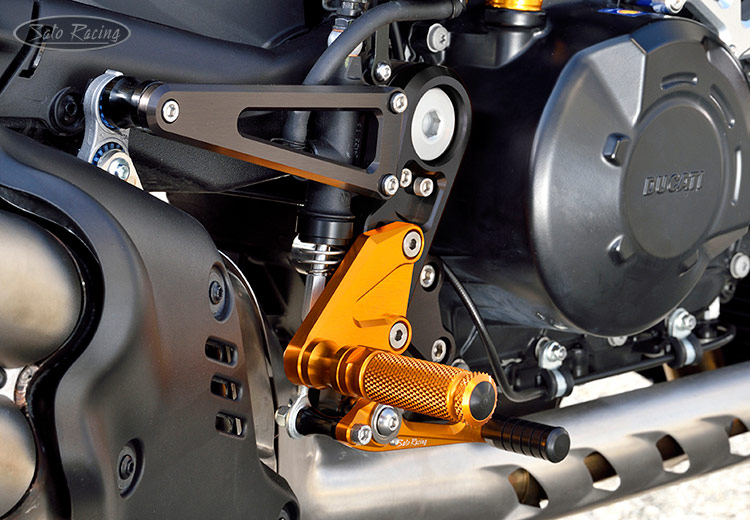

SATO RACING Ducati Diavel 1260 Rear Sets [R]-side
Provides 2 adjustable peg positions. The Foot Pegs are our classic fixed type (non-folding)
pegs, and have a knurled pattern for great grip, along with a comfortable, intuitive feel.

A black-anodized hanger and attachment hardware for the stock exhaust is included with this kit.

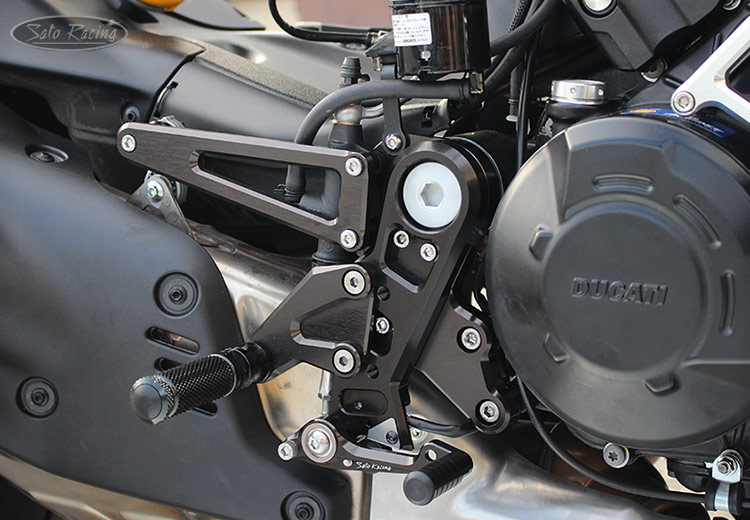

SATO RACING Ducati Diavel V4 Rear Sets [R]-side
Rear Sets (brake side) in Black anodized finish.

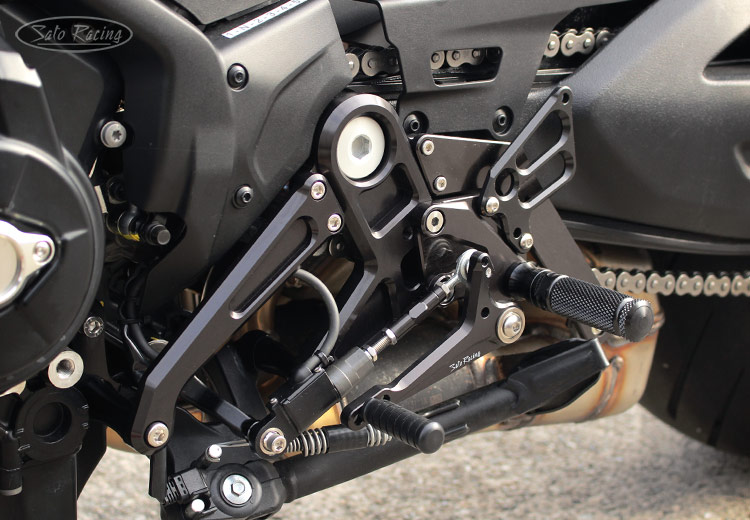

SATO RACING Ducati Diavel V4 Rear Sets [L]-side in Black
Choice of all-Black anodized finish, or Silver or Gold anodized
controls floating over Black Base Plates and Exhaust Hanger brackets.

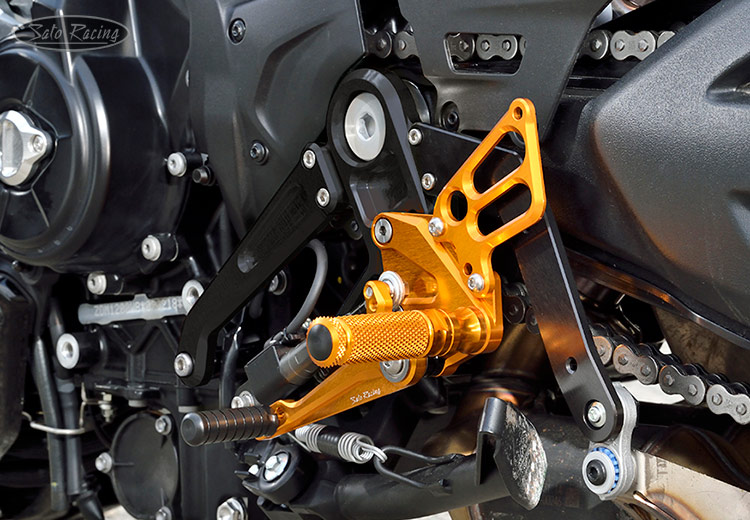

SATO RACING Ducati Diavel V4 Rear Sets [L]-side
The standard Pedal Tips are made of tough black Delrin. Additional Pedal Tip styles, such
as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details

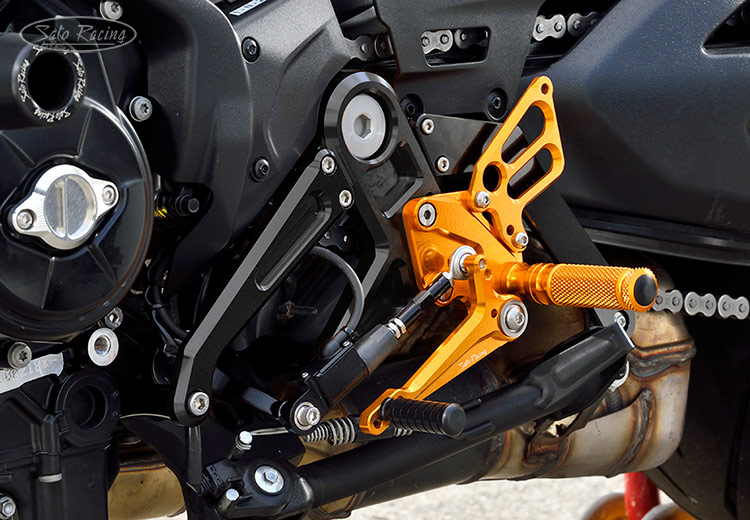

SATO RACING Ducati Diavel V4 Rear Sets [L]-side
Shift link is optimized for use with the OEM quickshifter, providing a stock shift pattern.

	BLACK	D-DLV4RS-BK $860
	SILVER w/ BLACK Base Plates	D-DLV4RS-SV $860
	GOLD w/ BLACK Base Plates	D-DLV4RS-GD $860

* Click Here for important info about Sato color-anodized parts.

Ducati Diavel V4 with SATO RACING Rear Sets, Sliders and other parts

OPTIONS

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48
	GOLD	RCPEG-GD $48

Click Here for important info about Sato color-anodized parts.

Have questions or prefer to order by phone? You can call us to place an order -

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45

Have questions or prefer to order by phone? You can call us to place an order -

More Sato Racing items for Ducati Diavel V4
