HONDA NC700/ S ('12-'13)

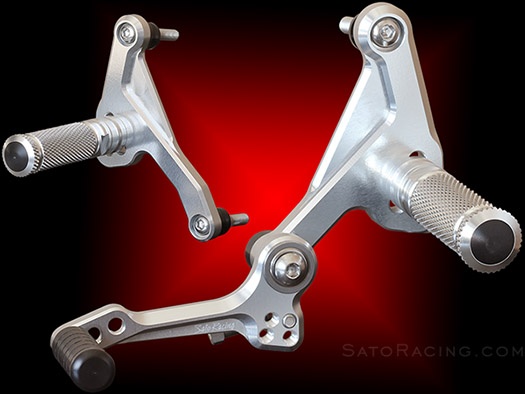

SATO RACING Rear Sets for Honda NC700-series are CNC-machined from high grade billet aluminum and anodized in a brilliant Silver (clear) finish. These Rear Sets provide 4 adjustable foot peg positions in a range that brings your feet higher and further back compared to stock, for a sportier, less upright riding position well suited for the track.


1 15mm Back 27.5mm Up
2 25mm Back 27.5mm Up
3 20mm Back 37.5mm Up
4 20mm Back 47.5mm Up

note: all measurements are in relation to stock position (0 mm).

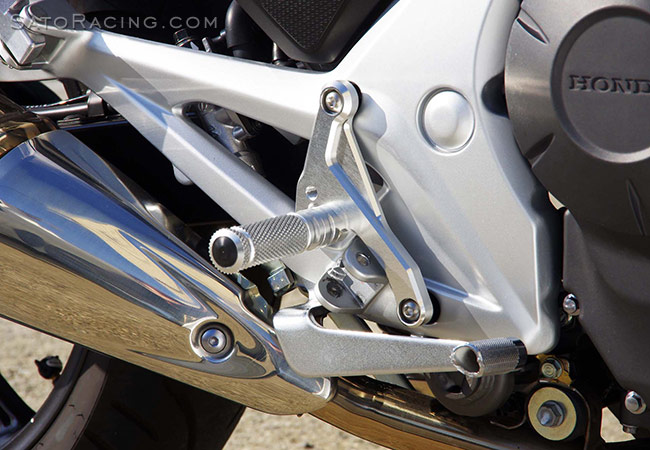

These Rear Sets are designed to utilize the stock brake pedal, reducing complexity
and simplifying installation. The Rear Sets mount over the stock peg holder brackets.

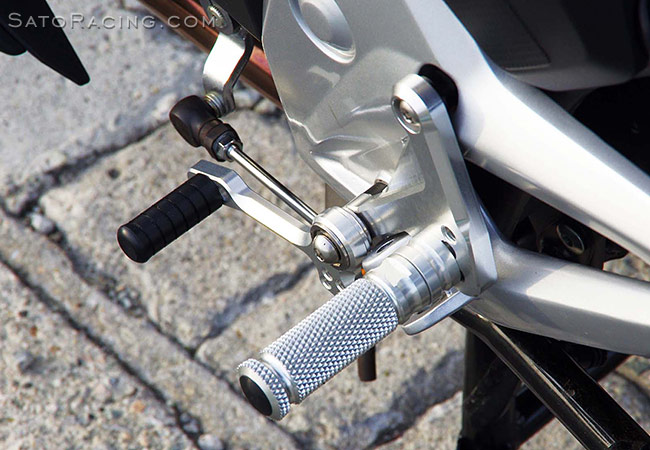

The Foot Pegs are adjustable to 4 positions (up to 47.5mm higher than stock!),
and feature a finely knurled pattern for excellent grip and an intuitive feel.

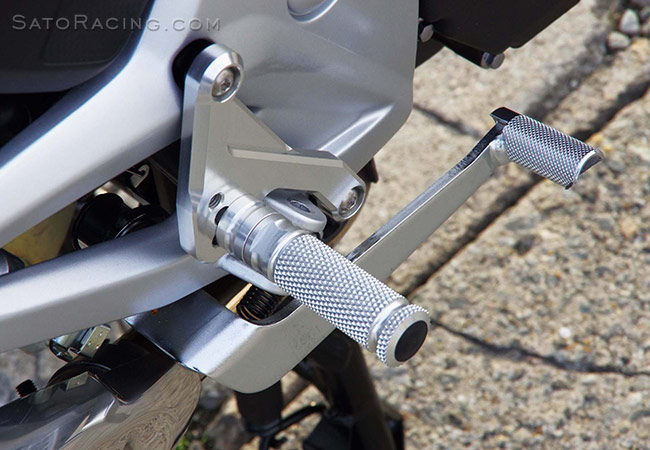

The shift stroke can be adjusted by changing the mounting position of the
shift rod at the base of the pedal. The pedal tip position is also adjustable.

The shift pedal features double stainless bearings for smooth, precise pedal movement and a solid feel.


SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Rear Sets, or download the PDF:
Parts List
