HONDA CB1100 EX / RS ('17-'22)
REAR SETS
| SATO RACING Rear Sets for 2017+ Honda CB1100 EX / RS features components precision CNC-machined out of lightweight, high strength anodized billet aluminum, with stainless steel bolts and hardware. 2 adjustable peg mounting positions bring your feet higher up and further back compared to the stock foot position, for a sportier riding position. Includes tandem brackets for hanging the exhaust and attaching the stock passenger pegs. Choice of Black or Silver anodized finish. |
POSITIONS
| 1 | 33mm Back (1.3" Back) |
38mm Up (1.5" Up) |
| 2 | 45mm Back (1.8" Back) |
50mm Up (2" Up) |
note: all measurements are in relation to stock position (0 mm).

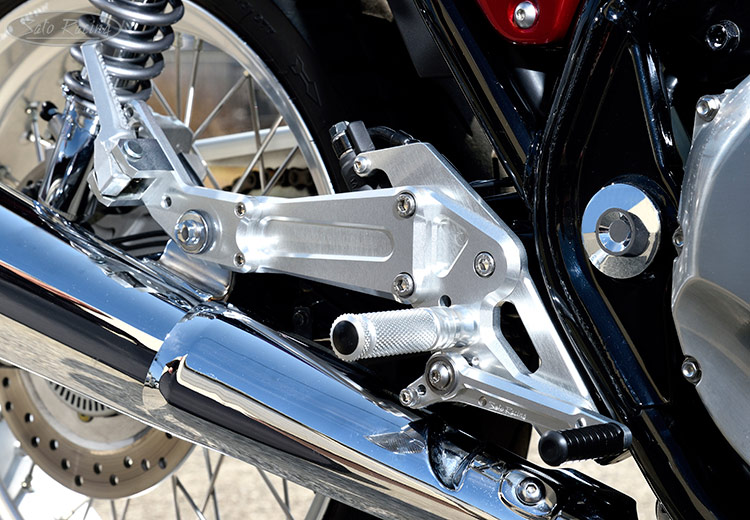

![SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [R]-side in Silver](pics/H-CB110017RST-SV_fitR1.jpg "SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [R]-side in Silver")
| The shift and brake pedals incorporate miniature double stainless bearings for smooth, precise lever actuation with a solid feel. The Step Plate has 2 mounting positions for the Foot Peg. |

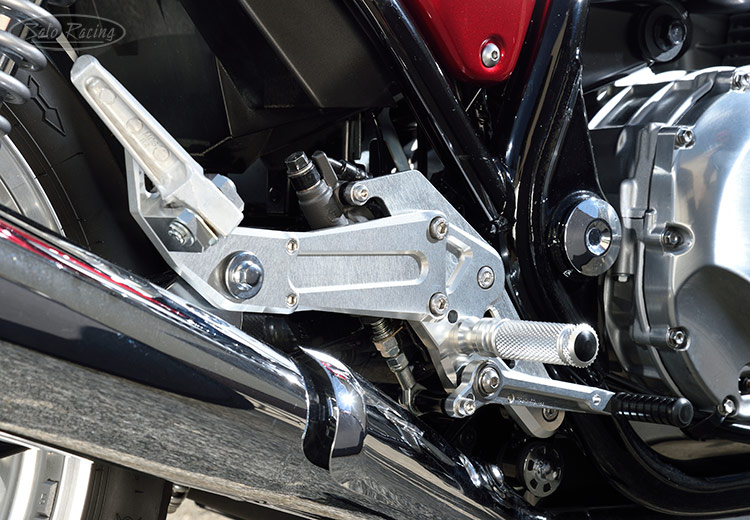

![SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [R]-side in Silver](pics/H-CB110017RST-SV_fitR2.jpg "SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [R]-side in Silver")
| 'Street'-friendly design - Compatible with the stock rear brake light switch. Tandem Brackets have holders designed for use with the stock passenger peg hardware. |

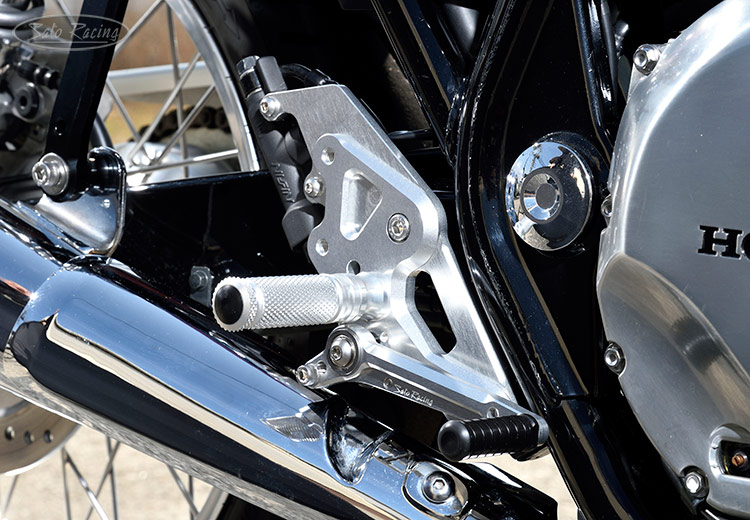

![SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [R]-side in Silver without tandem brackets](pics/H-CB110017RS-SV_fitR1.jpg "SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [R]-side in Silver without tandem brackets")
| If you have an aftermarket single-side exhaust, and/or you don't need passenger pegs, you can omit the Tandem Brackets and use our Universal Exhaust Hanger instead. (See details below) |

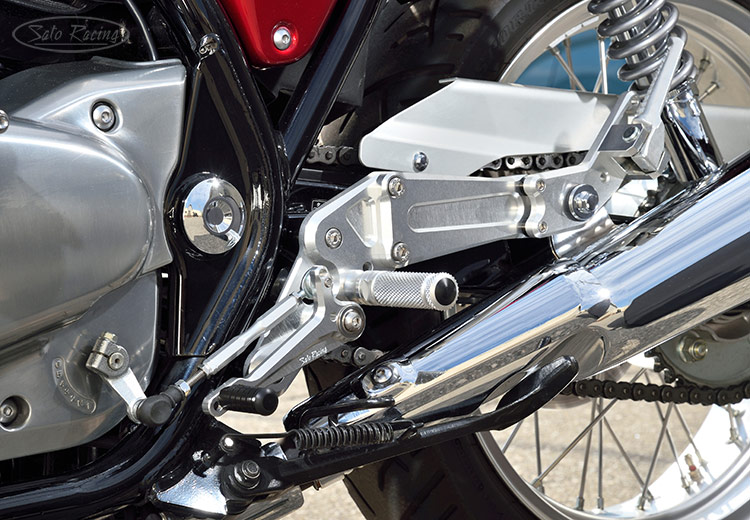

![SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [L]-side in Silver](pics/H-CB110017RST-SV_fitL1.jpg "SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [L]-side in Silver")
|
Foot Pegs are our classsic fixed style (non-folding) pegs, and have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Includes End Caps made of tough, abrasion-resistant black Delrin. The standard Pedal Tips (toe pegs) are also made of Delrin, and are adjustable. Note: Installation requires modifying the side stand. |

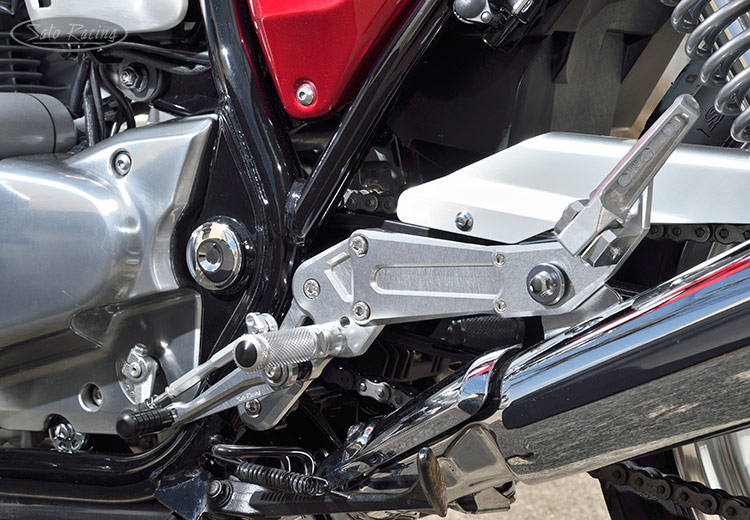

![SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [L]-side in Silver](pics/H-CB110017RST-SV_fitL2.jpg "SATO RACING Honda CB1100 EX / RS 2017-20 Rear Sets [L]-side in Silver")
| BLACK | H-CB110017RS-BK $750 |
 |
| SILVER | H-CB110017RS-SV $750 |
|
OPTIONS
CANISTER HANGER (Universal)

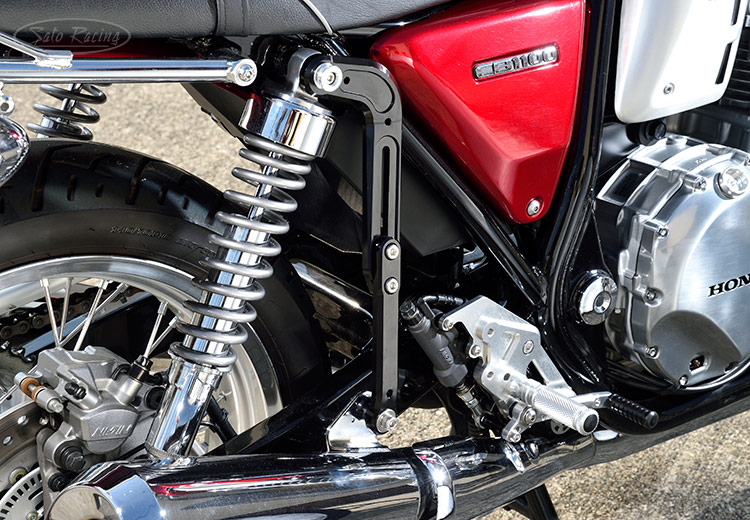

| This adjustable Canister Hanger provides an alternate way to hang the exhaust canister from the upper suspension mount point, and may be preferable over the Rearset-mounted Tandem Brackets in some cases, such as if you have an aftermarket single-side exhaust, or if you don't need the passenger pegs and you just want to omit the tandem brackets. Choice of Black or Silver anodized finish. Note: The Silver Tie-Down Spool seen at the upper suspension mount point in the above photo is sold separately. |
| 225-300mm - Right Bend - BLACK | UCH-225RBK $135 |
|
| 225-300mm - Right Bend - SILVER | UCH-225RSV $135 |
|
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
