KTM  125 / 200 DUKE

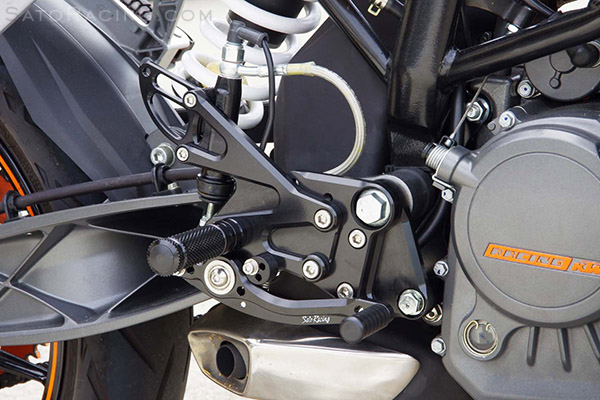

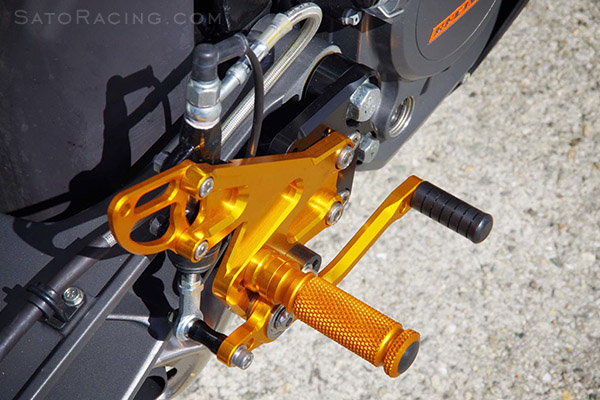

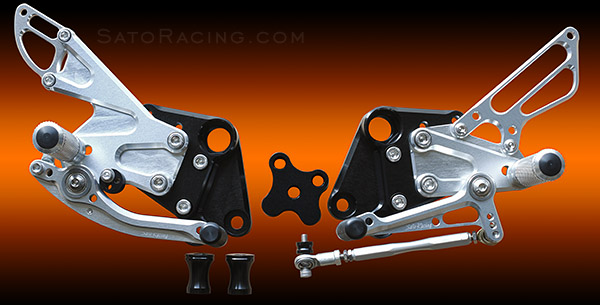

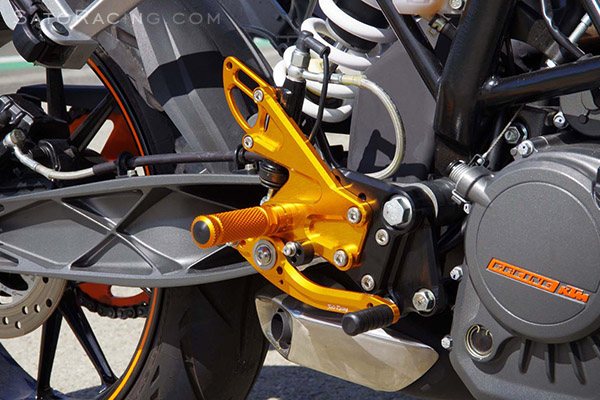

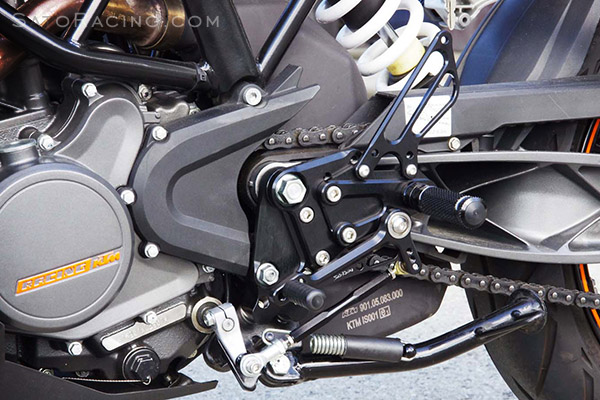

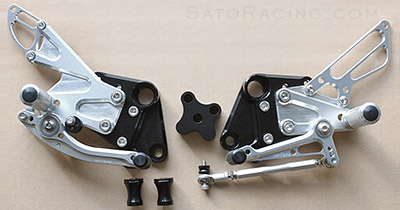

SATO RACING 125 / 200 DUKE Rear Sets are made of high grade billet aluminum anodized in your choice of Black, Silver, or Gold with Black base plates. The shift and brake pedals have double stainless bearings for smooth, precision pedal movement. Deeply knurled footpegs provide optimal grip even in wet conditions. Select from a range of 8 adjustable positions that puts your feet higher than the stock pedals. We also offer a Reverse Shift version of these Rear Sets which provide a dedicated reverse shift pattern.

POSITIONS

1 25mm Forward 12.5mm Up
2 25mm Forward 125mm Up
3 12.5mm Forward 12.5mm Up
4 12.5mm Forward 25mm Up
5 0 25mm Up
6 0 37.5mm Up
7 12.5mm Back 25mm Up
8 12.5mm Back 37.5mm Up

note: all measurements are in relation to stock position (0 mm).



Foot Pegs feature a finely knurled pattern for superior grip.




The shift stroke can be adjusted by changing the mounting position of the shift rod.

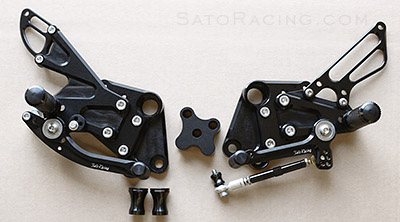

Reverse Shift Rear Sets feature a shift pedal with a dedicated reverse shift pattern.




REAR SETS

BLACK KTM-125RS-BK
$735
SILVER KTM-125RS-SV
$735
GOLD KTM-125RS-GD
$735




REVERSE SHIFT REAR SETS

BLACK KTM-125RSR-BK
$735
SILVER KTM-125RSR-SV
$735
GOLD KTM-125RSR-GD
$735


NOTE: These Rear Sets are confirmed to fit 125 Duke and 200 Duke only. Fitment on Duke 390 has not yet been confirmed.


(If you are outside the US and would like to purchase this part, Contact Sato Racing or one of our International Dealers to place your order.)




SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list included
with your Sato Rear Sets, or download the PDF:
125/200 Duke Rear Sets - Parts List
