HONDA 919 / 599 / HORNET (CB900F / CB600F) ('02-'07)
REAR SETS
| SATO RACING Rear Sets for 2002-07 Honda Hornet (919 / 599 / CB900F / CB600F) feature parts precision CNC-machined out of high strength billet aluminum. The shift and brake pedals utilize miniature double stainless bearings for smooth, precise movement. Knurled Foot pegs provide optimal grip, along with a comfortable, intuitive feel. Pedal Tips (toe pegs) are made of tough, abrasion-resistant Delrin. Adjustable design lets you select from 5 foot peg positions that bring your feet higher up and and further back compared to stock for a sportier riding position. Choice of Black or Silver (clear metal) anodized finish. Kit includes a brake light switch. |
| 1 | 10mm Back (0.4" Back) |
20mm Up (0.8" Up) |
| 2 | 10mm Back (0.4" Back) |
30mm Up (1.2" Up) |
| 3 | 20mm Back (0.8" Back) |
30mm Up (1.2" Up) |
| 4 | 20mm Back (0.8" Back) |
40mm Up (1.6" Up) |
| 5 | 30mm Back (1.2" Back) |
40mm Up (1.6" Up) |
Note: all measurements are in relation to stock position (0 mm).

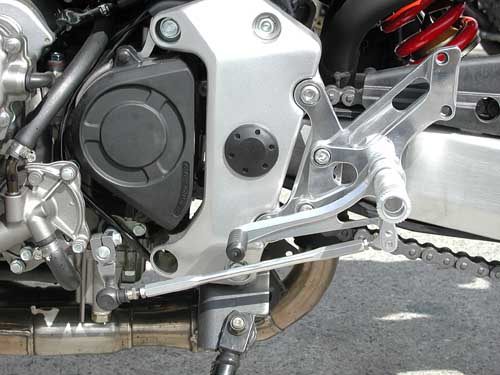

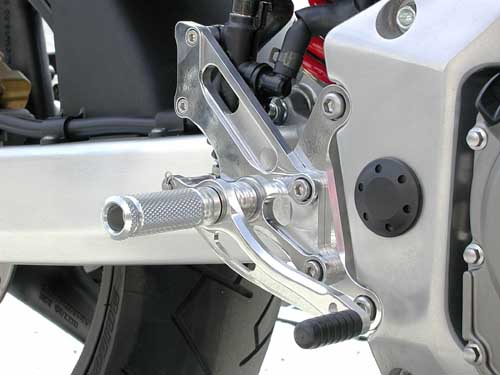

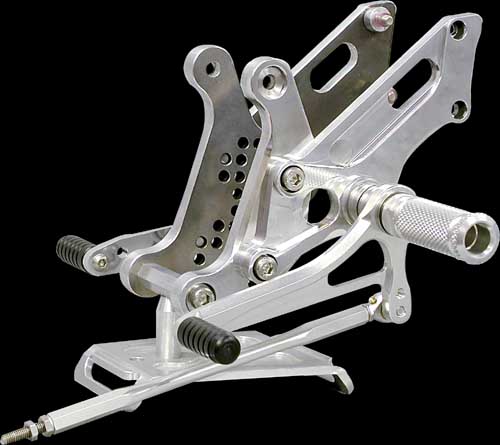

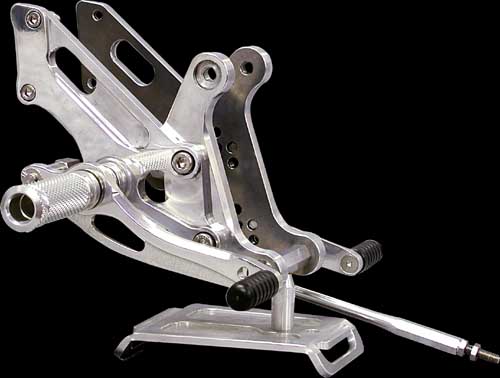

Note: The following install photos depict our original Hornet Rear Sets. Our latest
version of these Rear Sets features an updated pedal design, among other improvements.

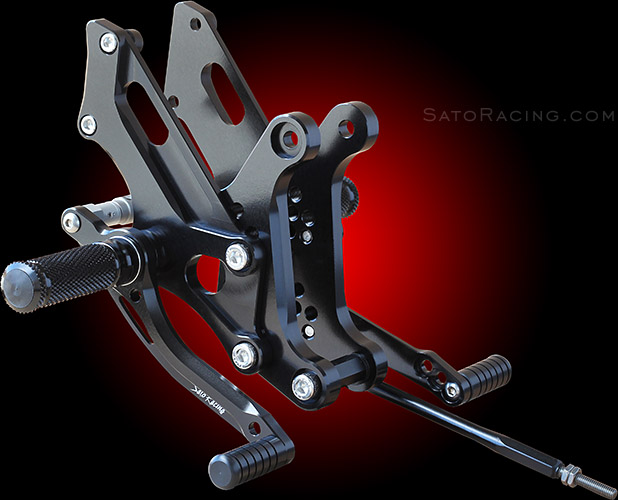

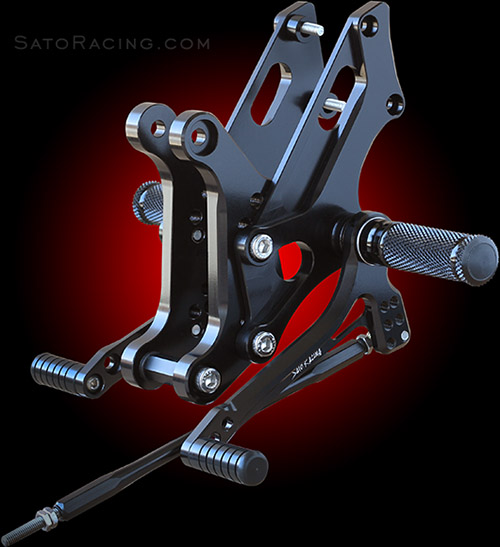

(See photos at top of page).
You can switch from stock shift to reverse shift pattern
by rotating the change arm.
| BLACK | H-919RS-BK $590 |
 |
| SILVER | H-919RS-SV $590 |
|
(Brake light switch included in kit)
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Many replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
STUD BOLT LONG (M8-65mm) (peg bolt) |
STBT-L $4.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SOCKET HEAD M8-15mm (#2) |
SBT-M815 $1.50 |
|
 |
SOCKET HEAD M6-20mm (L-side #3) |
SBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #12) |
RDED-CLR3 $6.00 |
|
 |
PEG WASHER - M8 (L-side #9 / R-side #7) |
PWS-8 $1.00 |
|
 |
PEG BEARING COLLAR 10 (BK / SV) (L-side #8 / R-side #12) |
PEGBGCLR-10 $15.00 |
|
 |
M6 MALE ROD END (L-side #13) |
RDED-M6 $12.50 |
|
 |
JAM NUT M6 (L-side #14) |
JNT-6 $1.75 |
|
 |
SHIFT ROD 195 (BK / SV) (L-side #15) |
SRD-195-B $39 |
|
|
REVERSE JAM NUT M6 (L-side #16) |
JNT-6L $2.50 |
|
 |
REVERSE STUD M6 (L-side #17) |
STUD-M6L $4.20 |
|
 |
FLANGE NUT M8 (L-side #18 / R-side #14) |
FNT-8 $1.50 |
|
|
SOCKET HEAD M6-25mm (R-side #3) |
SBT-M625 $1.50 |
|
 |
BRAKE PEDAL (R-side #10) |
BPD-3 $58 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
