KAWASAKI  ZX-6R  ('05-'08)
REAR SETS

SATO RACING Rear Sets for 2005-08 Kawasaki ZX-6R features a track-engineered design, with components CNC-machined from high strength anodized billet aluminum. The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever action. Knurled foot pegs give you nice grip along with a comfortable, intuitive feel. Modular design provides 7 adjustable positions that bring your feet higher and further back compared to the position of the stock foot pegs, for a more aggressive riding position well-suited for the track. You can easily set up these Rear Sets for stock shift pattern or reverse / race shift pattern.

SATO RACING ZX-6R '05-'08 Rear Sets [R]-side in Gold

SATO RACING ZX-6R '05-'08 Rear Sets [L]-side in Gold


POSITIONS

1 10mm Back 20mm Up
2 10mm Back 30mm Up
3 20mm Back 20mm Up
4 20mm Back 30mm Up
5 20mm Back 40mm Up
6 30mm Back 30mm Up
7 30mm Back 40mm Up

Note: all measurements are in relation to stock position (0 mm).

Note: The following install photos depict our original Rear Sets
for ZX-6R. Later editions of this model had some design updates.

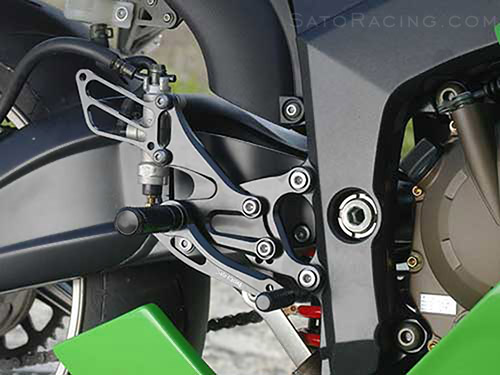

SATO RACING ZX-6R '05-'08 Rear Sets [R]-side
A brake light switch (not pictured) is also included with this Rear Sets kit.

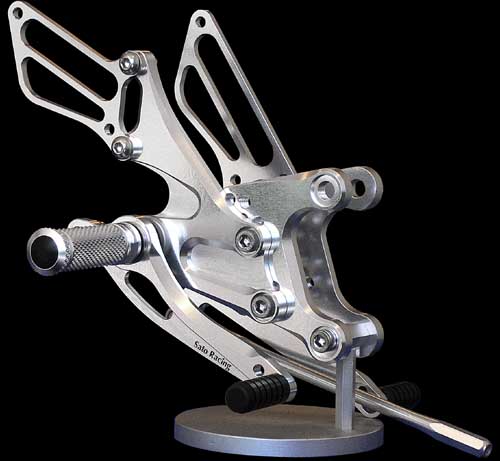

SATO RACING ZX-6R '05-'08 Rear Sets [R]-side

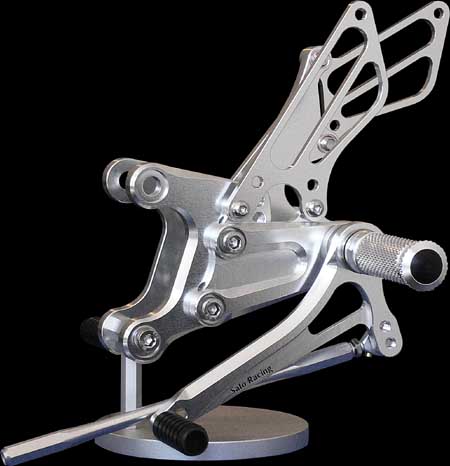

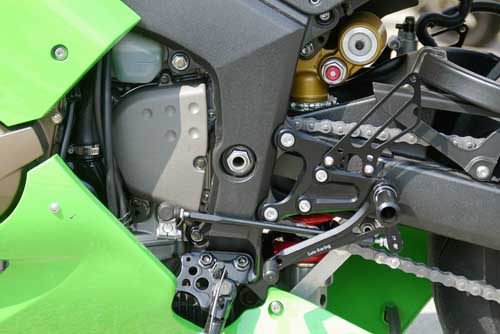

SATO RACING ZX-6R '05-'08 Rear Sets [L]-side
You can set it up for stock shift pattern or reverse pattern by flipping the
stock change arm the opposite direction (using the provided hardware).



BLACK K-ZX605RS-BK
SOLD OUT
GOLD K-ZX605RS-GD
SOLD OUT

This model has ended production and is now sold out.
Most replacement parts for this model are still available.





____________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for all our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Most replacement parts for these Rear Sets
can be purchased in our online store:

PEG FOOT PEG
(BK/ SV/ GD)
PEG
$42
STBT-S STUD BOLT SHORT (M8x55)
(Foot Peg bolt)
STBT-S
$4.50
FNT-8 FLANGE NUT M8
(for Peg Bolt)
FNT-8
$1.50
ST-001D18 PEDAL TIP (DELRIN) ST-001D18
$16.50
BBT-M620 BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
SBT-M815 SOCKET HEAD M8-15mm
(#2)
SBT-M815
$1.50
BBT-M615 BUTTON HEAD M6-15mm
(L-side #4)
BBT-M615
$1.50
BGCLR-SUS BEARING COLLAR SUS
(L-side #9 / R-side #6)
BGCLR-SUS
$6.50
SRD-130 SHIFT ROD 195
(BK/ SV/ GD) (L-side #10)
SRD-195
$39
RDED-M6 M6 MALE ROD END
(L-side #11)
RDED-M6
$12.50
JNT-6 JAM NUT M6
(L-side #12)
JNT-6
$1.75
SPD-0102 SHIFT PEDAL
(BK/ SV/ GD)  (L-side #13)
SPD-0102
$62.50
PWS-8 PEG WASHER - M8
(L-side #14 / R-side #7)
PWS-8
$1.00
BPD-1 BRAKE PEDAL
(BK/ SV/ GD)  (R-side #8)
BPD-1
$80
WS-6 WASHER M6
(R-side #9)
WS-6
$1.00
ECP-6 E-CLIP M6
(R-side #10)
ECP-6
$1.50
BRD-M40 BRAKE ROD M40
(R-side #11)
BRD-M40
$13.50
BSW-125 BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
