TRIUMPH SPEED TRIPLE 1050 S/ RS ('18-'19)
REAR SETS
| SATO RACING
Rear Sets for 2018-19 Triumph Speed Triple 1050 S/ RS features a track-engineered and race-proven design, with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel hardware. Adjustable design provides 8 unique foot peg positions
in a useful range for performance riding, so you can find the ideal position for your riding style. Choice of Black or Gold anodized finish. 2 versions of these Rear Sets available: for the standard Speed Triple without the quickshifter, and for Triumph quickshifter-equipped models. |
PEG POSITIONS
| 1 | 7.5mm Back | 5mm Up |
| 2 | 7.5mm Back | 15mm Up |
| 3 | 22.5mm Back | 15mm Up |
| 4 | 22.5mm Back | 25mm Up |
| 5 | 7.5mm Back | 22.5mm Up |
| 6 | 7.5mm Back | 32.5mm Up |
| 7 | 22.5mm Back | 32.5mm Up |
| 8 | 22.5mm Back | 42.5mm Up |
note: all measurements are in relation to stock position (0 mm).

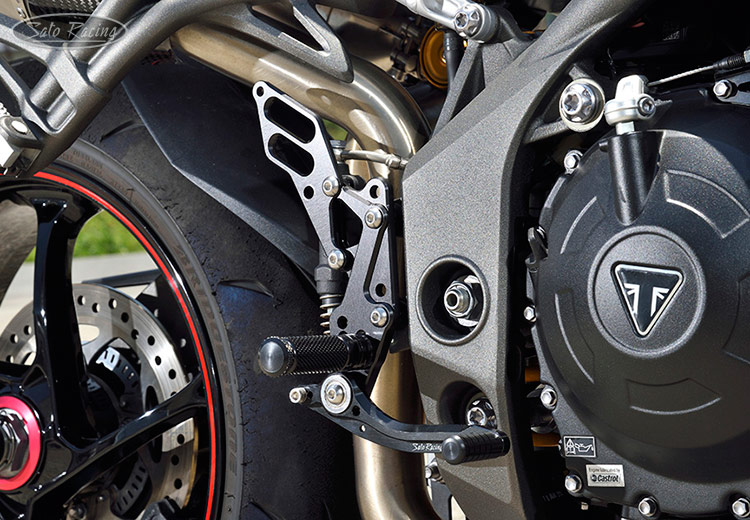

![SATO RACING Triumph Speed Triple 1050 S / RS ('18- ) Rear Sets [R]-side](pics/T-ST18RS_fitR1.jpg "SATO RACING Triumph Speed Triple 1050 S/ RS ('18- ) Rear Sets [R]-side")
The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever actuation.

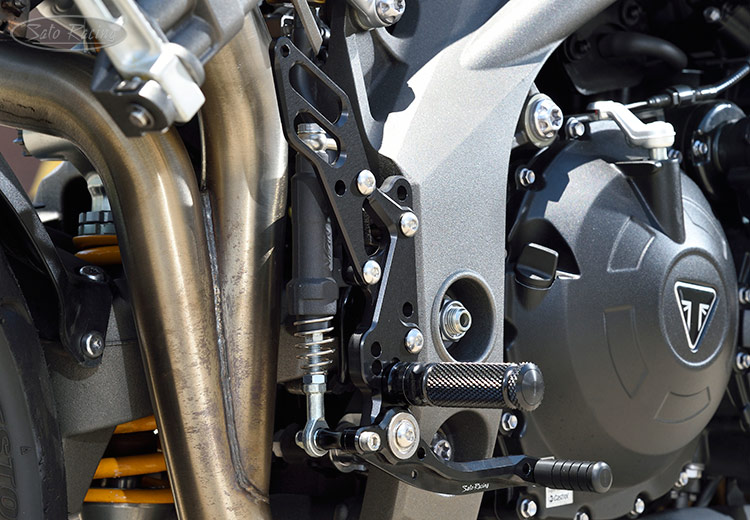

![SATO RACING Triumph Speed Triple 1050 S / RS ('18- ) Rear Sets [R]-side](pics/T-ST18RS_fitR2.jpg "SATO RACING Triumph Speed Triple 1050 S / RS ('18- ) Rear Sets [R]-side")
The Step Plate can be adjusted vertically, and the positions of the Foot Peg and Pedal Tip are
also adjustable. These Rear Sets are fully compatible with the stock brake light switch and ABS.

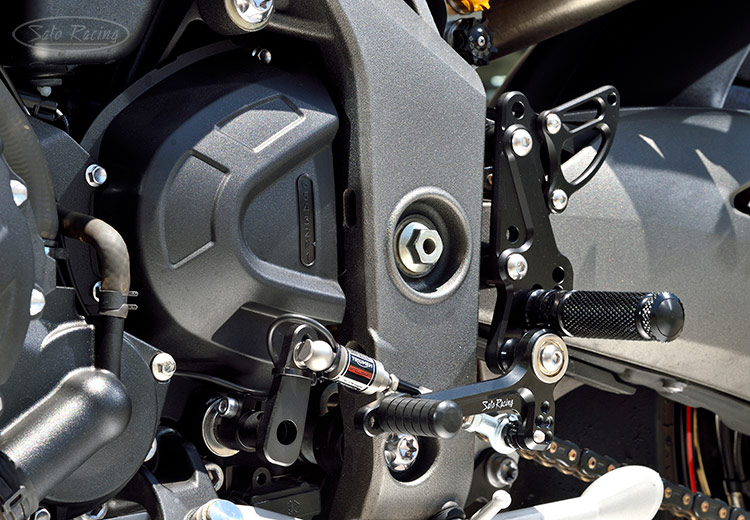

![SATO RACING Triumph Speed Triple 1050 RS ('18- ) Rear Sets [L]-side](pics/T-ST18RSQ_fitL1.jpg "SATO RACING Triumph Speed Triple 1050 RS ('18- ) Rear Sets [L]-side")
Quickshifter-compatible version shown.
![SATO RACING Triumph Speed Triple 1050 RS ('18- ) Rear Sets [L]-side](pics/T-ST18RSQ_fitL2.jpg "SATO RACING Triumph Speed Triple 1050 RS ('18- ) Rear Sets [L]-side")
Foot Pegs are finely knurled for excellent grip characteristics and a comfortable, intuitive feel.
The standard Pedal Tips are made of tough Delrin plastic. Additional Pedal Tip styles, such
as aluminum Pedal Tips with fluted rubber sleeves, are an available option: More Details
Standard version
| BLACK | T-ST18RS-BK $565 |
 |
| GOLD | T-ST18RS-GD $565 |
|
Quickshifter-compatible version
| BLACK | T-ST18RSQ-BK $565 |
|
| GOLD | T-ST18RSQ-GD $565 |
|
Click Here for important info about Sato color-anodized parts.
OPTIONAL PARTS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
GOLD * | RCPEG-GD $48 |
|
* Click Here for important info about Sato GOLD-anodized parts.
