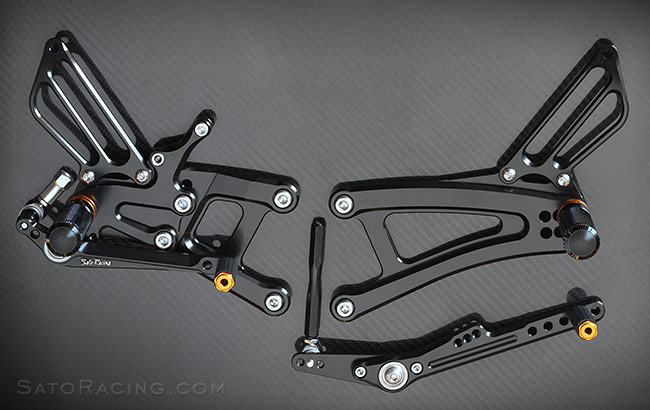

SATO RACING Yamaha YZF-R1 '15- Race Concept Rear Sets v.1 in Black

SATO RACING 'Race Concept' Rear Sets are pure, no-compromise racing rear sets intended for track-only bikes. Originally designed for race bikes competing in endurance races in Japan such as Suzuka 8 Hours and the All-Japan road race series, these premium rearset foot controls for the R1 are not for everyone, but may suit your needs if you have a dedicated track bike and are looking for a higher and more setback range of positions than the positions provided by our standard R1 Rear Sets.

Our 'Race Concept' Rear Sets -design version 1 (vr.15)- for 2015 and up Yamaha YZF-R1/ M feature components precision CNC-machined out of high strength billet aluminum, with your choice of Black anodized finish with Gold accents, or Gold over Black. Modular step plate design lets you select from 5 adjustable positions that raise your foot position up to 47.5mm higher and 25mm-45mm further back compared to stock, for a more aggressive riding position well suited for the track. You can use these Rear Sets with the stock shifting pattern, or switch them to reverse (GP-style) shift pattern.

We have 2 versions of these Rear Sets:
Part#
Y-R115RCRS fits 2015-17 R1.
Part#
Y-R118RCRS fits 2018+ R1. (Same design but has slightly different hardware optimized for the 2018+ type quickshifter)

NOTE: Not recommended for street use. Not compatible with stock brake light switch sensor or stock exhaust hanger. Compatibilty with ABS may also be affected.

For more 'street'-friendly Rear Sets, see our standard R1 '15- Rear Sets.

POSITIONS

1 25mm Back 35mm Up
2 25mm Back 47.5mm Up
3 35mm Back 35mm Up
4 35mm Back 47.5mm Up
5 45mm Back 35mm Up
6 45mm Back 47.5mm Up

Note: all measurements are in relation to stock position (0 mm).

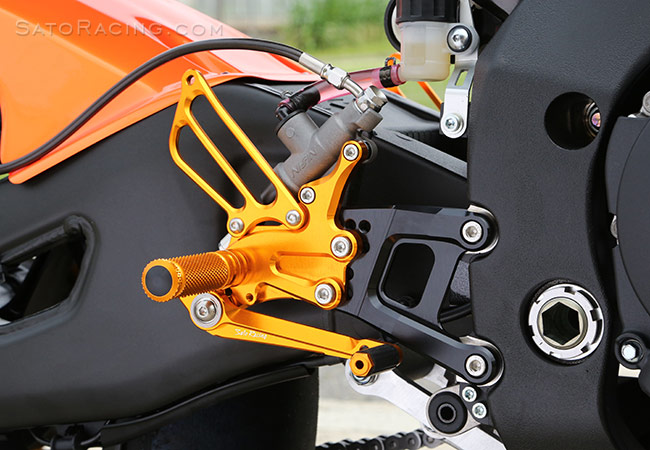

SATO RACING Yamaha YZF-R1 '15- Race Concept Rear Sets v.1 design [R]-side
The shift and brake pedals utilize double stainless bearings for smooth, precise lever action.
Gold-anodized aluminum Pedal Tips with fluted rubber grips are standard with these Rear Sets.

SATO RACING Yamaha YZF-R1 '15- Race Concept Rear Sets v.1 design [R]-side
Foot Pegs are finely knurled for optimal grip, along with a comfortable, intuitive feel.
Cutout-style Racing Foot Pegs are an available option.

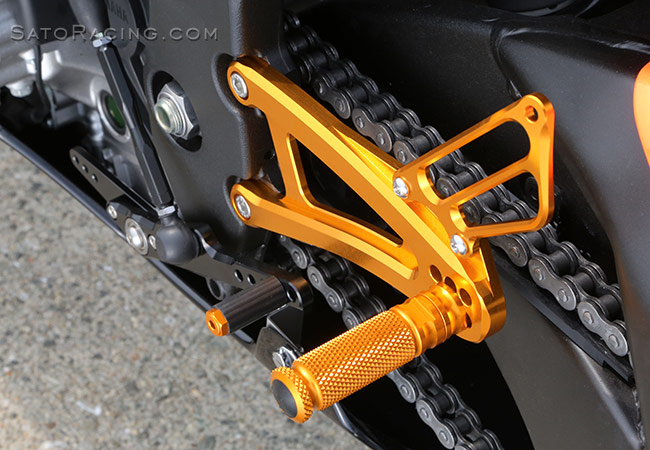

SATO RACING Yamaha YZF-R1 '15- Race Concept Rear Sets v.1 design [L]-side
The double-ended shift pedal has multiple adjustment points for fine-tuning the shifter feel.
To change to reverse (GP) shift pattern, relocate the shift rod to the opposite end of the pedal.

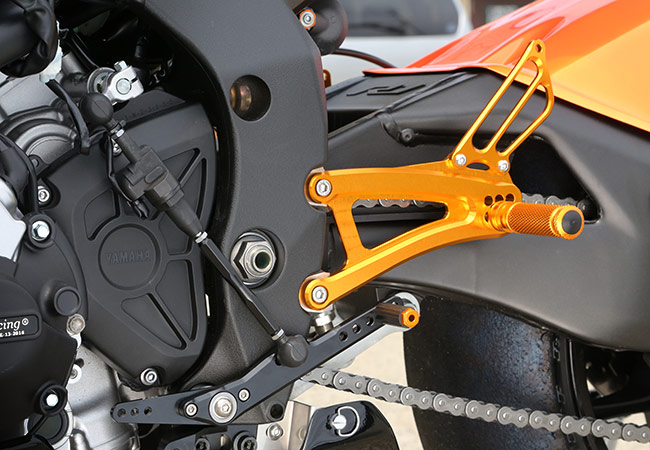

SATO RACING Yamaha YZF-R1 '15- Race Concept Rear Sets v.1 design [L]-side
The Foot Peg position adjustment range is 35mm to 47.5mm Up and 25mm to 45mm Back
compared to the OEM peg position. The Pedal Tip (toe peg) position can also be adjusted.



2015-17 YZF-R1

BLACK w/ Gold accents Y-R115RCRS-BK
$630
GOLD *
w/ Black Base Plate + Shift Pedal
Y-R115RCRS-GD
$630

2018-20 YZF-R1

BLACK w/ Gold accents Y-R118RCRS-BK
$630
GOLD *
w/ Black Base Plate + Shift Pedal
Y-R118RCRS-GD
$630

* Click Here for important info about Sato GOLD-anodized parts.





OPTIONAL PARTS




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD * RCPEG-GD
$48

* Click Here for important info about Sato GOLD-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
