YAMAHA
HANDLE BAR ENDS

SATO RACING Handle Bar Ends for Yamaha are available in many sizes and styles. Our standard size (30mm diameter) Bar Ends come in LONG, SHORT and FLAT styles, with a choice of anodized billet aluminum (Black, Silver, Gold, Red and/or Blue), or Stainless Steel.

Our new
Full-size (35mm diameter) Handle Bar Ends are true bar end sliders, with replaceable End Caps made of abrasion-resistant black Delrin plastic for an extra level of protection if you lay it down. Available in your choice of Black, Silver, Gold, or Red anodized billet aluminum, or Stainless Steel.

Another Bar End style available for Yamaha models are
Compact (22mm diameter) button-style Bar Ends.

All our 'Yamaha-type' Bar Ends include adapters that fits models with large screw-in bar openings. We also have 'M6' Bar Ends that fit Yamaha models with 6mm threaded handle bar openings.

Our Handle Bar Ends can also be installed together with Lever Guards (Details Below).

SATO RACING Handle Bar Ends - Choose from 5 unique Bar End styles

SATO RACING Handle Bar Ends are available in 5 unique styles -
From left to right: Full-size (35mm diameter), standard size (30mm diameter), which comes in 3 lengths:
LONG style, SHORT style, and FLAT style (for M6-threaded bars), and Compact (22mm diameter) button-style Bar Ends.

SATO RACING Handle Bar Ends - Choose from many styles and colors

You can choose from many styles and colors of Bar Ends, which are made of either billet Aluminum or Stainless Steel. Our aluminum Bar Ends are available in your choice of Gold, Red, Silver, or Black anodized finish. Blue anodized finish (not pictured) is also an option for certain bar end sizes.

Our Stainless Steel Bar Ends (seen on the upper right) are heavier than the aluminum type and that extra weight can help to reduce handle bar vibrations.

(NOTE: The FLAT-style Bar Ends are available for M6-threaded Yamaha models only. This style is not currently an option for our 'Yamaha-type' Bar Ends.

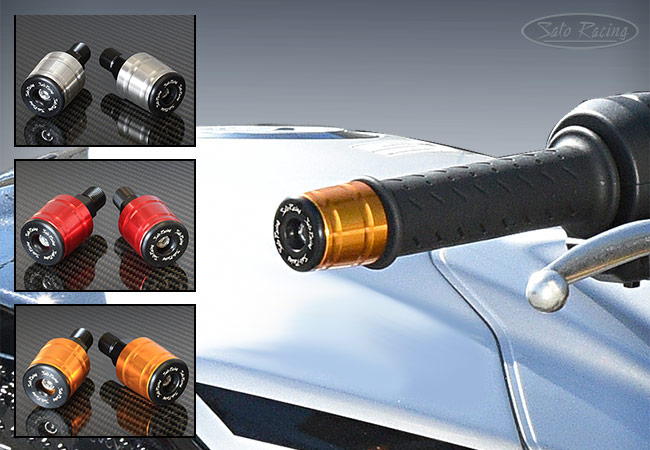

SATO RACING Full size 35mm Handle Bar Ends - Choose from several colors

SATO RACING Full size (35mm diameter) Handle Bar Ends double as sliders, utilizing end caps made of tough, abrasion-resistant Delrin to help protect your bars and bar-mointed controls and accessories from scrapes or more serious damage if you lay it down. Choice of anodized billet aluminum (Black, Silver, Gold, Red, Green or Blue), or Stainless Steel.

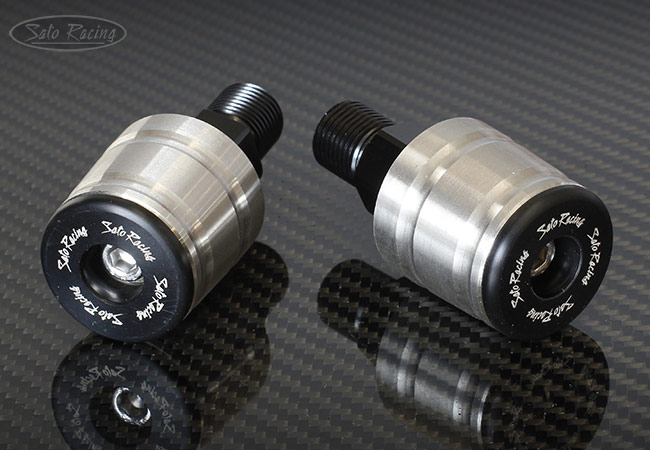

SATO RACING Full size Stainless Steel YAMAHA-type Handle Bar Ends

Full-size Bar Ends (35mm / YAMAHA-type) in Stainless Steel.

The Stainless Steel version of these Bar Ends are relatively heavy, around 1 lb for the set. That extra weight at the ends of the bars can help to suppress vibrations coming through the handle bars.

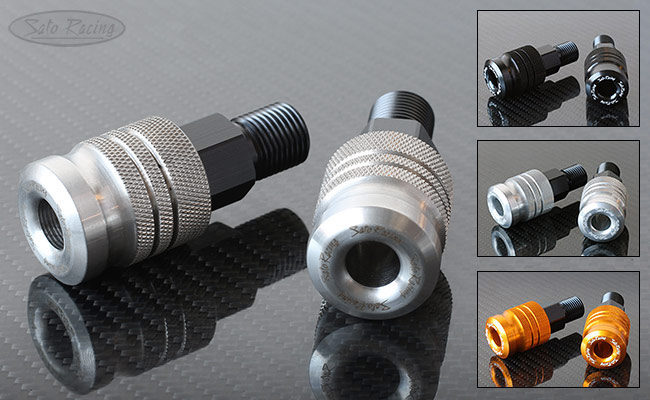

Sato Racing LONG-style YAMAHA-type Handle Bar Ends
LONG-style Bar Ends (30mm / YAMAHA-type)

Our LONG-style Handle Bar Ends are precision machined out of high strength billet aluminum or stainless steel, and feature intricate details such as a knurled grip pattern, along with laser-etched Sato Racing logo script around the outer edge. The Yamaha-type adapters that screw into the bar openings are made of black anodized billet aluminum.

Sato Racing SHORT-style YAMAHA-type Handle Bar Ends

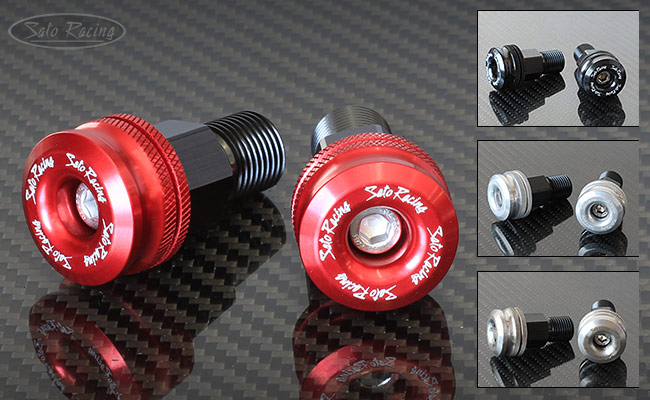

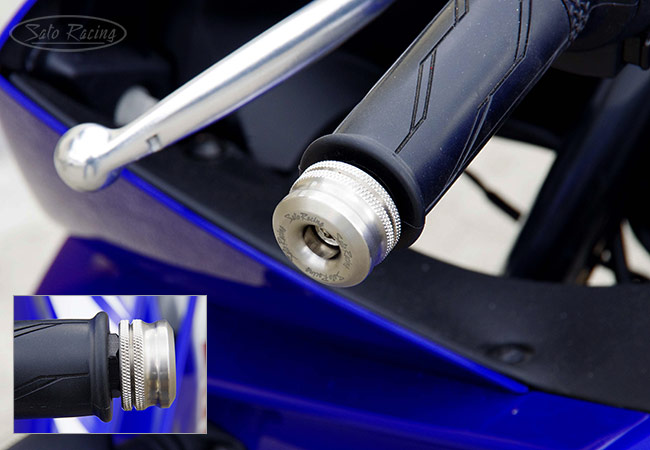

SHORT-style Bar Ends (30mm / YAMAHA-type) in Stainless Steel.

Sato Racing SHORT-style YAMAHA-type Handle Bar Ends

SHORT-style Handle Bar Ends (30mm / YAMAHA-type) - Our SHORT-style Bar Ends are CNC-machined out of stainless steel or billet aluminum. These are half the length of our LONG-style Bar Ends. This size looks great when installed together with our Type2 Lever Guard (part# LG30-M6), but they also look quite nice as a standalone part.

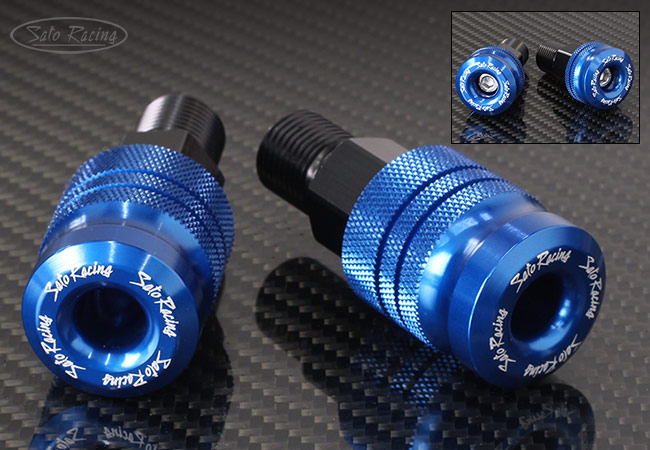

YAMAHA-type Handle Bar Ends (BLUE)
New BLUE anodized Handle Bar Ends
(SHORT and LONG-style YAMAHA-type Bar Ends shown)

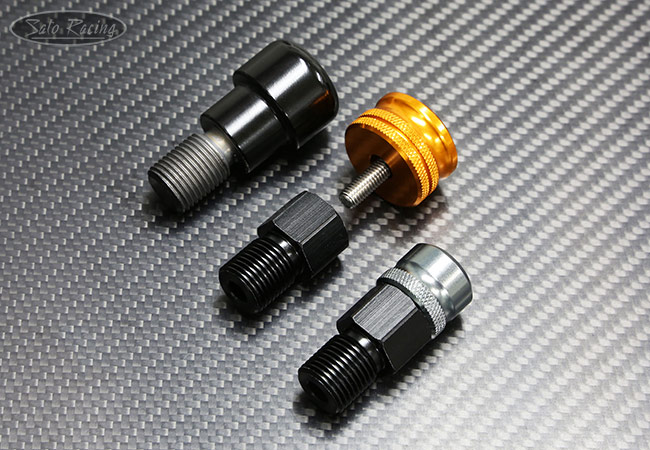

SATO RACING SHORT-style YAMAHA-type Handle Bar Ends compared to stock
SATO RACING Yamaha-type Handle Bar Ends (30mm and 22mm types)
shown along with a stock Yamaha bar end for comparison.


Sato Racing LONG-style M6 Handle Bar Ends
LONG-style Bar Ends (30mm / Size: M6)

Our 30mm-diameter Bar Ends for M6-threaded bars (for YZF-R1, R6, etc) are now available in 3 distinct styles: SHORT style, LONG style, and FLAT style. Includes aluminum spacers and M6 stainless steel bolts.

Sato Racing FLAT-style M6 Handle Bar Ends
FLAT-style Bar Ends (30mm / Size: M6)

Our FLAT style Bar Ends for M6-threaded handle bars feature a low-profile design for a clean, flush look that can visually shorten the length of your handle bars. - This style is available in 4 colors: Black, Silver, Gold or Red.

SATO RACING compact button-style 22mm diameter Handle Bar Ends
Compact (22mm diameter) Handle Bar Ends
A racy alternative to our full-size Bar Ends.

SATO RACING compact button-style 22mm diameter Handle Bar Ends

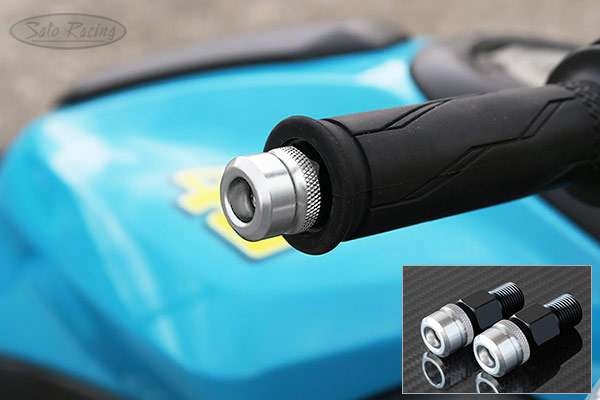

22mm Handle Bar Ends (Yamaha-type) in Silver, shown on a 2014 MT-07.




BAR ENDS (YAMAHA-type)

Includes threaded adapters to fit YAMAHA models with larger-diameter screw-in type handle bar openings.
(partial) compatibility list:
FZ-07 / MT-07 '14- / FZ-09 / MT-09 '14-'20 / XSR900 '16-'20 /
FZ10 / MT-10 / MT-01 '05-'12 / FZ1 '06-'15 / FZ6 '04-'07 / XJ-6 / XJR400-1300 / YZF-R125 '08-

FULL-size (35mm Diameter)   YAMAHA type
HANDLE BAR ENDS
(Set of 2)

COLOR PART# PRICE
35mm Bar End BLACK BLACK BE35-Y-B $71
35mm Bar End SILVER SILVER BE35-Y-S $71
35mm Bar End GOLD GOLD * BE35-Y-G $71
35mm Bar End RED RED BE35-Y-RD $71
35mm Bar End GREEN NEW
GREEN
BE35-Y-GR $71
35mm Bar End BLUE NEW
BLUE
BE35-Y-BU $71
35mm Bar End STAINLESS STEEL STAINLESS STEEL BE35-Y-SUS $83
Replacement End Cap for SATO 35mm Bar End Replacement
End Cap (Delrin)
EC-BE35 $8.00


Standard (30mm Diameter)   YAMAHA type
LONG style
HANDLE BAR ENDS
(Set of 2)

LONG-style Handle Bar Ends for YAMAHALONG-style Handle Bar Ends for YAMAHALONG-style Handle Bar Ends for YAMAHA

COLOR PART# PRICE
black BLACK BE-M6LY-B $51
silver SILVER BE-M6LY-S $51
gold GOLD BE-M6LY-G $51
red RED BE-M6LY-RD $51
green NEW
GREEN
BE-M6LY-GR $51
blue NEW
BLUE
BE-M6LY-BU $51
stainless STAINLESS STEEL BE-M6LY-SUS $61


Standard (30mm Diameter)   YAMAHA-type
SHORT style
HANDLE BAR ENDS
(Set of 2)

COLOR PART# PRICE
BLACK BE-M6SY-B $48
SILVER BE-M6SY-S $48
GOLD * BE-M6SY-G $48
RED BE-M6SY-RD $48
NEW
GREEN
BE-M6SY-GR $48
NEW
BLUE
BE-M6SY-BU $48
STAINLESS STEEL BE-M6SY-SUS $58


Compact (22mm Diameter) YAMAHA-type
HANDLE BAR ENDS
(Set of 2)

COLOR PART# PRICE
black BLACK BE22-Y-B $43
silver SILVER BE22-Y-S $43
gold GOLD BE22-Y-G $43
red RED BE22-Y-RD $43
green GREEN BE22-Y-GR $43
blue BLUE BE22-Y-BU $43
stainless STAINLESS STEEL BE22-Y-SUS $53





Size: M6 - BAR ENDS

Compatible with Yamaha models with 6mm-threaded handle bar openings:
YZF-R1 (all years)/ YZF-R6 '06-'20 / YZF-R7 '22 / MT-03
* / MT-09 '21- /
FZ8 / FZS600 (-'03) / FJR1300 / VMAX 1700 and others.


NOTE: For YZF-R3, get our Honda-type Bar Ends instead.
* For MT-03, you can use our M6-size Bar Ends, but we recommend adding
thicker Spacer Collars behind the Bar Ends. (Sold separately. Details below.)

FULL-size (35mm Diameter)   size M6
HANDLE BAR ENDS
(Set of 2)

Full-size Handle Bar Ends - size M6

COLOR PART# PRICE
black BLACK BE35-M6-B $58
silver SILVER BE35-M6-S $58
Gold GOLD BE35-M6-G $58
red RED BE35-M6-RD $58
green GREEN BE35-M6-GR $58
blue BLUE BE35-M6-BU $58
stainless STAINLESS STEEL BE35-M6-SUS $70
Replacement
End Cap (Delrin)
EC-BE35 $8.00


Standard (30mm Diameter)   Size M6
LONG style
HANDLE BAR ENDS
(Set of 2)

LONG-style Handle Bar Ends - size M6LONG-style Handle Bar Ends - size M6LONG-style Handle Bar Ends - size M6

COLOR PART# PRICE
black BLACK BE-M6L-B $38
silver SILVER BE-M6L-S $38
gold GOLD * BE-M6L-G $38
red RED BE-M6L-RD $38
green GREEN BE-M6L-GR $38
blue BLUE BE-M6L-BU $38
stainless STAINLESS STEEL BE-M6L-SUS $48


Standard (30mm Diameter)   Size M6
SHORT style
HANDLE BAR ENDS
(Set of 2)

SHORT-style Handle Bar Ends - size M6SHORT-style Handle Bar Ends - size M6SHORT-style Handle Bar Ends - size M6

COLOR PART# PRICE
black BLACK BE-M6S-B $35
silver SILVER BE-M6S-S $35
gold GOLD BE-M6S-G $35
red RED BE-M6S-RD $35
green GREEN BE-M6S-GR $35
blue BLUE BE-M6S-BU $35
stainless STAINLESS STEEL BE-M6S-SUS $45


Standard (30mm Diameter)   Size M6
FLAT style
HANDLE BAR ENDS
(Set of 2)

FLAT-style Handle Bar Ends - size M6FLAT-style Handle Bar Ends - size M6FLAT-style Handle Bar Ends - size M6

COLOR PART# PRICE
BLACK BLACK BE-M6F-B $33
SILVER SILVER BE-M6F-S $33
GOLD GOLD BE-M6F-G $33
RED RED BE-M6F-RD $33


Compact (22mm Diameter) Size M6
HANDLE BAR ENDS
(Set of 2)

Compact (22mm) Handle Bar Ends size M6

COLOR PART# PRICE
BLACK BLACK BE22-M6-B $30
SILVER SILVER BE22-M6-S $30
GOLD GOLD BE22-M6-G $30
RED RED BE22-M6-RD $30
BLUE BLUE BE22-M6-BU $30
GREEN GREEN BE22-M6-GR $30
STAINLESS STAINLESS STEEL BE22-M6-SUS $40

Click Here for important info about Sato color-anodized parts.




BAR END SPACERS (option for M6 Bar Ends)

In some cases, the 2mm spacer collars included with our standard M6 Bar Ends might not be quite thick enough to provide clearance between the ends of the bars/grips and the back sides of the Bar Ends, such as if the threaded hole is recessed inside the bar opening. For this purpose, we have thicker 5mm spacer collars that can replace those standard 2mm spacers, or you can even stack them together with the 2mm spacers for an even thicker standoff if needed. Black anodized billet aluminum.

5mm Spacers are recommended if installing our M6-size Handle Bar Ends on a Yamaha MT-03.

Replacement
2mm Spacers, like the ones included with our M6 Handle Bar Ends, are also available to purchase separately.

Spacer Collar is sold individually. For a L/R set, purchase Qty:2

BAR END SPACER COLLAR
Size: M6 x 5mm
BECLR-5-6
$8
BAR END SPACER COLLAR
Size: M6 x 2mm
BECLR-2-6
$5






LEVER GUARD
Size: M6

SATO RACING Lever Guards help protect your hands and prevent unintentional engagement of the clutch or brake levers, such as during contact with another rider on the track. Made of lightweight Black-anodized billet aluminum, these Lever Guards have an adjustable pivot that lets you change the angle of the arm and overall length of the guard. This pivot also allows you to rotate the arm of the Lever Guard, which means it can be installed on either the Right (brake) side or left (Clutch) side.

2 versions of our Lever Guard are available:
Type 1 Lever Guard is designed to be installed with our compact (22mm) Bar Ends, while the Type 2 Lever Guard has a wider base that is sized for use with our standard 30mm Bar Ends.

Type1 and Type2 Lever Guards

'Type 1' Lever Guard (left) shown with our compact 22mm Handle Bar Ends.

'Type 2' Lever Guard (right) shown with our 30mm SHORT-style Bar Ends.
The Type 2 Lever Guard also works great with our
FLAT-style and LONG-style Bar Ends.

(The 'Type 2' Lever Guard can also be installed with our 35mm / Full-size Bar Ends, but there will be a slight step down between the bar end and the lever guard, since the lever guard base is a slightly smaller diameter than the bar end).

SATO RACING Yamaha-type Bar Ends and 'type2' Lever Guard on an FZ-09
Sato Racing SHORT-style Yamaha-type Bar Ends (part# BE-M6SY-G)
and 'type2' Lever Guard (part# LG30-M6) on a 2014 Yamaha MT-09.

SATO RACING M6-size-Bar Ends and 'type2' Lever Guard on an R1
Sato Racing M6-size SHORT-style Bar Ends (part# BE-M6S-G)
and 'type2' Lever Guard (part# LG30-M6) on a 2015 Yamaha R1.

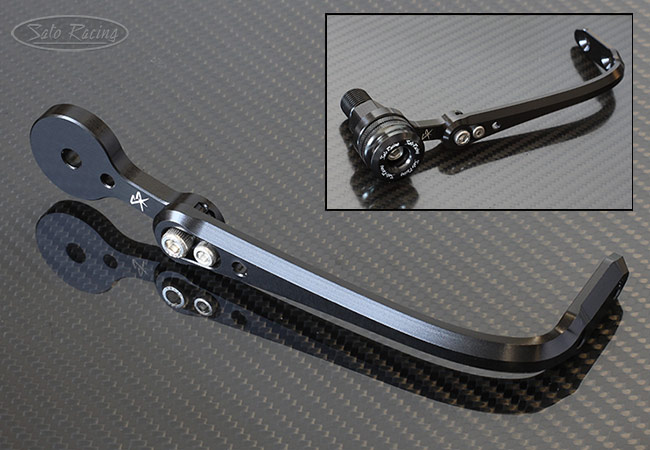

SATO RACING type2 Lever Guard M6-size
Type 2 Lever Guard part# LG30-M6 is for use with our standard (30mm diameter)
Handle Bar Ends part# BE-M6F /BE-M6S / BE-M6L / BE-M6SY / BE-M6LY.

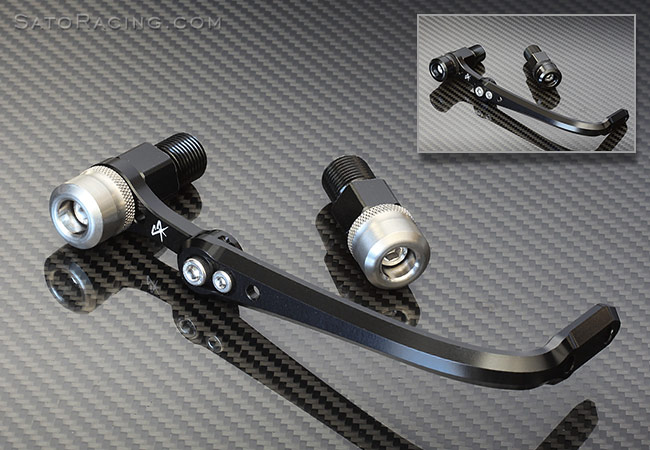

SATO RACING type1 Lever Guard M6-size

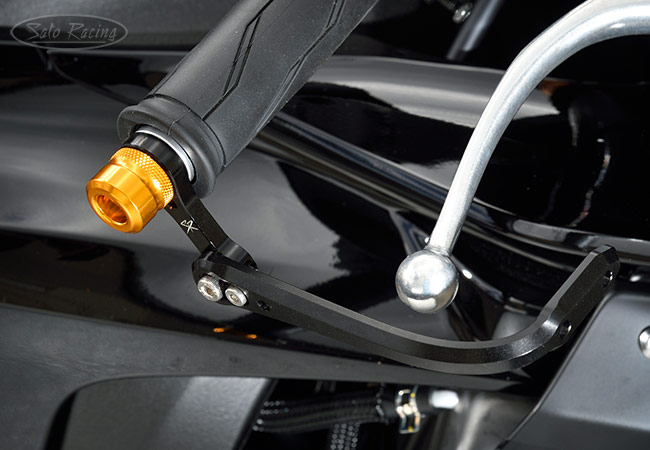

SATO RACING 'Type1' Lever Guard (part# LG22-M6) and 22mm Bar End in Gold

SATO RACING type1 Lever Guard M6-size
Type 1 Lever Guard (part# LG22-M6) is sized for use with our compact 22mm Bar Ends
part# BE22-M6 and BE22-Y.  (Stainless Steel Bar Ends part# BE22-Y-SUS is seen above).



LEVER GUARD [type 1]
Size: M6
LG22-M6
$75
LEVER GUARD [type 2]
Size: M6
LG30-M6
$78
