HANDLE BAR ENDS + LEVER GUARD
for HONDA
(most models) /YAMAHA YZF-R3 '15- /
KAWASAKI NINJA 650 '17- / H2 SX '18- / hollow bars

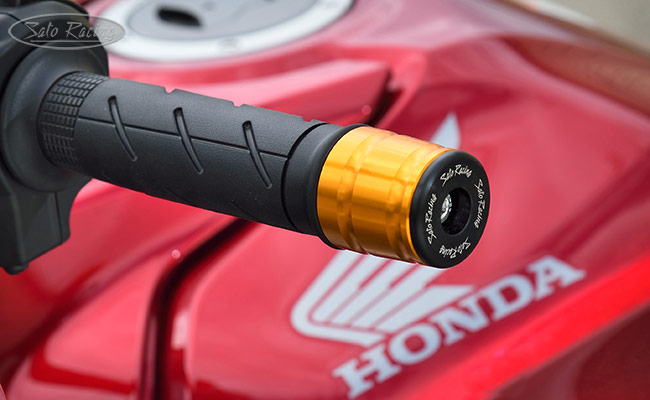

SATO RACING full-size Handle Bar Ends on a Honda CB650R

SATO RACING Honda-type Handle Bar Ends fit most Honda models if the OEM weighted bar inserts have been removed. Also compatible with other models with similar handle bar designs (See compatibilty list below). These premium-quality Bar Ends include spacer collars and expansion sleeves that fit inside handle bars with wide diameter openings that step down to 14-16mm or 18-19mm internal diameter around 1cm inside the bars. Choice of Full-size (35mm diameter), LONG style, SHORT style, FLAT style, and Compact, (22mm diameter) button-style Bar Ends.

Each Handle Bar End type is available in 2 versions: With or without
Inner Bar Weights.

A Lever Guard is an available option that can be installed together with these Bar Ends.

   Partial compatibility list:
    - HONDA (Most models*)
    -
KAWASAKI H2 SX(SE)'18- / Ninja 650'17- / Z650
    -
MV AGUSTA F3 678/800 '12-
    -
TRIUMPH Daytona 765 '20
    -
YAMAHA YZF-R3 '15-

* Fits most Honda sportbike models 1990's-present, along with some scooter models such as the PCX. Not recommended for GROM, Monkey125, or CB500F. Optional Inner Weights might not be compatible with certain models, such as 2011-16 CB1000R. (Inner Weights are compatible with 2018+ CB1000R).

For Honda GROM and Monkey 125, we recommend using our M6 Bar Ends with optional 5mm Spacer Collars added. Details.

SATO RACING Handle Bar Ends - Choose from 5 unique Bar End styles

SATO RACING Honda-type Handle Bar Ends are available in 5 unique styles -
From left to right: Full-size (35mm diameter),
LONG style, SHORT style, FLAT style, and Compact, (22mm diameter) button-style Bar Ends.

SATO RACING Handle Bar Ends - Choose from many styles and colors

You can choose from many styles and colors of our Bar Ends, which are precision CNC-machined out of either billet Aluminum or Stainless Steel. Our aluminum Bar Ends are available in your choice of Gold, Red, Silver, Black or New Green and Blue anodized finish.

Our Stainless Steel Bar Ends (seen on the upper right) are heavier than the aluminum type and that extra weight can help to suppress handle bar vibrations, especially when paired with the optional Inner Bar Weights.

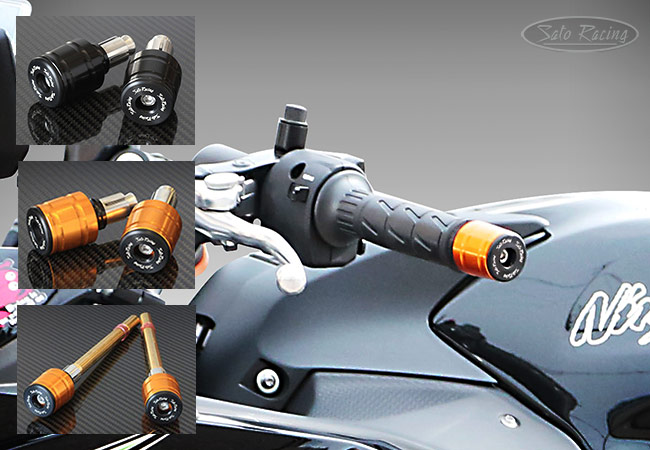

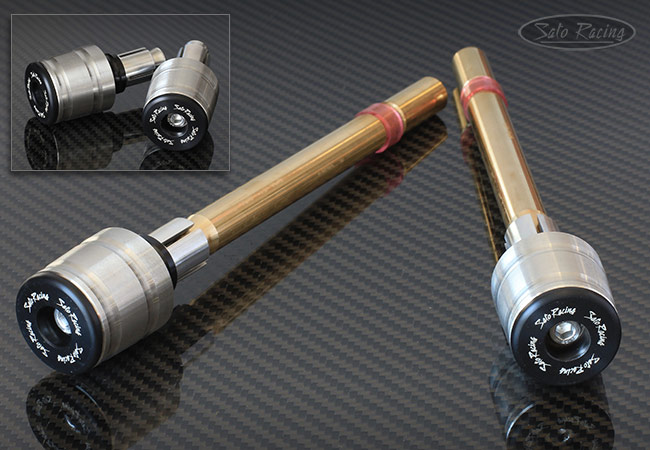

Full size (35mm diameter) Handle Bar Ends

SATO RACING Full size (35mm diameter) Handle Bar Ends - These slider-type Bar Ends feature end caps made of abrasion-resistant Delrin to help protect the bars and bar-mounted accessories from scrapes or other damage if you lay it down at speed. Choice of Stainless Steel (shown above), or Black, Silver, Gold, Red, Green or Blue anodized billet aluminum.

The Stainless Steel version of these Bar Ends are relatively heavy, around 1 lb for the set. That extra weight at the ends of the bars can help to suppress vibrations coming through the handle bars.
Inner Bar Weights are an option for these Handle Bar Ends, for even more effective vibration dampening.

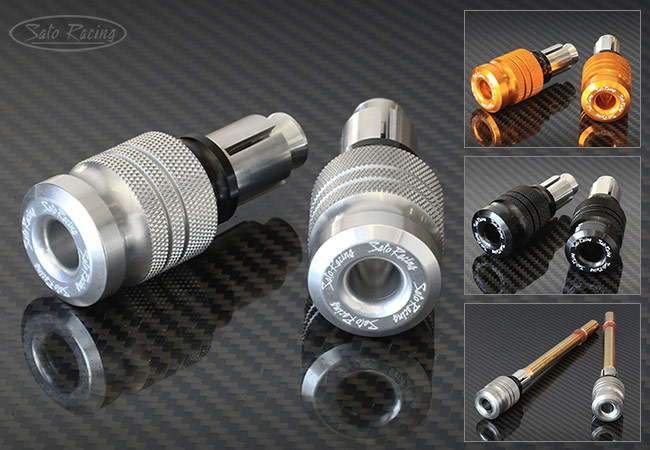

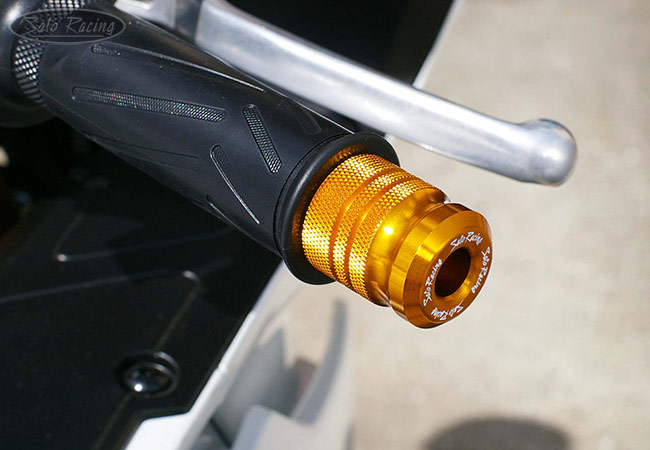

LONG-style Bar Ends (30mm diameter)


LONG-style Bar Ends (30mm diameter)

Sato Racing LONG-style Handle Bar Ends are precision machined out of high strength billet aluminum or stainless steel, and feature intricate details such as a knurled grip pattern, along with laser-etched Sato Racing logo script around the outer edge. As with our full-size Bar Ends, inner bar weights are an option.

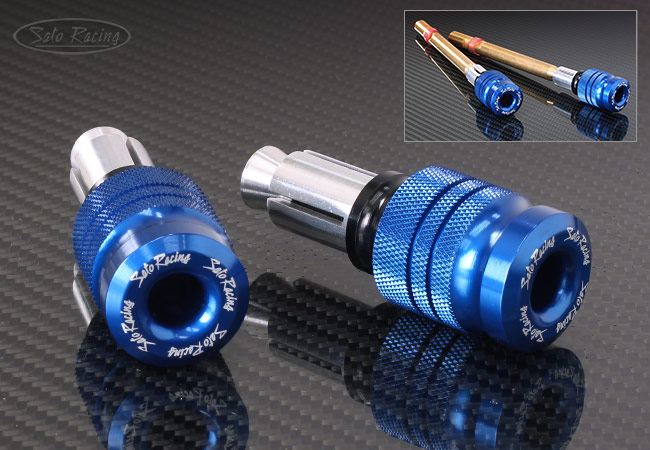

SATO RACING Handle Bar Ends - SHORT style for Honda in Blue anodized finish
LONG-style Handle Bar Ends in New Blue anodized finish.

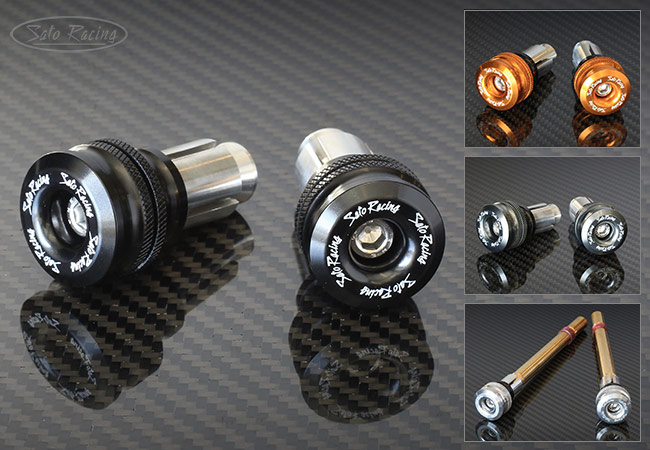

SHORT-style Bar Ends (30mm diameter)

Our SHORT-style Bar Ends are CNC-machined out of stainless steel or billet aluminum. These are half the length of our LONG-style Bar Ends. This size looks great when installed together with our Type2 Lever Guard (part# LG30-H), but they also look quite nice as a standalone part.

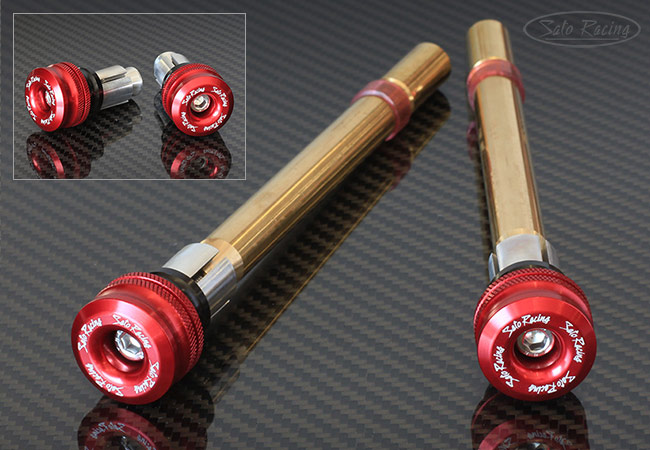

SATO RACING Handle Bar Ends - SHORT style for Honda in Red anodized finish
Our SHORT-style Handle Bar Ends in Red anodized finish.


The optional Inner Bar Weights slide inside the handle bars, and add an additional 7 oz to each side, which can help to smooth out any shakiness and vibrations in the bars that may result from removing the OEM weighted inserts. These weights are 130mm long + a 30mm section that can be removed if necessary for clearance, for a total length of 160mm. The weights are compatible with bars that have at least 140mm of depth and 14mm internal diameter. These Inner Bar Weights can also be purchased separately, if you get the Bar Ends without the weights, but then decide you want to add the weights later on.

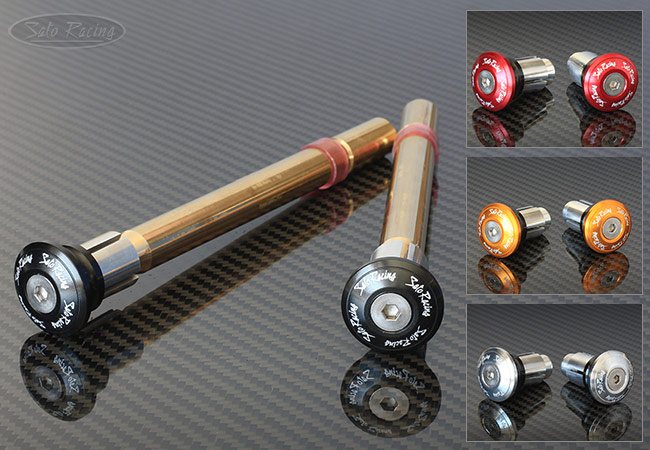

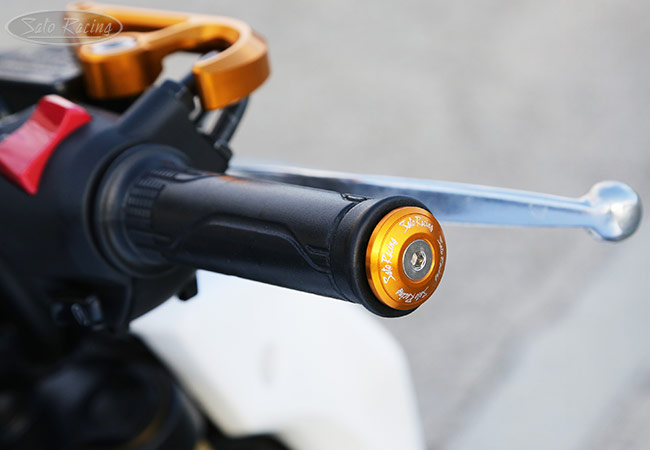

FLAT-style Bar Ends (30mm diameter)


FLAT-style Bar Ends (30mm diameter)

Our FLAT style Bar Ends are CNC-machined out of billet aluminum and feature a low-profile design for a clean, flush look that also visually shortens the length of the handle bars. This type of Bar End works well with our Type2 Lever Guard (part# LG30-H). - Available in 4 colors: Black, Silver, Gold or Red anodized finish.  Inner Bar Weights are an option.

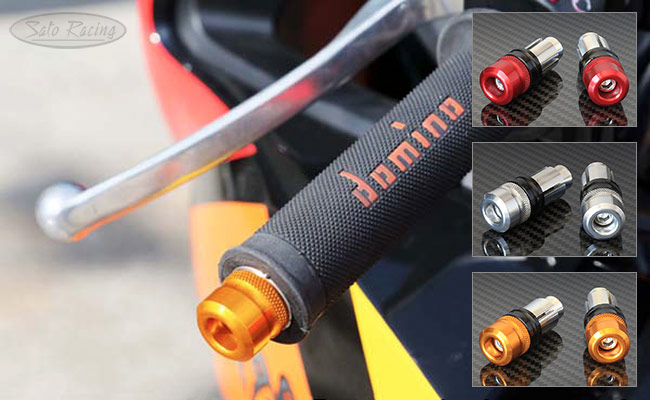

Compact (22mm diameter) Handle Bar Ends

These compact, button-style bar ends are a racy alternative to our standard 30mm diameter Handle Bar Ends. Available in Stainless Steel, or billet aluminum with your choice of Black, Silver, Gold, Blue or Red anodized fiinish. Compatible with our inner bar weights.



FULL-size (35mm Diameter)  HANDLE BAR ENDS   (Set of 2)

COLOR Handle Bar Ends
(No Weights)
Handle Bar Ends w/
Inner Weights
black BLACK BE35-3-B   $76
BE35-4-B   $96
silver SILVER BE35-3-S   $76
BE35-4-S   $96
GOLD BE35-3-G   $76
BE35-4-G   $96
red RED BE35-3-RD   $76
BE35-4-RD   $96
blue BLUE BE35-3-BU   $76
BE35-4-BU   $96
green GREEN BE35-3-GR   $76
BE35-4-GR   $96
stainless STAINLESS
STEEL
BE35-3-SUS   $88
BE35-4-SUS   $108
Replacement
End Cap (Delrin)
EC-BE35   $8.00


LONG style   HANDLE BAR ENDS   (Set of 2)

COLOR Handle Bar Ends
(No Weights)
Handle Bar Ends w/
Inner Weights
black BLACK BE-3L-B   $56
BE-4L-B   $76
silver SILVER BE-3L-S   $56
BE-4L-S   $76
gold GOLD BE-3L-G   $56
BE-4L-G   $76
red RED BE-3L-RD   $56
BE-4L-RD   $76
blue BLUE BE-3L-BU   $56
BE-4L-BU   $76
green GREEN BE-3L-GR   $56
BE-4L-GR   $76
STAINLESS
STEEL
BE-3L-SUS   $66
BE-4L-SUS   $86


SHORT style   HANDLE BAR ENDS   (Set of 2)

COLOR Handle Bar Ends
(No Weights)
Handle Bar Ends w/
Inner Weights
black BLACK BE-3S-B   $53
BE-4S-B   $73
silver SILVER BE-3S-S   $53
BE-4S-S   $73
gold GOLD BE-3S-G   $53
BE-4S-G   $73
red RED BE-3S-RD   $53
BE-4S-RD   $73
blue BLUE BE-3S-BU   $53
BE-4S-BU   $73
green GREEN BE-3S-GR   $53
BE-4S-GR   $73
stainless STAINLESS
STEEL
BE-3S-SUS   $63
BE-4S-SUS   $83


FLAT style   HANDLE BAR ENDS   (Set of 2)

COLOR Handle Bar Ends
(No Weights)
Handle Bar Ends w/
Inner Weights
black BLACK BE-3F-B   $50
BE-4F-B   $70
silver SILVER BE-3F-S   $50
BE-4F-S   $70
gold GOLD BE-3F-G   $50
BE-4F-G   $70
RED BE-3F-RD   $50
BE-4F-RD   $70





Compact (22mm Diameter)  HANDLE BAR ENDS   (Set of 2)

COLOR Handle Bar Ends
(No Weights)
Handle Bar Ends w/
Inner Weights
black BLACK BE22-3-B   $53
BE22-4-B   $73
silver SILVER BE22-3-S   $53
BE22-4-S   $73
gold GOLD BE22-3-G   $53
BE22-4-G   $73
red RED BE22-3-RD   $53
BE22-4-RD   $73
blue BLUE BE22-3-BU   $53
BE22-4-BU   $73
green GREEN BE22-3-GR   $53
BE22-4-GR   $73
stainless STAINLESS
STEEL
BE22-3-SUS   $63
BE22-4-SUS   $83





INNER WEIGHTS

Our Inner Weights can also be purchased separately. If you have SATO RACING Handle Bar Ends part# BE35-3 / BE-3L / BE-3S / BE-3F / BE22-3, you can remove the cone nuts that come with those Bar Ends and attach these Inner Weights instead. Each weight is about 7oz. (Set of 2)

Qty: 2 BE-LW2
$25





OPTIONAL PARTS



Lever Guard
(w/ inserts / spacers for Honda + various)

SATO RACING Lever Guards help protect your hands and prevent unintentional engagement of the clutch or brake levers, such as during contact with another rider on the track. Made of lightweight Black-anodized billet aluminum, these Lever Guards have an adjustable pivot that lets you change the angle of the arm and overall length of the guard. This pivot also allows you to rotate the arm of the Lever Guard, which means it can be installed on either the Right (brake) side or left (Clutch) side.

Choose from the
'Type1' Lever Guard, which has a 22mm diameter base sized for use with our compact srtyle Bar Ends part# BE22-3 / BE22-4, and the 'Type2' Lever Guard, which has a 30mm diameter base sized for use with our standard size bar ends (part# BE-3 / BE-4).

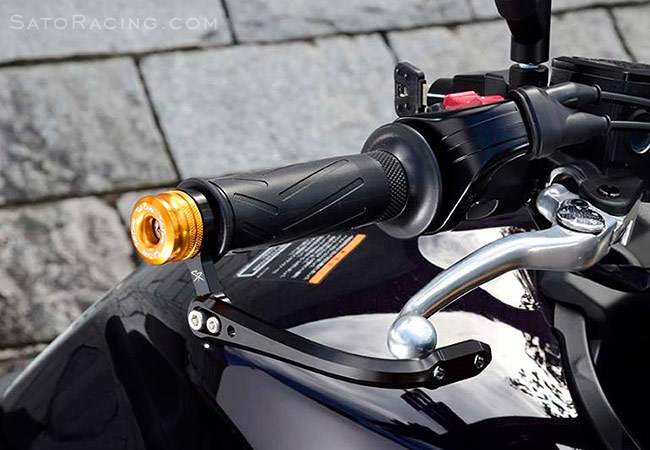

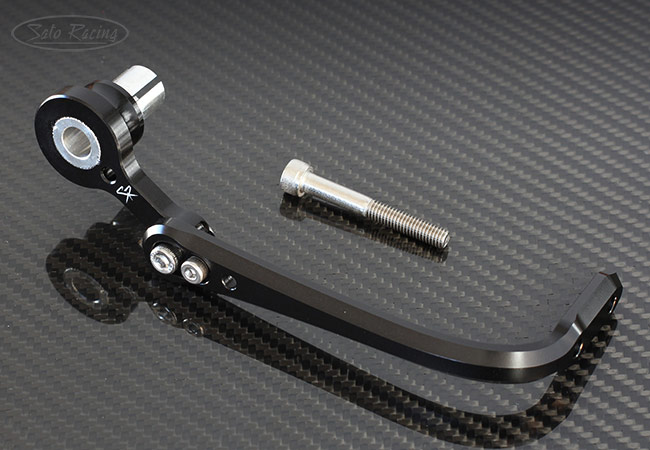

Sato type2 Lever Guard for Honda + various

'Type2' Lever Guard for hollow bars (Honda + various) (part# LG30-H) includes a black-anodized aluminum spacer collar and an integrated 14-16mm expansion sleeve, which can be expanded to 18-19mm with the removable adapter sleeve that is included with the Bar Ends. This 'Type2' Lever Guard is designed for use with standard (30mm diameter) Handle Bar Ends part# BE-3 / BE-4.

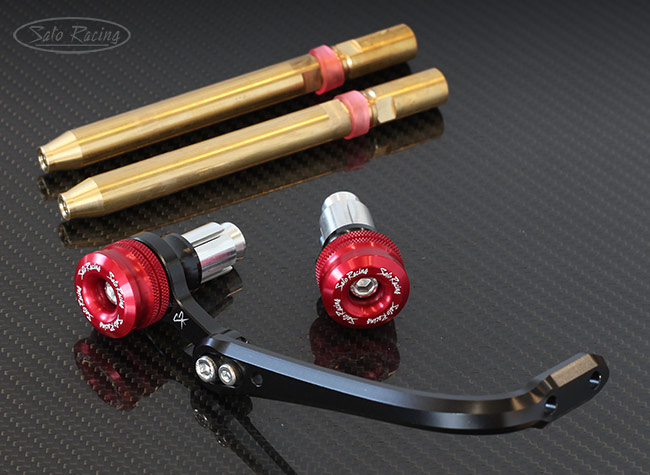

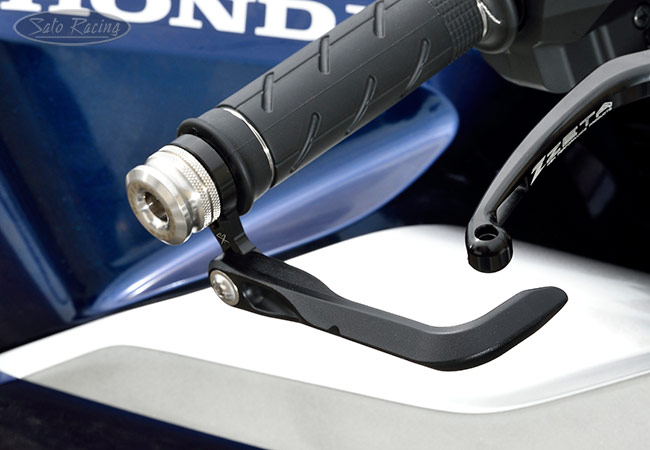

Sato type2 Lever Guard for Honda-type compact style Bar Ends

Our 'Type 2' Lever Guard looks great when combined together with our SHORT-style Bar Ends (part# BE-3S / BE-4S). Inner Bar Weights are an option that can be added to the assembly, useful for vibration suppression.

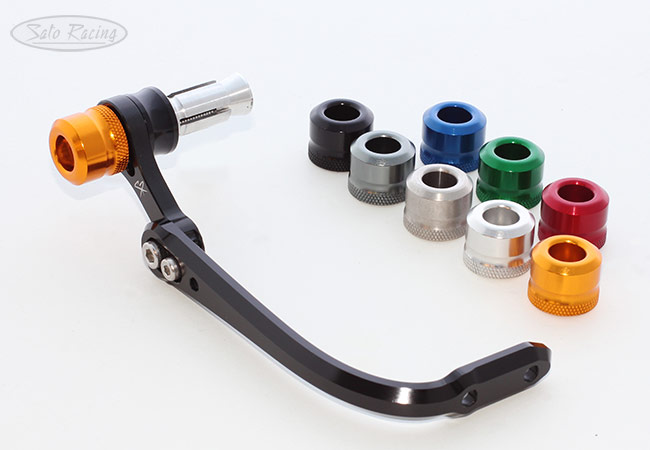

Sato type1 Lever Guard for Honda-type compact style Bar Ends

Our 'Type 1' Lever Guard has a smaller base for use with our compact style Bar Ends part# BE22-3 / BE22-4.




LEVER GUARD [type 1]
(for use with 22mm Bar Ends)
LG22-H
$92
LEVER GUARD [type 2]
(for use with 30mm Bar Ends)
LG30-H
$95
