YAMAHA YZF-R6 ('99 -'02)
REAR SETS

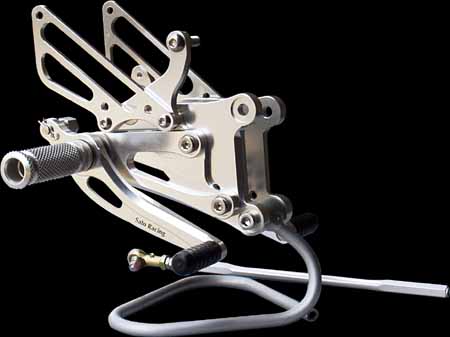

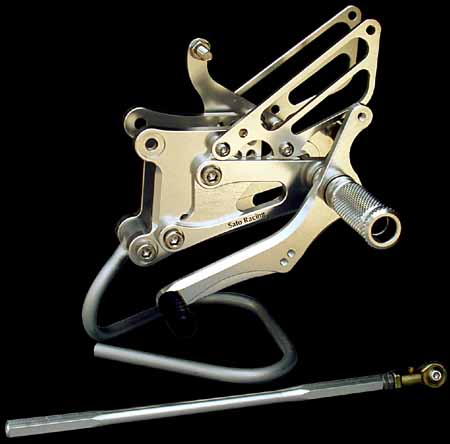

| SATO RACING Rear Sets for 1999-2002 Yamaha YZF-R6 features an extensively track-proven design, with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts and hardware. Modular step plate design lets you choose from 7 adjustable positions so you can find the ideal position for your riding style. These Rear Sets can be set up for either stock shift pattern or reverse shift pattern. Choice of Black, Silver or Gold anodized finish. |
| 1 | 0 mm Back | 10mm Up |
| 2 | 0 mm Back | 20mm Up |
| 3 | 0 mm Back | 30mm Up |
| 4 | 10mm Back | 20mm Up |
| 5 | 10mm Back | 30mm Up |
| 6 | 20mm Back | 30mm Up |
| 7 | 10mm forward | 10mm Up |
note: all measurements are in relation to stock position (0 mm).

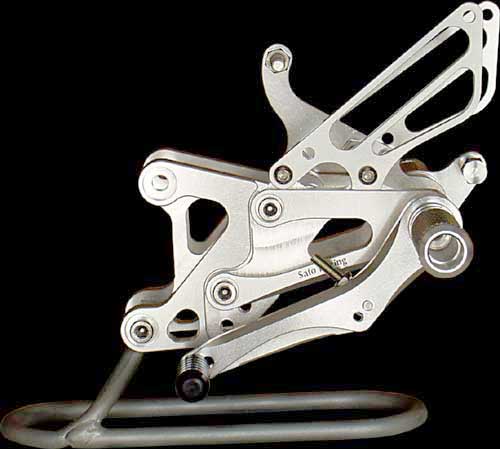

(You can set it up for GP-style reverse shift pattern by attaching
the shift rod at the lower end of the Shift Pedal)

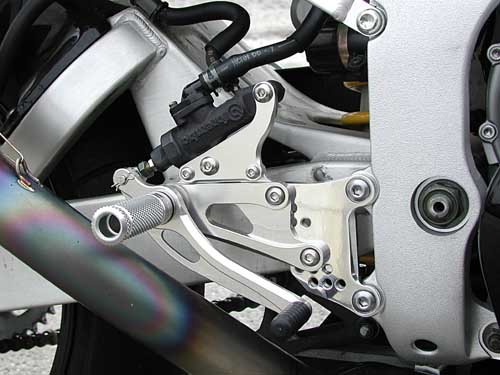

Our shift and brake pedals feature double stainless bearings for smooth lever action
without any wobbling. Finely knurled foot pegs provide optimal grip.
R-side Heel Guard (not pictured) is also included.

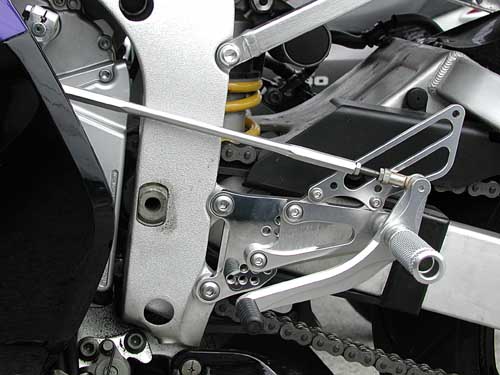

(Stock shift pattern)

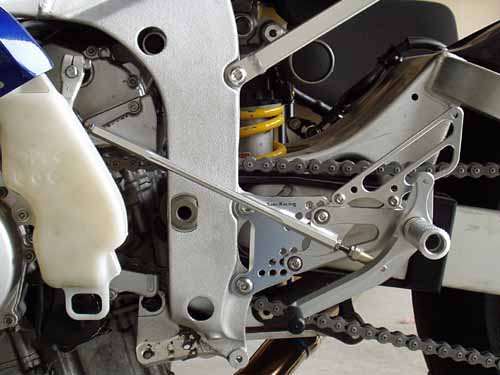

(Reverse shift pattern)
| BLACK | Y-R6RS-BK |
| SILVER | Y-R6RS-SV |
| GOLD | Y-R6RS-GD |
THIS MODEL HAS ENDED PRODUCTION AND IS NOW SOLD OUT.
SOME REPLACEMENT PARTS ARE STILL AVAILABLE.
OPTIONAL PARTS

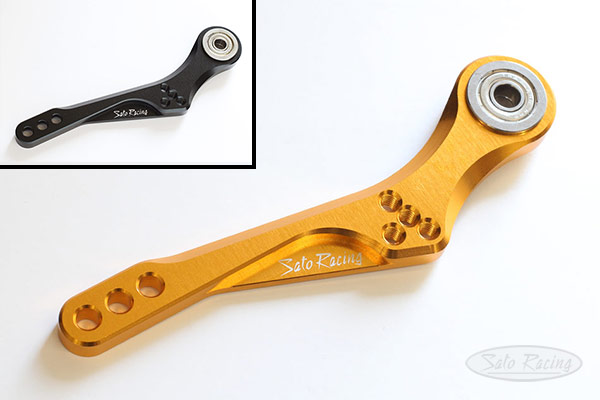

REVERSE SHIFT PEDAL
| This Reverse Shift Pedal is exclusively for the reverse shift pattern for all early YZF-R1 and R6 models, along with FZ1. If you plan on running this model only in reverse / 'race' shift pattern, you can replace the double-ended Shift Pedal included with the Rear Sets with this alternate version that eliminates the top extension. |
| BLACK | SPD-4B $85 |
 |
| SILVER | SPD-4S $85 |
|
| GOLD | SPD-4G $85 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List.
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG (BK / SV/ GD) |
PEG $42 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $16.50 |
|
 |
STUD BOLT LONG (M8-65mm) (L-side #1) |
STBT-L $4.50 |
|
 |
SOCKET HEAD M8 x 15mm (#2) |
SBT-M815 $1.50 |
|
 |
BUTTON HEAD M6-10mm (L-side #3) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (L-side #4/5 / R-side #5) |
BBT-M620 $1.50 |
|
 |
[L] HEEL GUARD (BK/ SV/ GD) (L-side #7) |
HG-4L $60 |
|
 |
[L] STEP PLATE (BK/ SV/ GD) (L-side #8) |
Y-R1SP-L $115 |
|
 |
PEG BEARING COLLAR 12.5 (BK/ SV / GD) (L-side #9) |
PEGBGCLR-125 $15 |
|
 |
M6 FEMALE REVERSE ROD END (L-side #10) |
RDED-F6L $15 |
|
 |
REVERSE JAM NUT M6 (L-side #11) |
JNT-6L $2.50 |
|
 |
REVERSE STUD M6 (L-side #12) |
STUD-M6L $4.20 |
|
 |
SHIFT ROD 245 (BK)(L-side #13) |
SRD-245 $45 |
|
 |
SHIFT PEDAL (BK / GD) (L-side #14) |
SPD-3 $90 |
|
 |
PEG WASHER - M8 (L-side #15 / R-side #19) |
PWS-8 $1.00 |
|
 |
FLANGE NUT M8 (#18) |
FNT-8 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #19) |
RDED-CLR3 $6.00 |
|
 |
STUD BOLT SHORT (M8x55mm) (R-side #1) |
STBT-S $4.50 |
|
 |
BUTTON HEAD M6-15mm (R-side #3) |
BBT-M615 $1.50 |
|
 |
BUTTON HEAD M8-30mm (R-side #4) |
BBT-M830 $2.00 |
|
 |
PLAIN NUT M8 (R-side #6) |
NUT-8 $1.00 |
|
 |
[R] STEP PLATE (BK/ SV/ GD) (R-side #8) |
Y-R1SP-R $115 |
|
 |
BRAKE ROD S35 (R-side #9) |
BRD-S35 $13.50 |
|
 |
BEARING COLLAR SUS (R-side #10) |
BGCLR-SUS $6.50 |
|
 |
WASHER M6 (R-side #12) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #13) |
ECP-6 $1.50 |
|
 |
FLAT HEAD M8-30mm (R-side #17) |
FBT-M830 $2.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
 |
BRAKE LIGHT SWITCH ADAPTER (P-1.25) |
BSW-ADPTR-125 $29.99 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
