HONDA GB350/ S ('21-'24)
REAR SETS

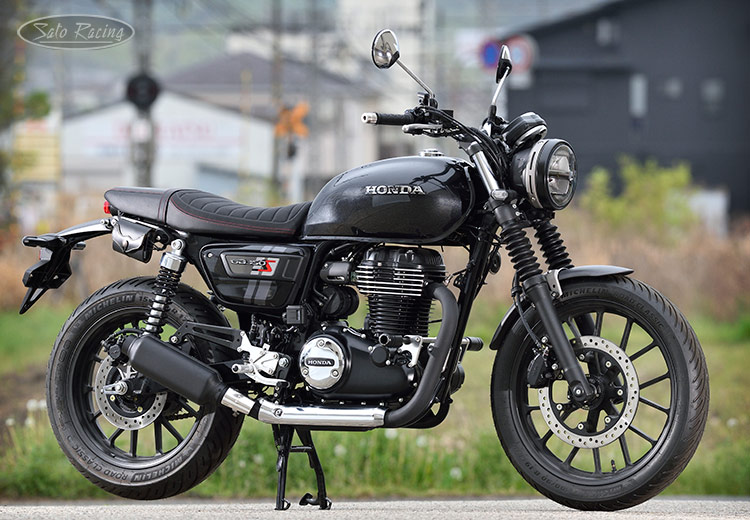

Honda GB350S with SATO RACING Rear Sets and other parts

SATO RACING Rear Sets for 2021+ Honda GB350S features components precision CNC-machined out of lightweight, high strength anodized billet aluminum, with stainless steel bolts and hardware. Pegs are significantly higher up and further back compared to the stock foot position, for a sportier riding position. The Standard ('Type1' Design) Rear Sets is a full kit that deletes the stock tandem brackets. This kit includes an integrated hanger bracket for the muffler.

We also make an alternate 'Type 2' design Rear Sets that mounts directly over the OEM tandem brackets / exhaust hanger, letting you retain use of the passenger pegs. Both types provide foot peg positions Up/ Back compared to stock. Choice of Black or Silver anodized finish.

POSITION
(Type1 Rear Sets)

82.5mm Back

50mm Up

note: all measurements are in relation to stock position (0 mm).

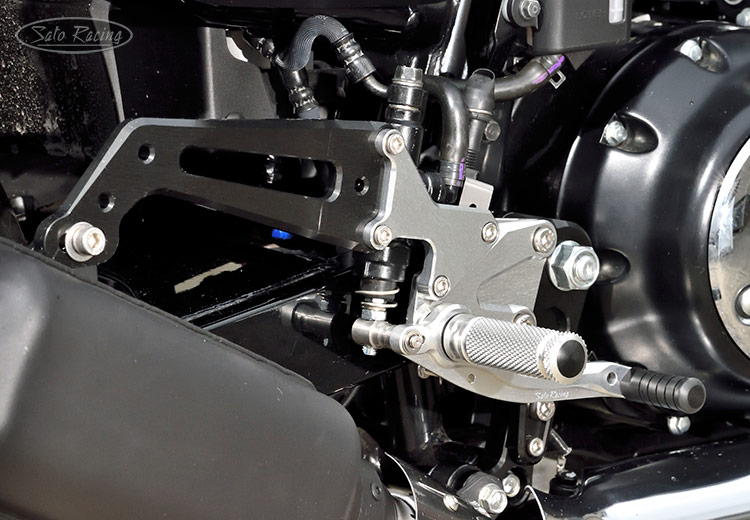

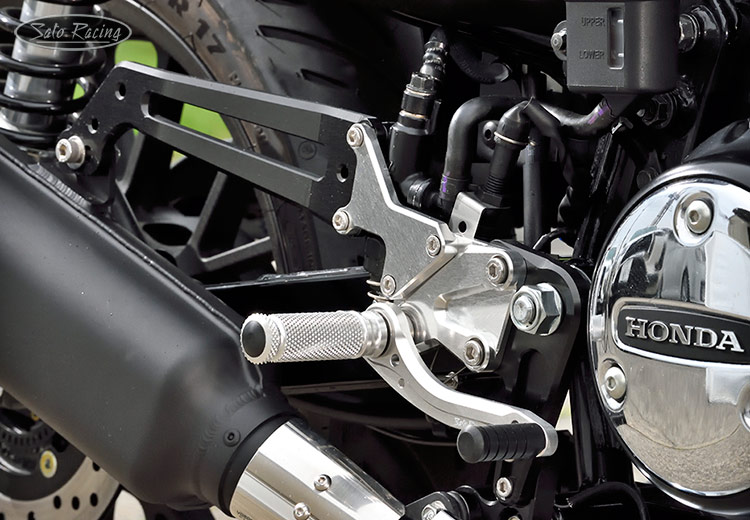

SATO RACING Honda GB350/S Rear Sets (Type1) [R]-side in Silver

The shift and brake pedals use dual miniature stainless bearings for smooth, precise lever actuation with a solid feel. The Foot Pegs have a fixed position 82.5mm back and 50mm higher up compared to stock.

SATO RACING Honda GB350/S Rear Sets (Type1) [R]-side in Silver

'Street'-friendly design - Compatible with the stock rear brake light switch.
Includes a black anodized billet aluminum hanger bracket for the stock muffler.
NOTE: The brake hose will need to be bent to fit with the relocated position of the master cylinder.

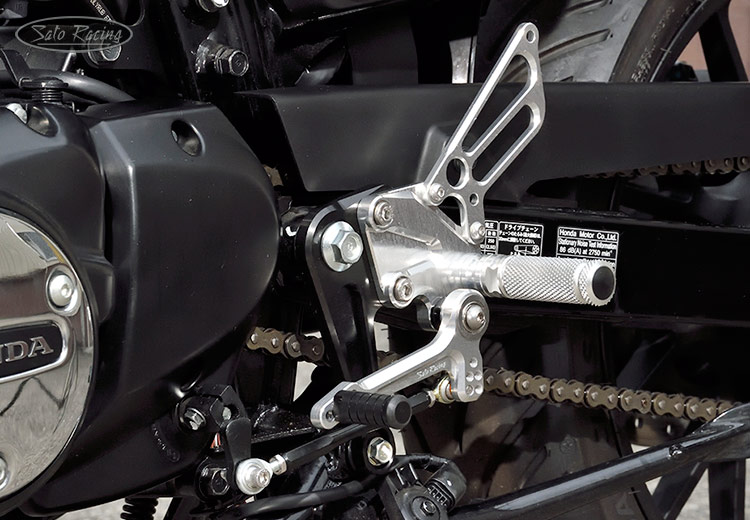

SATO RACING Honda GB350/S Rear Sets (Type1) [L]-side in Silver

These 'Type 1' Rear Sets include high strength black anodized billet aluminum base plates that mount over the swingarm pivot, replacing the OEM tandem brackets. (This model deletes the passenger pegs). Provides a dedicated stock shift pattern.

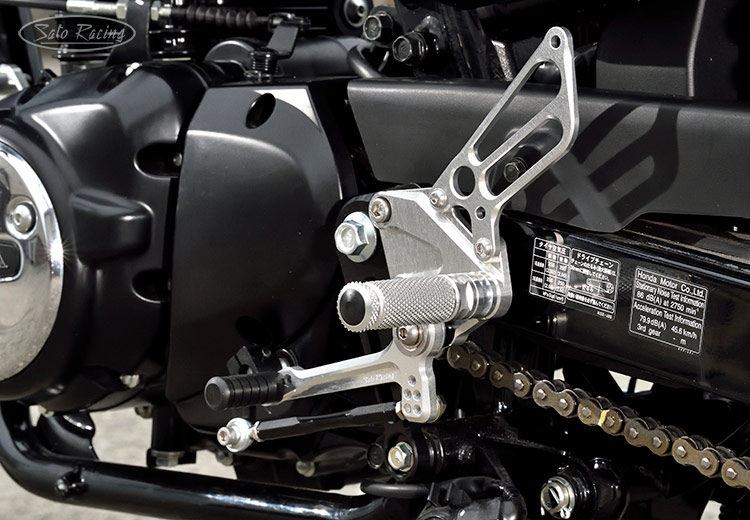

SATO RACING Honda GB350/S Rear Sets (Type1) [L]-side in Silver

The Foot Pegs have a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. Includes End Caps made of tough, abrasion-resistant black Delrin. The standard Pedal Tips (toe pegs) are also made of Delrin, and are adjustable.

Standard (Type1) Rear Sets

BLACK	H-GB350RS-BK $650
SILVER	H-GB350RS-SV $650

ARRIVING SOON

HONDA GB350S ('21-'24)
REAR SETS (Type2)

SATO RACING 'Type2' Rear Sets for 2021+ Honda GB350S features an alternate 'plate-on' design that mounts directly over the OEM tandem brackets / exhaust hanger, letting you retain the passenger pegs. Provides 2 adjustable foot peg positions Up / Back compared to stock. Choice of Black or Silver anodized finish.

NOTE: Fits the GB350S only.

POSITIONS
(Type2 Rear Sets)

1	80mm Back	40mm Up
1	92.5mm Back	55mm Up

note: Measurement is in relation to stock peg position (0 mm).

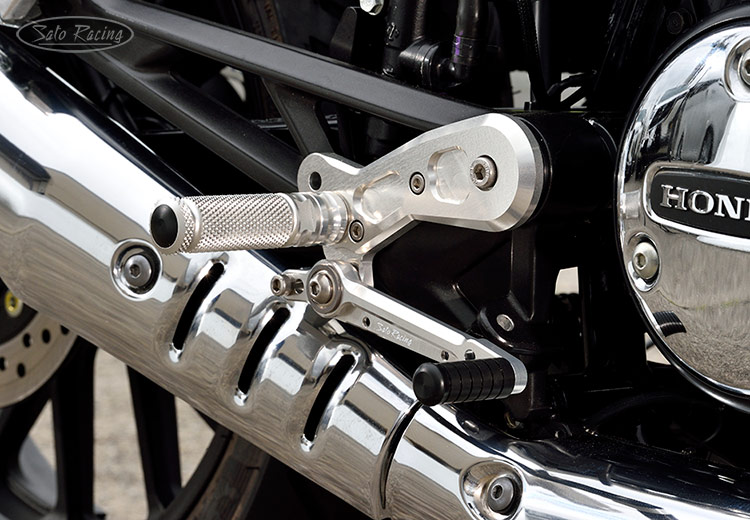

SATO RACING Honda GB350S Rear Sets (Type2) [R]-side in Silver

This kit mounts directly over the OEM tandem brackets/ exhaust hanger, providing 2 adjustable peg positions.

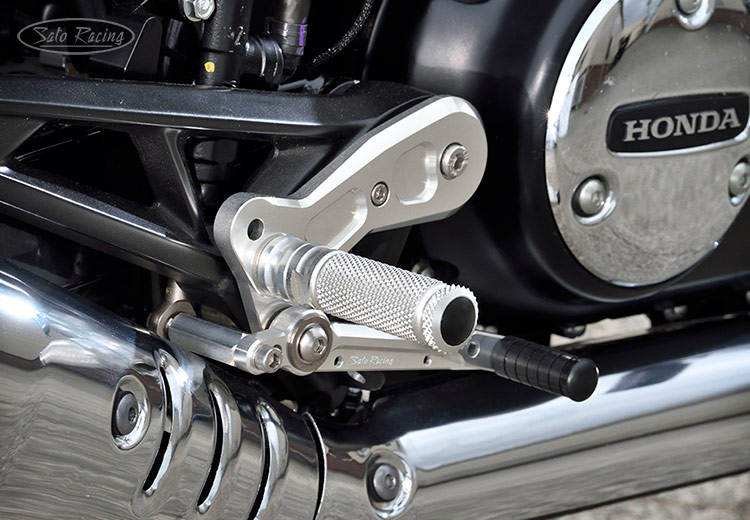

SATO RACING Honda GB350S Rear Sets (Type2) [R]-side in Silver

These 'Type2' Rear Sets are not compatible with the OEM brake light pull switch, but a pressure-actuated brake switch that attaches to the master cylinder is included with the kit.

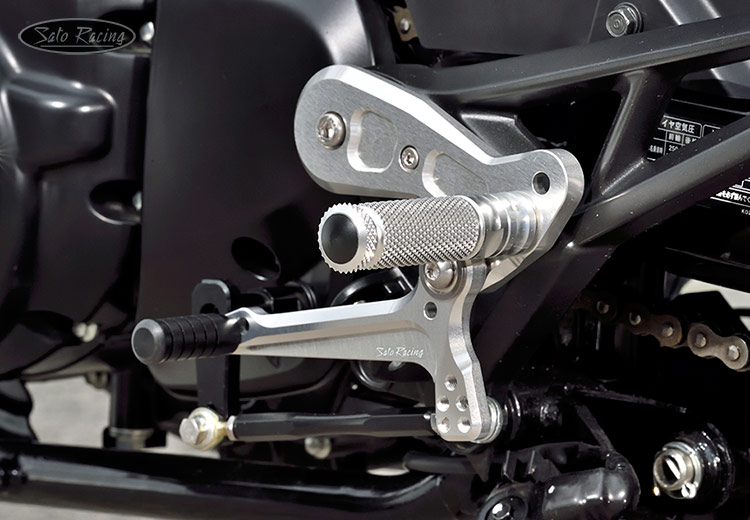

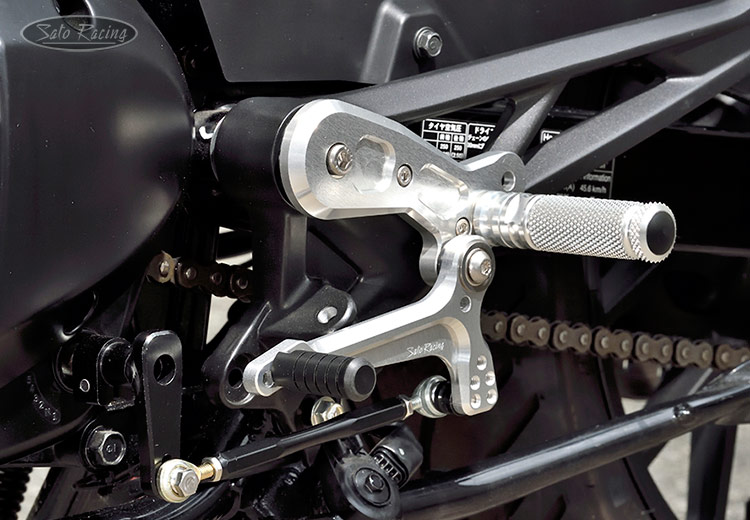

SATO RACING Honda GB350S Rear Sets (Type2) [L]-side in Silver

Provides a stock shift pattern. (Reverse / race shift pattern is not an option.)

SATO RACING Honda GB350S Rear Sets (Type2) [L]-side in Silver

Type2 Rear Sets

BLACK	H-GB350RS2-BK $450
SILVER	H-GB350RS2-SV $450

ARRIVING SOON

OPTIONS

CANISTER HANGER (Universal)

SATO RACING Canister Bracket

This adjustable Canister Hanger provides an alternate way to hang the exhaust canister from the upper suspension mount point, and may be preferable over the Rearset-mounted Exhaust Hanger included with the Type1 Rear Sets. Choice of Black or Silver anodized finish.

Note: The Silver Tie-Down Spool seen at the upper suspension mount point in the above photo is sold separately.

225-300mm - Right Bend - BLACK	UCH-225RBK $135
225-300mm - Right Bend - SILVER	UCH-225RSV $135

Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.

Race Concept Cutout-style FOOT PEG (Sold individually)

	BLACK	RCPEG-BK $48
	SILVER	RCPEG-SV $48

PEDAL TIPS

Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.

FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench

FOOT PEG TOOL
[GOLD]

TOOL-PEG
$45
