KAWASAKI ZX-6R ('09-'12)
REAR SETS

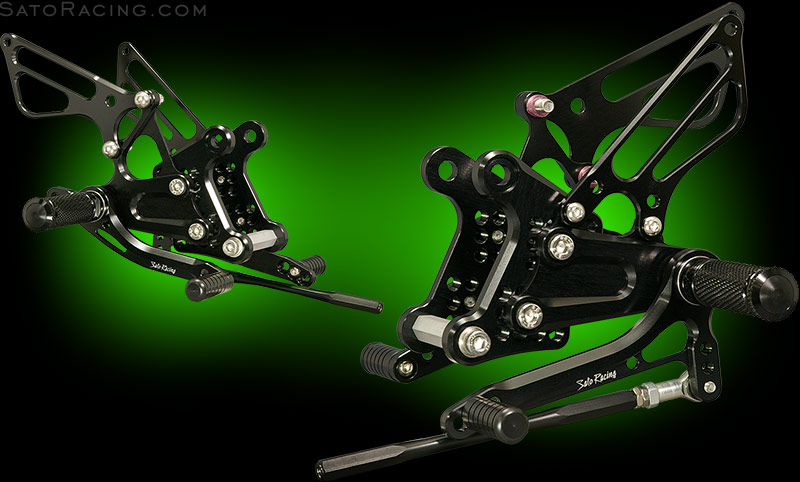

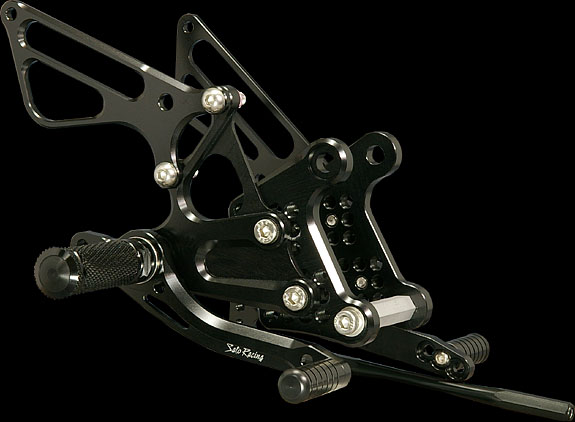

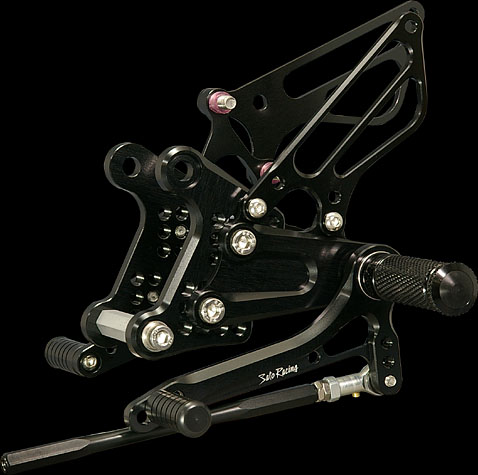

| SATO RACING Rear Sets for 2009-12 Kawasaki Ninja ZX-6R feature components made from lightweight and high strength billet aluminum anodized in your choice of Black or Silver finish, with stainless steel bolts. The shift and brake pedals utilize double miniature stainless bearings for smooth, precise lever action with a solid feel. Knurled footpegs provide optimal grip, along with a comfortable, intuitiver feel. You can set it up for stock shift pattern to reverse / race shift pattern by flipping the stock change arm, using the provided hardware. |
POSITIONS

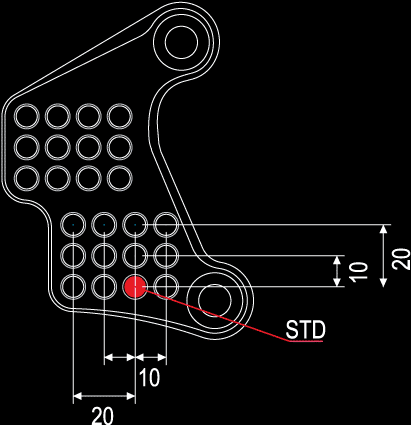

| Modular step plate design lets you choose from 8 adjustable mounting positions, ranging from stock equivalent to more aggressive positions that bring your feet up to 25mm higher compared to the stock peg position. |
NOTE: STD position in diagram is 5mm Up compared to stock.
| 1 | 10mm Forward | 15mm Up |
| 2 | 10mm Forward | 25mm Up |
| 3 | 0 mm | 5mm Up |
| 4 | 0 mm | 15mm Up |
| 5 | 0 mm | 25mm Up |
| 6 | 10mm Back | 5mm Up |
| 7 | 10mm Back | 15mm Up |
| 8 | 10mm Back | 25mm Up |
(All measurements are in relation to the stock peg position - 0 mm).

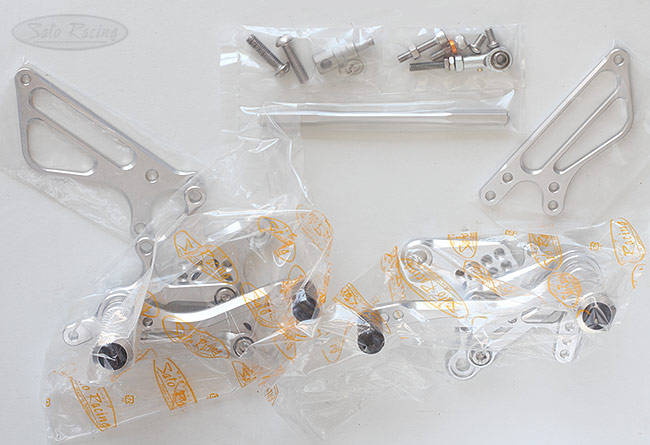

| LAST CHANCE for the Silver model! We now have just 1 left in stock. It is NOS (new-in-the-box old stock) and features the classic earlier-style Sato shifter and brake pedal. It has been sitting in our inventory for as long as we can remember, giving us sad eyes, and we would like to see it go to a good home. Clearance Sale price is $425. (No refunds / exchanges on clearance items). |
| BLACK | K-ZX609RS-BK $545 |
 |
| SILVER | K-ZX609RS-SV |
|
(A Brake Light Switch is included in kit)
OPTIONAL PART
BRAKE RETURN SPRING
| SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel more responsive compared to the stock spring or no spring. (For use with specified SATO RACING Rear Sets). |
| RS-RSP $8.00 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our online store:
 |
FOOT PEG (BK / SV/ GD) |
PEG $42 |
|
 |
STUD BOLT SHORT (M8x55) (Foot Peg bolt) |
STBT-S $4.50 |
|
 |
FLANGE NUT M8 (for Peg Bolt) |
FNT-8 $1.50 |
|
 |
PEDAL TIP (DELRIN) | ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
ROD END COLLAR 3 (L-side #11) |
RDED-CLR3 $6.00 |
|
 |
BEARING COLLAR SUS (R-side #8) |
BGCLR-SUS $6.50 |
|
 |
WASHER M6 (R-side #14) |
WS-6 $1.00 |
|
 |
E-CLIP M6 (R-side #16) |
ECP-6 $1.50 |
|
 |
BRAKE LIGHT SWITCH (P-1.25) |
BSW-125 $25 |
|
Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
