HARLEY-DAVIDSON
SPORTSTER 883/1200 5s ('91-'03)
REAR SETS

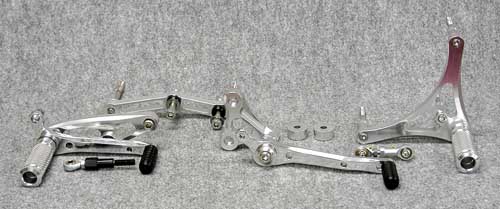

| SATO RACING Rear Sets (Type1 design) for 1991-2003 Sportster 883/1200 (5 speed) features components precision CNC-machined out of high strength billet aluminum and anodized in your choice of deep Black or brilliant Silver finish. These premium Rear Sets are designed for riders who want a true mid-mount cafe race-style riding position, providing a foot peg position that sits higher and quite a bit further back compared to the stock foot rests. Our 'Type1 design' Sportster Rear Sets are not compatible with the stock exhaust due to interference with the rear pipe, so an aftermarket 2-into-1 style of exhaust system similar to what is shown in the photos below will be necessary. Available options include a billet aluminum Sprocket Cover that looks great with these Rear Sets. Also check out our 'Type2 design' Rear Sets for '91-'03 Sportster, which has an alternate design that is compatible with a wider range of aftermarket exhausts. |
| R | 250mm back | 20mm up |
| L | 230mm back | 15mm up |
note: all measurements are in relation to stock position (0 mm).

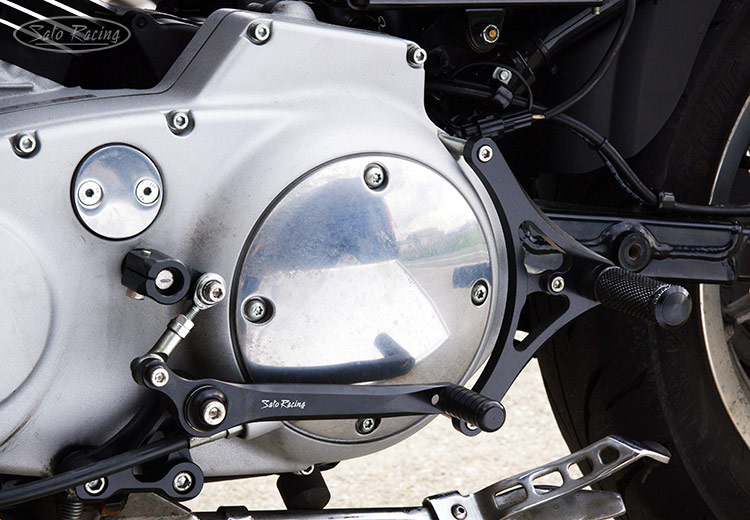

![H-D Sportster '91-'03 with Sato Racing Rear Sets [L]-side](pics/HD-SSTRRS-BK_fitL1_750x520.jpg "H-D Sportster '91-'03 with Sato Racing Rear Sets [L]-side")
The shifter and brake pedal utilize double stainless bearings for smooth, precise pedal
movement with a solid feel. Our Sportster Rear Sets provide a stock shifting pattern.

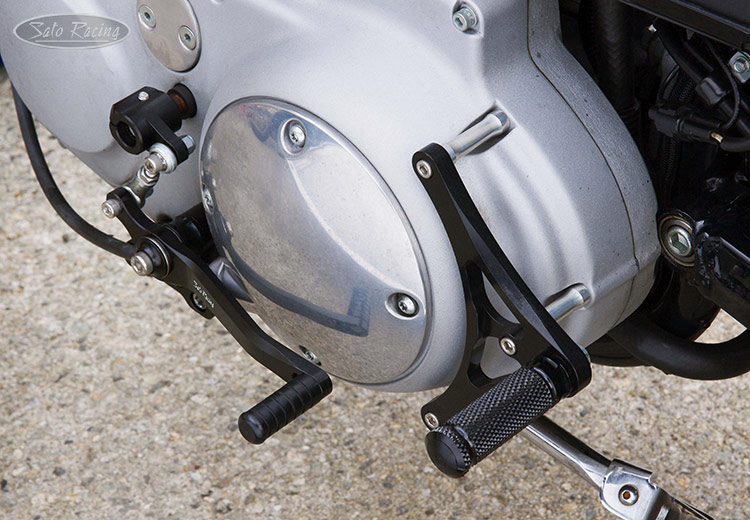

![H-D Sportster '91-'03 with Sato Racing Rear Sets [R]-side](pics/HD-SSTRRS-BK_fitL2_750x520.jpg "H-D Sportster '91-'03 with Sato Racing Rear Sets [R]-side")
The Foot Pegs have a finely knurled pattern for nice grip and a comfortable, intuitive feel.
The Pedal Tips are made of tough, abrasion-resistant Delrin. Pedal Tip position is adjustable.
![H-D Sportster '91-'03 with Sato Racing Rear Sets [R] + Sprocket Cover](pics/HD-SSTRRS-BK_fitR1_750x520.jpg "H-D Sportster '91-'03 with Sato Racing Rear Sets [R] + Sprocket Cover")
Rear Sets shown installed with optional Sprocket Cover. The exhaust pipe should
be a style that sits low enough to provide good clearance for brake lever actuation.

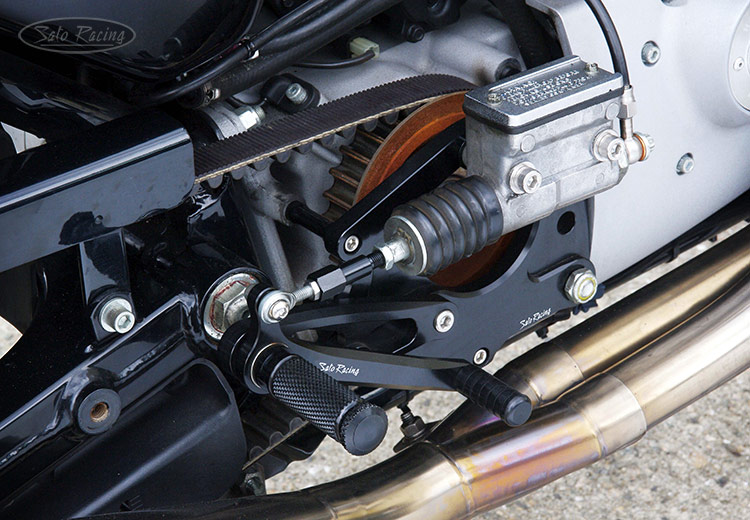

![H-D Sportster '91-'03 with Sato Racing Rear Sets [R] + Sprocket Cover](pics/HD-SSTRRS-BK_fitR2_750x520.jpg "H-D Sportster '91-'03 with Sato Racing Rear Sets [R] + Sprocket Cover")
| With our 'Type1' Rear Sets, the master cylinder is flipped around and mounted backwards compared to the stock setup, with the plunger right over the pedal, providing a more direct braking feel. (Rear Sets shown installed with optional Sprocket Cover) |

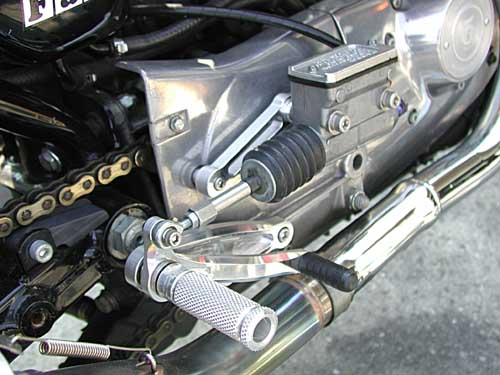

![Sato Racing Sportster ('91-'03) Rear Sets [R] mounted on stock sprocket cover](hdssbsrfit2.jpg "Sato Racing Sportster ('91-'03) Rear Sets [R] mounted on stock sprocket cover")
Rear Sets shown installed over the stock sprocket cover
Rear Sets
| BLACK | HD-SSTRRS-BK $840 |
 |
| SILVER | HD-SSTRRS-SV $840 |
|
OPTIONS
HARLEY-DAVIDSON SPORTSTER 883/1200 5s ('91-'03)
SPROCKET COVER
| SATO RACING Sportster ('91-'03) Sprocket Cover is compatible with the stock brake assembly, and also looks great with SATO Sportster Rear Sets. CNC-machined from high strength billet aluminum, with your choice of Black or Silver anodized finish, with black anodized collars and stainless steel bolts. |
| SATO Sprocket Cover installed with the stock brake components. This configuration retains the stock mount position for the master cylinder and brake. It is also compatible with our 'Type2' Sportster Rear Sets, since that model uses the same mount location as stock. |

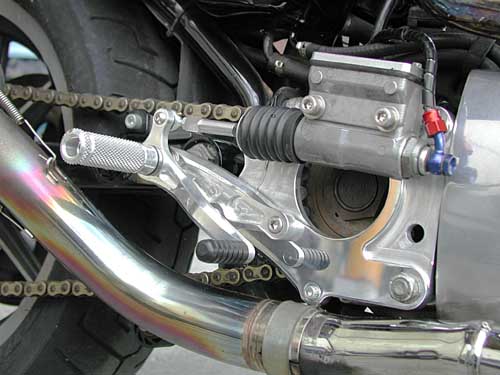

![H-D Sportster '91-'03 with Sato Racing Rear Sets [R]-side + Sprocket Cover](pics/hdss_sprocketcover_fitrs.jpg "H-D Sportster '91-'03 with Sato Racing Rear Sets [R]-side + Sprocket Cover")
Sprocket Cover installed with SATO 'Type1' Sportster Rear Sets
Sprocket Cover
| BLACK | HD-SSTRSCVR-BK $290 |
|
| SILVER | HD-SSTRSCVR-SV $290 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
HEX HEAD M8-25mm (L-side Foot Peg bolt) |
HBT-M825 $2.00 |
|
 |
HEX HEAD M8-45mm (R-side Foot Peg bolt) |
HBT-M845 $2.00 |
|
 |
SPLIT WASHER M8 |
SWS-8 $1.20 |
|
 |
PEDAL TIP SHORT (DELRIN) (L-side Pedal Tip) |
ST-001DS $15 |
|
 |
BUTTON HEAD M6-15mm (for L-side Pedal Tip) |
BBT-M615 $1.50 |
|
 |
PEDAL TIP (DELRIN) (R-side Pedal Tip) |
ST-001D18 $15 |
|
 |
BUTTON HEAD M6-20mm (for R-side Pedal Tip) |
BBT-M620 $1.50 |
|
 |
SOCKET HEAD M6-25mm (L-side #10) |
SBT-M625 $1.50 |
|
 |
NUT M6 (L-side #11) |
NUT-6 $1.00 |
|
 |
FEMALE ROD END M6 (L-side #13) |
RDED-F6 $15 |
|
 |
SOCKET HEAD M8-55mm (L-side #15 / R-side #12) |
SBT-M855 $3.00 |
|
|
SOCKET HEAD M6-20mm (L-side #16) |
SBT-M620 $1.50 |
|
 |
LOCK NUT M6 (L-side #18 / R-side #19) |
LNT-6 $1.50 |
|
 |
MALE ROD END M6 (L-side #22 / R-side #4) |
RDED-M6 $12.50 |
|
 |
BEARING COLLAR SUS (R-side #5) |
BGCLR-SUS $6.50 |
|
 |
BUTTON HEAD M6-25mm (R-side #15) |
BBT-M625 $1.50 |
|
 |
PEG WASHER - M8 (R-side #20) |
PWS-8 $1.00 |
|
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
