YAMAHA SRX 400/600 ('86-'88/ '89-'97)
REAR SETS

SATO RACING Rear Sets for Yamaha SRX400/600 features a track-engineered and race-bred design, with components precision CNC-machined out of high strength billet aluminum, with stainless steel bolts. Provides a Foot Peg position higher up and further back compared to stock for a sportier riding position. Choice of Black, Silver or Gold anodized finish.

2 models of Rear Sets are available for the SRX:
Part# Y-SRXTRS fits the gen1 (twin shock) SRX400 and SRX600 (1986-88).
Part# Y-SRXMRS fits the gen2 (mono shock) SRX400 and SRX600 (1989-97).

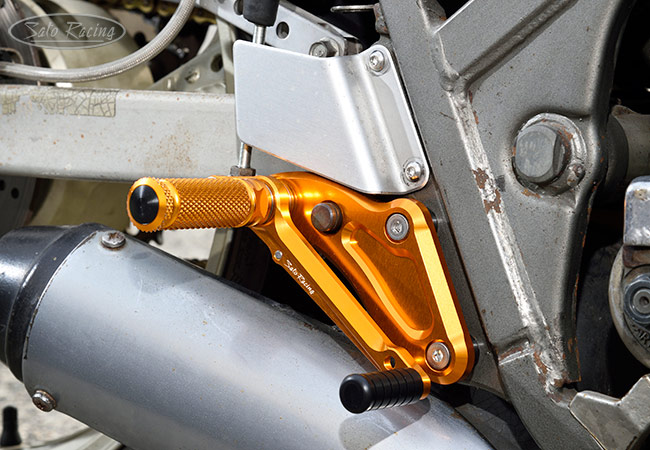

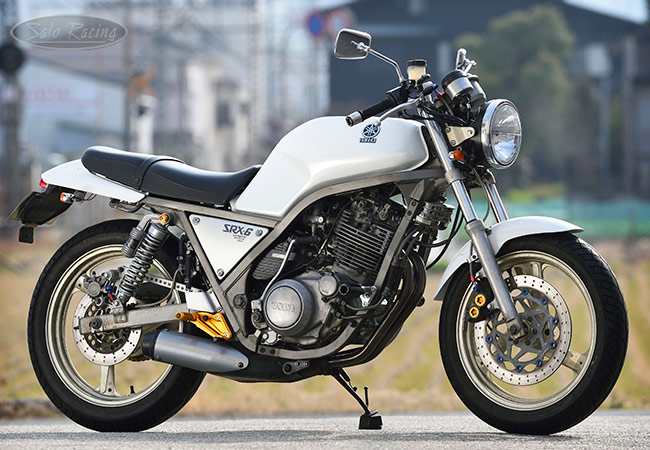

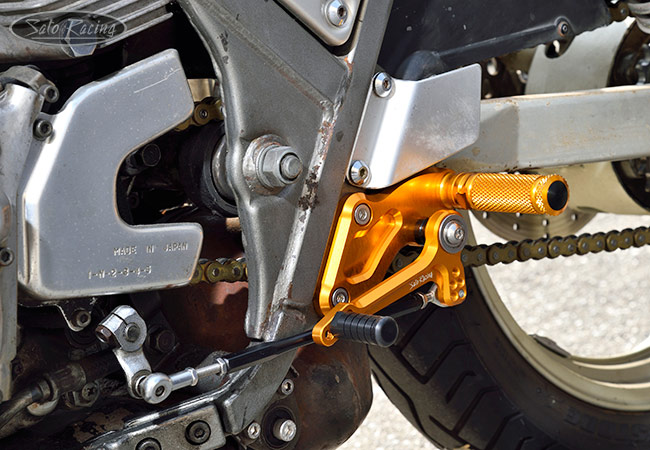

Rear Sets for 1986-88 Yamaha SRX400/600  (part# Y-SRXTRS)


The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever
actuation.  The fixed Foot Peg position brings your feet rearward by 75mm compared to stock.


PEG POSITION

1 75mm Back 30mm Up

Note: Measurement is in relation to stock position (0 mm).


The Foot Pegs are rigid (non-folding) and feature a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel. The Pedal Tips are made of tough, abrasion-resistant Delrin. Provides a dedicated stock shift pattern. (Reverse/GP shift is not an option for this model)

This set is designed for use with the stock heel guards. Note: If intalling with the tandem brackets, there may be interference in some cases. The side stand may need to be adjusted or modified if interferring with the shifter.

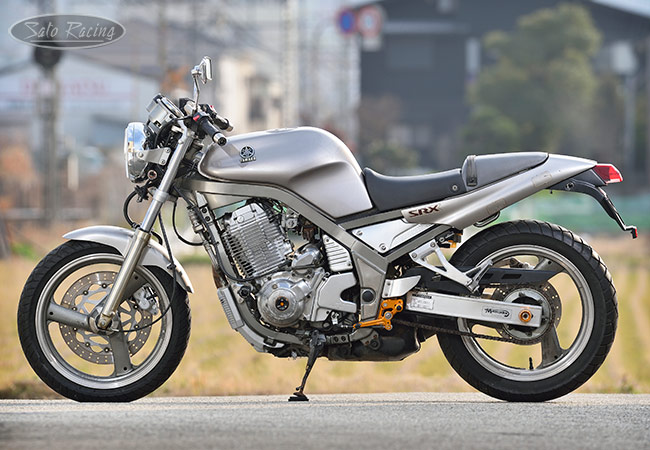

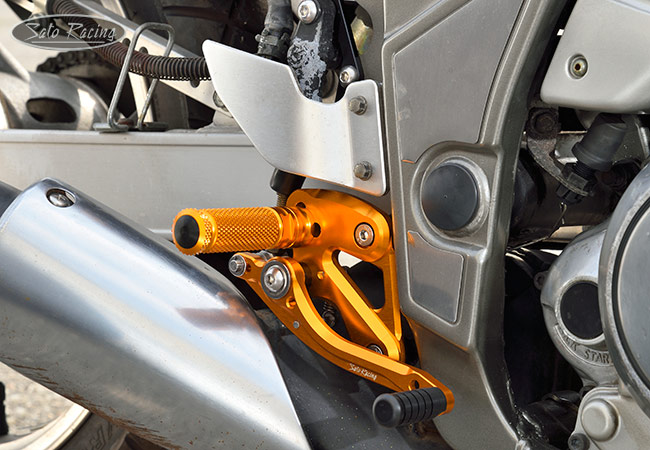

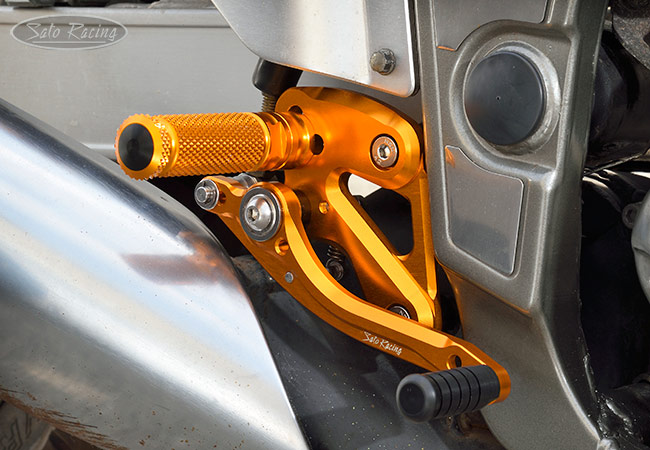

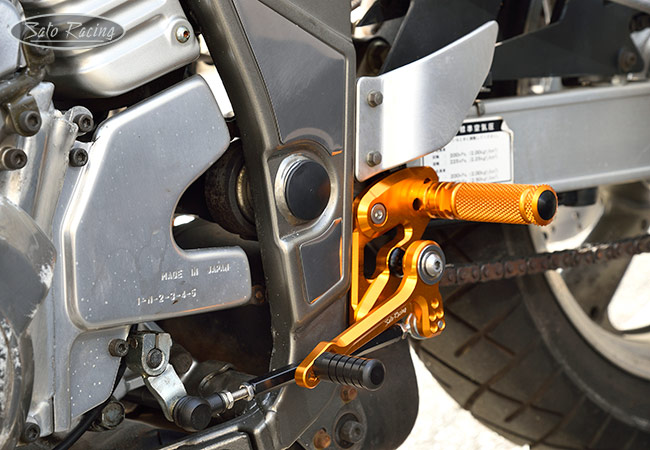

Rear Sets for 1989-97 Yamaha SRX400/600  (part# Y-SRXMRS)
(This Yamaha model was not sold in the US)


The Rear Sets for gen2 SRX 400/600 have 3 adjustable foot peg positions.


PEG POSITIONS

1 17.5mm Back 30mm Up
2 30mm Back 30mm Up
3 30mm Back 40mm Up

Note: all measurements are in relation to stock position (0 mm).



The standard Pedal Tips are made of high-density black Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details.



Gen1 / Twin Shock (1986-88)

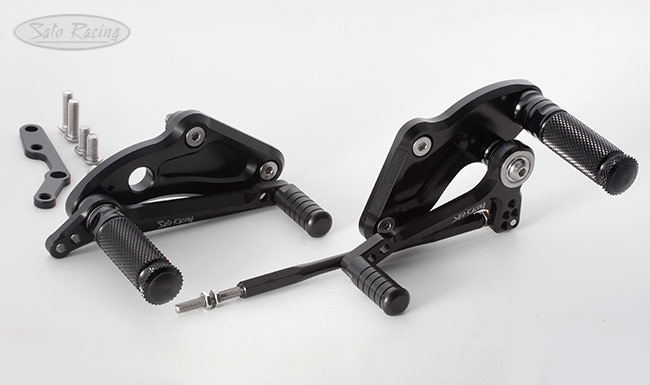

BLACK Y-SRXTRS-BK
$450
SILVER Y-SRXTRS-SV
$450
GOLD* Y-SRXTRS-GD
$450


Gen2 / Monoshock (1989-97)

BLACK Y-SRXMRS-BK
$450
SILVER Y-SRXMRS-SV
$450
GOLD* Y-SRXMRS-GD
$450

(Brake light switch is included in kit)


These Rear Sets models are 'special order' items that we don't
expect to regularly keep in stock, so Contact Sato Racing
if you are interested in ordering a set.  (ETA is 4-8 weeks)



Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)
