TRIUMPH DAYTONA 675R ('13-'17)
REAR SETS

SATO RACING Rear Sets for 2013-17 Triumph Daytona 675R features a track-engineered design, with parts CNC-machined out of high strength billet aluminum. Adjustable design lets you choose from 6 foot peg positions that bring your feet progressively higher up compared to stock, helping you achieve steeper lean angles during cornering and enhanced control at the limit. You can set up these Rear Sets for either stock shift pattern or GP-style reverse shift pattern by relocating the shift rod to the opposite end of the pedal. Choice of all-Black, or Silver or Gold anodized finish with Black-anodized shifter assembly.

A Shift Spindle Holder is an available option for these Rear Sets. It adds extra strength and rigidity to the shift linkage for heavy duty shift action.

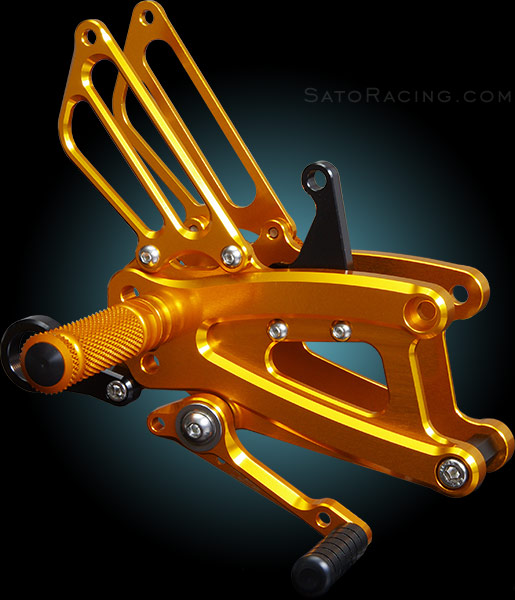

Our Silver and Gold Rear Sets for Daytona come with a contrasting Black-anodized exhaust hanger bracket, master stay, and shift pedal (not shown in the above photo), for a more seamless integration with the stock black parts.


POSITIONS

1 0mm 30mm Up
2 0mm 40mm Up
3 0mm 50mm Up
4 10mm Back 40mm Up
5 10mm Back 50mm Up
6 10mm Back 60mm Up

note: all measurements are in relation to stock position (0 mm).

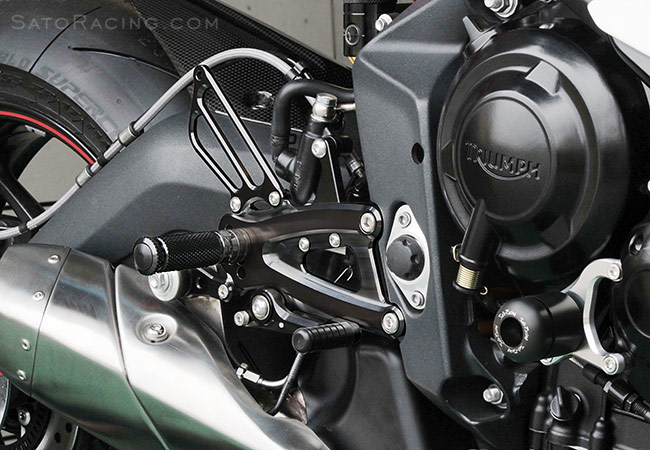

SATO RACING Triumph Daytona 675R ('13-'17) Rear Sets [R]-side
The Foot Peg is adjustable 6 ways. The Pedal Tip position can be adjusted too.
These Rear Sets are compatible with the stock rear brake light switch and ABS.

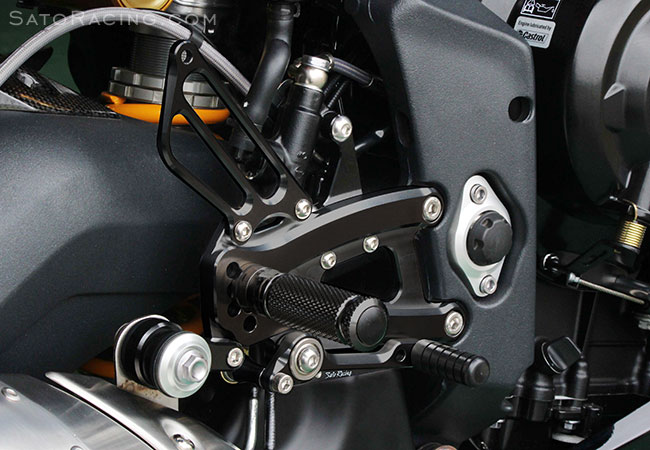

SATO RACING Triumph Daytona 675R ('13-'17) Rear Sets [R]-side
The Foot Pegs have a finely knurled grip pattern for a comfortable, intuitive feel.

A Black-anodized hanger bracket for the exhaust canister is included with the kit.

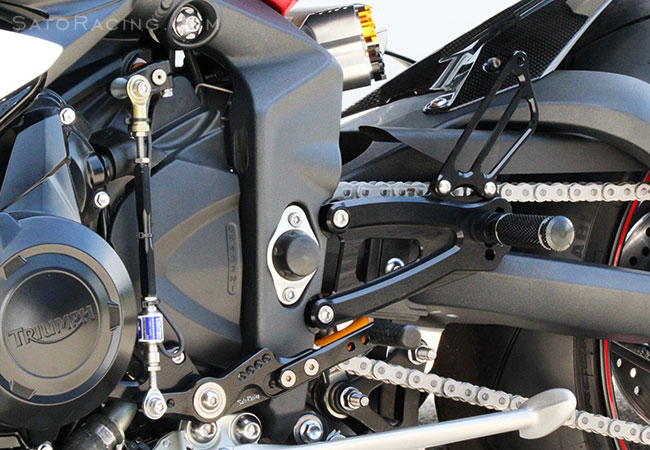

SATO RACING Triumph Daytona 675R ('13-'17) Rear Sets [L]-side
The shifter linkage is optimized for use with the quick-shifter, and features numerous
adjustment holes, useful for fine-tuning the shift stroke. (shown using stock shift pattern)

SATO RACING Triumph Daytona 675R ('13-'17) Rear Sets [L]-side

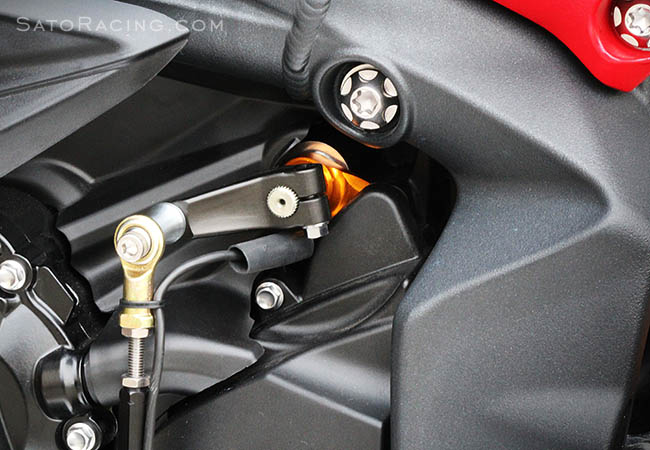

Rear Sets shown installed with optional Shift Spindle Holder.





Daytona stock shift pattern and reverse shift pattern animation
You can change to reverse shift pattern by relocating
the shift rod to the opposite end of the pedal assembly.

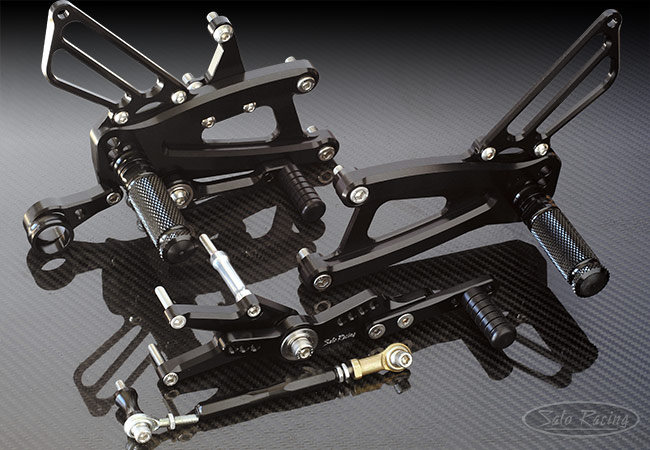

BLACK T-67513RS-BK
$595
SILVER
w/ BLACK Shift Pedal
T-67513RS-SV
$595
GOLD
w/ BLACK Shift Pedal
T-67513RS-GD
$595

Click Here for important info about Sato color-anodized parts.

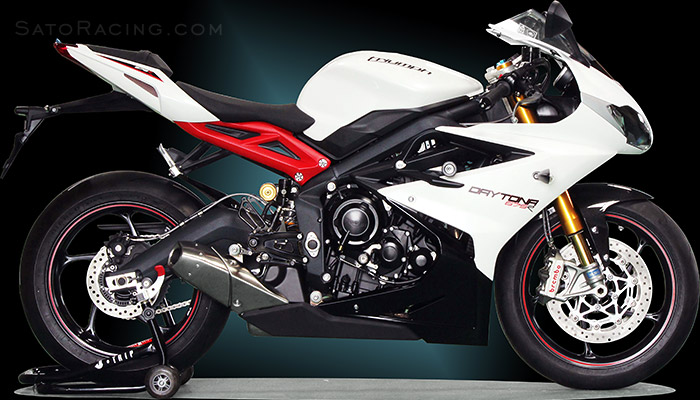

2013 Triumph Daytona 675/R w/ SATO RACING Rear Sets





OPTIONS


TRIUMPH DAYTONA 675/ 765 ('13-'20)
SHIFT SPINDLE HOLDER

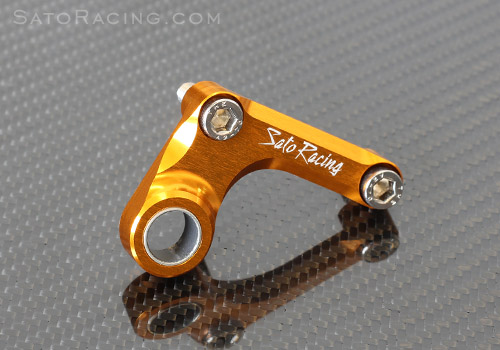

SATO RACING Shift Spindle Holder for 2013-17 Triumph Daytona 675/R and 2020 Daytona 765 reduces excessive lateral play in the shift spindle and reinforces the shift linkage for smoother, more precise shifting in heavy duty use. Gold anodized billet aluminum with a Teflon-coated bushing and stainless steel bolts.

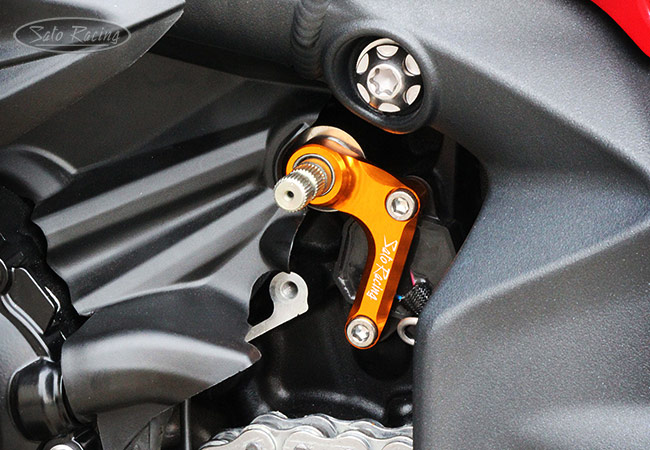

Sato Racing Triumph 675/765 ('13-) Shift Spindle Holder

Sato Racing Triumph 675/765 ('13-) Shift Spindle Holder


Sato Racing Triumph 675/765 ('13-) Shift Spindle Holder


GOLD T-D76520RS-SHDR
$105


Click Here for important info about Sato color-anodized parts.




REPLACEMENT PARTS

SATO RACING offers a full selection of replacement parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
  Parts List

Some common replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG [BLACK] PEG-BK
$42
FOOT PEG [SILVER] PEG-SV
$42
FOOT PEG [GOLD] PEG-GD
$42
HEX HEAD M8-40mm
(#36, Foot Peg bolt)
HBT-M840
$2.00
SPLIT WASHER M8 SWS-8
$1.20
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(#30, for Pedal Tip)
BBT-M620
$1.50
SHIFT PEDAL SPD8 [BLACK]
(L-side #7)
SPD-8B
$30
FLAT HEAD M6-10mm
(L-side #34)
FBT-M610
$1.50

Some additional parts such as Shift Rod, Rod Ends and related hardware can be found HERE.
(For replacement parts not listed on our website, contact Sato Racing for an estimate.)


More Sato Racing items for 2013-17 Triumph Daytona 675R

Pedal Tips Bar Ends Racing Hooks
