SUZUKI GSX-R1000/ R  (2017-23)
REAR SETS


SATO RACING Rear Sets for 2017-24 Suzuki GSX-R1000/ R features a thoroughly track-engineered design, with parts precision machined from high strength anodized billet aluminum, with stainless steel bolts and hardware. Adjustable design lets you choose from 5 unique foot peg positions that bring your feet higher up and further back compared to stock, for a more aggressive riding position ideally suited to the fast straights and steep lean angles encountered on the track. These Rear Sets can be set up for either stock shift pattern or reverse (GP style) shift pattern. Choice of all Black anodized finish, or vivid Gold finish with contrasting Black-anodized shifter assembly.

Available options for these Rear Sets include a Shift Spindle Holder which reinforces the shift shaft for more precise shift action.

POSITIONS

1 12mm Back 20mm Up
2 12mm Back 30mm Up
3 12mm Back 40mm Up
4 24mm Back 30mm Up
5 24mm Back 40mm Up

note: all measurements are in relation to stock position (0 mm).

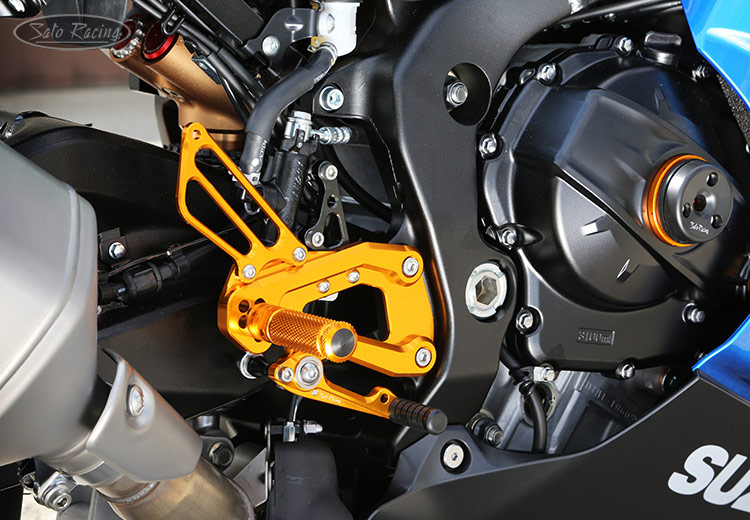

SATO RACING Rear Sets for Suzuki GSX-R1000/R '17- [R]-side
The brake pedal uses dual miniature stainless bearings for smooth, precise lever action.

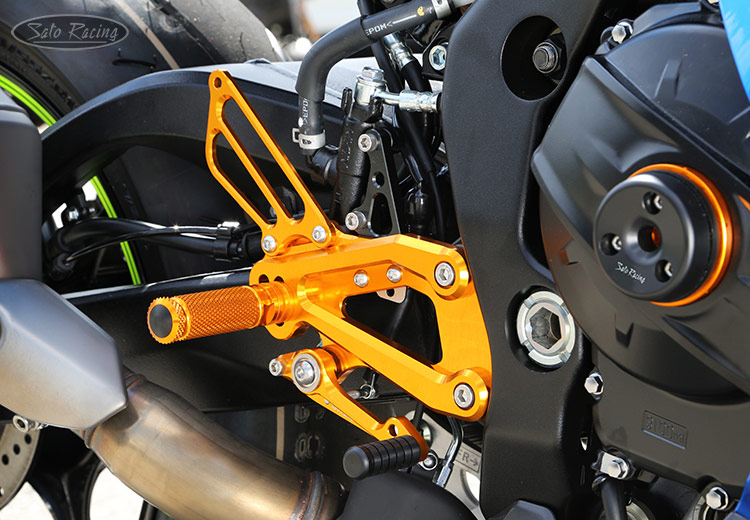

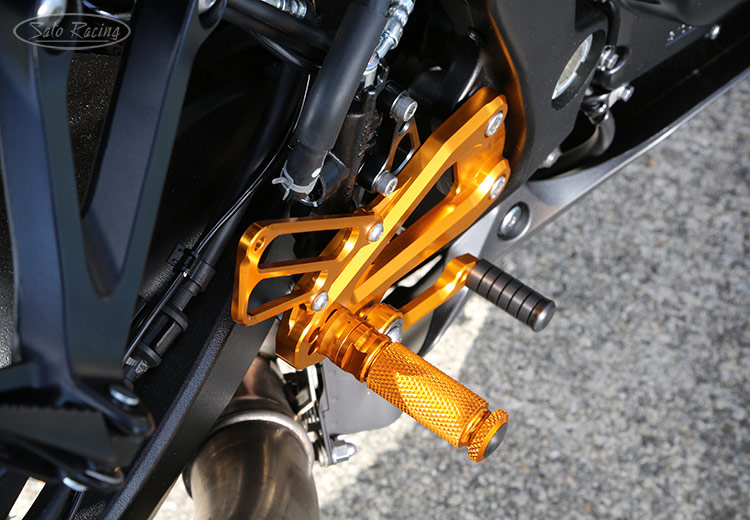

SATO RACING Rear Sets for Suzuki GSX-R1000/R '17- [R]-side
Foot Peg position is adjustable. You can also adjust the positions of the Pedal Tips (toe pegs).
These Rear Sets are fully compatible with the stock brake light switch and ABS.

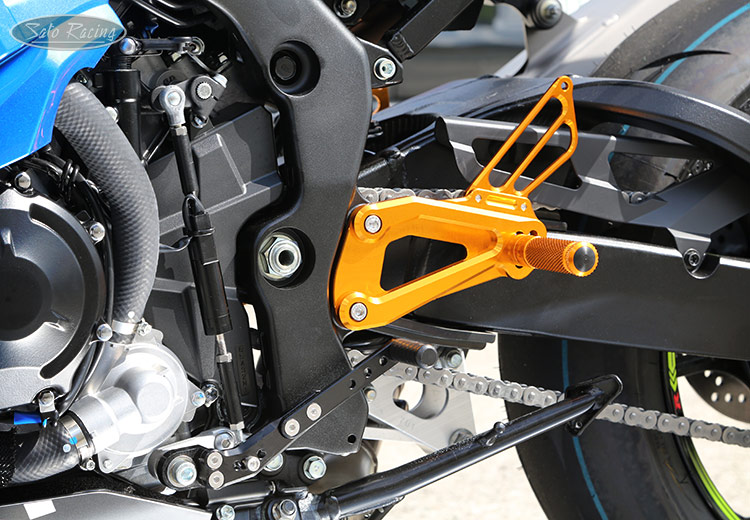

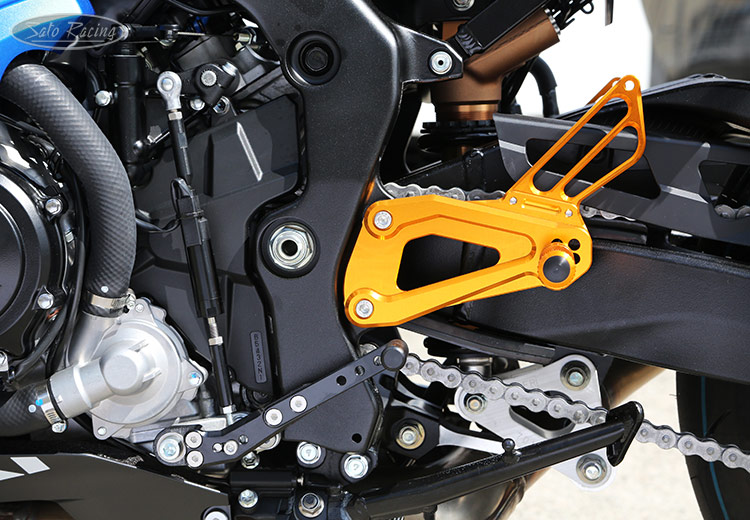

SATO RACING Rear Sets for Suzuki GSX-R1000/R '17- [L]-side
The Foot Pegs have a finely knurled pattern for great grip and a comfortable,
intuitive feel. The Pedal Tips are made of tough, abrasion-resistant black Delrin.

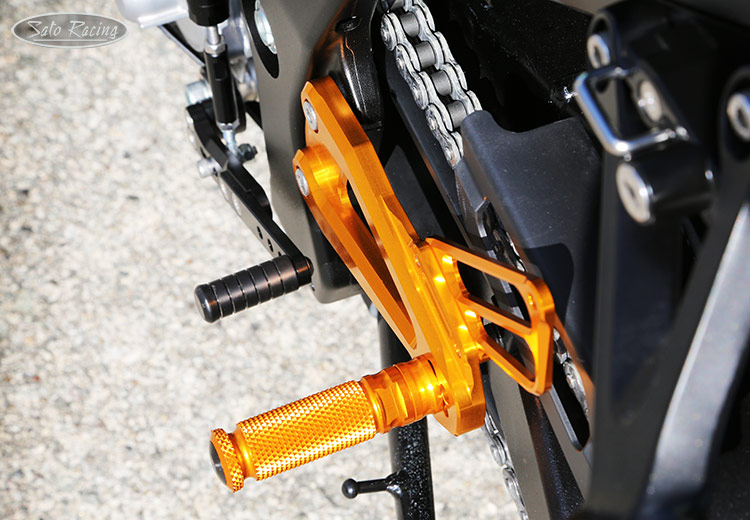

SATO RACING Rear Sets for Suzuki GSX-R1000/R '17- [L]-side
The Shift Pedal is optimized for use with the OEM quickshifter.
(Shift pedal assembly comes in Black only)

SATO RACING Rear Sets for Suzuki GSX-R1000/R '17- [L]-side
Stock shift pattern shown. You can set it up for reverse (GP) shift pattern
by flipping the stock shift arm the opposite direction on the spindle shaft.

SATO RACING Rear Sets for Suzuki GSX-R1000/R '17- [L]-side




BLACK S-GSX117RS-BK
$580
GOLD
w/ BLACK Shift Assembly
S-GSX117RS-GD
$580


Click Here for important info about Sato color-anodized parts.






OPTIONS


SUZUKI GSX-R1000/R  ('17- )
SHIFT SPINDLE HOLDER


SATO RACING Shift Spindle Holder for 2017+ Suzuki GSX-R1000/R reinforces the stock shift spindle, adding strength and rigidity to the spindle and reducing lateral movement and excessive play during shifting. Works great with Sato Racing Rear Sets. Gold anodized billet aluminum with a Teflon-coated bushing.

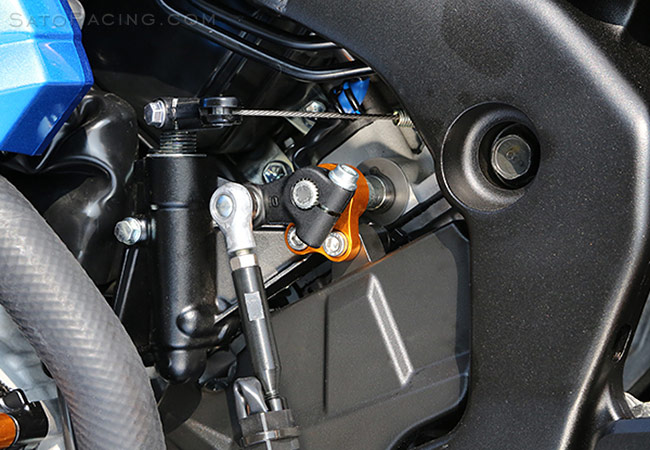

SATO RACING Shift Spindle Holder for Suzuki GSX-R1000/R '17-

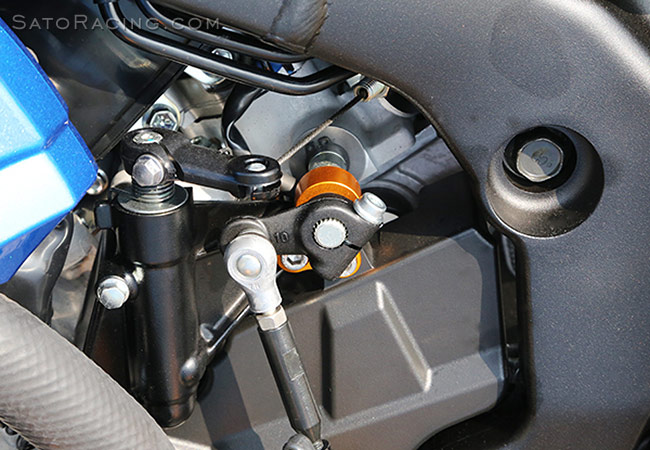

SATO RACING Shift Spindle Holder for Suzuki GSX-R1000/R '17-

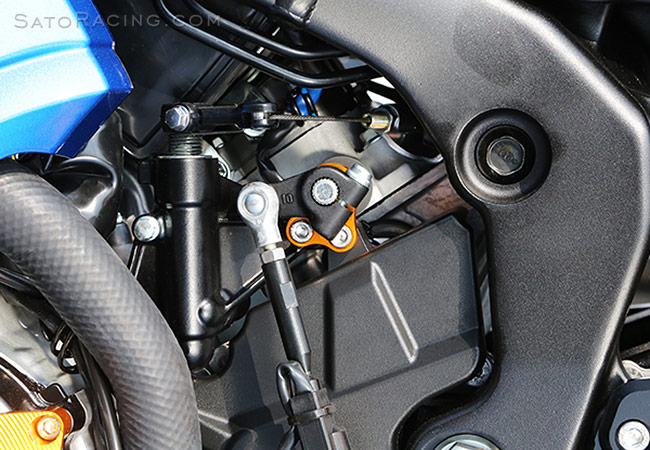

SATO RACING Shift Spindle Holder for Suzuki GSX-R1000/R '17-



GOLD S-GSX117RS-SHDR
$99


Click Here for important info about Sato color-anodized parts.



_________________________________________________________________________



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




_________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



____________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List

Some replacement parts for these Rear Sets
can be purchased in our online store:

PEG FOOT PEG
(BK / SV/ GD)
PEG
$42
PEDAL TIP PEDAL TIP (DELRIN) ST-001D18
$15
HG-2L [L] HEEL GUARD
(BK/ SV/ GD) (#1)
HG-2L
$50
HG-2R [R] HEEL GUARD
(BK/ SV/ GD) (#2)
HG-2R
$50
SPD-8L SHIFT PEDAL SPD8L
[BLACK]
(#6)
SPD-8L
$40.00
HBT-M56 HEX HEAD M5-6mm
(#13)
HBT-M56
$2.00
SBT-M515 SOCKET HEAD M5-15mm
(#14)
SBT-M515
$2.00
SBT-M545 SOCKET HEAD M5-45mm
(#15)
SBT-M545
$2.00
SBT-M620 SOCKET HEAD M6-20mm
(#16)
SBT-M620
$1.50
SBT-M625 SOCKET HEAD M6-25mm
(#17)
SBT-M625
$1.50
SBT-M645 SOCKET HEAD M6-45mm
(#18)
SBT-M645
$2.00
SBT-M820 SOCKET HEAD M8-20mm
(#19)
SBT-M820
$1.50
SBT-M1035 SOCKET HEAD M10-35mm
(P-1.25)
  (#20)
SBT-M1035
$4.50
BBT-M610 BUTTON HEAD M6-10mm
(#21)
BBT-M610
$2.00
BBT-M612 BUTTON HEAD M6-12mm
(#22)
BBT-M612
$2.00
BBT-M620 BUTTON HEAD M6-20mm
(#23, for Pedal Tip)
BBT-M620
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(#24)
BBT-M825
$1.50
FBT-M612 FLAT HEAD M6-12mm
(#25)
FBT-M612
$2.00
FBT-M615 FLAT HEAD M6-15mm
(#26)
FBT-M615
$2.00
STBT-45 STUD BOLT M8-45mm
(#27)
STBT-45
$4.50
RDED-CLR23 ROD END COLLAR 23
(R-side #28)
RDED-CLR23
$15.00
PEGCLR-12 PEG COLLAR 12
(BK / SV/ GD) (#29)
PEGCLR-12
$15
NUT-5 NUT M5   (#31) NUT-5
$1.50
LNT-6 LOCK NUT M6
(#32)
LNT-6
$1.50
FNT-8 FLANGE NUT M8
(#33)
FNT-8
$1.50
RDED-M6L M6 MALE
REVERSE ROD END

(#34)
RDED-M6L
$12.50
RDED-F6-8 FEMALE ROD END 6-M8
(#35)
RDED-F6-8
$25
PSTAY-16 PULL SWITCH STAY 16
(#36)
PSTAY-16
$9.50

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
