MOTO GUZZI V7 + ARROW EX ('23- )
REAR SETS
| SATO RACING Rear Sets for 2023+ Moto Guzzi V7 Special Edition with the Arrow exhaust features components precision CNC-machined out of high strength anodized billet aluminum in a striking design well-suited to the classic style of the V7. The Rear Sets components are anodized in your choice of a deep Black or brilliant Silver (natural metal) finish. You can choose from 3 adjustable foot peg positions that bring your feet higher up and back compared to stock, for a more aggressive position that is more ideally suited for spirited rising. Provides a stock shift pattern. |
| 1 | 137.5mm Back (5.4" Back) |
35mm Up (1.4" Up) |
| 2 | 137.5mm Back (5.4" Back) |
50mm Up (2" Up) |
| 3 | 150mm Back (5.9" Back) |
50mm Up (2" Up) |
All measurements are in relation to stock position (0 mm).

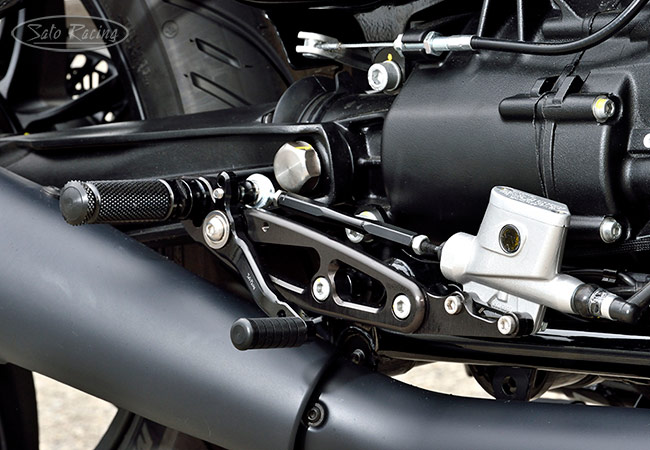

![SATO RACING Moto Guzzi V7 '23 for Arrow Rear Sets [R]-side](pics/MG-V723ARS-BK_fitR1_650x450.jpg "SATO RACING Moto Guzzi V7 '23- for Arrow Rear Sets [R]-side")
|
The shift and brake pedals use dual miniature stainless bearings for a solid feel and smooth, precise lever actuation. A pressure-type brake light switch that attaches to the brake master cylinder is included with the kit. |

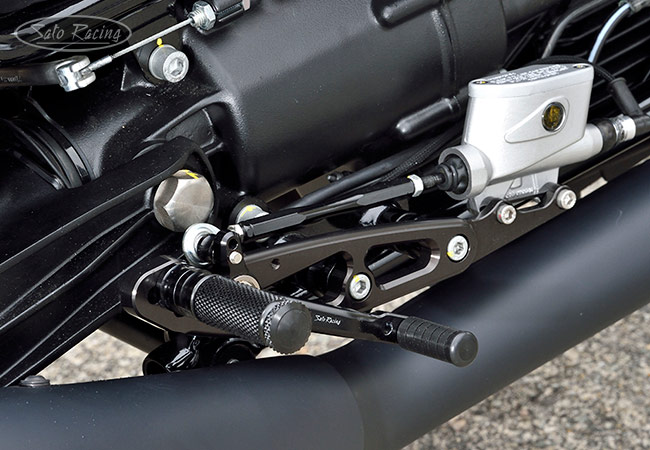

![SATO RACING Moto Guzzi V7 '23 for Arrow Rear Sets [R]-side](pics/MG-V723ARS-BK_fitR2_650x450.jpg "SATO RACING Moto Guzzi V7 '23- for Arrow Rear Sets [R]-side")
| The Foot Pegs are our classic fixed-type pegs (non-folding) and feature a finely knurled pattern for excellent grip characteristics, along with a comfortable, intuitive feel. Foot Peg mounting position is adjustable 3 ways. Pedal tip (toe peg) position is also adjustable. The Foot Peg End Caps and the Pedal Tips are made of tough, abrasion-resistant black Delrin. |
![SATO RACING Moto Guzzi V7 '23 (for Arrow) Rear Sets [L]-side](pics/MG-V723ARS-BK_fitL1_650x450.jpg "SATO RACING Moto Guzzi V7 '23- (for Arrow) Rear Sets [L]-side")
| These Arrow exhaust-compatible Rear Sets are positioned rearward compared to the stock foot rests, bringing your feet further back to make it easier to maintain a more 'tucked in' riding position. Peg positions are higher too, providing good clearance with the exhaust. |

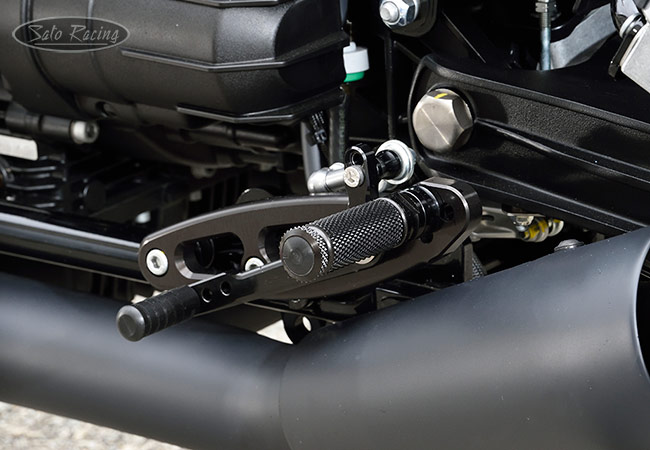

![SATO RACING Moto Guzzi V7 '23- (for Arrow) Rear Sets [L]-side](pics/MG-V723ARS-BK_fitL2_650x450.jpg "SATO RACING Moto Guzzi V7 '23- (for Arrow) Rear Sets [L]-side")
| BLACK | MG-V723ARS-BK $575 |
 |
| SILVER | MG-V723ARS-SV $575 |
|
(P-1.0 Brake Light Switch is included in kit)
ARRIVING SOON
NOTE: If you have a 2021-2023 V7 (850) with the standard exhaust,
check out our Rear Sets designed for that version.
