HONDA CB1000R   ('18- )
REAR SETS

2018 Honda CB1000R Neosport Cafe with SATO RACING Rear Sets - R side

SATO RACING Rear Sets for 2018-23 Honda CB1000R features components precision CNC-machined from light-weight, high strength anodized billet aluminum in a striking design that fits well with the angular styling of the CB1000R. Modular design lets you select from multiple adjustable foot peg positions in a useful range for the street or track. Features a multi-link shift linkage that can be set up for either stock or reverse shift pattern. 3 variations of this model are available - For the standard shift linkage (no quick-shifter), for the 2018-20 spec Honda OEM quick-shifter, and for the updated 2021+ quick-shifter. Choice of Black, Silver or Gold anodized finish.

POSITIONS

1 7mm Back
(0.3" Back)
15mm Up
(0.6" Up)
2 22mm Back
(0.9" Back)
15mm Up
(0.6" Up)
3 19.5mm Back
(0.8" Back)
27.5mm Up
(1.1" Up)
4 34.5mm Back
(1.4" Back)
27.5mm Up
(1.1" Up)

note: all measurements are in relation to stock position (0 mm).

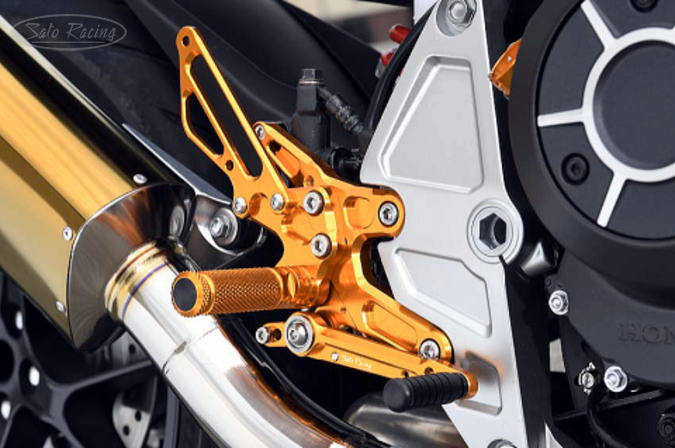

SATO RACING CB1000R ('18-) Rear Sets [R]-side

These Rear Sets are fully compatible with the stock brake light switch and ABS. The positions of the Step Plate, Foot Peg and Pedal Tip can be adjusted to your preference. The Foot Pegs have a finely knurled pattern for a comfortable, intuitive feel and nice grip. The standard Pedal Tips are made of tough, abrasion-resistant black Delrin plastic. Additional styles of Pedal Tips, such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  More Details

Rear Sets kit includes a Black-anodized hanger bracket for the exhaust canister.

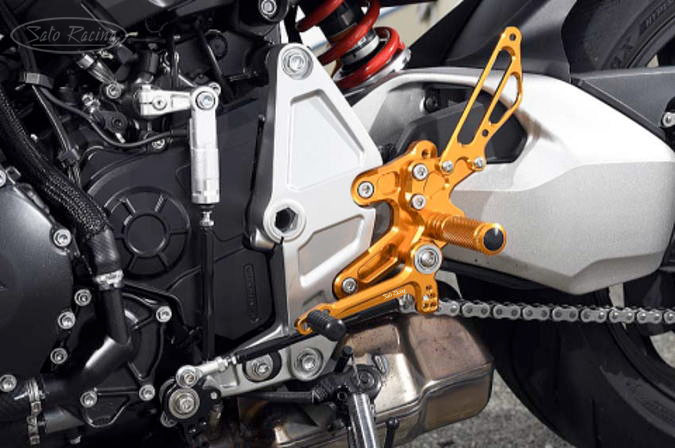

SATO RACING CB1000R ('18- ) Rear Sets [L]-side

You can set it up for GP-style reverse shift pattern by moving the shift rod to the opposite positions on the shift link. The Shift link on the quick-shifter model is optimized for use with the OEM shifter switch. Double stainless bearings are utilized in the shift link and brake pedal for smooth, precise lever action with a solid, high quality feel.

The standard model (not pictured) includes a full-length shift rod. Note: On the Silver and Gold Rear Sets, the shift linkage parts have a black anodized finish.

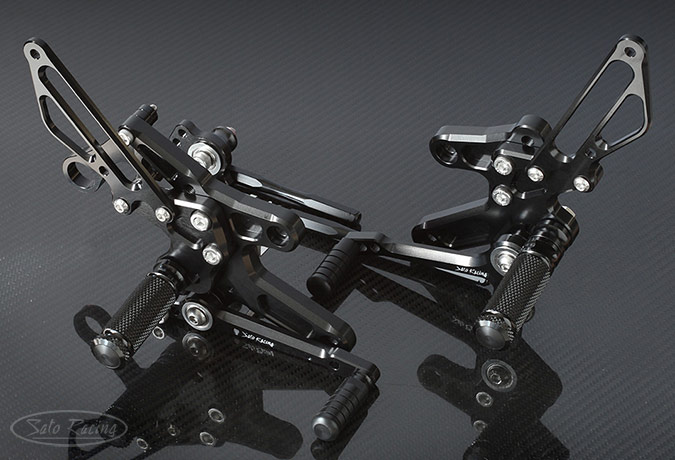

SATO RACING CB1000R ('18-) Rear Sets in Black
CB1000R '18- Rear Sets kit in BLACK




Rear Sets for standard shifter

BLACK H-CB100018RS-BK
$620
SILVER H-CB100018RS-SV
$620
GOLD H-CB100018RS-GD
$620


Rear Sets for 2018-20 CB1000R
with OEM Honda quick-shifter

BLACK H-CB100018SRS-BK
$620
SILVER H-CB100018SRS-SV
$620
GOLD H-CB100018SRS-GD
$620


Rear Sets for 2021-23 CB1000R
with OEM Honda quick-shifter

BLACK H-CB100021RSQ-BK
$620
SILVER H-CB100021RSQ-SV
$620
GOLD H-CB100021RSQ-GD
$620


Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)







OPTIONS




Cutout-style FOOT PEG

Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



_______________________________________________________

More Sato Racing items for 2018+ CB1000R

Oil Cap Frame Sliders Racing Hook
