DUCATI PANIGALE 899/ 959/ 1199/ 1299/ V2
REAR SETS

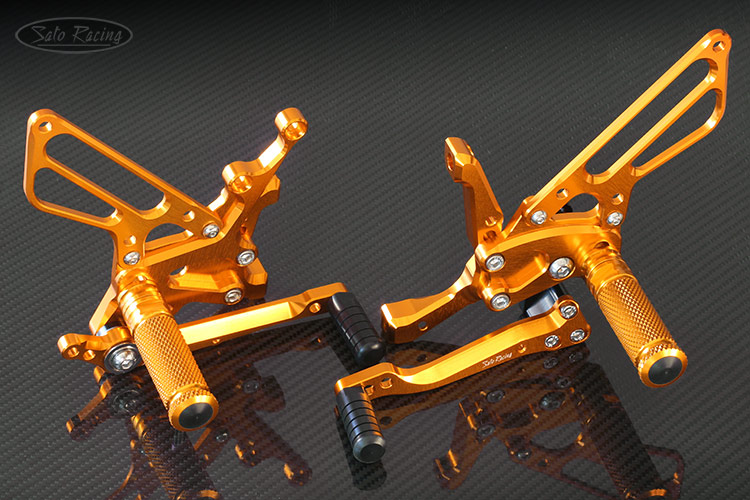

SATO RACING Rear Sets for Ducati Panigale 899/ 959/ 1199/ 1299 and 2020-22 Panigale V2 features a track-proven design, with components precision CNC-machined out of high strength anodized billet aluminum, with stainless steel bolts and hardware. Adjustable step plate design lets you choose from a range of positions that bring your feet higher up and more forward compared to stock. (A Spacer Kit is an available option that allows repositioning of the Rear Sets up to 15mm further back). These premium Rear Sets are optimized for use with the OEM quickshifter, and can be set up for stock or reverse shift pattern. Choice of Black, Silver (natural metal), or vivid Gold anodized finish.


POSITIONS *

1 25mm Forward 5mm Up Stock Shift Pattern
2 25mm Forward 15mm Up Stock Shift Pattern
3 25mm Forward 25mm Up Stock or Reverse
Shift Pattern
4 25mm Forward 35mm Up Stock or Reverse
Shift Pattern

note: all measurements are in relation to stock position (0 mm).

*We offer an optional Spacer Kit that enables you adjust the position
of the Rear Sets further back by 5mm, 10mm or 15mm if needed,
effectively tripling the number of possible positions. (Details below)


SATO RACING Panigale Rear Sets L-side on a Ducati Panigale V2

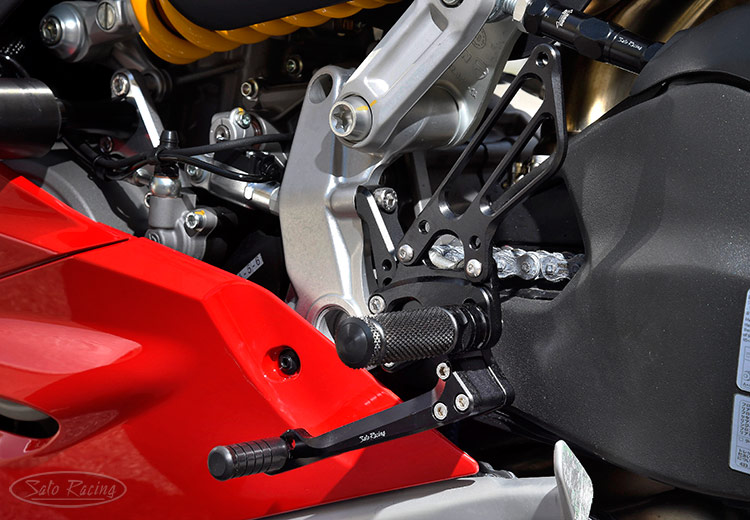

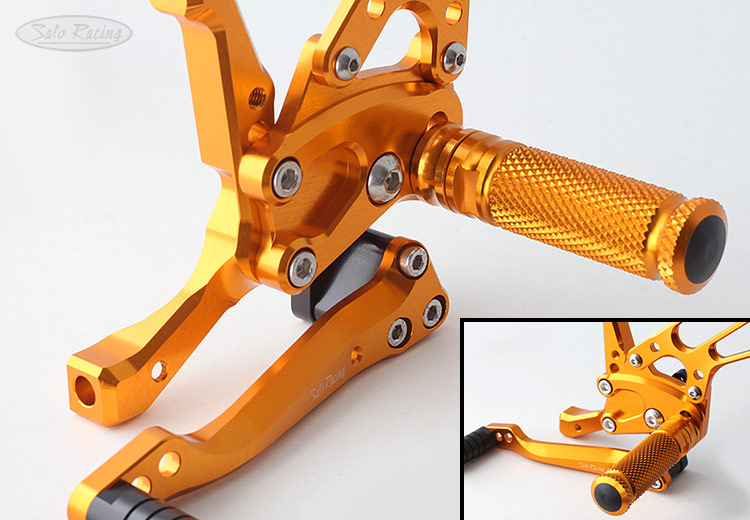

Rear Sets (L-side) on a 2020 Panigale V2. The adjustable design of the shift
linkage lets you choose from stock shift or reverse (GP-style) shift pattern.

SATO RACING Panigale Rear Sets L-side on a Ducati Panigale V2

SATO RACING Panigale Rear Sets on a Ducati 1199 Panigale S

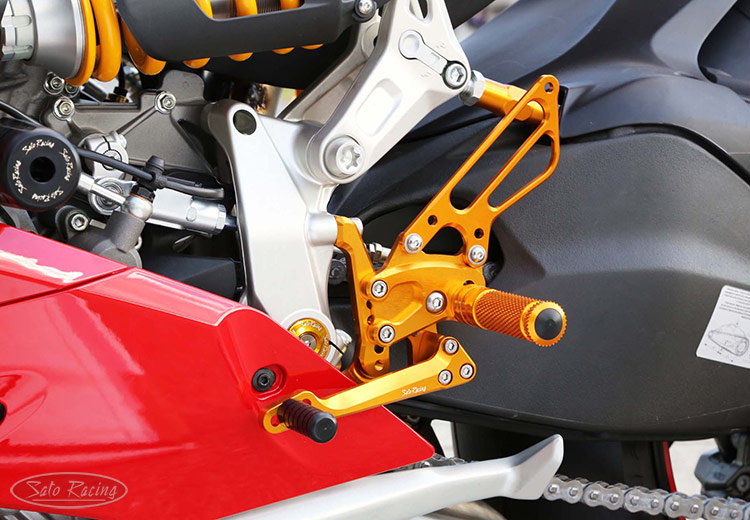

Rear Sets in Gold on a 1199 Panigale.   The Foot Pegs can be adjusted verttically 2 ways, with an additional 2 positions where the Step Plate mounts to the Base Plate, for a total of 4 unique positions. (For additional positions, add optional Spacer Kit part# D-1199RS-CLR.

SATO RACING Panigale Rear Sets on a Ducati 1199 Panigale S

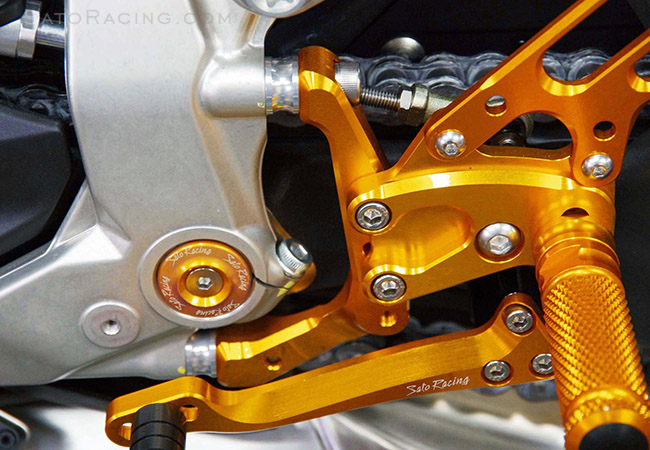

The Foot Pegs are fixed type (non-folding), and feature a finely knurled pattern for optimal grip, along with a comfortable, intuitive feel.   The Pedal Tips (toe pegs) are made of tough, asbrasion-resistant black Delrin. Addtional pedal tip styles such as aluminum tips with rubber grips are also available. Click Here for details.

SATO RACING Panigale Rear Sets R-side on a Ducati Panigale V2

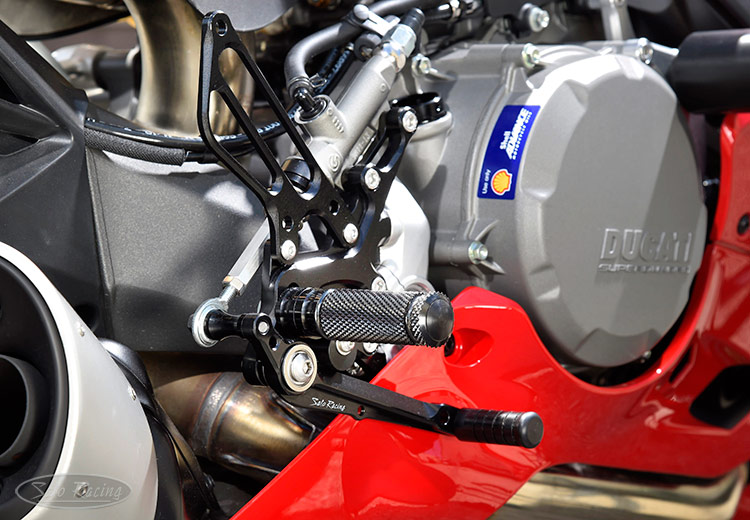

The shifter and brake pedal use miniature double stainless bearings for smooth, precise lever action.   A pressure-type brake light switch is included with the kit.

SATO RACING Panigale Rear Sets R-side on a Ducati Panigale V2

SATO RACING Panigale Rear Sets on a '14 Ducati 899 Panigale

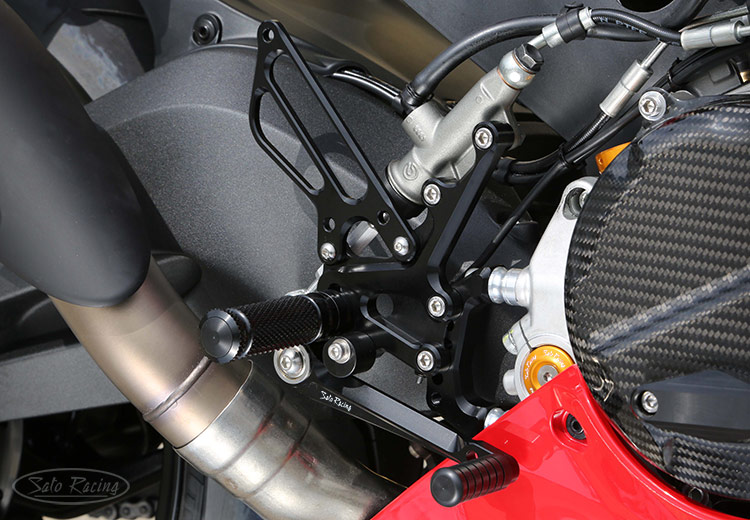

Sato Rear Sets (w/ optional Spacer Kit) on a Ducati 899 Panigale.



REAR SETS (New design version) -
fits Ducati Panigale V2 / 899 / 959 / 1199 / 1299

BLACK D-V220RS-BK
$775
SILVER D-V220RS-SV
$775
GOLD * D-V220RS-GD
$775



REAR SETS - original design version -
fits Ducati 899 / 959 / 1199 / 1299 Panigale

BLACK D-1299RS-BK
-
SOLD OUT
SILVER D-1299RS-SV
-
SOLD OUT
GOLD * D-1299RS-GD
$775


P-1.0 Brake light switch is included in kit.


* Click Here for important info about Sato GOLD-anodized parts.







OPTIONS


SPACER KIT
for SATO RACING Ducati Panigale Rear Sets

SATO RACING Panigale Rear Sets are positioned 25mm forward compared to stock. This optional Spacer Kit can be used to adjust the Rear Sets' position further back if needed, by 5mm, 10mm or 15mm. Kit contains four (4) 5mm and four (4) 10mm silver anodized billet aluminum collars, along with longer bolts.


Panigale Rear Sets installed with 10mm spacers.

SATO RACING Panigale Rear Sets + Spacer Kit

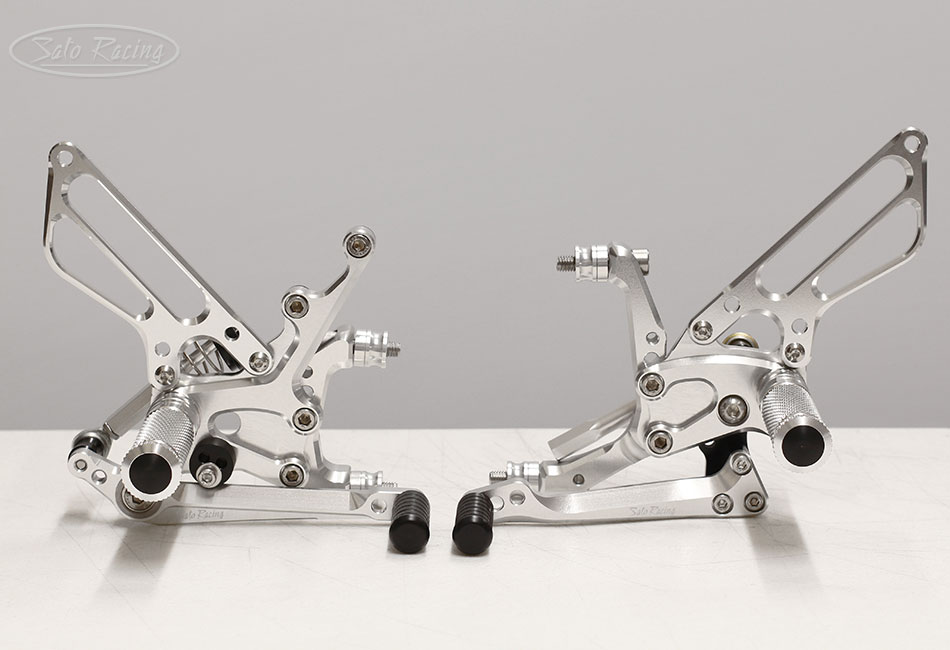

Rear Sets shown with 10mm + 5mm spacers, for a combined 15mm setback, which would
bring the Rear Sets position from 25mm forward to 10mm forward compared to stock.




SPACER KIT D-1199RS-CLR
$49






Cutout-style FOOT PEG
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets
Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF file:

Part# D-1199RS / D-1299RS:    Rear Sets [L]-side  |  Rear Sets [R]-side
Part# D-V220RS:    Rear Sets [L]-side  |  Rear Sets [R]-side


Some replacement parts for these Rear Sets
can be purchased in our online store.
(Part numbers correspond to D-1299RS)

peg FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEGCLR-12 PEG COLLAR 12
(BK/ SV/ GD) (#20)
PEGCLR-12
$15
STUD BOLT M8-45mm
(#34)
STBT-45
$4.50
PEDAL TIP (DELRIN)
(#17)
ST-001D18
$15
BUTTON HEAD M6-20mm
(#30, for Pedal Tip)
BBT-M620
$1.50
[L] HEEL GUARD
(BK/ SV/ GD) (#1)
HG-3L
$50
[R] HEEL GUARD
(BK/ SV/ GD) (#2)
HG-3R
$50
PEGBGCLR-5SB BEARING COLLAR 5
[BLACK]
   (#14)
PEGBGCLR-5SB
$10.00
HGCLR-5 COLLAR 5-6
(#18)
HGCLR-5
$8.00
RDED-CLR23 ROD END COLLAR 23
(#19)
RDED-CLR23
$15.00
SOCKET HEAD M5-10mm
(#21)
SBT-M510
$2.00
SBT-M520 SOCKET HEAD M5-20mm
(#22)
SBT-M520
$2.00
SBT-M616 SOCKET HEAD M6-16mm
(#23)
SBT-M616
$2.00
SBT-M622 SOCKET HEAD M6-22mm
(#24)
SBT-M622
$2.00
HBT-M640 HEX HEAD M6-40mm
(#26)
HBT-M640
$2.50
SBT-M825 SOCKET HEAD M8-25mm
(#28)
SBT-M825
$1.50
SBT-M830 SOCKET HEAD M8-30mm
(#28)
SBT-M830
$1.50
BUTTON HEAD M5-10mm
(#29)
BBT-M510
$2.00
BBT-M825 BUTTON HEAD M8-25mm
#31)
BBT-M825
$1.50
BBT-M835 BUTTON HEAD M8-35mm
(#32)
BBT-M835
$2.00
STUD-M6L REVERSE STUD M6
(#33)
STUD-M6L
$4.50
NUT-6 PLAIN NUT M6
(#35)
NUT-6
$1.00
JNT-6 JAM NUT M6
(#36)
JNT-6
$1.75
FLNT-8S FLANGE LOCK NUT M8S
(#39)
FLNT-8S
$2.50
FNT-8 FLANGE NUT M8
(#40)
FNT-8
$1.50
WS-5 WASHER M5
(#41)
WS-5
$1.00
BPD-STOPPER PEDAL STOPPER (DELRIN)
(#43)
BPD-STOPPER
$15.00
RS-RSP2 RETURN SPRING 20
(#44)
RS-RSP2
$8.00
RS-RSCLR RETURN SPRING COLLAR
(#45)
RS-RSCLR
$12.00
MALE ROD END M6
(#46)
RDED-M6
$12.50
RDED-F6L REVERSE
FEMALE ROD END M6

(#47)
RDED-F6L
$15.00
BSW-1 BRAKE LIGHT SWITCH
(P-1.0)

BSW-1
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
