MV AGUSTA F4  ('12-'14)
REAR SETS ver.2  (No Pedals)

SATO RACING Rear Sets version 2 for 2012-2014 MV Agusta F4 are a track-tested design, precision CNC-machined out of high strength billet aluminum, with your choice of Black, Silver (clear metal), or vivid Gold anodized finish. Modular step plate design lets you select from a wide range of adjustable foot peg positions so you can find the ideal position for your riding style.

These 'version 2' Rear Sets are designed for use with the stock MV Agusta shifter and brake pedal, greatly simplifying installation compared to our full version F4 Rear Sets. Recommended if you have a 2012 and up F4 with ABS and/or quickshifter.


POSITIONS

1 10mm Forward 0mm
2 10mm Forward 10mm Up
3 10mm Forward 20mm Up
4 0mm 0mm
5 0mm 10mm Up
6 0mm 20mm Up
7 10mm Back 0mm
8 10mm Back 10mm Up
9 10mm Back 20mm Up

note: all measurements are in relation to stock position (0 mm).




The Step Plate has 3 mounting positions, and the Foot Peg position is also adjustable 3 ways.

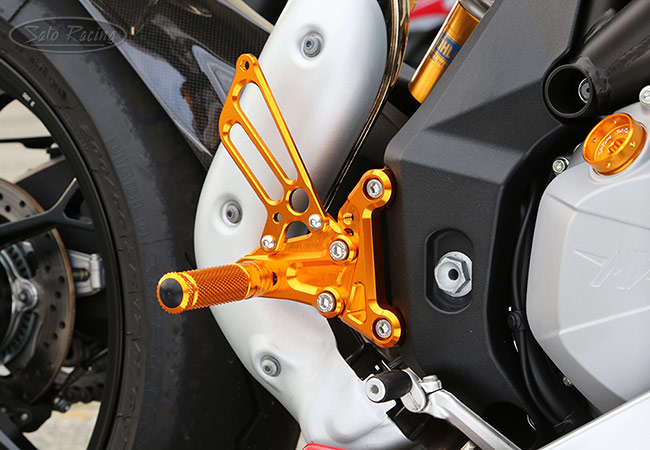

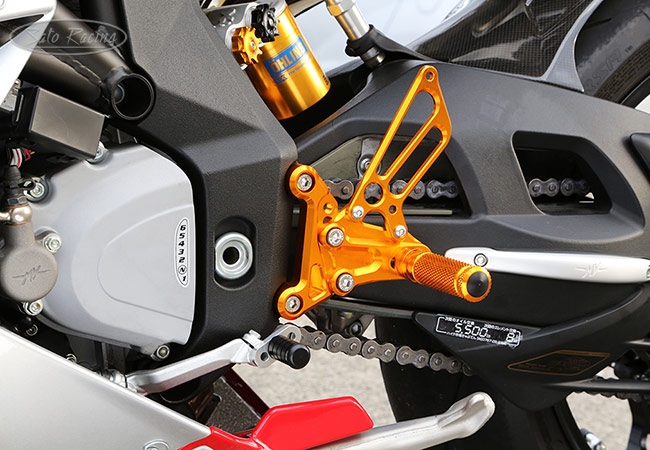

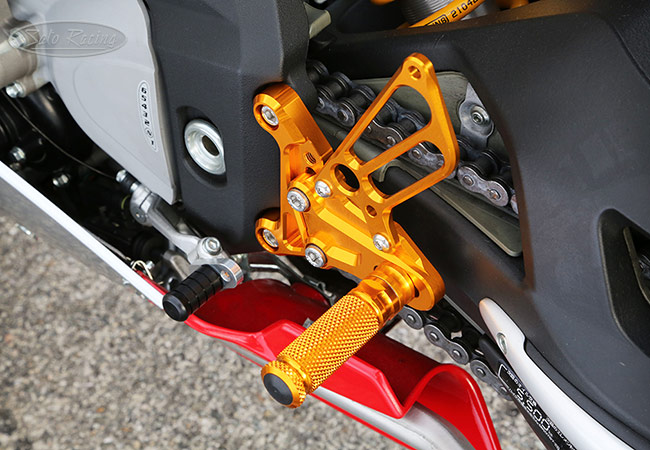

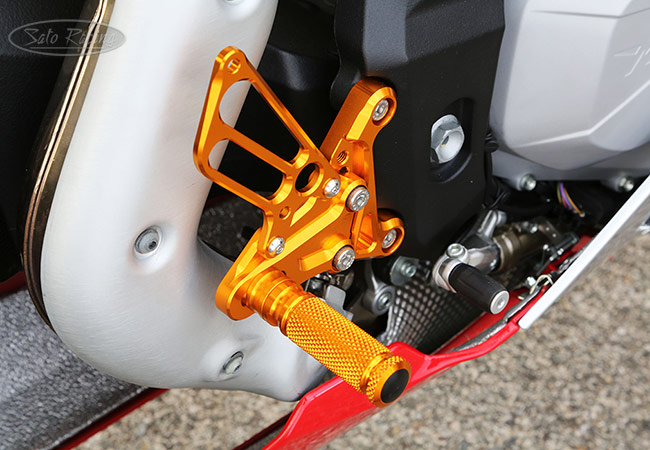

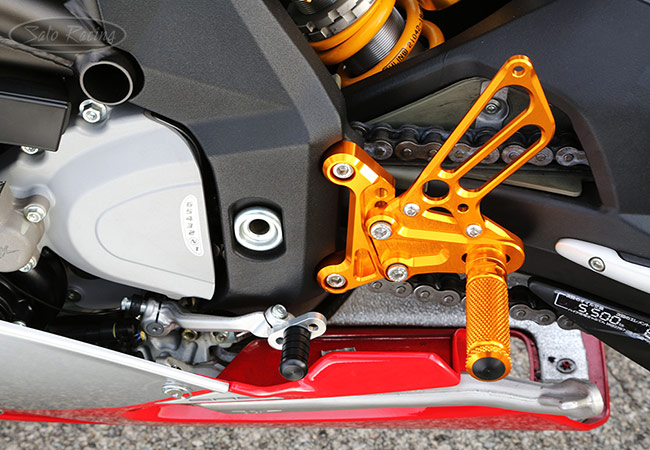

(Our photos show the Rear Sets installed at
Position 4, which is equivalent to stock position).


The Foot Pegs have a finely knurled pattern for nice grip, along with a comfortable, inuitive feel.


Shifter side includes a DELRIN Pedal Tip and an adjustable extension bar for the stock shift lever.






BLACK MV-F412RS-BK
$530
SILVER MV-F412RS-SV
$530
GOLD MV-F412RS-GD
$530

ARRIVING SOON


* Click Here for important info about Sato GOLD-anodized parts.
