BMW S1000R (2017-20)
REAR SETS

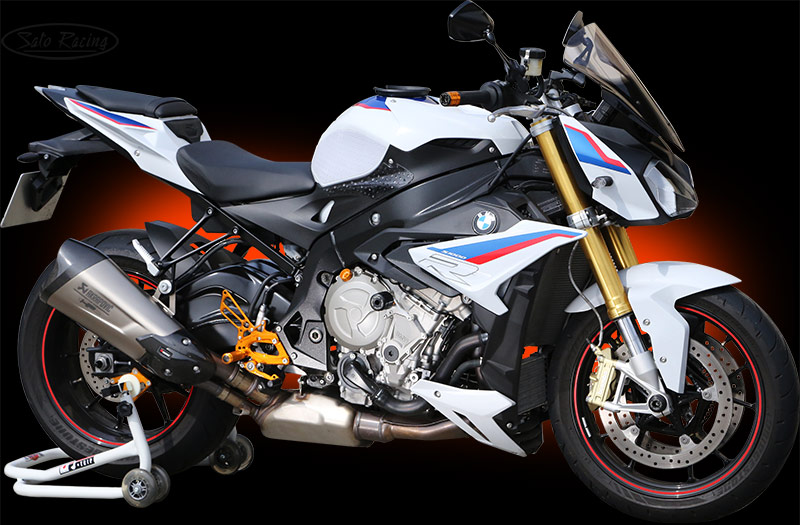

2018 BMW S1000R with SATO RACING Rear Sets, Engine Sliders and other parts

SATO RACING Rear Sets for 2017-20 BMW S1000R features a track-engineered design, with components precision CNC-machined out of high strength anodized billet aluminum. Modular adjustable design lets you select from 12 foot peg positions so you can find the ideal position for your riding style. The shift linkage can be set up for stock shift pattern or reverse (GP-style) shift pattern. Choice of Black, Silver or Gold anodized finish.

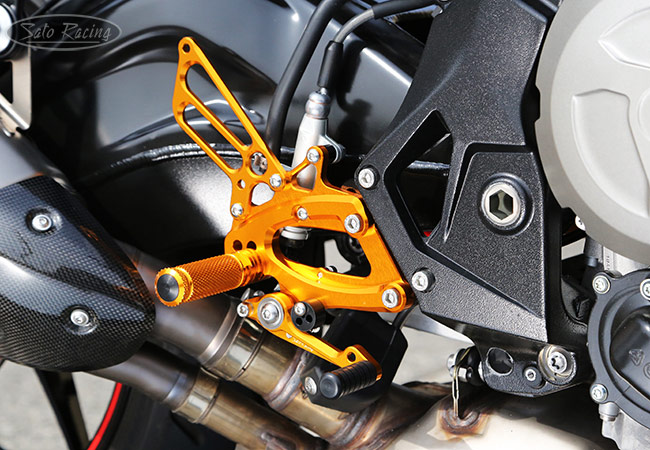

SATO RACING S1000R '17-'20 Rear Sets in GOLD - R-side
The Foot Peg position is adjustable 4 ways. and the Step Plate can be adjusted diagonally
where it mounts to the frame, providing 3 positions, for a total of 12 possible positions.

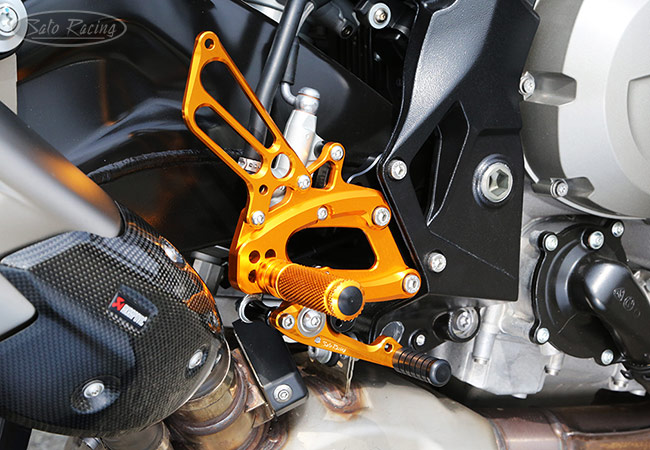

SATO RACING S1000R '17-'20 Rear Sets in GOLD - R-side
The Foot Pegs have a finely knurled pattern for excellent grip and a comfortable, intuitive feel.
Turning the black circular piece above the brake pedal will adjust the rest height of the pedal.

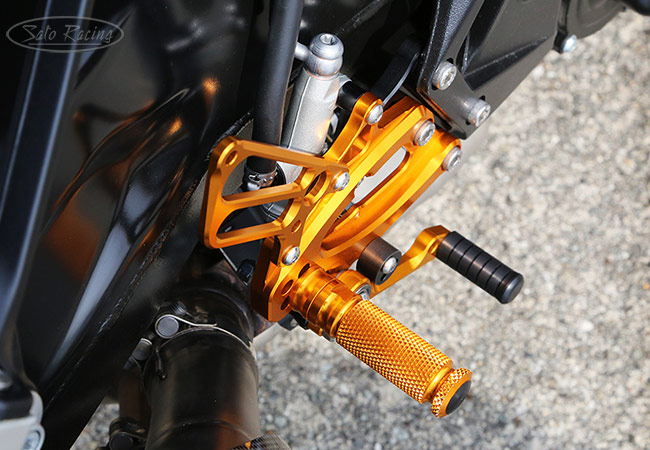

SATO RACING S1000R '17-'20 Rear Sets in GOLD -R-side
Miniature double stainless bearings are utilized in the shifter and brake pedals help ensure smooth,
precise operation with a solid feel.   The standard Pedal Tips are made of tough, abrasion-resistant
black Delrin.  We also offer some other styles of Pedal Tips as options - Click Here for details.


POSITIONS

1 2.5mm Forward 12.5mm Up
2 2.5mm Forward 25mm Up
3 9.5mm Back 12.5mm Up
4 9.5mm Back 25mm Up
5 2.5mm Back 21mm Up
6 2.5mm Back 33.5mm Up
7 14.5mm Back 21mm Up
8 14.5mm Back 33.5mm Up
9 75mm Back 29.5mm Up
10 75mm Back 42mm Up
11 19.5mm Back 29.5mm Up
12 19.5mm Back 42mm Up

note: all measurements are in relation to stock position (0 mm).

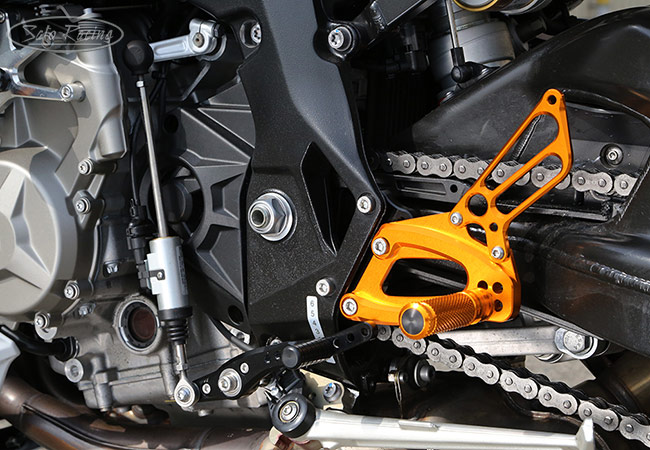

SATO RACING S1000R '17-'20 Rear Sets in GOLD - L-side
The foot peg positions provided by these Rear Sets can bring your feet up to 42mm higher
and 19.5mm further back compared to stock. The position of the pedal tip is also adjustable.

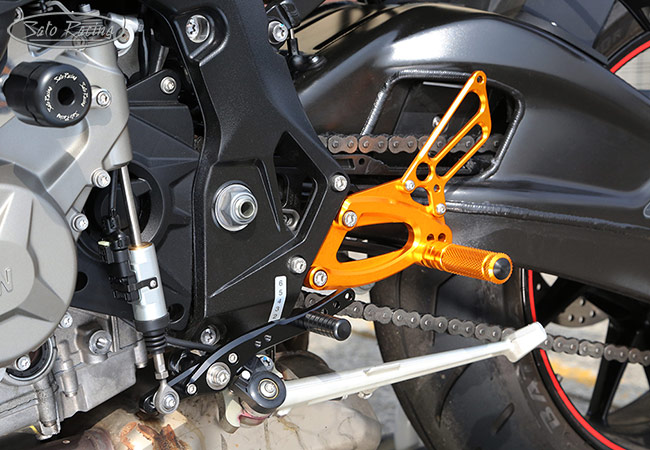

SATO RACING S1000R '17-'20 Rear Sets in GOLD - L-side
(Shift Pedal comes in Black only)

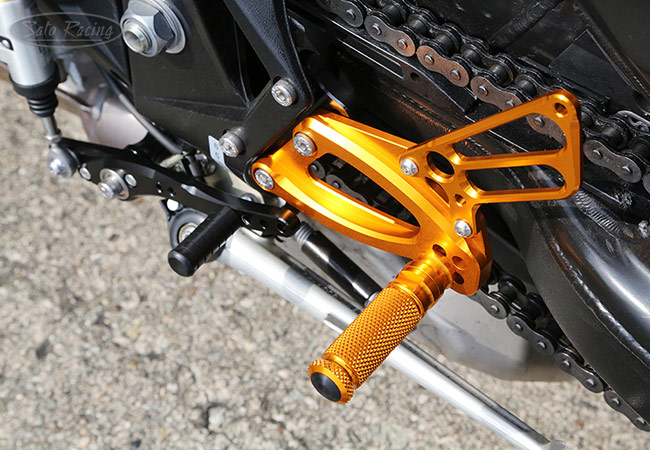

SATO RACING S1000R '17-'20 Rear Sets in GOLD - L-side
Stock shift pattern shown. You can set it up for reverse pattern by relocating the shift rod to the opposite
end of the shifter. Multiple adjustment holes allow you to fine-tune the shift stroke to your preference.



BLACK BMW-S100017RS-BK
$585
SILVER BMW-S100017RS-SV
$585
GOLD BMW-S100017RS-GD
$585


NOTE: Fits S1000R only. Not compatible with S1000RR.


Click Here for important info about Sato color-anodized parts.




_____________________________________________________________

OPTIONS

_____________________________________________________________




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

black BLACK RCPEG-BK
$48
silver SILVER RCPEG-SV
$48
gold GOLD RCPEG-GD
$48

* Click Here for important info about Sato color-anodized parts.






PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.





Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)




REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List
