BMW R nineT Racer ('17-'21)
REAR SETS
| SATO RACING Rear Sets for 2017-21 BMW R nineT Racer* features a track-engineered design, with components precision machined from lightweight and high strength anodized billet aluminum, with stainless steel hardware. You can choose from 4 adjustable foot peg positions in a useful range for performance riding, bringing your feet higher up compared to stock. Choice of Black or Silver anodized finish. *Although designed for the 'Racer' variant of the R nineT, this Rear Sets model will also fit the 2017+ R nineT Standard / Pure, providing a more rearward range of footpeg positions compared to our standard RnineT Rear Sets |
Choose from Silver (natural metal) or deep Black anodized finish.
4 adjustable foot peg positions can bring your feet as much as 15mm forward and 33mm higher
up compared to the stock Racer controls, so you can find the ideal position for your riding style.

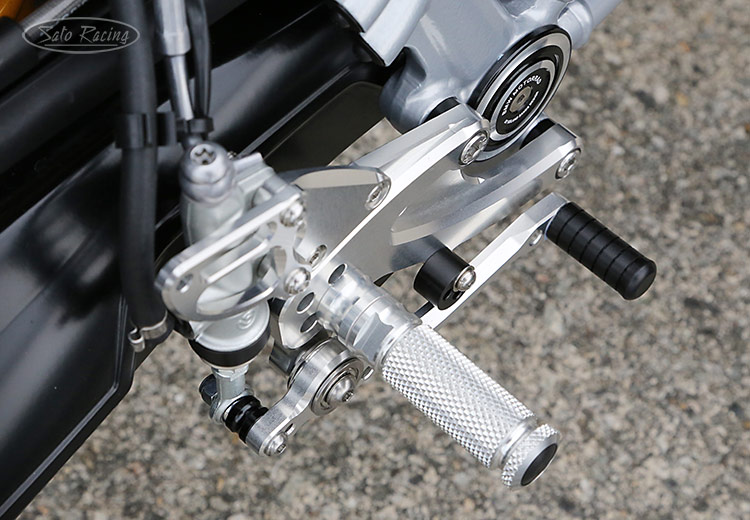

The shift and brake pedals use double miniature stainless bearings for smooth, precise lever actuation

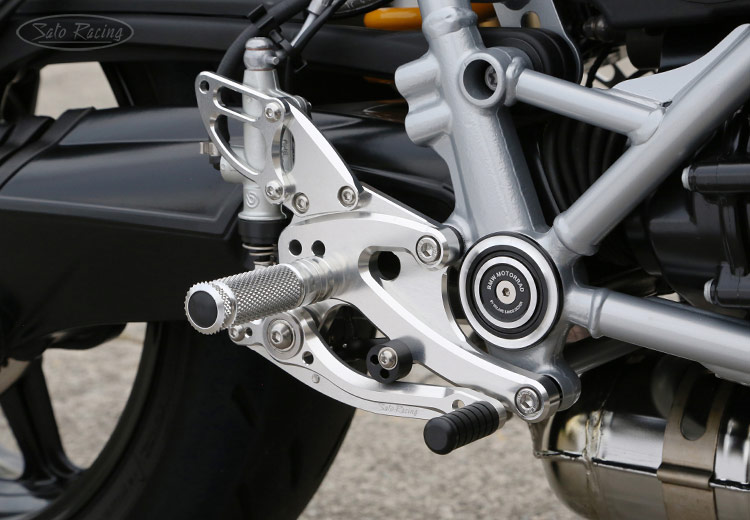

with a solid feel. NOTE: Original design version shown above. The latest version of this kit has a different

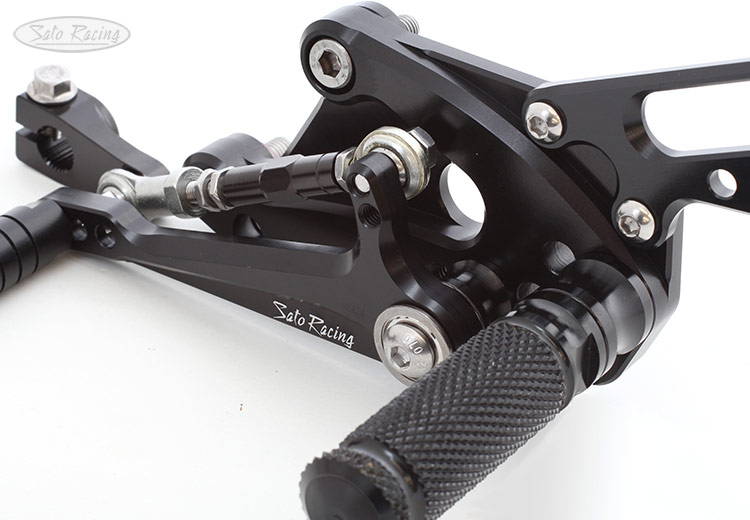

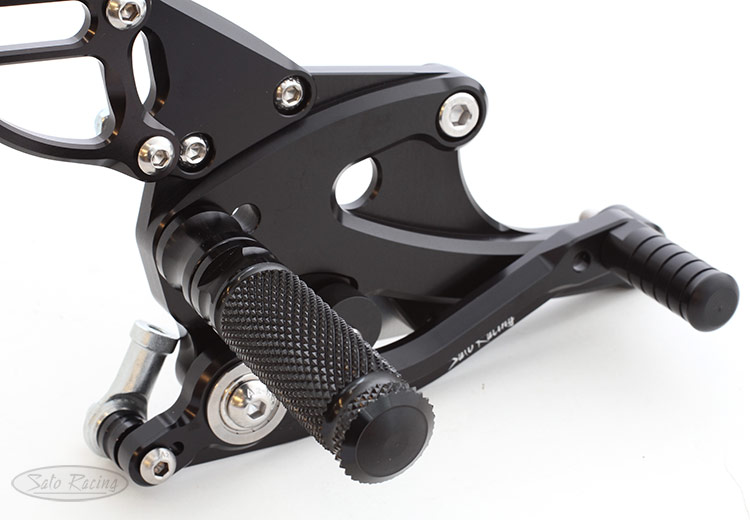

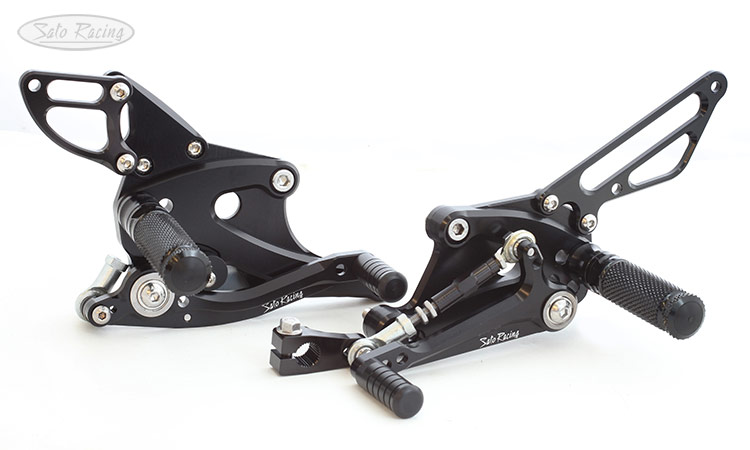

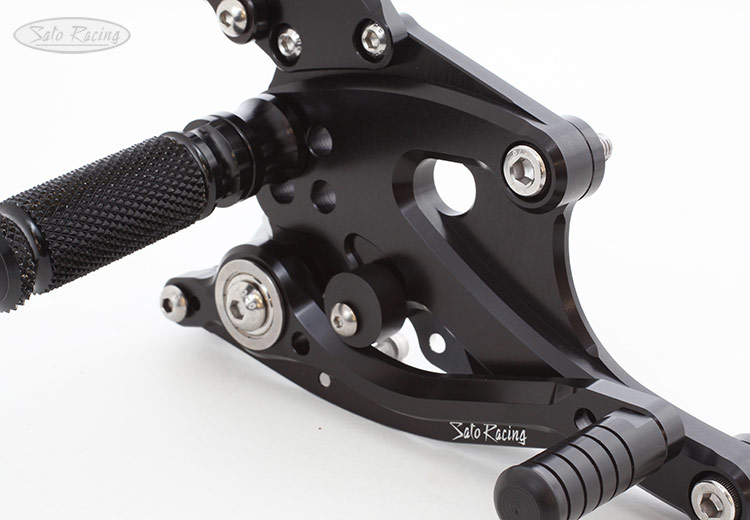

Step Plate design with revised brake switch mount. (Photos of the Black set below depict the new model.)
A mechanical brake light switch is included with these Rear Sets.
POSITIONS (R nineT Racer)
| 1 | 0mm Back (stock position) |
18mm Up (0.7" Up) |
| 2 | 15mm Forward (0.6" Forward) |
18mm Up (0.7" Up) |
| 3 | 0mm Back (stock position) |
33mm Up (1.3" Up) |
| 4 | 15mm Forward (0.6" Forward) |
33mm Up (1.3" Up) |
Note: Measurements above are in relation to the stock
footpeg position on a 2017 RnineT Racer (0 mm).
POSITIONS
(If installed on a R nineT Standard / Pure)
| 1 | 70mm Back (2.8" Back) |
12mm Up (0.5" Up) |
| 2 | 55mm Back (2.2" Back) |
12mm Up (0.5" Up) |
| 3 | 70mm Back (2.8" Back) |
27mm Up (1.1" Up) |
| 4 | 55mm Back (2.2" Back) |
27mm Up (1.1" Up) |
Note: Measurements are in relation to the stock
footpeg position on a RnineT Pure (0 mm).
The foot pegs have a knurled pattern for excellent grip, along with a comfortable,
intuitive feel. The positions of both the foot pegs and the pedal tips are adjustable.
These Rear Sets provide a stock shift pattern.
(Reverse/GP shift pattern is not an option for this model).
The standard Pedal Tips are made of tough black Delrin. Additional styles of Pedal Tips,
such as aluminum Pedal Tips with fluted rubber sleeves, are an option: More Details
Choice of Black or Silver anodized finish.
Design v.2
| BLACK | BMW-R9T17RARS-BK $600 |
 |
| SILVER | BMW-R9T17RARS-SV $600 |
|
Original design version
| SILVER | BMW-R9TRARS-SV $575 |
|
(Brake light switch is included in kit)

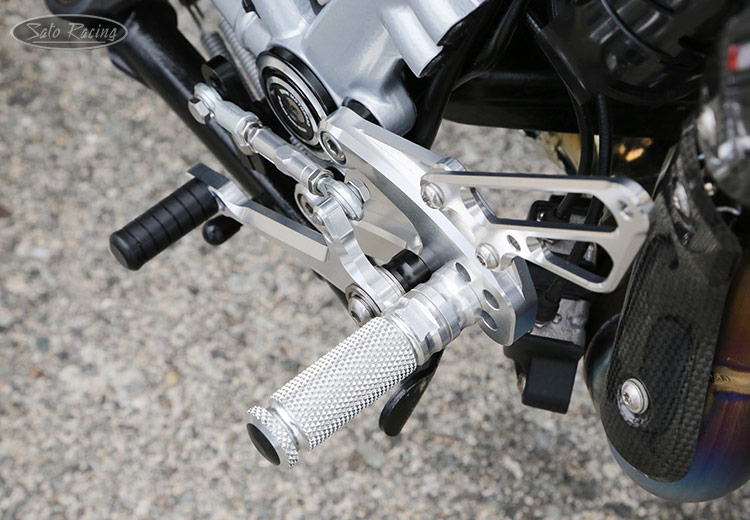

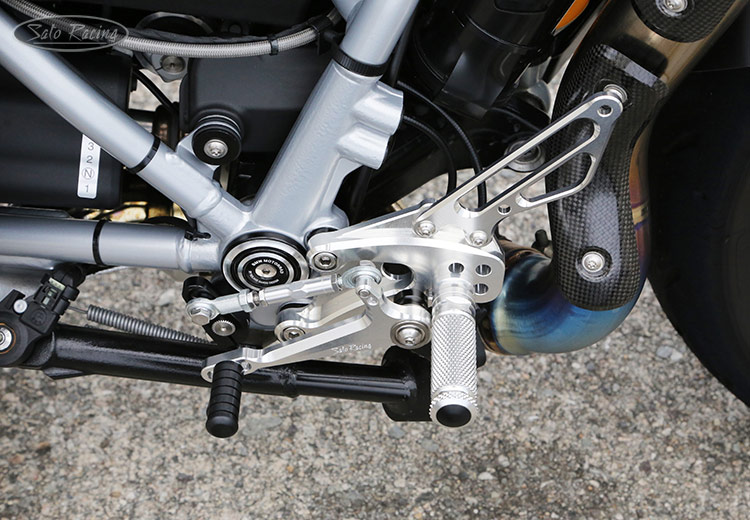

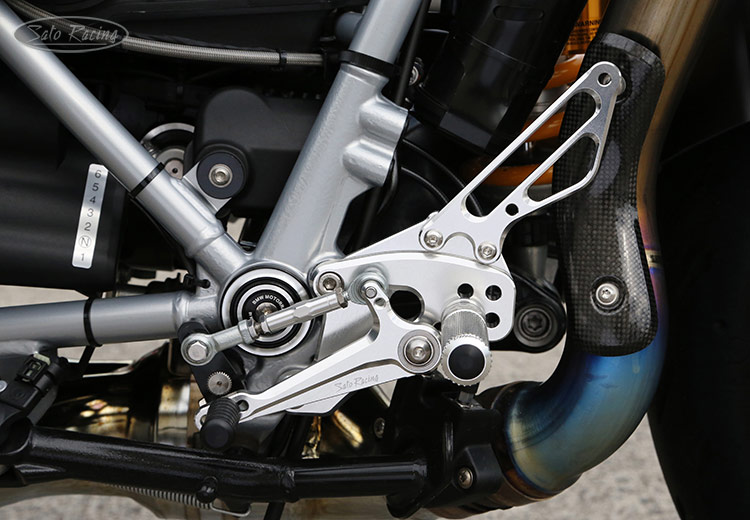

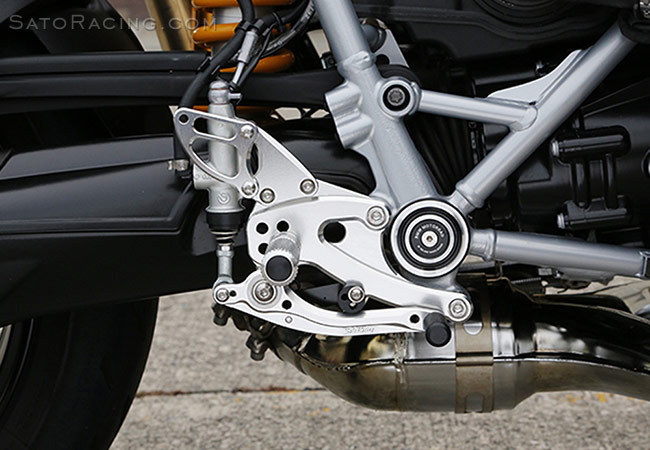

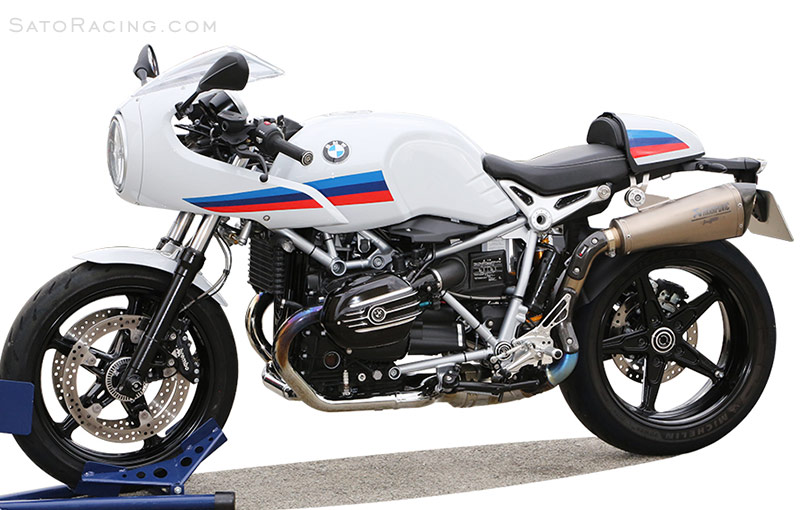

2017 BMW R nineT Racer with SATO RACING Rear Sets, Axle Sliders and other parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. NOTE: Fits SATO Foot Pegs made in the last 5 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find indvidual part names and numbers, see the illustrated parts list included with
your Sato Racing Rear Sets, or view the PDF: Parts List (version 1 design spec)
Some replacement parts for these Rear Sets
can be purchased in our Online Store:
 |
FOOT PEG [BLACK] | PEG-BK $42 |
|
 |
FOOT PEG [SILVER] | PEG-SV $42 |
|
 |
PEG COLLAR 15 [BLACK] (#17) |
PEGCLR-15B $15 |
|
 |
PEG COLLAR 15 [SILVER] (#17) |
PEGCLR-15S $15 |
|
 |
PEDAL TIP (DELRIN) (#12) |
ST-001D18 $15 |
|
 |
SHIFT ROD 40 (#8) |
SRD-40 $35 |
|
 |
ROD END COLLAR 10 (#13) |
RDED-CLR10 $1.50 |
|
 |
BASE PLATE COLLAR 5 (#14) |
BPCLR-5 $8.00 |
|
 |
SOCKET HEAD M8-25mm (#20) |
SBT-M825 $1.50 |
|
 |
BUTTON HEAD M5-35mm (#21) |
BBT-M535 $2.00 |
|
 |
BUTTON HEAD M6-10mm (#22) |
BBT-M610 $1.50 |
|
 |
BUTTON HEAD M6-20mm (#23, for Pedal Tip) |
BBT-M620 $1.50 |
|
 |
BUTTON HEAD M6-25mm (#24) |
BBT-M625 $1.50 |
|
 |
BUTTON HEAD M6-35mm (#25) |
BBT-M635 $1.75 |
|
 |
BUTTON HEAD M8-25mm (#26) |
BBT-M825 $1.50 |
|
 |
BUTTON HEAD M8-40mm (#27) |
BBT-M840 $1.50 |
|
 |
HEX HEAD M6-18mm (#28) |
HBT-M618 $2.00 |
|
 |
FLANGE HEAD M6-20mm (L-side #29) |
FGBT-M620 $2.00 |
|
 |
STUD BOLT M8-50mm (#31, Foot Peg bolt) |
STBT-50 $4.50 |
|
 |
NUT M5 (#32) | NUT-5 $1.50 |
|
 |
JAM NUT M6 (#33) |
JNT-6 $1.75 |
|
|
REVERSE JAM NUT M6 (#34) |
JNT-6L $2.50 |
|
 |
LOCK NUT M6 (#35) |
LNT-6 $1.50 |
|
 |
FLANGE NUT M8 (#36) |
FNT-8 $1.50 |
|
 |
FEMALE ROD END M6 (#38) |
RDED-F6 $12.50 |
|
 |
REVERSE MALE ROD END M6 (#39) |
RDED-M6L $12.50 |
|
For replacement parts not listed on our website, contact Sato Racing for an estimate.
