BMW R nineT / Pure ('17-'23)
REAR SETS

SATO RACING Rear Sets for 2017+ BMW R nineT Standard / Pure features a track-engineered and race-proven design, with all parts precision machined from high strength anodized billet aluminum, with stainless steel hardware. You can choose from 4 adjustable foot peg positions in a useful range for performance riding, bringing your feet up and back compared to stock. Choice of Black or Silver (natural metal) anodized finish.

POSITIONS

1 45mm Back
(1.8" Back)
12mm Up
(0.5" Up)
2 45mm Back
(1.8" Back)
27mm Up
(1.1" Up)
3 60mm Back
(2.4" Back)
12mm Up
(0.5" Up)
4 60mm Back
(2.4" Back)
27mm Up
(1.1" Up)

note: all measurements are in relation to stock position (0 mm).

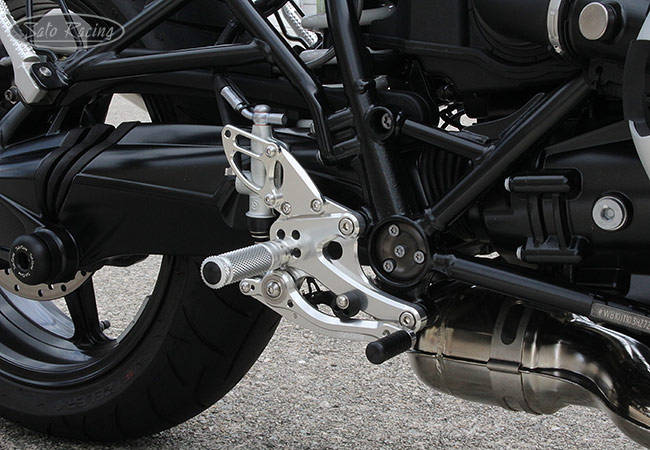

2017 BMW R nineT Pure with SATO RACING Rear Sets in Silver
The shift and brake pedals utilize double stainless bearings for smooth, precise lever action with
a solid feel.   You can adjust the rest height of the brake pedal by rotating the pedal stopper.

2017 BMW R nineT Pure with SATO RACING Rear Sets in Silver
A mechanical rear brake light switch is included with these Rear Sets.

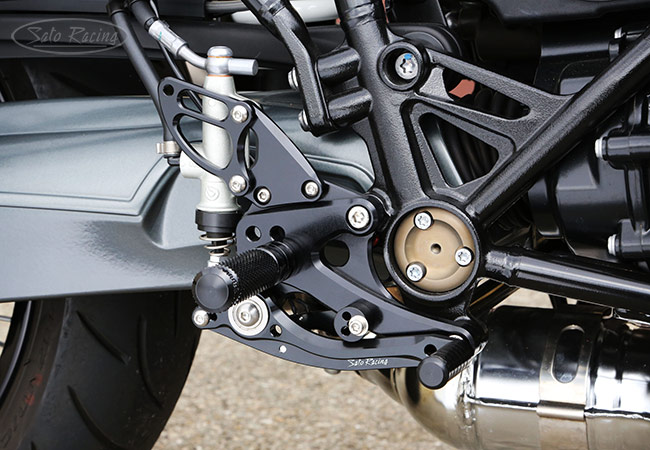

BMW R nineT with SATO RACING Rear Sets in Black
Choice of Black or Silver anodized finish.
(2014 R nineT is shown above. Our 2017+ R nineT / Pure Rear Sets are similar on the brake side)

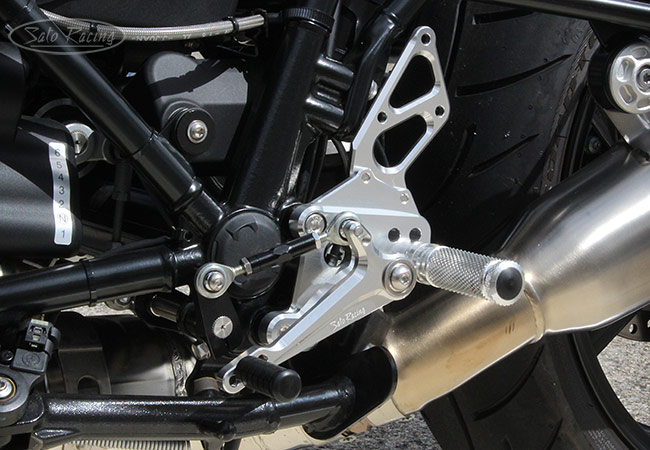

BMW R nineT Pure with SATO RACING Rear Sets
These Rear Sets provide a stock shift pattern.
(Reverse/GP shift pattern is not an option for this model)

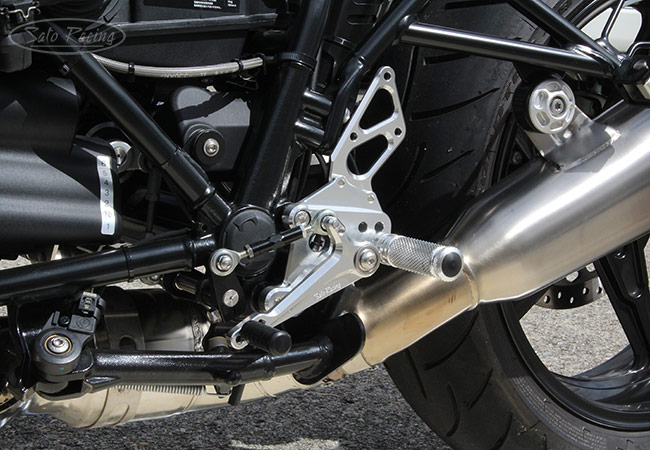

BMW R nineT Pure with SATO RACING Rear Sets
The foot pegs have a knurled pattern for excellent grip, along with a comfortable,
intuitive feel. The positions of both the foot pegs and the pedal tips are adjustable.

The standard Pedal Tips are made of high density, abrasion-resistant Delrin. Additional styles
of Pedal Tips, such as aluminum Pedal Tips with fluted rubber sleeves, are an option:  Details

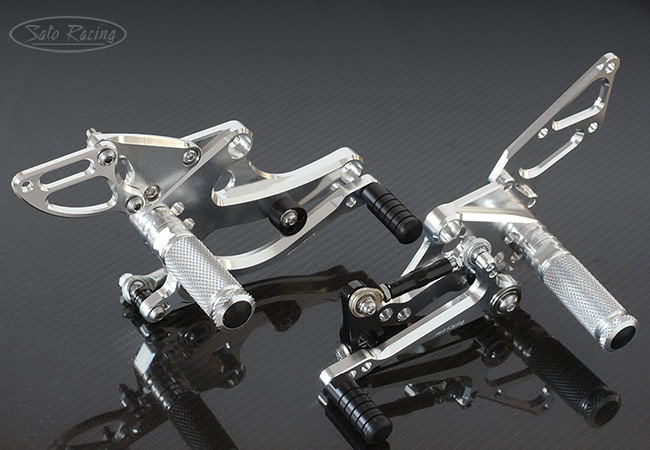

SATO RACING Rear Sets for BMW R nineT / Pure in Silver




BLACK BMW-R9TPRS-BK
$590
SILVER BMW-R9TPRS-SV
$590

(Brake light switch is included in kit)





OPTIONS



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
SILVER RCPEG-SV
$48





PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_______________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find indvidual part names and numbers, see the illustrated parts list included with
your Sato Racing Rear Sets, or view the PDF:
Parts List (version 1 design spec)

Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG [BLACK] PEG-BK
$42
FOOT PEG [SILVER] PEG-SV
$42
PEG COLLAR 15 [BLACK]
(#32)
PEGCLR-15B
$15
PEG COLLAR 15 [SILVER]
(#32)
PEGCLR-15S
$15
PEDAL TIP (DELRIN)
(#12)
ST-001D18
$15
SHIFT ROD 40 [BLACK]
(#7)
SRD-40-B
$35
SBT-M825 SOCKET HEAD M8-25mm
(#15)
SBT-M825
$1.50
BBT-M535 BUTTON HEAD M5-35mm
(#16)
BBT-M535
$2.00
BBT-M610 BUTTON HEAD M6-10mm
(#17)
BBT-M610
$1.50
BBT-M625 BUTTON HEAD M6-18mm
(#18)
BBT-M618
$2.00
BBT-M620 BUTTON HEAD M6-20mm
(#19, for Pedal Tip)
BBT-M620
$1.50
BBT-M625 BUTTON HEAD M6-25mm
(#20)
BBT-M625
$1.50
BBT-M635 BUTTON HEAD M6-35mm
(#21)
BBT-M635
$1.75
BBT-M825 BUTTON HEAD M8-25mm
(#22)
BBT-M825
$1.50
BBT-M840 BUTTON HEAD M8-40mm
(#23)
BBT-M840
$1.50
STBT-50 STUD BOLT M8-50mm
(#26, Foot Peg bolt)
STBT-50
$4.50
RDED-CLR10 ROD END COLLAR 10
(#28)
RDED-CLR10
$8.00
BASE PLATE COLLAR 5
(#29)
BPCLR-5
$8.00
BASE PLATE COLLAR 8
(#30)
BPCLR-8
$8.00
NUT M5   (#33) NUT-5
$1.50
JAM NUT M6
(#34)
JNT-6
$1.75
REVERSE JAM NUT M6
(#35)
JNT-6L
$2.50
PLAIN NUT M6
(#36)
NUT-6
$1.00
LOCK NUT M6
(#37)
LNT-6
$1.50
FLANGE NUT M8
(#38)
FNT-8
$1.50
MALE ROD END M6
(#40)
RDED-M6
$12.50
REVERSE
MALE ROD END M6

(#41)
RDED-M6L
$12.50
FEMALE ROD END M6
(#42)
RDED-F6
$15.00
RS-RSP2 RETURN SPRING 20
(#46)
RS-RSP2
$8.00

For replacement parts not listed on our website, contact Sato Racing for an estimate.
