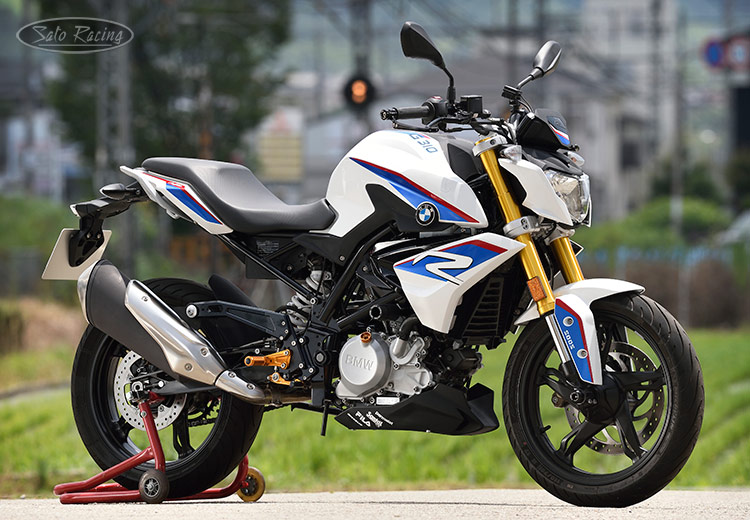

BMW G310R ('16-'24)
REAR SETS
| SATO RACING Rear Sets for 2016-24 BMW G310R features a thoroughly track-engineered and tested design, with components precision machined out of high strength anodized billet aluminum, with stainless steel hardware. Modular adjustable design lets you choose from a wide range of foot peg positions that bring your feet higher up and significantly further back compared to stock, for a more aggressive riding position ideally suited for the fast straights and steep lean angles encountered on the track. Choice of all-Black anodized finish, or Silver or Gold with contrasting Black anodized base plates. There are now 3 different design variations available: - The Standard Rear Sets (part# BMW-G310RS) includes an exhaust hanger bracket for the stock exhaust but deletes the passenger pegs. - The new 'Tandem' version (part# BMW-G310RST) includes integrated Tandem Brackets for attaching the stock passenger pegs. (Coming soon) - The 'Type 2' version (part# BMW-G310RS2) for solo riders is designed for use with a high-mount exhaust and omits the exhaust hanger and passenger pegs. |
POSITIONS
| 1 | 94.5mm Back | 45mm Up |
| 2 | 104.5mm Back | 45mm Up |
| 3 | 107mm Back | 45mm Up |
| 4 | 117mm Back | 45mm Up |
| 5 | 94.5mm Back | 57.5mm Up |
| 6 | 104.5mm Back | 57.5mm Up |
| 7 | 107mm Back | 57.5mm Up |
| 8 | 117mm Back | 57.5mm Up |
note: all measurements are in relation to stock position (0 mm).
|

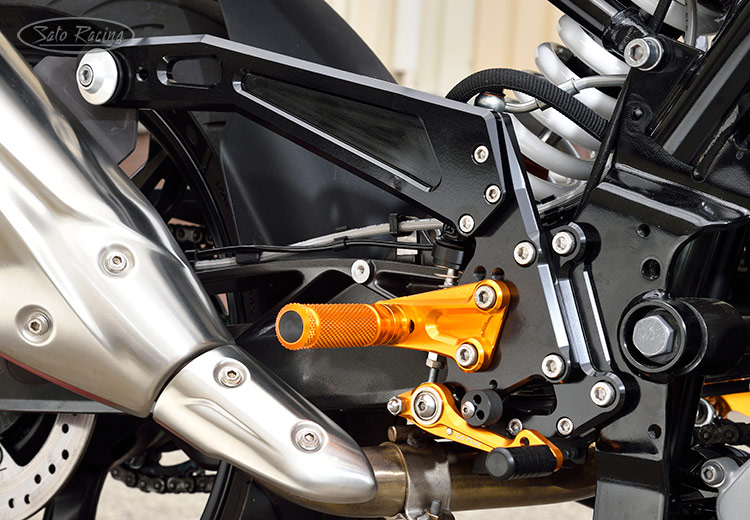

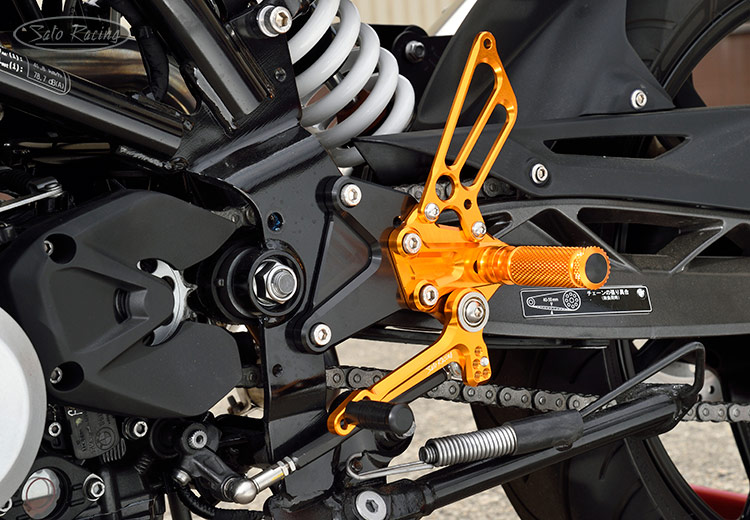

The base plates and exhaust hanger have a black anodized finish that blends seamlessly with the stock parts, with your choice of Black, Silver or Gold controls.

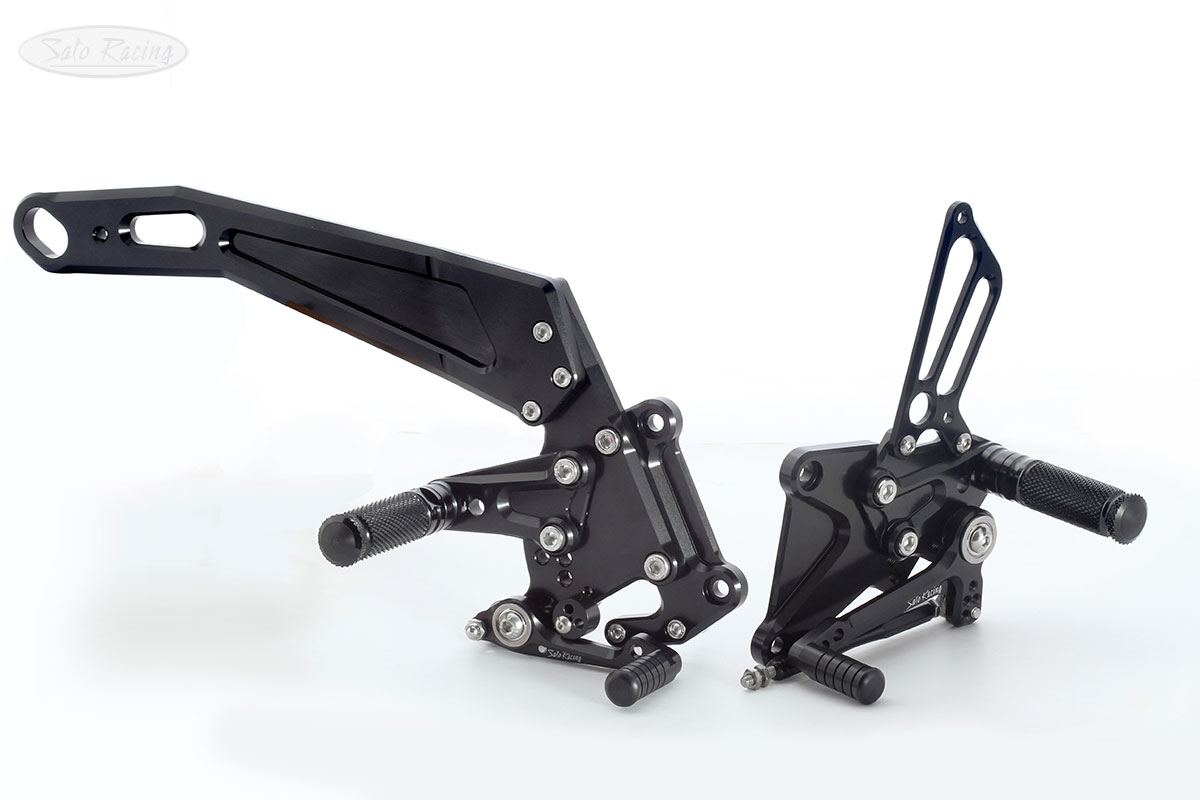

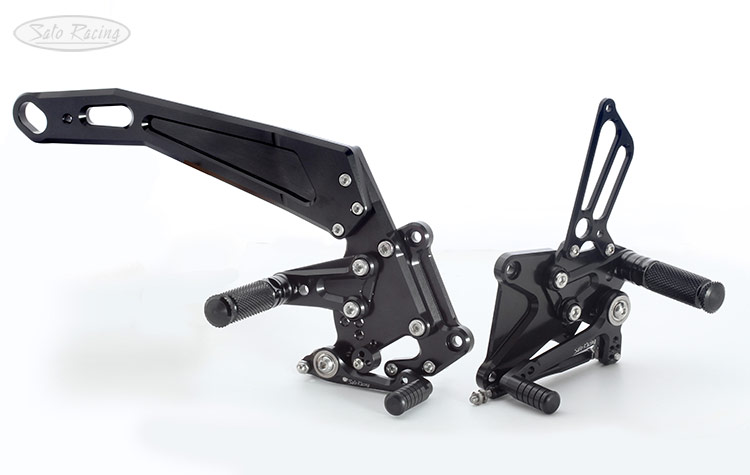

(Part# BMW-G310RS shown above. This version deletes the stock passenger pegs.) |
| The shift and brake levers are on a separate axis from the foot pegs for optimal leverage, and utilize dual miniature stainless bearings for smooth, precise lever actuation with a solid feel. Rear Sets kit includes hardware to attach the stock brake light switch. |
|
The Foot Pegs are a fixed (non-folding) design and have a knurled pattern for excellent grip, along with a comfortable, intuitive feel. The step plate positiion can be adjusted diagonally in relation to the base plate, and the foot peg position can be adjusted horizontally, for a total of 8 positions. The Pedal Tips (toe pegs) are also adjustable. The standard Pedal Tips are made of tough, abrasion-resistant black Delrin. Additional styles of Pedal Tips, such as aluminum Pedal Tips with fluted rubber sleeves, are an option: Details. |

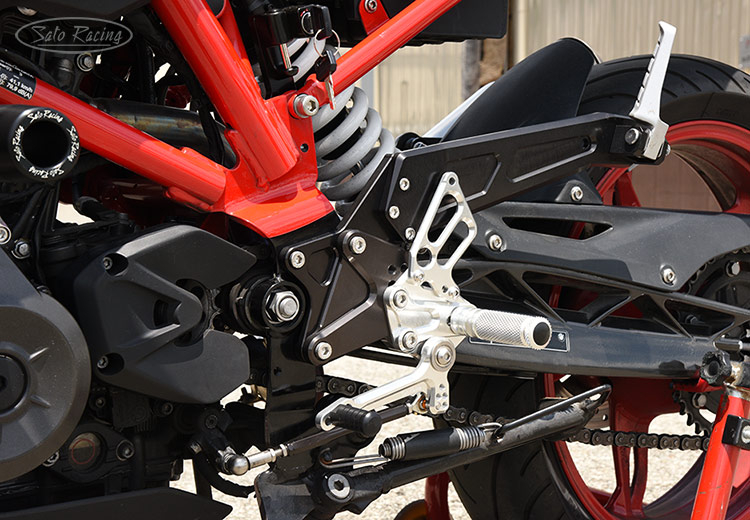

| Rear Sets + Tandem Brackets (part# BMW-G310RST) includes holders to attach the stock passenger pegs, the ideal setup if you do a lot of 2-up riding. |
|

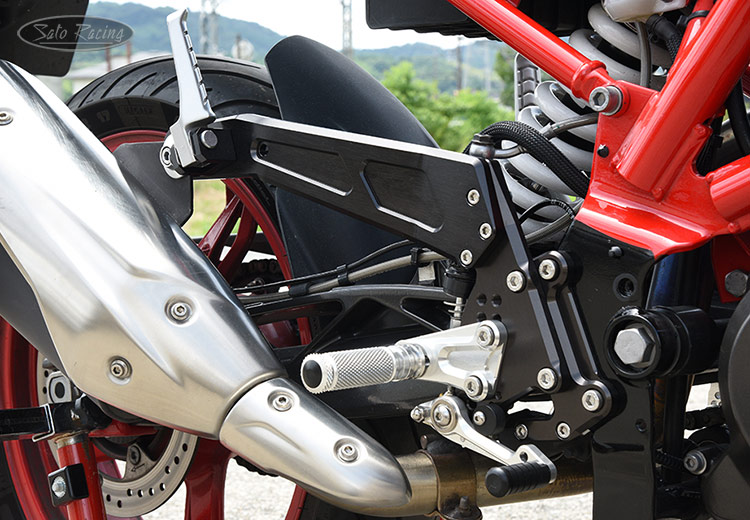

Rear Sets + Tandem Brackets (part# BMW-G310RST) All versions of our G310R Rear Sets provide a stock shifting pattern. (Reverse/ race shift pattern is not an option for these models) |

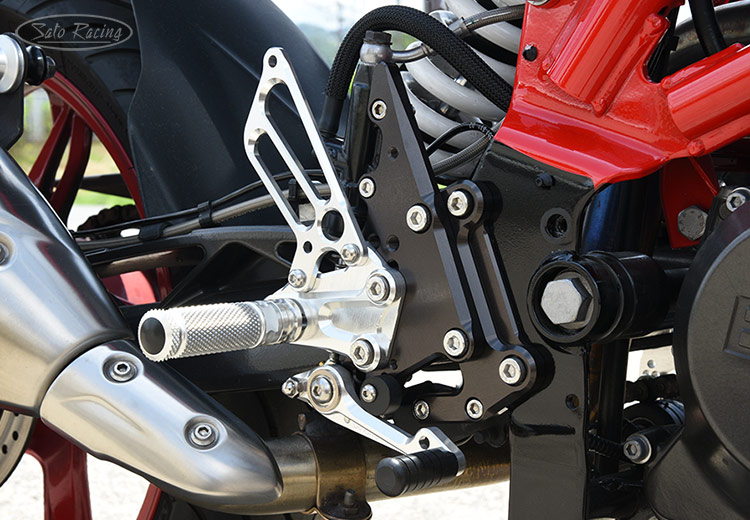

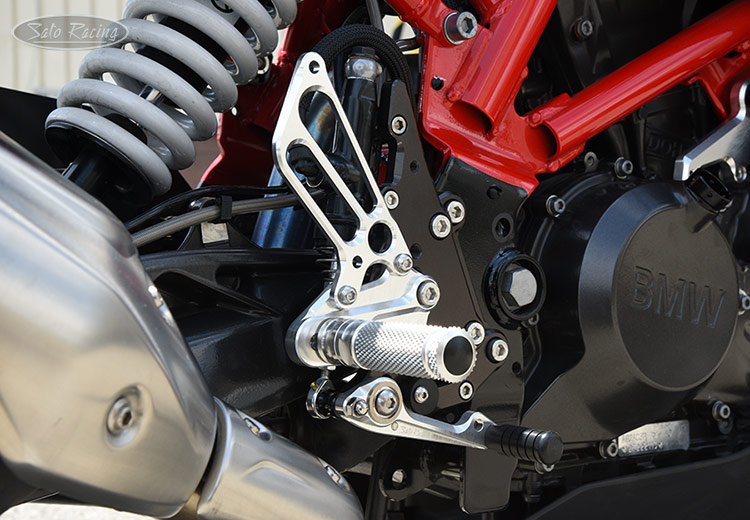

| 'Type 2' Rear Sets (part# BMW-G310RS2) omits the exhaust hanger and the passenger pegs, which may be ideal if you ride solo and have a high-mounted exhaust or other aftermarket exhaust that would not be compatible with our hanger. This model adds a right heel guard in place of the hanger. |
'Type 2' Rear Sets (part# BMW-G310RS2)
Rear Sets part# BMW-G310RS-BK
Standard version*
(No Tandem Brackets. Includes Exhaust Hanger.)
| BLACK | BMW-G310RS-BK $635 |
 |
| SILVER w/ Black Base Plates/ Ex Hanger |
BMW-G310RS-SV $635 |
|
| GOLD w/ Black Base Plates/ Ex Hanger |
BMW-G310RS-GD $635 |
|
Rear Sets + Tandem Brackets for passenger pegs
(R-side Tandem Bracket has integrated Exhaust Hanger)
| BLACK | BMW-G310RST-BK $755 |
|
| SILVER w/ Black Base Plates/ Tandem Brackets |
BMW-G310RS-SV $755 |
|
| GOLD w/ Black Base Plates/ Tandem Brackets |
BMW-G310RS-GD $755 |
|
ARRIVING SOON
Type 2 Design*
(For use with high-mounted exhaust -
No Exhaust Hanger or Tandem Brackets)
| BLACK | BMW-G310RS2-BK $575 |
|
| SILVER w/ Black Base Plates |
BMW-G310RS2-SV $575 |
|
| GOLD w/ Black Base Plates |
BMW-G310RS2-GD $575 |
|
ARRIVING SOON
* NOTE: These models are intended for solo rider use. (The passenger pegs are deleted.)
Click Here for important info about Sato color-anodized parts.
OPTIONS
Cutout-style FOOT PEG
| This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included. * NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes. |
Race Concept Cutout-style FOOT PEG (Sold individually)
 |
BLACK | RCPEG-BK $48 |
|
 |
SILVER | RCPEG-SV $48 |
|
 |
GOLD | RCPEG-GD $48 |
|
Click Here for important info about Sato color-anodized parts.
PEDAL TIPS
| SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips. Click Here for details. |
FOOT PEG TOOL
| SATO RACING PEG TOOL
is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish. |
| FOOT PEG TOOL [GOLD] |
TOOL-PEG $45 |
|
Have questions or prefer to order by phone? You can call us to place an order -
REPLACEMENT PARTS
SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *
To find out individual part names & numbers, see the illustrated
parts list included with your Sato Racing Rear Sets.
