YAMAHA YZF-R1  ('09-'14)
REAR SETS

2009 Yamaha YZF-R1 with SATO RACING Rear Sets, Frame Sliders and other parts

SATO RACING Rear Sets for 2009-14 Yamaha YZF-R1 feature parts precision CNC-machined from lightweight and high strength billet aluminum and anodized in your choice of all Black, or Silver or Gold finish with Black anodized shifter assembly. Choose from 6 adjustable foot peg positions so you can find the ideal position for your riding style. These Rear Sets can be easily set up for either stock shift pattern or reverse shift pattern.

SATO RACING Yamaha YZF-R1 ('09-'14) Rear Sets [R]-side in Black

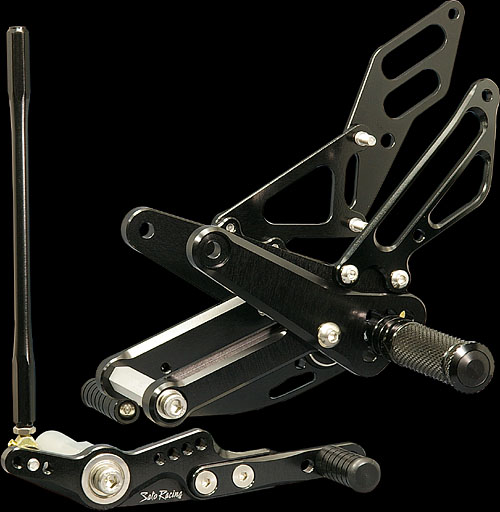

SATO RACING Yamaha YZF-R1 ('09-'14) Rear Sets [L]-side in Black


POSITIONS

1 10mm Forward 10mm Down
2 10mm Forward 0 mm
3 10mm Forward 10mm Up
4 0 mm 0 mm
5 0 mm 10mm Up
6 10mm Back 10mm Up

note: all measurements are in relation to stock position - (0 mm).

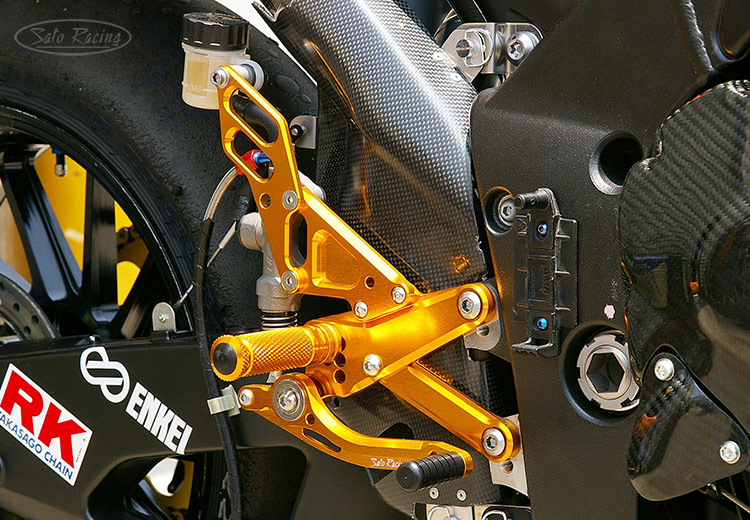

SATO RACING Yamaha YZF-R1 ('09-'14) Rear Sets [R]-side
Foot Pegs have a finely knurled pattern for excellent grip and a comfortable, intuitive feel.
Double stainless bearings in the shift and brake pedals provide smooth, precise lever action.
( Rear Sets shown installed with optional
Brake Return Spring )

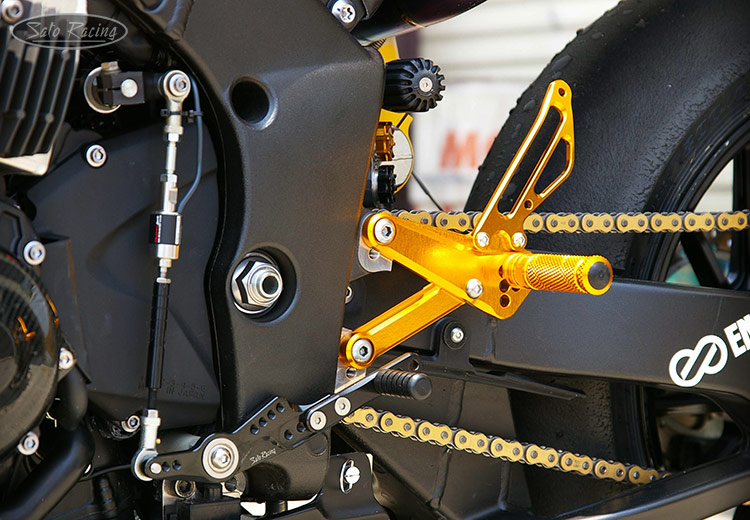

SATO RACING Yamaha YZF-R1 ('09-'14) Rear Sets [L]-side
You can switch from stock shift to reverse shift pattern by moving
the shift rod to the holes on the opposite end of the shift lever.

(NOTE: Although the R1 pictured has an aftermarket quickshifter
installed, a full length shift rod is included with this rear sets kit.)



BLACK Y-R109RS-BK
$570
SILVER
w/ Black shift pedal
Y-R109RS-SV
$570
GOLD
w/ Black shift pedal
Y-R109RS-GD
$570

(Brake light switch is included in kit)

Click Here for important info about Sato color-anodized parts.




_______________________________________________________________________

OPTIONS

_______________________________________________________________________


BRAKE RETURN SPRING

return spring

SATO RACING Brake Return Spring quickens the pedal return and may make the pedal feel more responsive compared to no spring. (For use with specified SATO RACING Rear Sets).


RS-RSP
$8.00




_____________________________________________________________________




Cutout-style FOOT PEG

Race Concept Cutout style Foot Peg for SATO RACING Rear Sets

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK BLACK RCPEG-BK
$48
SILVER SILVER RCPEG-SV
$48
GOLD GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




___________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



_______________________________________________________________________

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG [BLACK] PEG-BK
$42
FOOT PEG [SILVER] PEG-SV
$42
FOOT PEG [GOLD] PEG-GD
$42
HEX HEAD M8-40mm
(Foot Peg bolt)
HBT-M840
$2.00
ST-001D18 PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for R-side Pedal Tip)
BBT-M620
$1.50
BBT-M625 BUTTON HEAD M6-25mm
(for L-side Pedal Tip)
BBT-M625
$1.50
SHIFT PEDAL SPD8 [BLACK]
(L-side #7)
SPD-8B
$30.00
RDED-CLR3 ROD END COLLAR 3
(L-side #10)
RDED-CLR3
$6.00
PEG COLLAR 12
(BK/ SV/ GD)
(L-side #11 / R-side #12)
PEGCLR-12
$15
SRD-190 SHIFT ROD 190
(BK/ SV/ GD)
(L-side #12)
SRD-190
$39
SBT-M620 SOCKET HEAD M6-20mm
(L-side #14)
SBT-M620
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(L-side #15 / R-side #14)
BBT-M610
$1.50
BBT-M820 BUTTON HEAD M8-20mm
(L-side #17)
BBT-M820
$1.50
BBT-M830 BUTTON HEAD M8-30mm
(#18)
BBT-M830
$2.00
FBT-M610 FLAT HEAD M6-10mm
(L-side #19)
FBT-M610
$1.50
SWS-8 SPLIT WASHER M8
(#20)
SWS-8
$1.20
JNT-6L REVERSE JAM NUT M6
(L-side #21)
JNT-6L
$2.50
M6 MALE
REVERSE ROD END

(L-side #22)
RDED-M6L
$12.50
HEAT SHIELD COLLAR 5
(R-side #9)
HGCLR-5
$8.00
ROD END COLLAR 15
(R-side #10)
RDED-CLR15
$8.00
BUTTON HEAD M6-40mm
(R-side #16)
BBT-M640
$1.75
BUTTON HEAD M8-15mm
(R-side #17)
BBT-M815
$1.50
FLAT HEAD M6-25mm
(R-side #19)
FBT-M610
$1.50
LOCK NUT M6
(R-side #21)
LNT-6
$1.50
FEMALE ROD END 6-M8
(R-side #22)
RDED-F6-8
$25
RETURN SPRING 40
(Option)
  (R-side #23)
RS-RSP
$8.00
BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
