DUCATI 1098/ S
'Type 1' Rear Sets

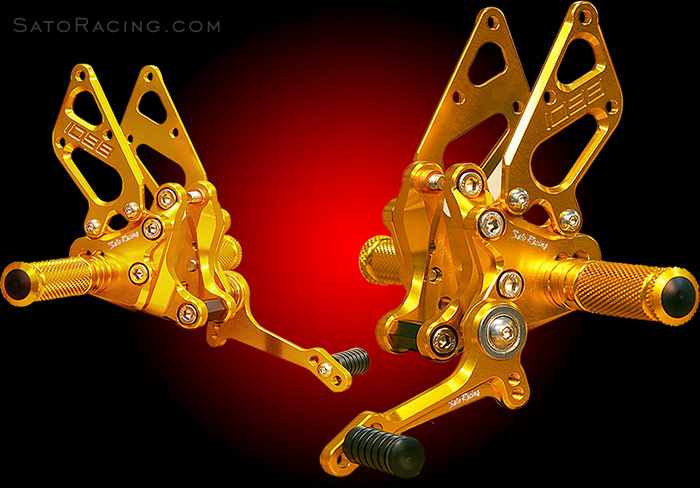

SATO RACING Type 1 Rear Sets for Ducati 1098/S are made of high grade billet aluminum anodized in your choice of Black, Silver, or Gold finish. They can be installed with the stock brake pedal, or you can get a SATO RACING Adjustable Brake Pedal. (Our 1098 Type 2 Rear Sets include an integrated brake pedal.) Choose from 10 positions of adjustment, ranging from stock equivalent to higher and more forward positions. You can also easily switch these Rear Sets to a reverse shifting pattern by rotating the stock change arm.

Additional options include a Shift Arm that matches our 1098 Rear Sets.


POSITIONS

1 0mm 0mm
2 5mm Forward 15mm Up
3 10mm Forward 5mm Up
4 10mm Forward 15mm Up
5 15mm Forward 20mm Up
6 15mm Forward 30mm Up
7 20mm Forward 5mm Up
8 20mm Forward 15mm Up
9 25mm Forward 20mm Up
10 25mm Forward 30mm Up

note: all measurements are in relation to stock position (0 mm).

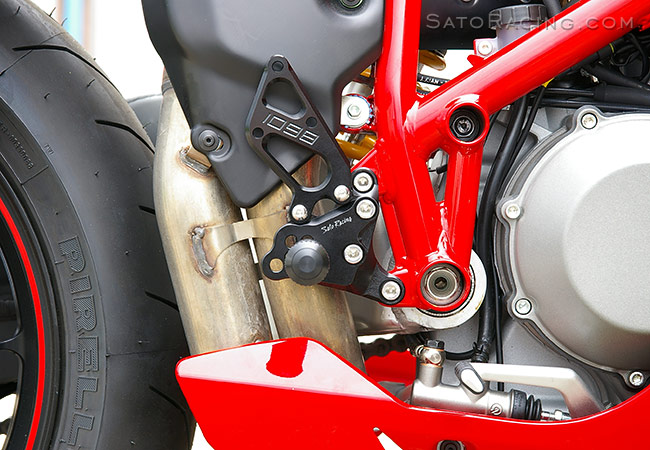

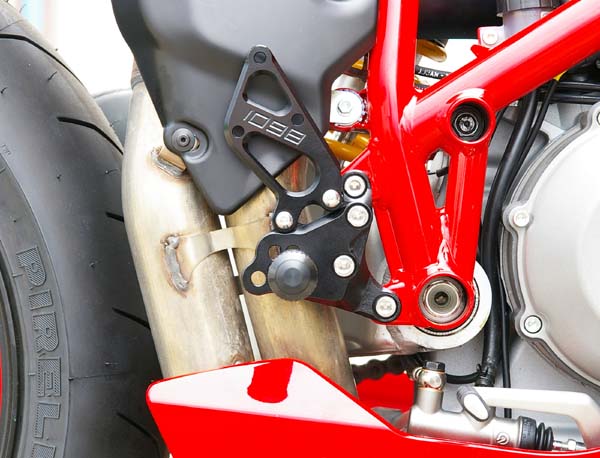

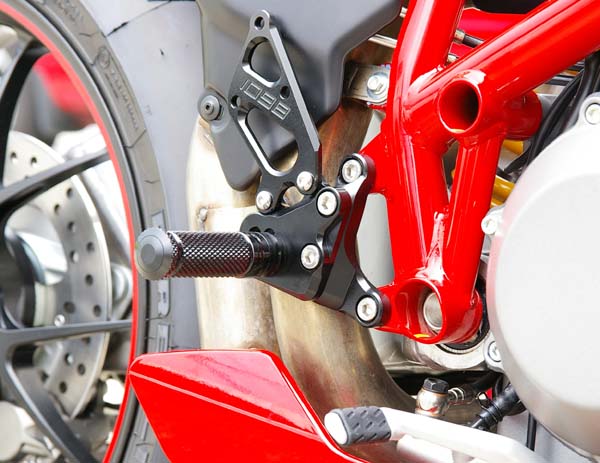

These 'Type1' Rear Sets can be used with the stock Ducati brake pedal,
or you can upgrade to a matching Sato Adjustable Brake Pedal.

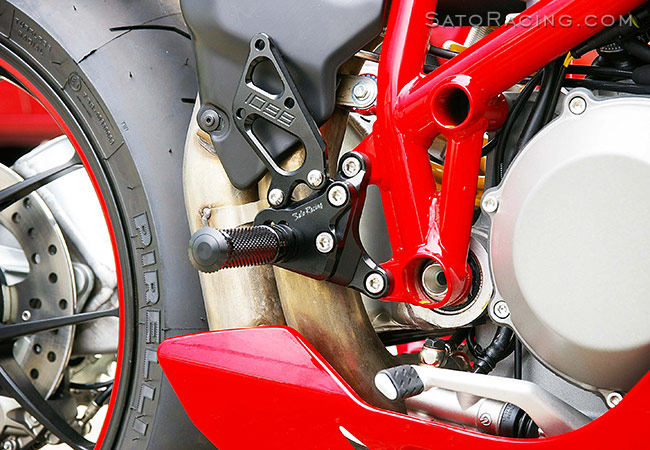

The positions of both the Step Plates and the Foot Pegs can be adjusted
several ways, so you can find the perfect postion for your riding style.

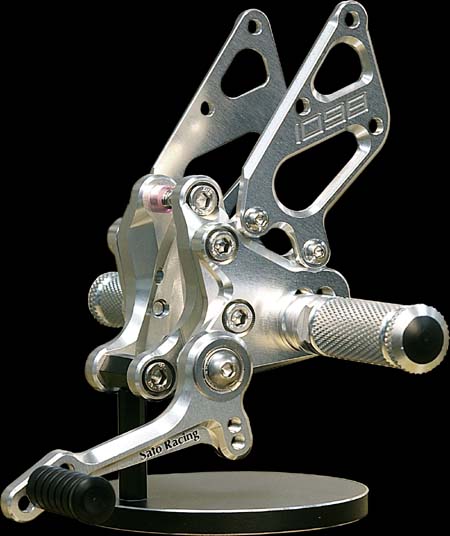

The shift pedal features double stainless bearings for smooth, precise movement.

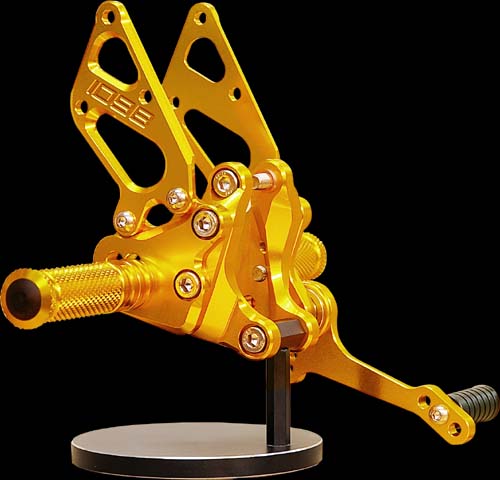

Deeply knurled footpegs provide excellent feel and great grip even in wet conditions.

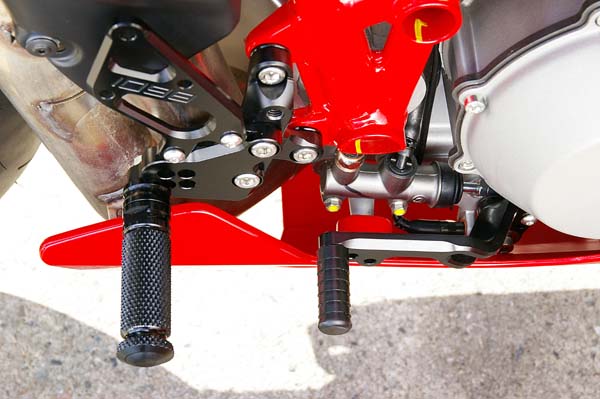

You can switch from stock shift to reverse (GP-style)
shift pattern by rotating the shift arm 180 degrees.



BLACK D-1098RS1-BK
$525
SILVER D-1098RS1-SV
$525
GOLD D-1098RS1-GD
$525


Also available: 1098 Type 2 Rear Sets (w/ integrated brake pedal)


OPTIONAL PARTS

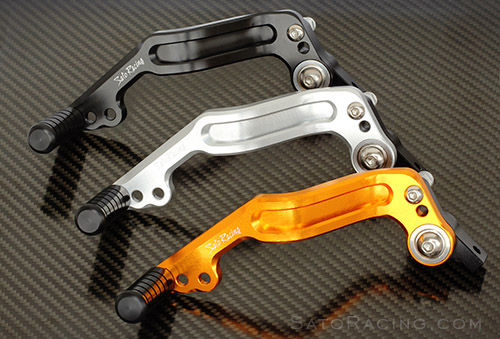

ADJUSTABLE BRAKE PEDAL KIT

This adjustable brake pedal assembly replaces the stock brake pedal on Ducati 1098-series. Made of anodized billet aluminum (choice of Black, Silver or Gold), with double stainless bearings for smooth, precise braking action. Pedal tip can be adjusted to 3 different positions. Works great with SATO RACING 'Type1' Rear Sets for Ducati 848/ 1098/ 1198.


Note: The brake pedal might touch the lower fairing when installed
with certain aftermarket exhaust systems and some positions.



BLACK D-1098BPD-BK
$155
SILVER D-1098BPD-SV
$155
GOLD D-1098BPD-GD
$155



SHIFT ARM

Reversible Shift Arm with 4 mounting positions*. Anodized billet aluminum in your choice of Black, Silver or Gold. Fits most recent Ducati models. Works with both standard and reverse (GP style) shift pattern setups. Can be used with SATO RACING Rear Sets or the stock Ducati rear sets.

The optional
Sato Rod End is necessary if you want to use the mount position closest to the spindle.


Kit includes bolt to attach rod end to shift arm. (use with stock lock nut)


SHIFT ARM

BLACK D-CA-BK
$65
SILVER D-CA-SV
$65
GOLD D-CA-GD
$65


ROD END (optional)

M6 MALE REVERSE
ROD END
RDED-M6L
$12.50



SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Rear Sets, or download the PDF:
Parts List
