KAWASAKI  ZX-10R  ('06-'07)
REAR SETS

SATO RACING Rear Sets for 2006-07 Kawasaki ZX-10R are precision CNC-machined from lightweight and high strength billet aluminum and anodized in your choice of Black or Gold finish, with stainless steel bolts. Modular step plate design lets you choose from 6 adjustable positions that can bring your feet up to 35mm higher compared to stock for a more aggressive riding position well-suited for spirited riding.

There is also a dedicated
Reverse Shift version of the Rear Sets for riders who prefer reverse (GP-style) shifting pattern.

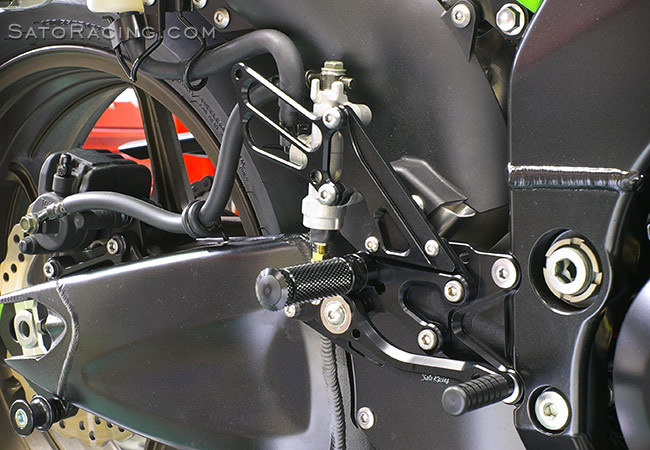

SATO RACING ZX-10R '06-'07 Rear Sets [R]-side in Black

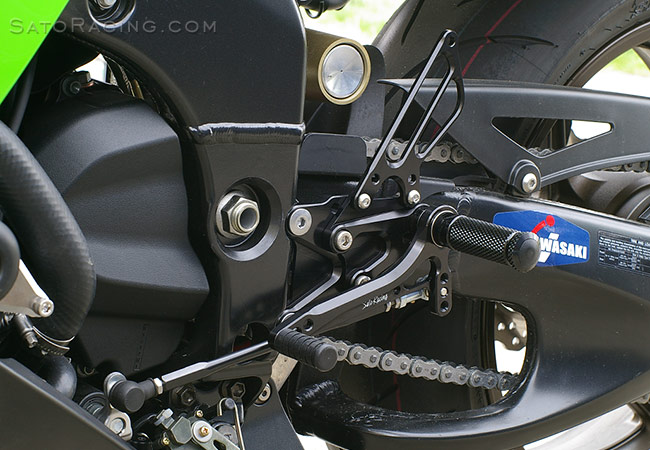

SATO RACING ZX-10R '06-'07 Rear Sets [L]-side in Black
REAR SETS (Stock Shift Pattern)


SATO RACING ZX-10R '06-'07 Reverse Shift Rear Sets [L]-side in Black

REVERSE SHIFT REAR SETS
(Shift Rod is also included)



POSITIONS

1 0 mm 15mm Up
2 0 mm 25mm Up
3 0 mm 35mm Up
4 10mm Back 25mm Up
5 10mm Back 35mm Up
6 20mm Back 35mm Up

note: all measurements are in relation to stock position (0 mm).



SATO RACING ZX-10R '06-'07 Rear Sets - brake side
The shift and brake pedals utilize double stainless bearings for smooth, precise pedal movement.

SATO RACING ZX-10R '06-'07 Rear Sets - brake side
The mount positions for the Step Plate, the Foot Peg and the Pedal Tip are individually adjustable.

SATO RACING ZX-10R '06-'07 Rear Sets - brake side
The Foot Pegs have a finely knurled pattern for excellent grip, along with a comfortable, intuitive
feel. A hydraulic brake light switch (not shown in these photos) is included with this Rear Sets kit.


SATO RACING ZX-10R '06-'07 Rear Sets - shifter side
The standard Pedal Tips are made of tough black Delrin plastic. Additional Pedal Tip styles,
such as aluminum Pedal Tips with fluted rubber sleeves, are an available option:  Details
(
Stock Shift Rear Sets shown above )

SATO RACING ZX-10R '06-'07 Rear Sets - shifter side
The clean, angular styling of our Rear Sets blends seamlessly with the lines of the bike.
(
Stock Shift Rear Sets shown above )

SATO RACING ZX-10R '06-'07 Reverse Shift Rear Sets
Reverse Shift Rear Sets have a GP-style shift pedal that provides a dedicated reverse shift pattern.




REAR SETS (Stock Shift Pattern)

BLACK K-ZX106RS-BK
$590
GOLD K-ZX106RS-GD
$590


REVERSE SHIFT REAR SETS
(NOTE: Reverse Shift Rear Sets are a special order
item - If not in stock, Contact us to place an order)

BLACK K-ZX106RSR-BK
$580
GOLD K-ZX106RSR-GD
$580

(Brake light switch included.)



Refurbished Rear Sets
(Demo or Returned Item. Like new, but may have some minor scratches.)

BLACK RFB-K-ZX106RS-BK
$415


Click Here for important info about Sato color-anodized parts.



OPTIONS



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list included
with your Sato Racing Rear Sets, or view the PDF:
 ZX10R  |  ZX10R Reverse Shift.


Some replacement parts for these Rear Sets
can be purchased in our online store:
(Part numbers correspond to the Stock Shift version unless otherwise specified)

PEG FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 12
(BK/ SV/ GD) (R-side #14)
PEGCLR-12
$15
HEX HEAD M8-45mm
(R-side peg bolt)
HBT-M845
$2.00
SPLIT WASHER M8
(R-side #22)
SWS-8
$1.20
STUD BOLT LONG (M8-65mm)
(L-side peg bolt)
STBT-L
$4.50
PEDAL TIP (DELRIN) ST-001D18
$15
BUTTON HEAD M6-20mm
(for Pedal Tip)
BBT-M620
$1.50
SBT-M815 SOCKET HEAD M8-15mm
(#2)
SBT-M815
$1.50
BBT-M610 BUTTON HEAD M6-10mm
(#3)
BBT-M610
$1.50
SOCKET HEAD M6-20mm
(L-side #5)
SBT-M620
$1.50
HG-3L [L] HEEL GUARD
(BK/ SV/ GD) (L-side #8)
HG-3L
$50
PEGBGCLR-10 PEG BEARING COLLAR 10
(BK/ SV/ GD) (L-side #9)
PEGBGCLR-10
$15.00
SRD180 SHIFT ROD 180
(BK/ SV/ GD) (L-side #11)
SRD-180
$39
RDED-F6 FEMALE ROD END M6
(L-side #14)
RDED-F6
$12.50
ROD END COLLAR 3
(L-side #15)
RDED-CLR3
$6.00
JNT-6 JAM NUT M6
(L-side #16)
JNT-6
$1.75
STUD-M6 STUD M6
(L-side #17)
STUD-M6
$2.50
PWS-8 PEG WASHER - M8
(L-side #18/ R-side #16)
PWS-8
$1.00
FLANGE NUT M8
(L-side #19)
FNT-8
$1.50
BBT-M615 BUTTON HEAD M6-15mm
(R-side #4)
BBT-M615
$1.50
BBT-M825 BUTTON HEAD M8-25mm
(R-side #6)
BBT-M825
$1.50
SBT-M635 SOCKET HEAD M6-35mm
(R-side #7)
SBT-M635
$1.75
SBT-M610 SOCKET HEAD M6-10mm
(R-side #9)
SBT-M610
$1.50
FEMALE ROD END 6-M8
(R-side #20)
RDED-F6-8
$25
LNT-6 LOCK NUT M6
(R-side #21)
LNT-6
$1.50
BSW-125 BRAKE LIGHT SWITCH
(P-1.25)

BSW-125
$25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
