H-D SPORTSTER S  ('22)
REAR SETS

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S (part# HD-SSTR22RS) features a heavy-duty, track-engineered design, with components precision machined out of high strength Black anodized billet aluminum, with stainless steel and chrome molybdenum fasteners. These premium foot controls provide 4 adjustable foot peg positions that sit significantly further back compared to the stock foot rests.

2 versions of this design are available: The standard version, which deletes the stock passenger pegs, and a 'Tandem Brackets' version, which includes brackets for attaching the passenger pegs.

Also check out our 'Racing Version' Rear Sets, which features a higher range of peg positions.

POSITIONS

1 462mm Back 12.5mm Down
2 454.5mm Back 3mm Down
3 475mm Back 0mm Up
4 469mm Back 7.5mm Up

note: all measurements are in relation to stock foot peg position (0 mm).

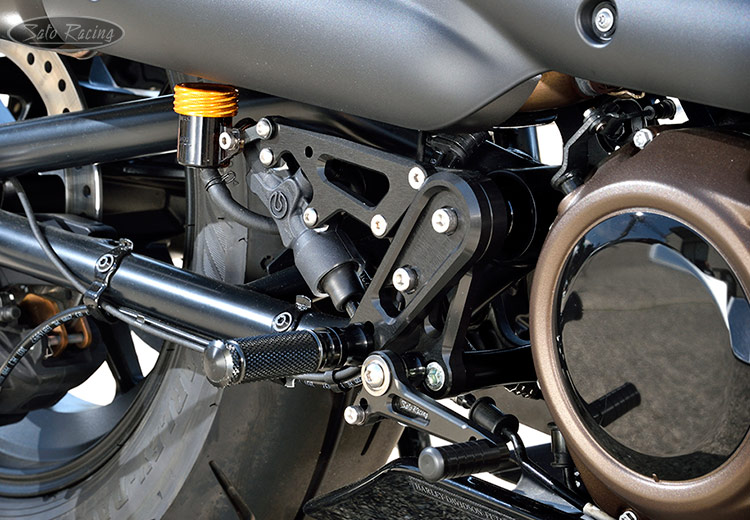

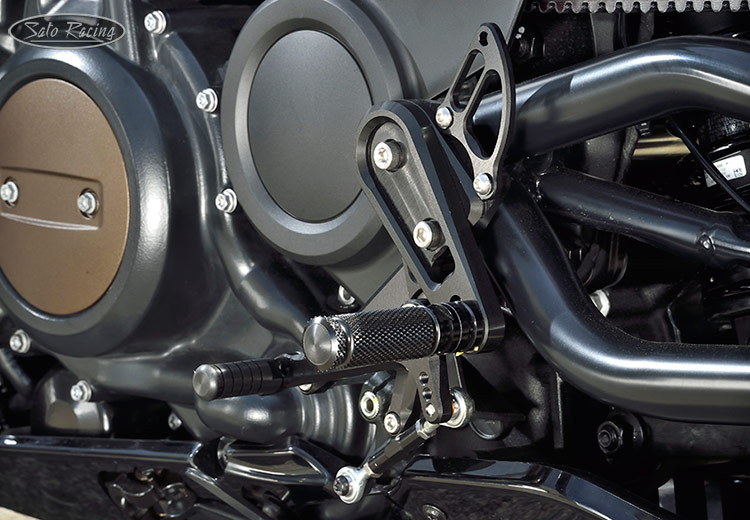

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S

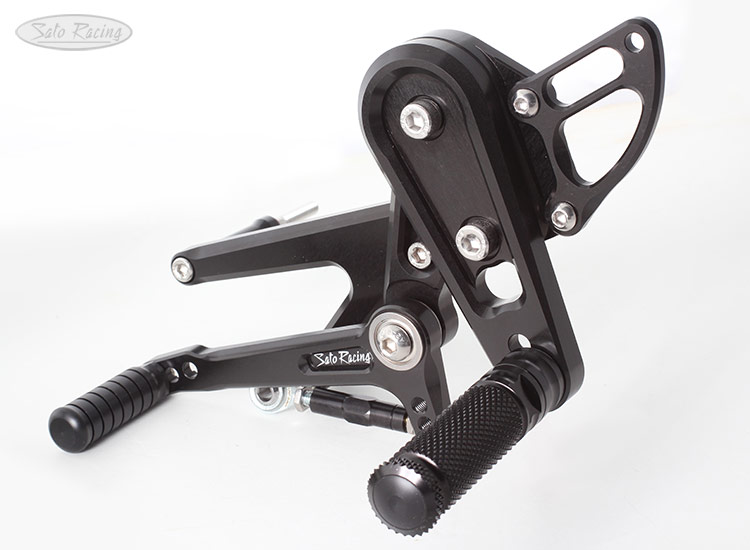

The Foot Pegs have a finely knurled pattern for non-slip grip and a comfortable, intuitive feel.
The position of the Foot Peg is adjustable 4 ways. The Pedal Tip position can also be adjusted.

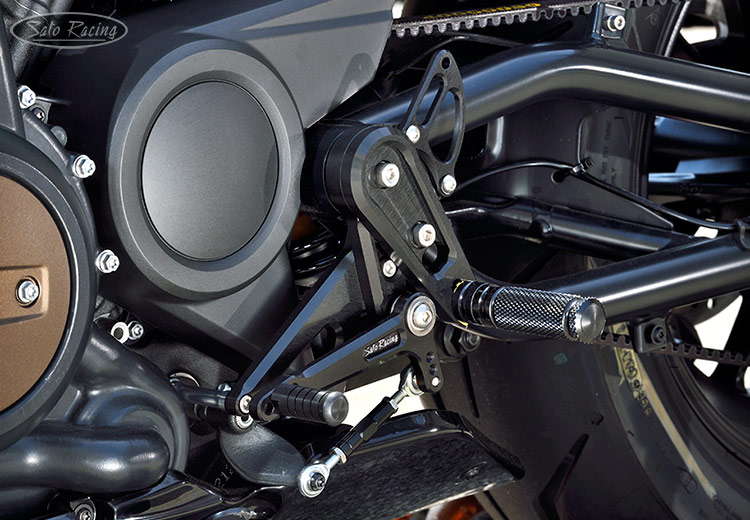

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S

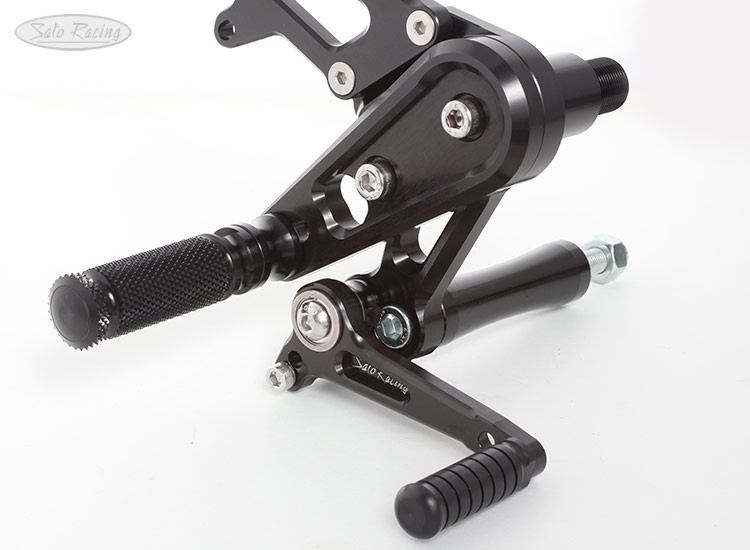

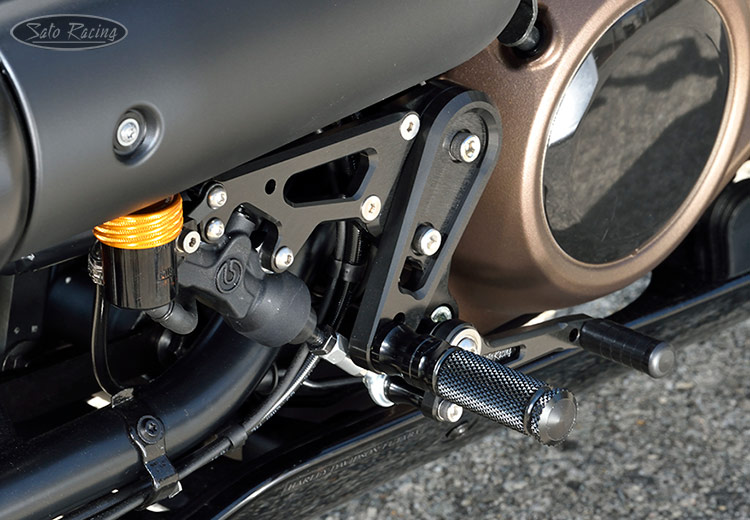

The Brake Pedal uses double miniature stainless bearings for smooth, precise braking feel. The brake
integrates with the OEM master cylinder and is fully compatible with the brake light switch and ABS.

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S

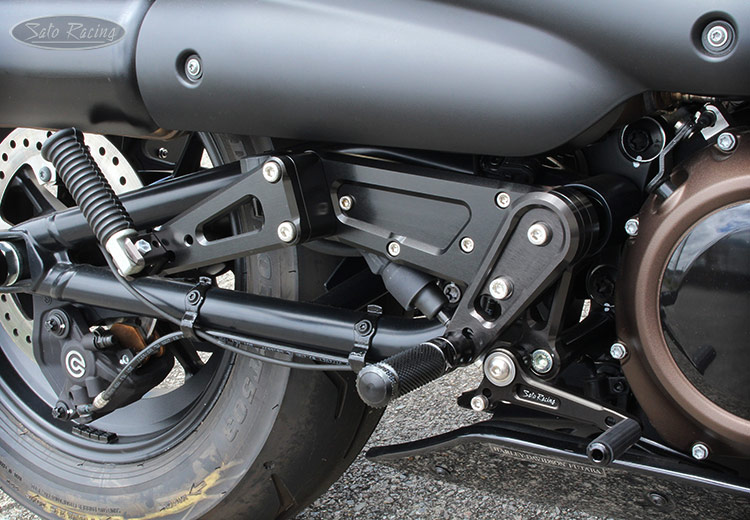

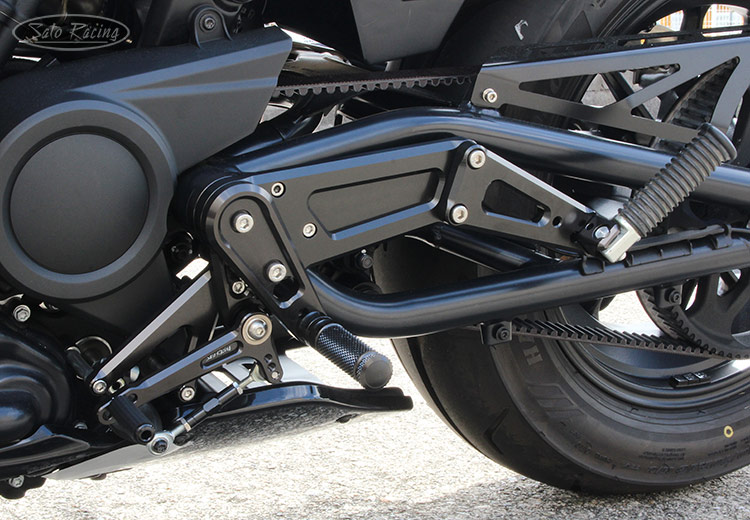

SATO RACING Rear Sets with Tandem Brackets for 2022 Harley-Davidson Sportster S
The standard version (part# HD-SSTR22RS-BK) eliminates the stock passenger pegs.
The 'Tandem Brackets' version shown above (part#
HD-SSTR22RST-BK) includes
integrated brackets that let you attach the OEM passenger pegs. (Available soon)

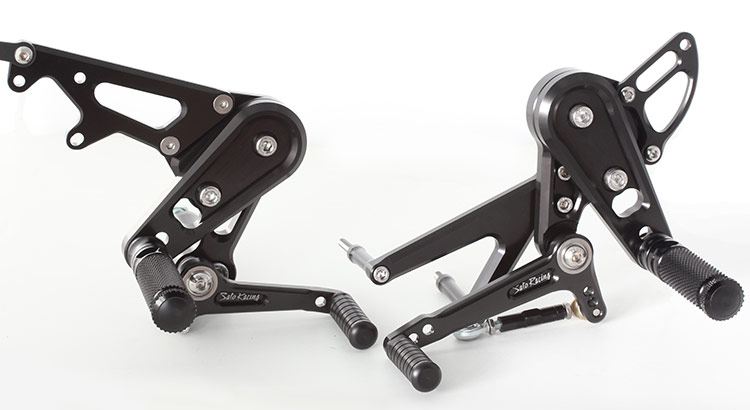

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S
(HD-SSTR22RS-BK)

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S

SATO RACING Rear Sets for 2022 Harley-Davidson Sportster S




Standard Rear Sets
(No Tandem Brackets)

BLACK HD-SSTR22RS-BK
$895


Rear Sets + Tandem Brackets
(Use with the stock passenger pegs)

BLACK HD-SSTR22RST-BK
$1295


Standard version now in stock.
'Tandem Brackets' version will be available Spring 2023.

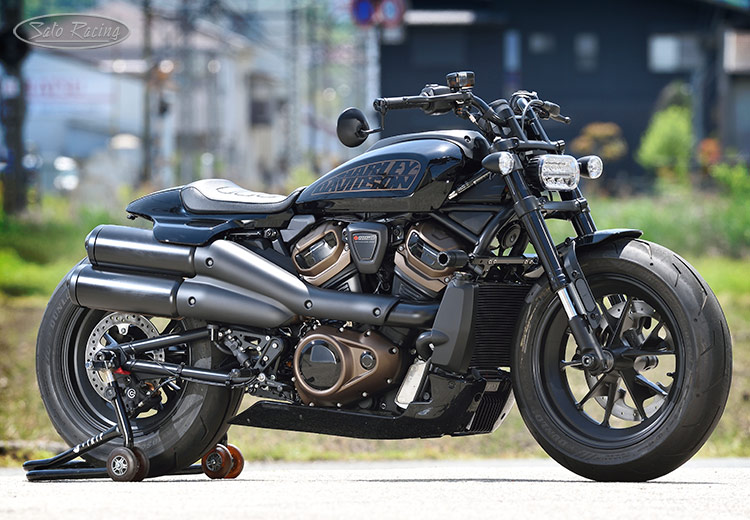

2022 Harley-Davidson Sportster S

Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)
