YAMAHA YZF-R1 ('02-'03)
REAR SETS

SATO RACING Rear Sets for 2002-03 Yamaha YZF-R1 features an extensively track-tested design, with components precision CNC-machined out of lightweight, high strength anodized billet aluminum. The shift and brake pedals utilize miniature double stainless bearings for smooth, precise lever action with a solid feel. Knurled foot pegs provide optimal grip, along with a comfortable, intuitive feel. Modular step plate design lets you choose from 8 adjustable foot peg positions, all higher than stock position. These Rear Sets can be set up for stock shift pattern or reverse shift pattern by changing the Shift Rod mounting position on the Shift Pedal. Choice of Black or Silver anodized finish.

POSITIONS

1	10mm Forward	10mm Up
2	10mm Forward	20mm Up
3	10mm Forward	30mm Up
4	0 mm Back	10mm Up
5	0 mm Back	20mm Up
6	0 mm Back	30mm Up
7	10mm Back	20mm Up
8	10mm Back	30mm Up

note: all measurements are in relation to stock position (0 mm).

NOTE: The following photos show the original version of our R1 Rear Sets.
The later version of these Rear Sets have an updated brake pedal design,
and include footpeg end caps, among other cosmetic differences.

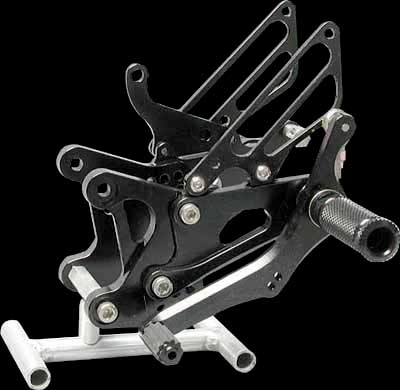

Sato Racing Yamaha YZF-R1 ('02-'03) Rear Sets [L]-side

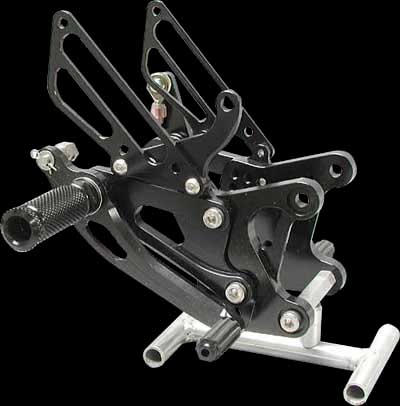

Sato Racing Yamaha YZF-R1 ('02-'03) Rear Sets [R]-side
(Shown with optional Aluminum Pedal Tips with Rubber Grips)

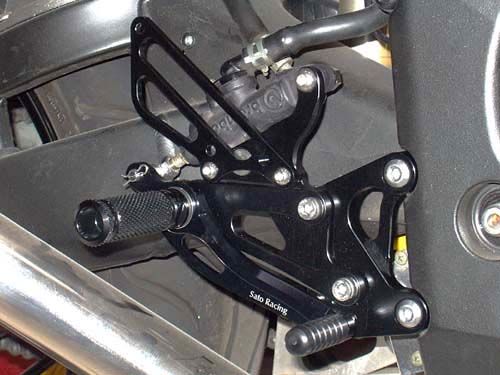

Sato Racing Yamaha YZF-R1 ('02-'03) Rear Sets [R]-side

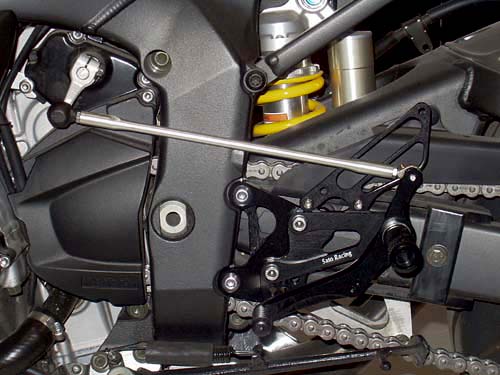

Sato Racing Yamaha YZF-R1 ('02-'03) Rear Sets [L]-side
(Stock Shift pattern)

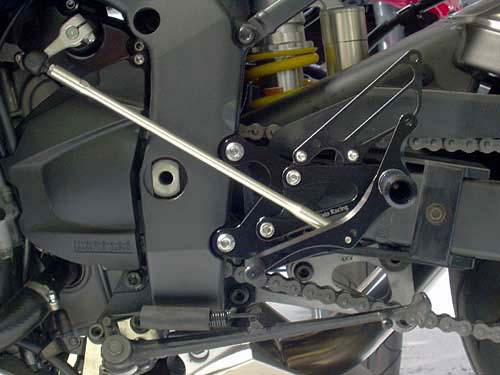

Sato Racing Yamaha YZF-R1 ('02-'03) Rear Sets [L] with reverse shift pattern
(Reverse Shift pattern)

BLACK	Y-R102RS-BK
SILVER	Y-R102RS-SV

THIS MODEL IS NO LONGER IN PRODUCTION AND HAS SOLD OUT.
SOME REPLACEMENT PARTS ARE STILL AVAILABLE.

OPTIONAL PARTS

REVERSE SHIFT PEDAL

This Reverse Shift Pedal is exclusively for the reverse shift pattern for all early YZF-R1 and R6 models, along with FZ1. If you plan on running this model only in reverse / 'race' shift pattern, you can replace the double-ended Shift Pedal included with the Rear Sets with this alternate version that eliminates the top extension.

R1 / R6 reverse shift pedal

rear sets with reverse shift pedal

BLACK	SPD-4B $85
SILVER	SPD-4S $85
GOLD	SPD-4G $85

Have questions or prefer to order by phone? You can call us to place an order -

REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF: Parts List

Some replacement parts for these Rear Sets
can be purchased in our Online Store:

	FOOT PEG (BK / SV / GD)	PEG $48
	STUD BOLT LONG (M8-65mm) (L-side peg bolt)	STBT-L $4.50
	STUD BOLT SHORT (M8-55mm) (R-side peg bolt)	STBT-S $4.50
	SOCKET HEAD M8-15mm (#2)	SBT-M815 $1.50
	BUTTON HEAD M6-10mm (#3)	BBT-M610 $1.50
	BUTTON HEAD M6-20mm (#4 / #5)	BBT-M620 $1.50
	PEG WASHER - M8 (L-side #7 / R-side #19)	PWS-8 $1.00
	PEDAL TIP (DELRIN) (#8)	ST-001D18 $16.50
	SHIFT PEDAL (BK / GD) (L-side #10)	SPD-3 $90
	[L] STEP PLATE (BK/ SV/ GD) (L-side #11)	Y-R1SP-L $115
	[L] HEEL GUARD (BK/ SV/ GD) (L-side #12)	HG-4L $60
	PEG BEARING COLLAR 12.5 (BK/ SV / GD) (L-side #13)	PEGBGCLR-125 $15
	M6 MALE REVERSE ROD END (L-side #14)	RDED-M6L $12.50
	ROD END COLLAR 3 (L-side #15)	RDED-CLR3 $6.00
	REVERSE JAM NUT M6 (L-side #16)	JNT-6L $2.50
	FLANGE NUT M8 (#17, for peg bolt)	FNT-8 $1.50
	BUTTON HEAD M6-15mm (R-side #3)	BBT-M615 $1.50
	BUTTON HEAD M8-30mm (R-side #4)	BBT-M830 $2.00
	BEARING COLLAR SUS (R-side #7)	BGCLR-SUS $6.50
	BRAKE PEDAL (R-side #10)	BPD-2 $80
	BRAKE ROD S35 (R-side #11)	BRD-S35 $13.50
	E-CLIP M6 (R-side #12)	ECP-6 $1.50
	[R] STEP PLATE (BK/ SV/ GD) (R-side #13)	Y-R1SP-R $115
	FLAT HEAD M8-30mm (R-side #15)	FBT-M830 $2.50
	PLAIN NUT M8 (R-side #16)	NUT-8 $1.00
	WASHER M6 (R-side #18)	WS-6 $1.00
	BRAKE LIGHT SWITCH (P-1.25)	BSW-125 $25

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
