YAMAHA MT-01  ('05 -'12)
REAR SETS

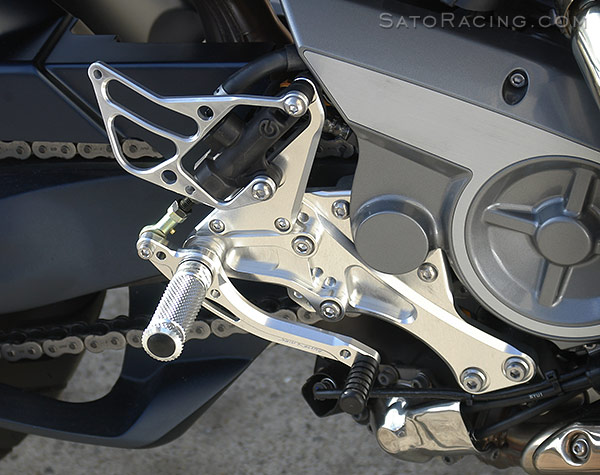

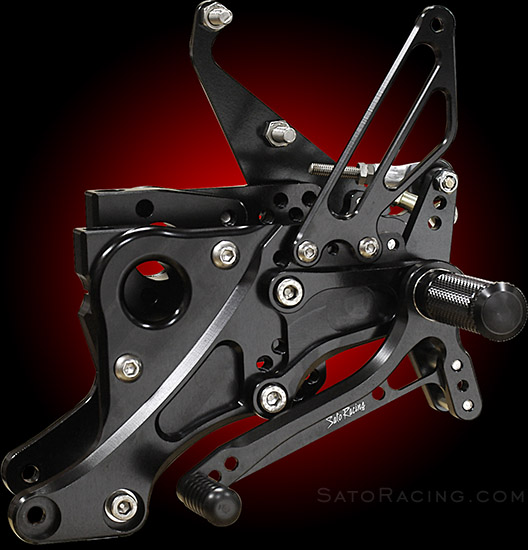

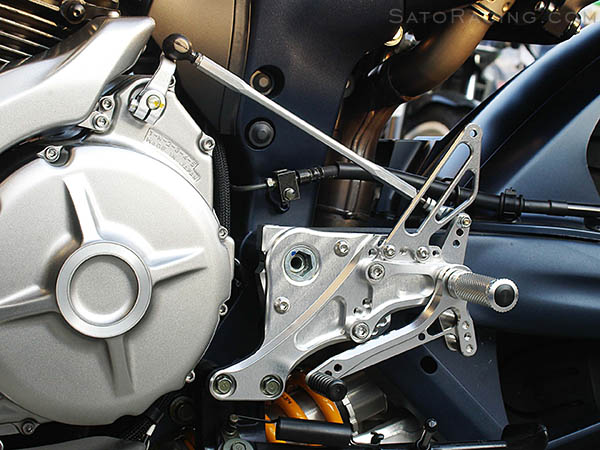

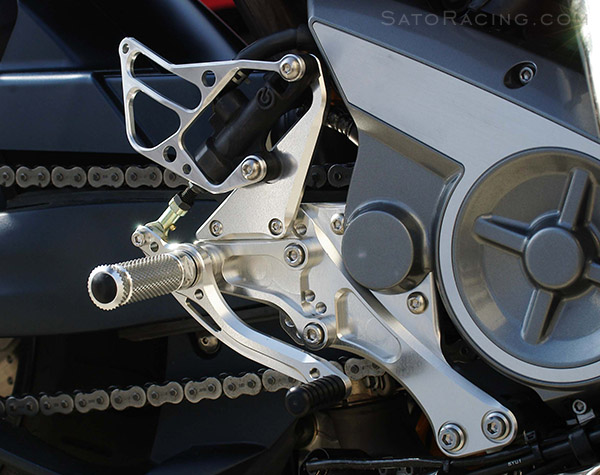

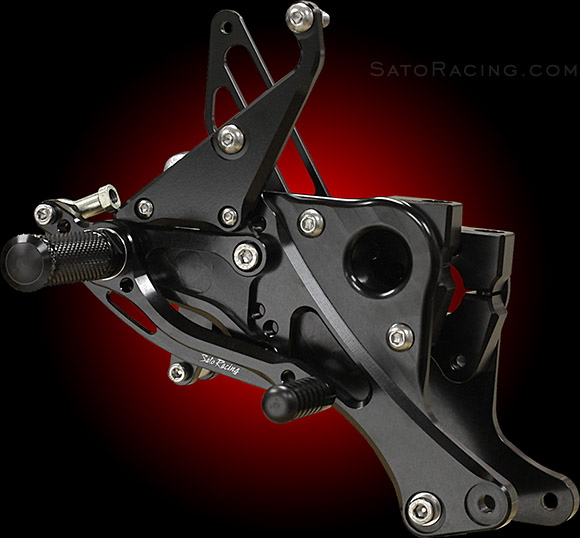

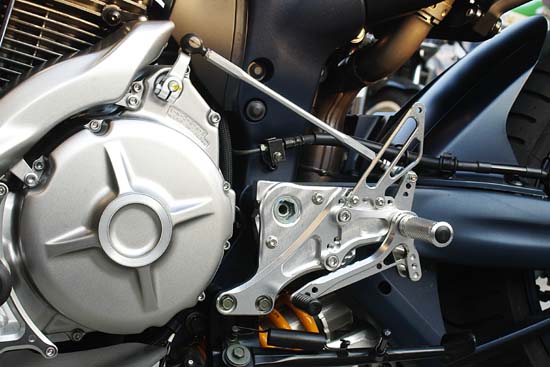

SATO RACING Rear Sets for Yamaha MT-01 (all years) are made of high grade billet aluminum anodized in your choice of deep Black or bright Silver (clear) finish. Modular step plate design provides 8 adjustable positions that place your feet higher and further back compared to stock, which can help to increase lean angle during aggressive cornering.

The standard Rear Sets are stock shift pattern only. For riders who prefer to use a reverse shifting pattern, we also make a dedicated
Reverse Shift version of these Rear Sets.

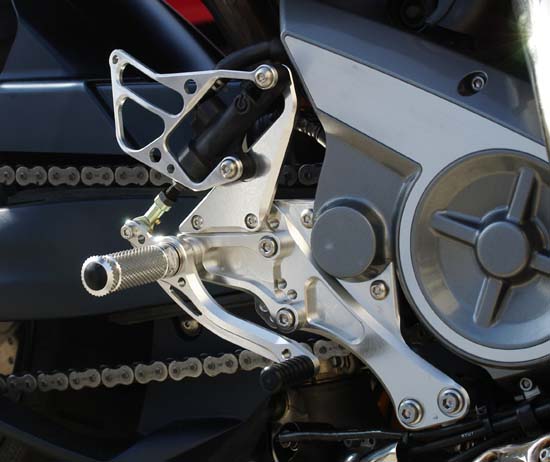

Brake side also includes matching heel guard (not pictured)



POSITIONS

1 12.5mm Back 27.5mm Up
2 12.5mm Back 42.5mm Up
3 20mm Back 35mm Up
4 20mm Back 50mm Up
5 27.5mm Back 27.5mm Up
6 27.5mm Back 42.5mm Up
7 35mm Back 35mm Up
8 35mm Back 50mm Up

note: all measurements are in relation to stock position (0 mm).




The shift and brake pedals utilize double stainless bearings for smooth, precise shift action.


Footpegs feature a finely knurled grip pattern with excellent non-slip characteristics.


The shift stroke can be adjusted by changing the mounting position of the shift rod.

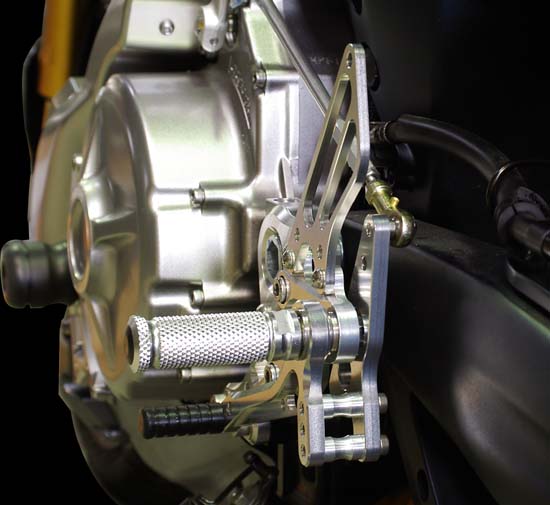

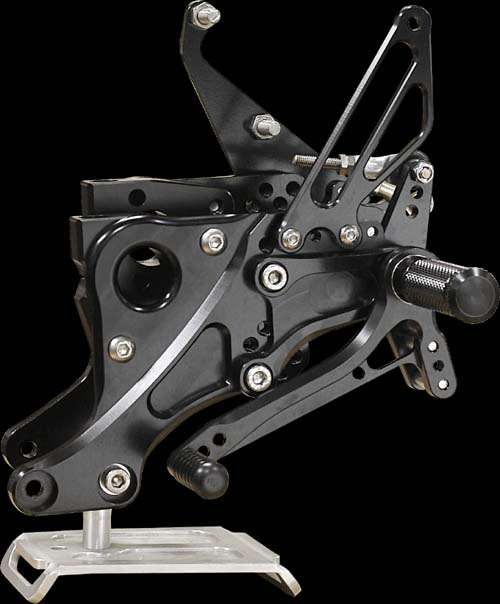

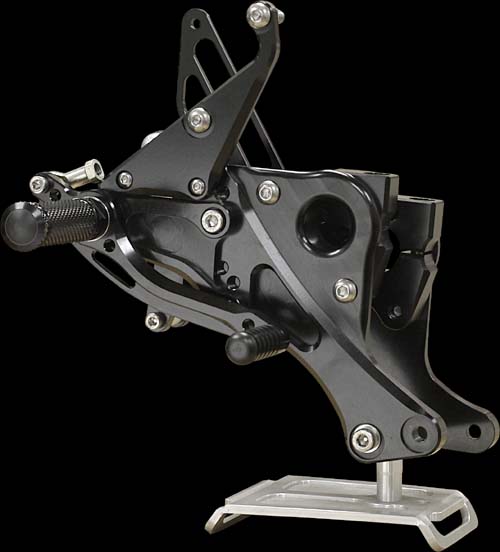

Reverse Shift Rear Sets give the MT-01 a GP-style reverse shift pattern.



Rear Sets - Stock Shift Pattern

BLACK Y-MT01RS-BK
$895
SILVER Y-MT01RS-SV
$895


Rear Sets - Reverse Shift Pattern

BLACK Y-MT01RSR-BK
$895
SILVER Y-MT01RSR-SV
$895

(Brake light switch is included in kit.)



(If you are outside the US and would like to purchase this part, Contact Sato Racing or one of our International Dealers to place your order.)


SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find out individual part names & numbers, see the illustrated parts list included with your
Sato Racing Rear Sets, or view the PDF:
 MT-01  |  MT-01 w/ Reverse Shift Pattern.
