YAMAHA FZ-07 / MT-07 ('14- )
REAR SETS

SATO RACING Rear Sets for 2014 and up Yamaha FZ-07 / MT-07 features a track-engineered design, with components precision CNC-machined out of light-weight, high strength billet aluminum with your choice of all-Black anodized finish, or Silver or Gold anodized finish with contrasting Black shift pedal assembly. You can select from 5 adjustable foot peg positions that bring your feet higher and further back compared to stock, helping you achieve a more aggressive, tucked-in body position well-suited for spirited riding. You can use these Rear Sets with the stock shifting pattern, or switch them to reverse (GP-style) shift pattern.

PEG POSITIONS

1 42.5mm Back
(1.7" Back)
25mm Up
(1" Up)
2 42.5mm Back
(1.7" Back)
35mm Up
(1.4" Up)
3 42.5mm Back
(1.7" Back)
45mm Up
(1.8" Up)
4 55mm Back
(2.2" Back)
35mm Up
(1.4" Up)
5 55mm Back
(2.2" Back)
45mm Up
(1.8" Up)

note: all measurements are in relation to stock position (0 mm).

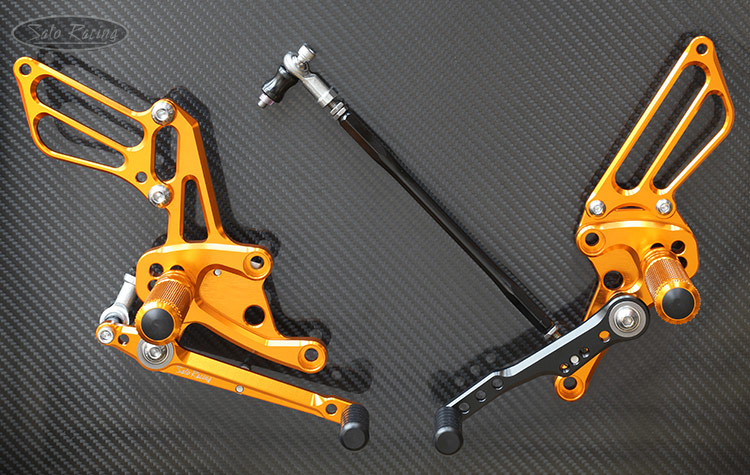

SATO RACING Rear Sets in Gold for Yamaha FZ-07 MT-07
Foot peg position is adjustable 5 ways. Pedal Tip position is also adjustable.

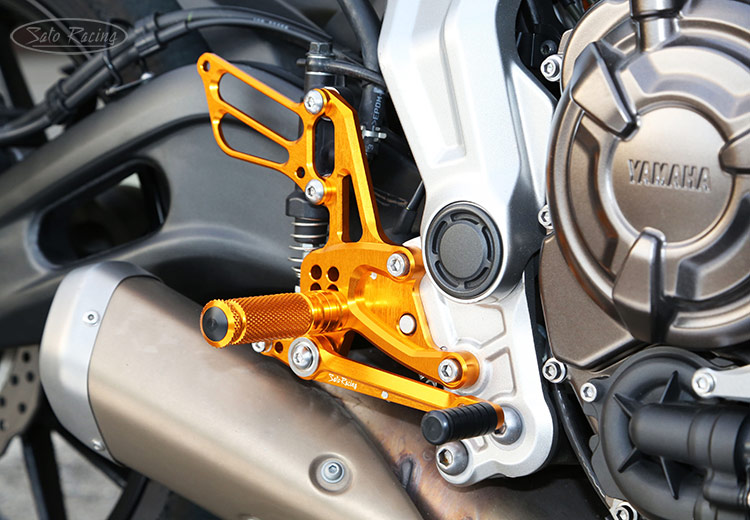

SATO RACING Rear Sets in Gold R-side for Yamaha FZ-07 MT-07
The shift and brake pedals use miniature double stainless bearings for smooth, precise lever action.

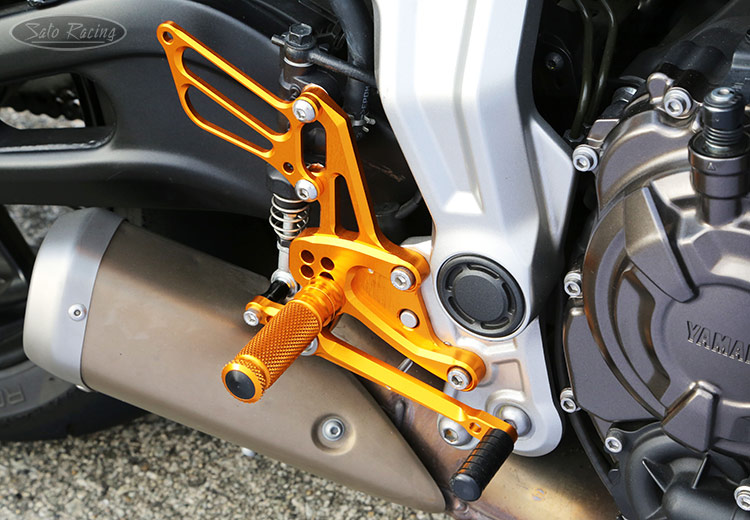

SATO RACING Rear Sets in Gold R-side for Yamaha FZ-07 MT-07
'Street'-friendly design - compatible with the stock brake light pull switch.

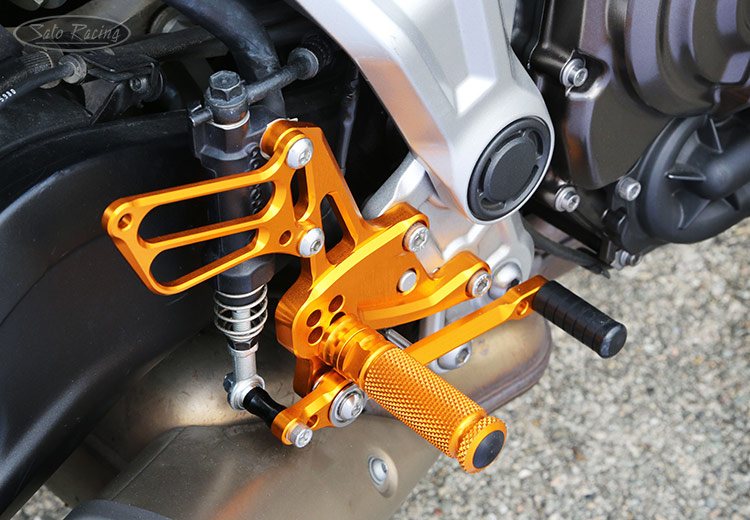

SATO RACING Rear Sets in Gold R-side for Yamaha FZ-07 MT-07
Foot pegs are finely knurled for excellent grip even in wet conditions.

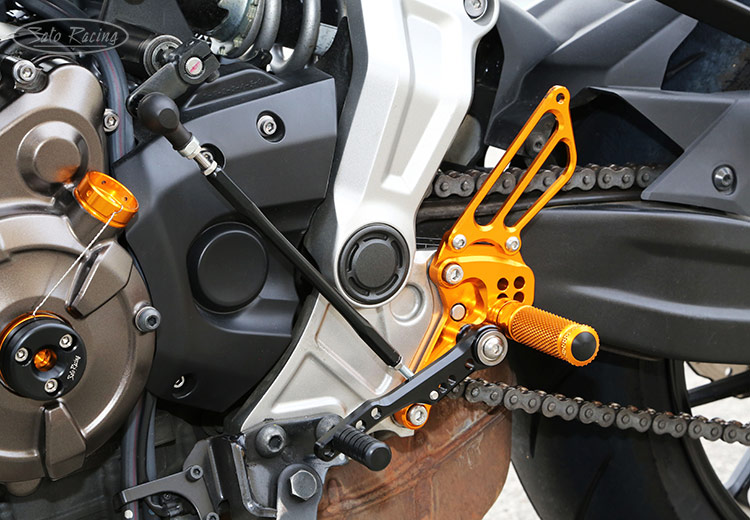

SATO RACING Rear Sets in Gold L-side for Yamaha FZ-07 MT-07
The shift pedal has multiple adjustment points for fine-tuning the shifter feel.
To change to reverse shift pattern, flip the change arm the opposite direction.
(The shifter components come in Black only.)

SATO RACING Rear Sets in Gold L-side for Yamaha FZ-07 MT-07




BLACK Y-MT07RS-BK
$550
SILVER
w/ Black Shift Pedal
Y-MT07RS-SV
$550
GOLD *
w/ Black Shift Pedal
Y-MT07RS-GD
$550

Click Here for important info about Sato color-anodized parts.


Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)

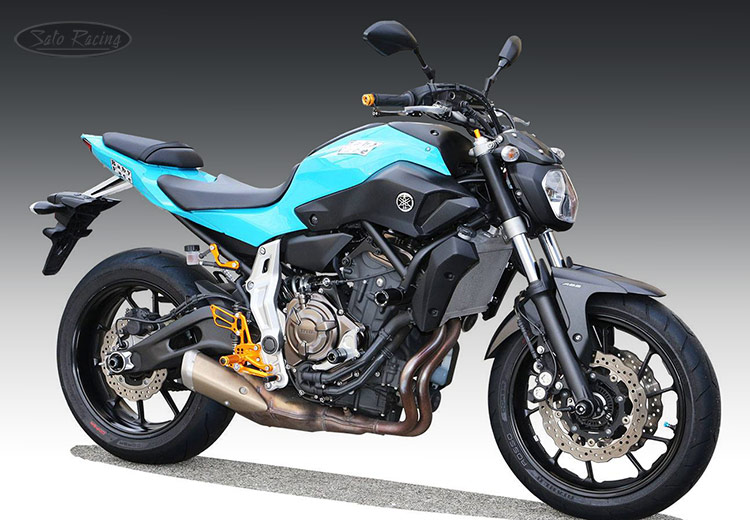

2014 Yamaha MT-07 with SATO RACING Rear Sets and other parts





OPTIONS



Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.




______________________________________________________________________________



PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.



------------------------------------------------------------------------------------------



FOOT PEG TOOL

SATO RACING PEG TOOL is an aluminum wrench designed specifically for use with Sato Racing Foot Pegs, giving you a way to hold the peg firmly when removing or tightening it without risking scratching the finish, such as might happen if using a regular steel wrench or pliers to grip the peg. This versatile tool has squared off sides so it can be held in a vice. This can be useful in certain situations, such as if you need to extract a stud from a peg. Made of high strength billet aluminum with a gold anodized finish.

NOTE: Fits SATO Foot Pegs made in the last 4 years or so. Most earlier Sato pegs will also fit with the wrench, but machining tolerances for the pegs were not as precise a few years ago, so we cannot guarantee compatibility with all our pegs.

SATO RACING Foot Peg Wrench



FOOT PEG TOOL
[GOLD]
TOOL-PEG
$45




Have questions or prefer to order by phone? You can call us to place an order -
Call us to place an order - 831-899-1822 (M-F 9am-5pm PST)



REPLACEMENT PARTS

SATO RACING offers a full selection of Replacement Parts for our Rear Sets.
* * * Contact us to place an order * * *

To find individual part names & numbers, see the illustrated parts list
included with your Sato Racing Rear Sets, or view the PDF:
Parts List


Some replacement parts for these Rear Sets
can be purchased in our online store:

FOOT PEG
(BK/ SV/ GD)
PEG
$42
PEG COLLAR 15
(BK/ SV/ GD) (#15)
PEGCLR-15
$15
SHIFT ROD 180 [BLACK]
(#6)
SRD-180B
$39
PEDAL TIP (DELRIN) ST-001D18
$15
ROD END COLLAR 20
(#12)
RDED-CLR20
$8.00
ROD END COLLAR 19
(#13)
RDED-CLR19
$8.00
BASE PLATE COLLAR 2
(#14)
BPCLR-2
$5.00
STUD BOLT M8-50mm
(#16, Foot Peg bolt)
STBT-50
$4.50
STUD M6
(#17)
STUD-M6
$2.50
HEX HEAD M6-18mm
(#19)
HBT-M618
$2.00
SOCKET HEAD M6-40mm
(#21)
SBT-M640
$2.00
SOCKET HEAD M6-45mm
(#22)
SBT-M645
$2.00
SOCKET HEAD M8-20mm
(#23)
SBT-M820
$1.50
BUTTON HEAD M6-10mm
(#24)
BBT-M610
$1.50
BUTTON HEAD M6-20mm
(#25, for Pedal Tip)
BBT-M620
$1.50
BUTTON HEAD M8-25mm
#26
BBT-M825
$1.50
BUTTON HEAD M8-40mm
(#27)
BBT-M840
$2.00
NUT M5   (#28) NUT-5
$1.50
JAM NUT M6
(#29)
JNT-6
$1.75
REVERSE JAM NUT M6
(#30)
JNT-6L
$2.50
LOCK NUT M6
(#31)
LNT-6
$1.50
FLANGE NUT M8
(#32)
FNT-8
$1.50
M6 MALE
REVERSE ROD END

(#33)
RDED-M6L
$12.50
FEMALE ROD END 6-M8
(#34)
RDED-F6-8
$25
RETURN SPRING 40
(#36)
RS-RSP
$8.00

(For replacement parts not listed on our website, contact Sato Racing for an estimate.)
