KTM  1290 SUPER DUKE GT ('16-'20)
REAR SETS

SATO RACING Rear Sets for 2016-20 KTM 1290 Super Duke GT features precision machined billet aluminum components with stainlesss steel fasteners. Provides 4 adjustable foot peg positions in a range that brings your feet up higher compared to stock, for a more performance oriented riding position. Choice of Black or Gold anodized finish.

NOTE: Although this Rear Sets model was primarily designed for the GT, it will also fit the 2014-19 Super Duke R, providing a less rearward set of positions compared to our R-specific Rear Sets.

POSITIONS

1 10mm Forward 25mm Up
2 10mm Forward 37.5mm Up
3 2.5mm Back 25mm Up
4 2.5mm Back 37.5mm Up

note: all measurements are in relation to stock position (0 mm).

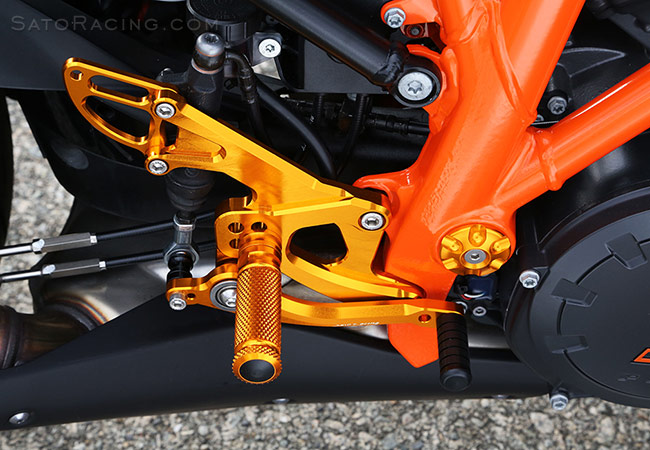

SATO RACING KTM 1290 Super Duke GT Rear Sets [R]-side
The shift and brake pedals have double stainless bearings
for smooth, precise lever action with a solid, quality feel.

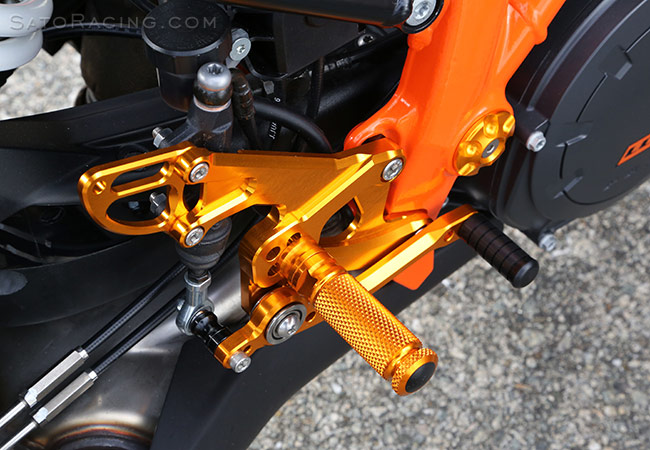

SATO RACING KTM 1290 Super Duke GT Rear Sets [R]-side
Foot Pegs feature a finely knurled pattern for a comfortable feel along with excellent grip.
The standard Pedal Tips are made of tough Delrin. We also offer other Pedal Tip options,
including Rubber-sleeved aluminum Pedal Tips. Click Here for details.

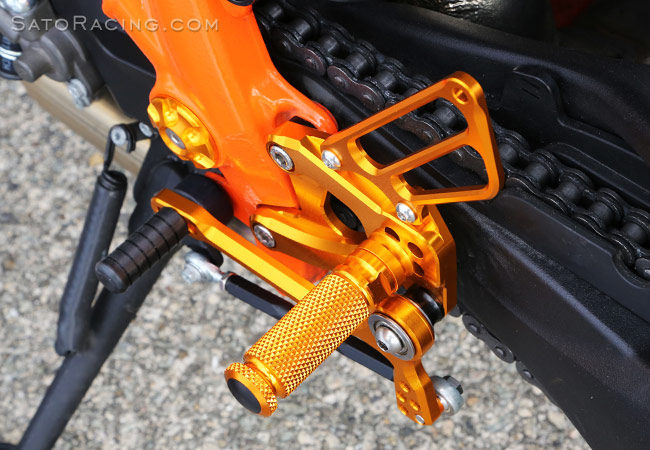

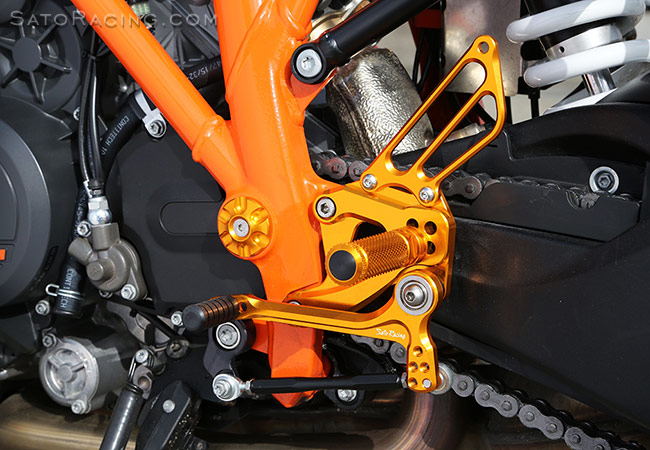

SATO RACING KTM 1290 Super Duke GT Rear Sets [L]-side
The multiple adjustment holes on the shift pedal let you fine-tune the shift stroke.

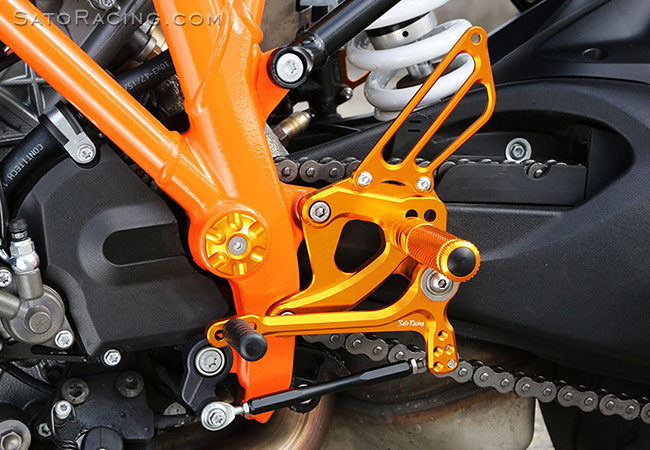

SATO RACING KTM 1290 Super Duke GT Rear Sets [L]-side

SATO RACING KTM 1290 Super Duke GT Rear Sets [L]-side
These Rear Sets provide a stock shifting pattern.
Reverse shift pattern is not an option for this model.



BLACK KTM-1290GTRS-BK
$545
GOLD KTM-1290GTRS-GD
$545



* Click Here for important info about Sato color-anodized parts.




OPTIONS




Cutout-style FOOT PEG

This super-lightweight anodized billet aluminum peg for competition use* features a rectangular-motif grip pattern. An End Cap made of abrasion-resistant black Delrin is included.

* NOTE: Due to the lightweight hollowed-out design, these pegs are intended for track use only. Not recommended for heavier riders or stunting purposes.


Race Concept Cutout-style FOOT PEG (Sold individually)

BLACK RCPEG-BK
$48
GOLD RCPEG-GD
$48

Click Here for important info about Sato color-anodized parts.





PEDAL TIPS


Pedal Tips for SATO RACING Rear Sets

SATO RACING offers several optional styles of Pedal Tips (toe pegs) in addition the long-style black DELRIN Pedal Tips that come standard with most of our Rear Sets (part# ST-001D18 in the photo above). We also have Short-style DELRIN tips, along with Black or Gold anodized aluminum Pedal Tips with fluted rubber grips.
Click Here for details.
